HORPOL CUBE LED Rear Multi-Function Lamp – Black Frame – LZD2877

Horpol CUBE LZD 2877 LED Rear Multi-Function Lamp – Black Frame – 12/24 V

The Horpol CUBE LZD 2877 is a rear LED combination lamp for trucks, trailers, semi-trailers, agricultural machinery and specialist vehicles. It combines rear position, brake and indicator functions in one compact unit, providing a coordinated solution for these three rear lighting requirements.

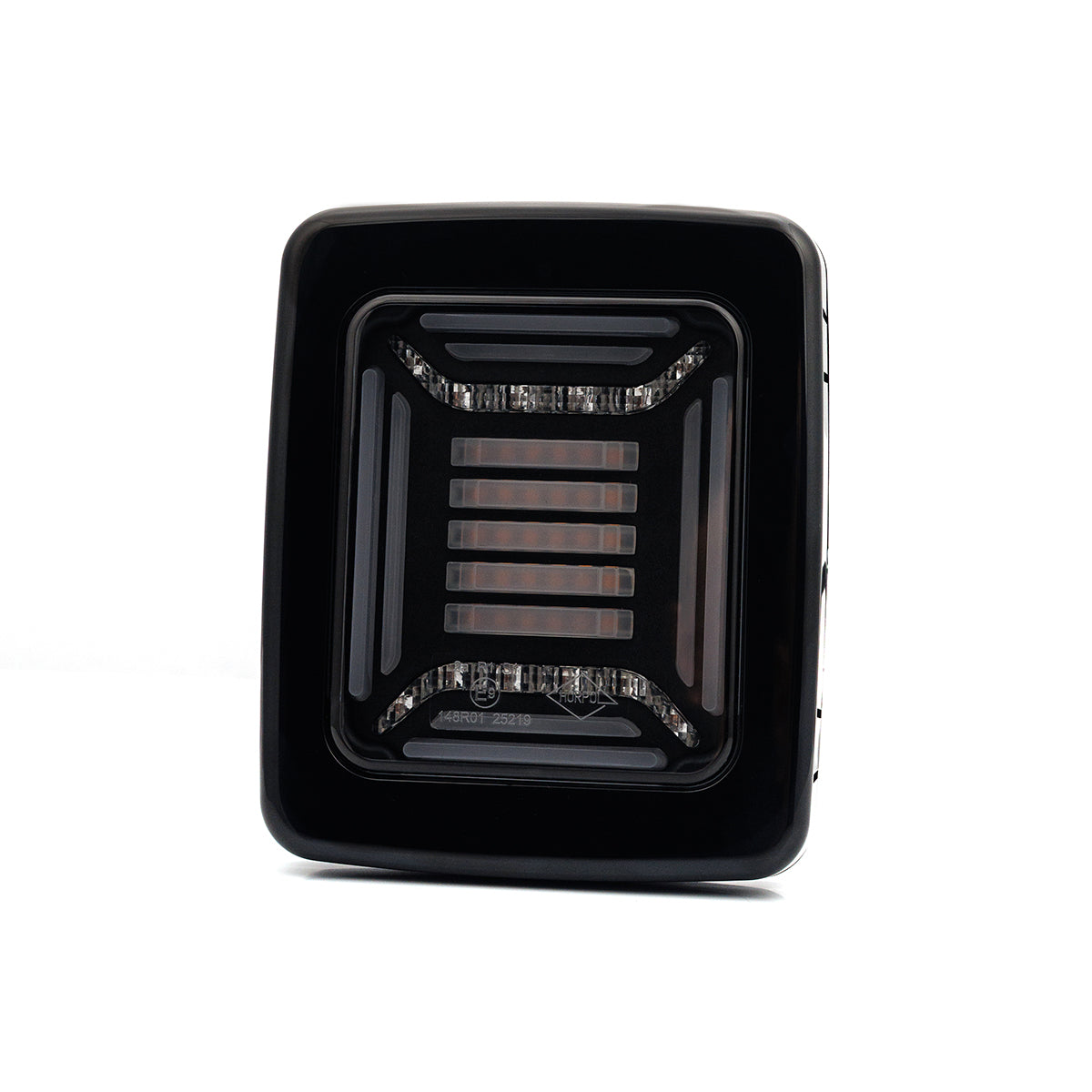

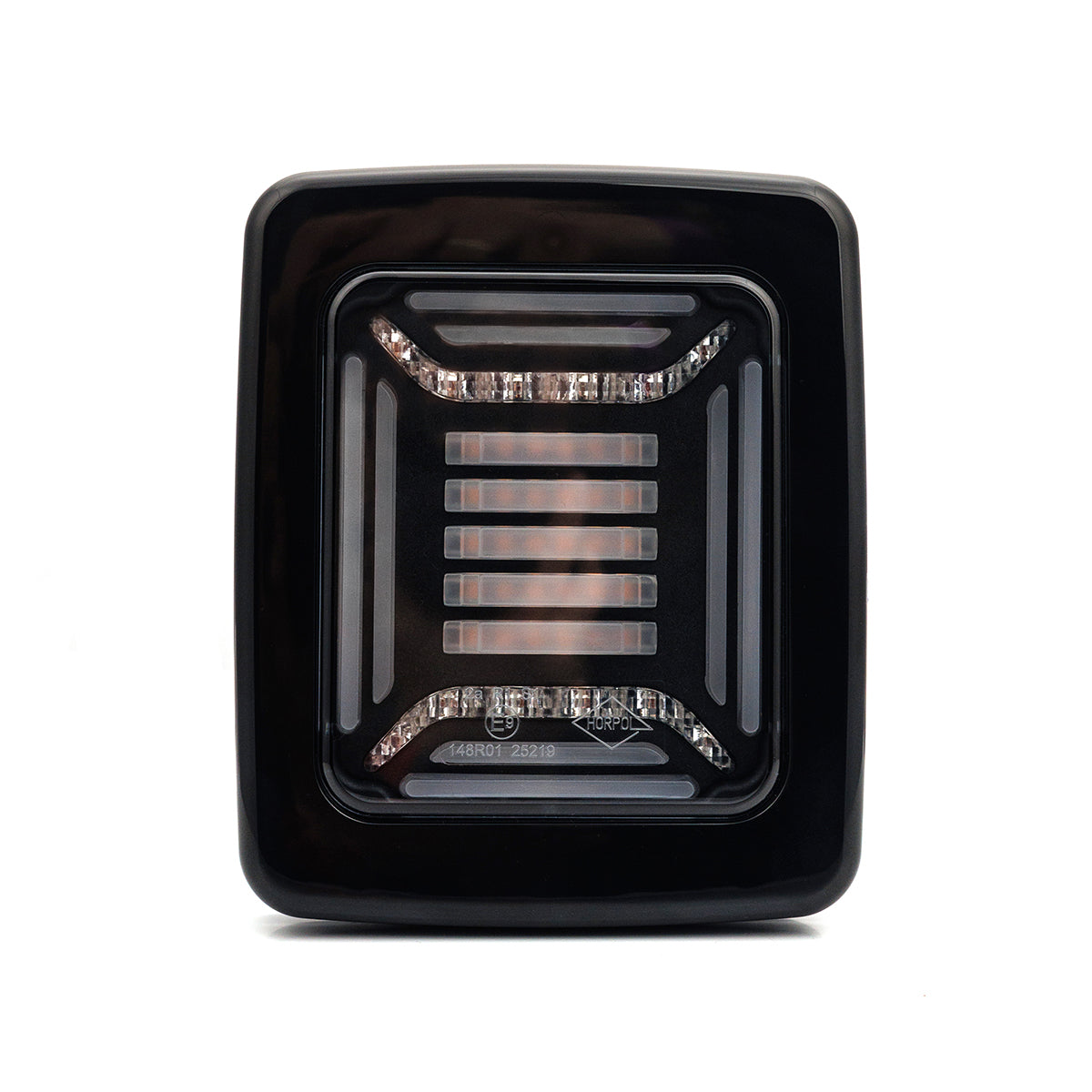

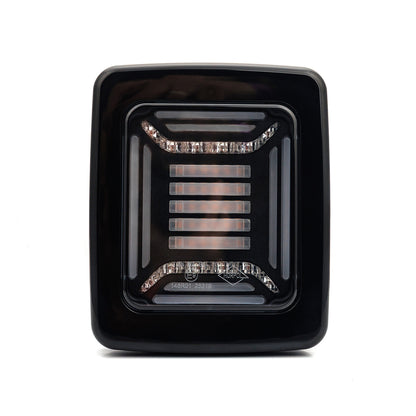

Featuring an angular NEON light pattern, horizontal LED strips and a lightly tinted lens, the LZD 2877 offers a distinctive appearance within its black frame. Its 98 LEDs combine the visual styling of the CUBE range with separately connected lighting functions for everyday vehicle use.

The universal design allows installation on either side of the vehicle, horizontally or vertically. The lamp can be fitted with or without its outer frame, while an included spacer frame assists mounting on flat surfaces. A one-metre connection cable and 12/24 V compatibility provide practical options when planning the installation.

Key Features:

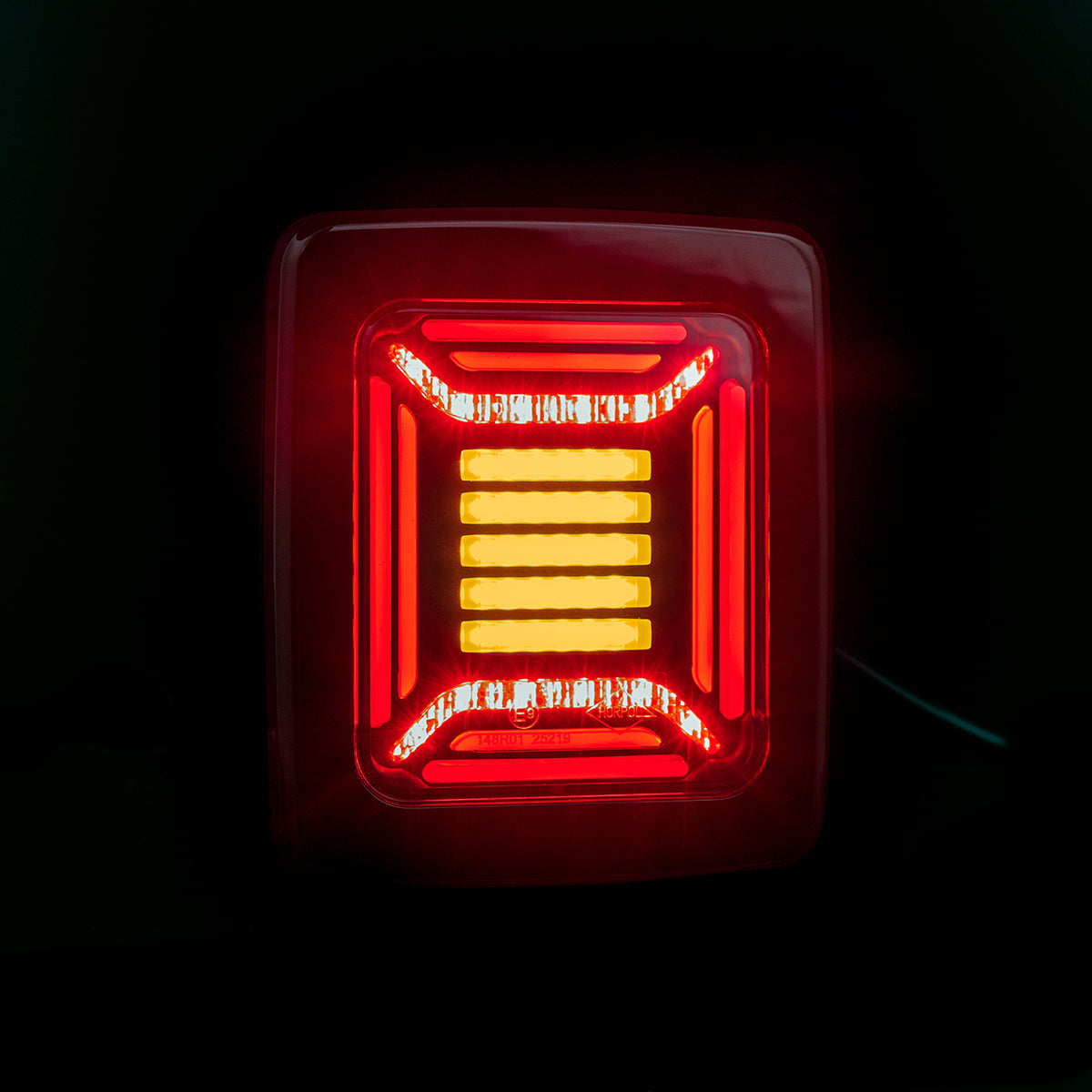

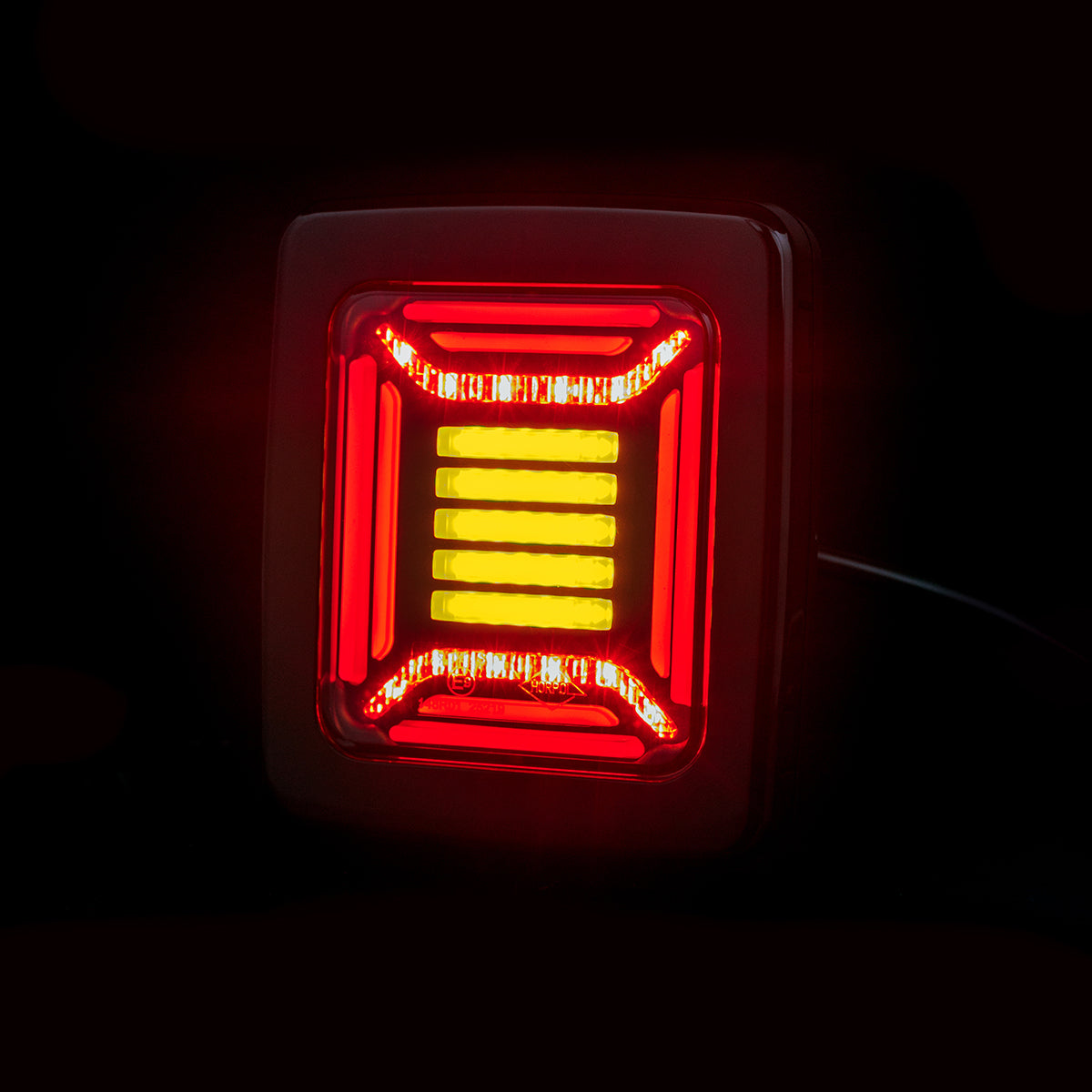

Three Rear Lighting Functions: Combines NEON rear position lighting, brake lighting and a rear indicator in one unit, helping create a compact and coordinated rear lamp arrangement.

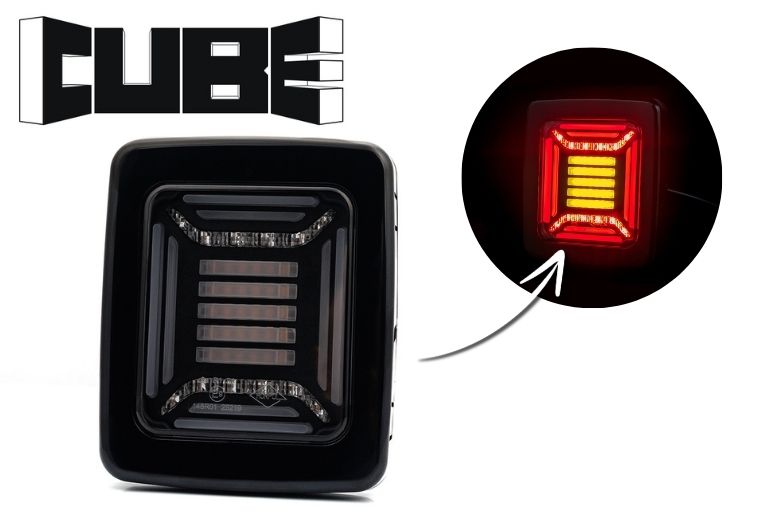

Distinctive CUBE Styling: Angular NEON lines, horizontal LED strips and a lightly tinted lens give the lamp a modern appearance, finished with a black outer frame.

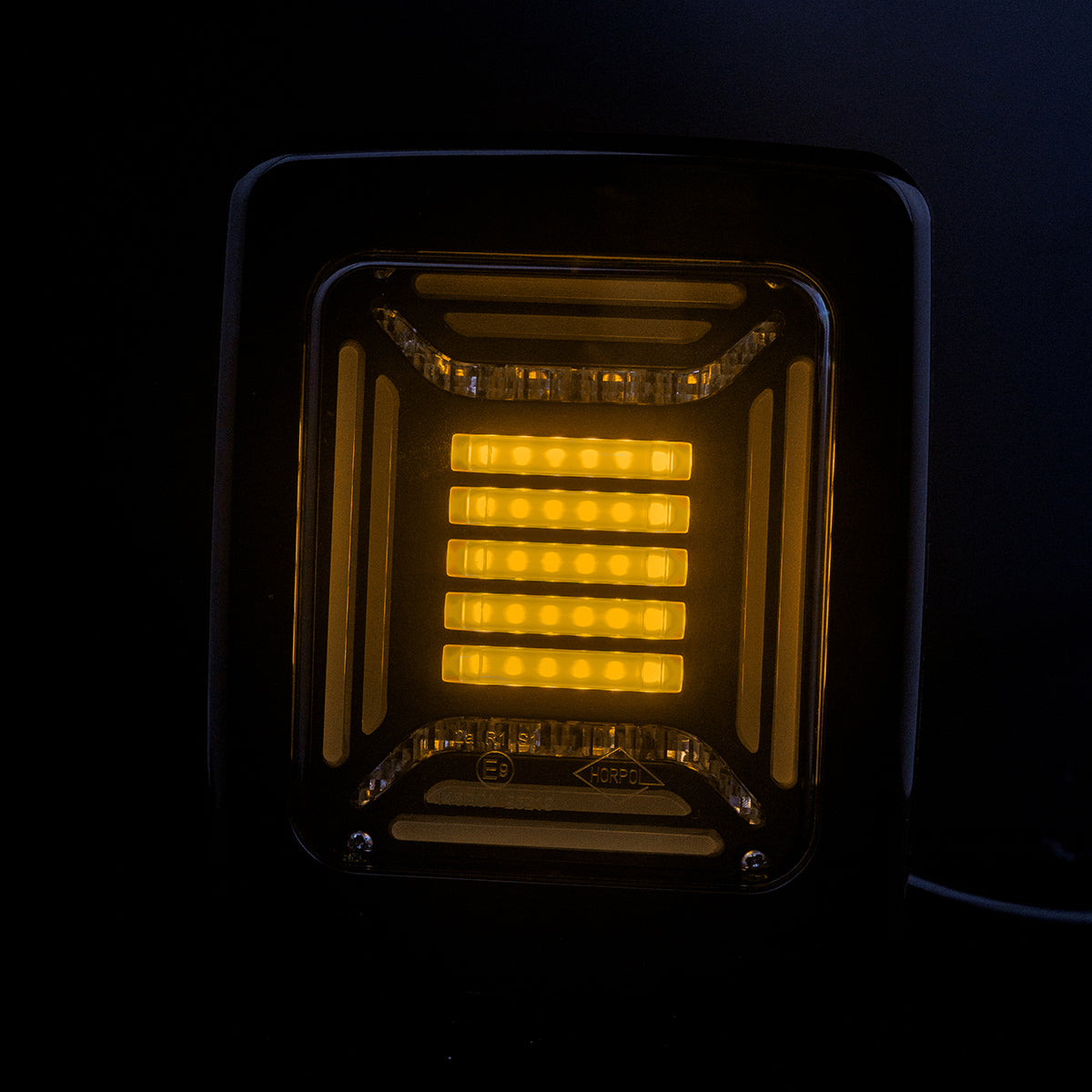

Optional Progressive Indicator Effect: When two, three or four lamps are installed side by side, the additional blue wire enables a progressive indicator sequence. Connect the lamps according to HORPOL’s wiring diagram for the intended effect.

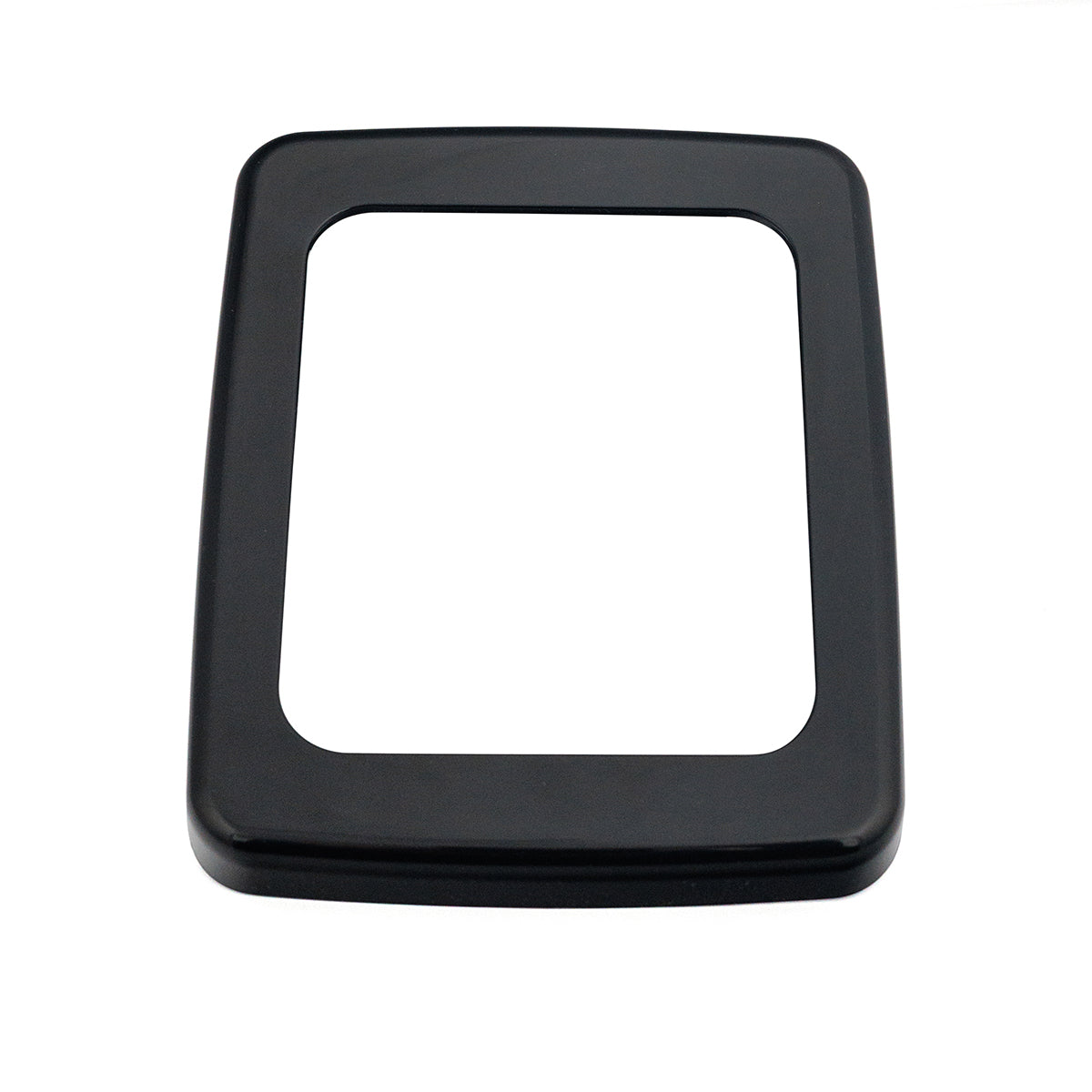

Flexible Mounting: Universal left- or right-side fitment with horizontal or vertical installation options. The outer frame can be retained or removed to suit the required finish.

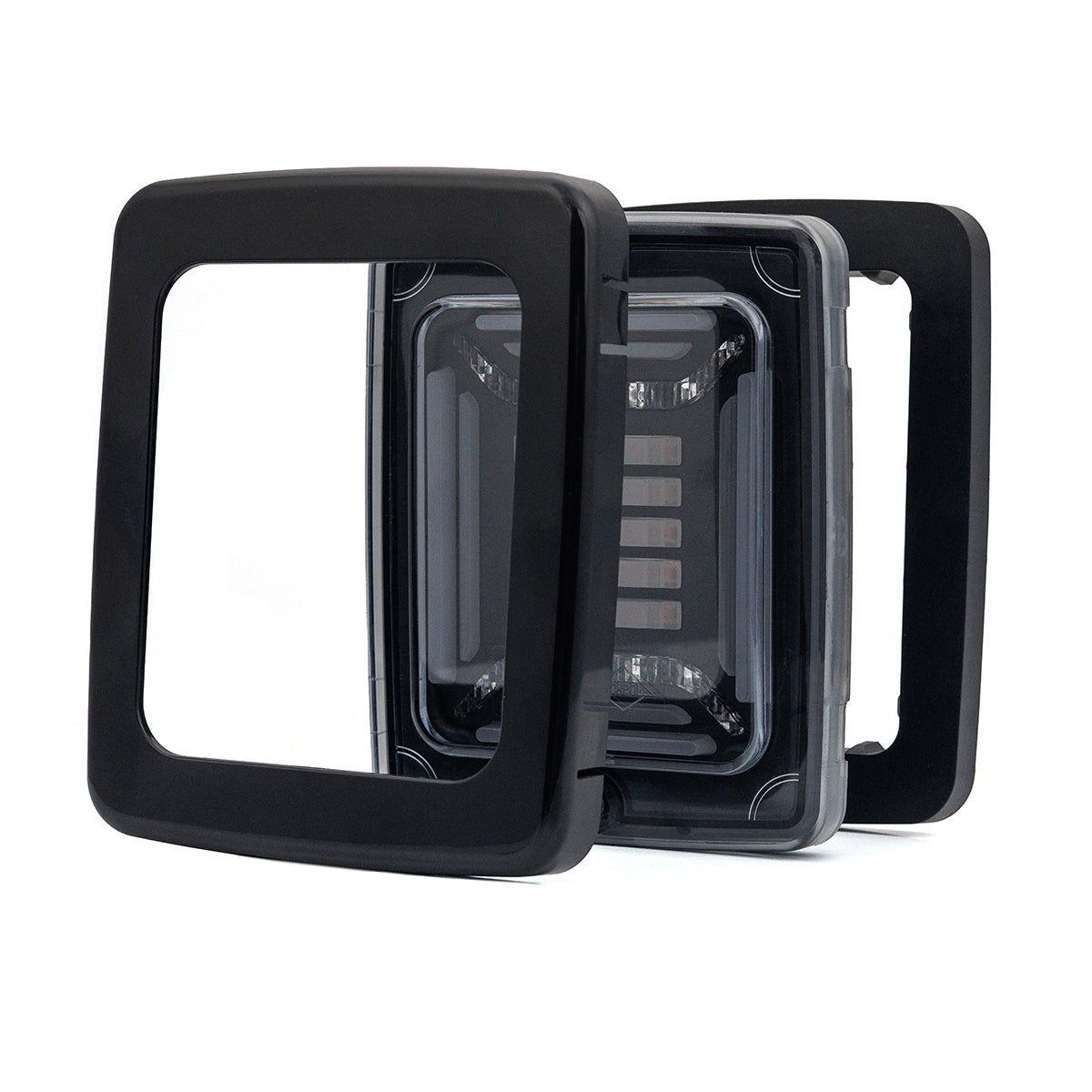

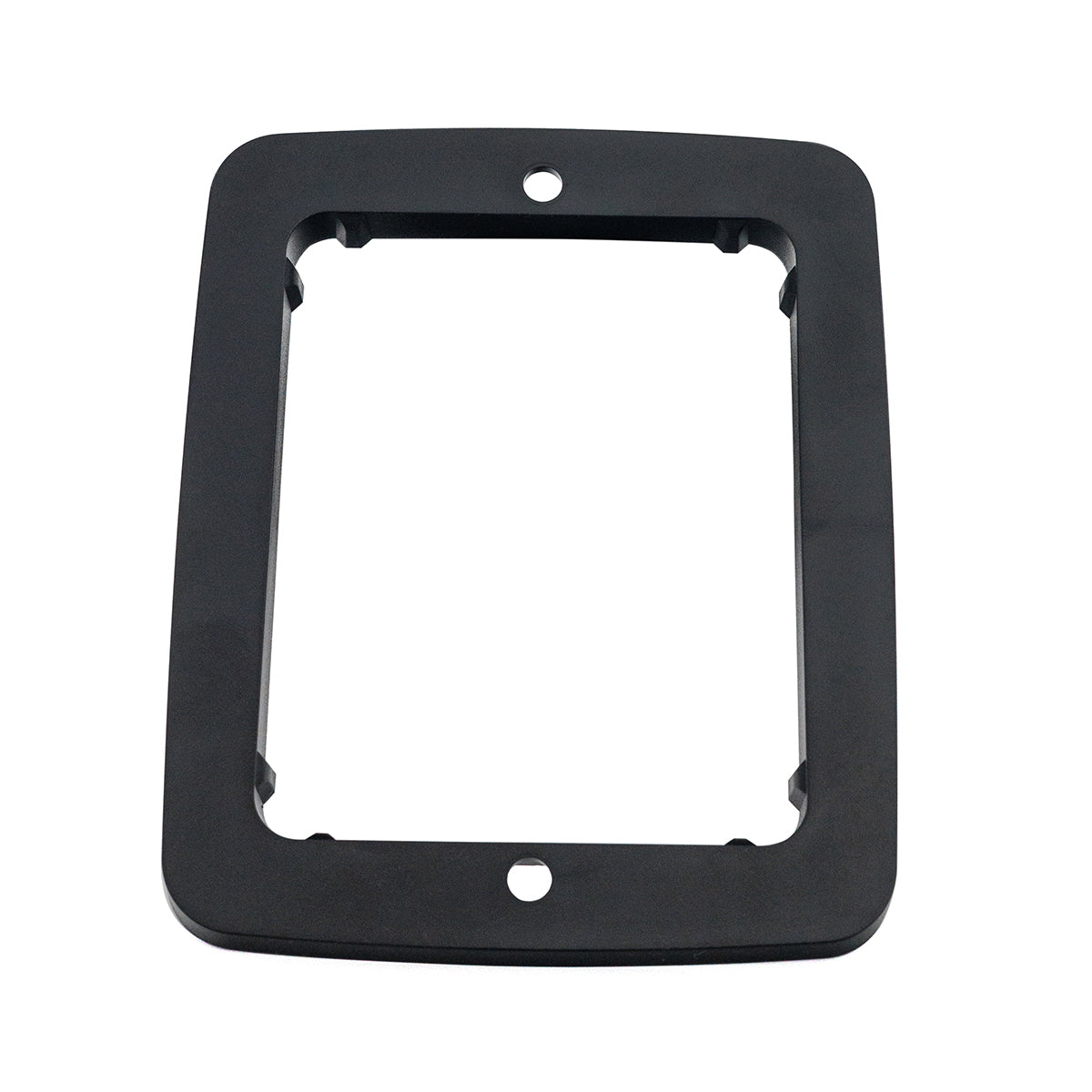

Spacer Frame Included: Supplied with a spacer frame to assist installation on flat surfaces and help adapt the mounting arrangement to the vehicle body.

98 LEDs & Dual-Voltage Supply: Designed for 12 V or 24 V electrical systems, with separate connections for the position light, brake light and indicator.

Weather Protection: IP68 protection against dust and water ingress, with a specified operating temperature range of –30°C to +50°C.

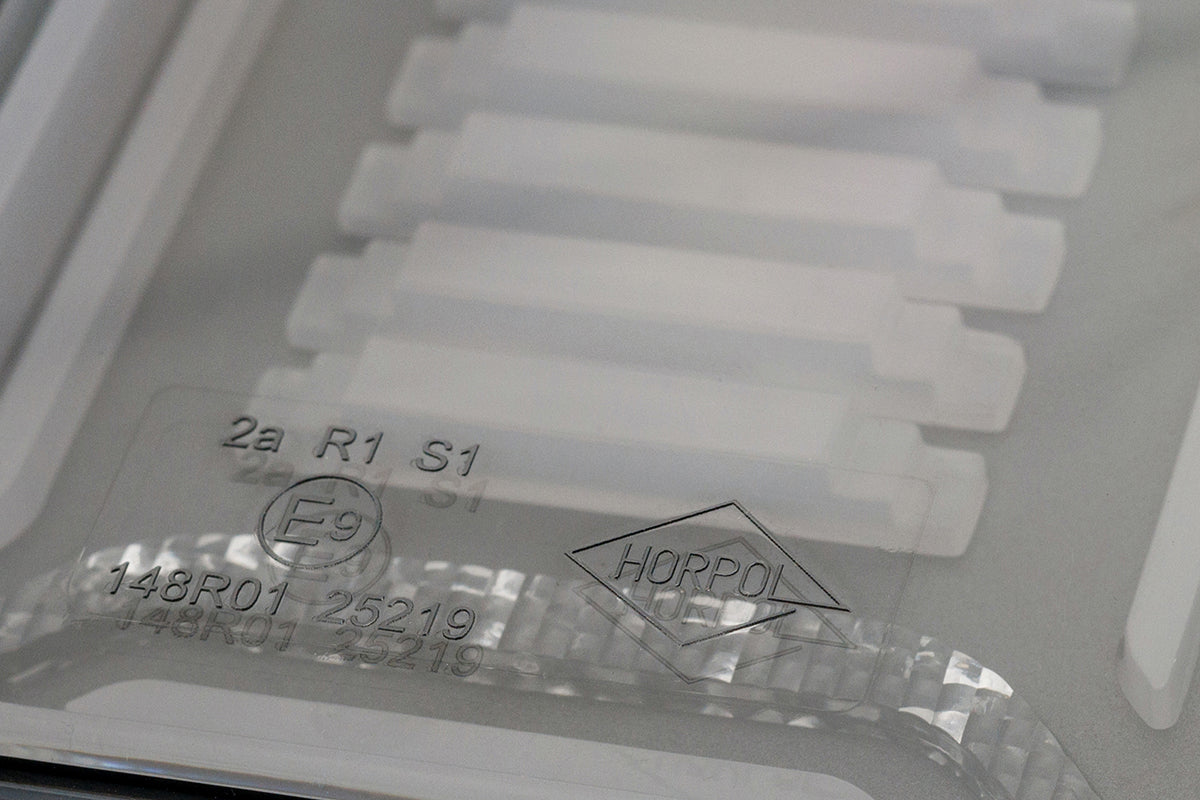

Approvals & Manufacture: Holds R148 and R10 approvals, including electromagnetic compatibility requirements. Designed and manufactured in Poland by HORPOL.

Specifications:

Model: LZD 2877
Range: CUBE
Light Group: HOR 164
Light Category: Multifunction Rear
LED Light: Yes
LED Quantity: 98 LEDs

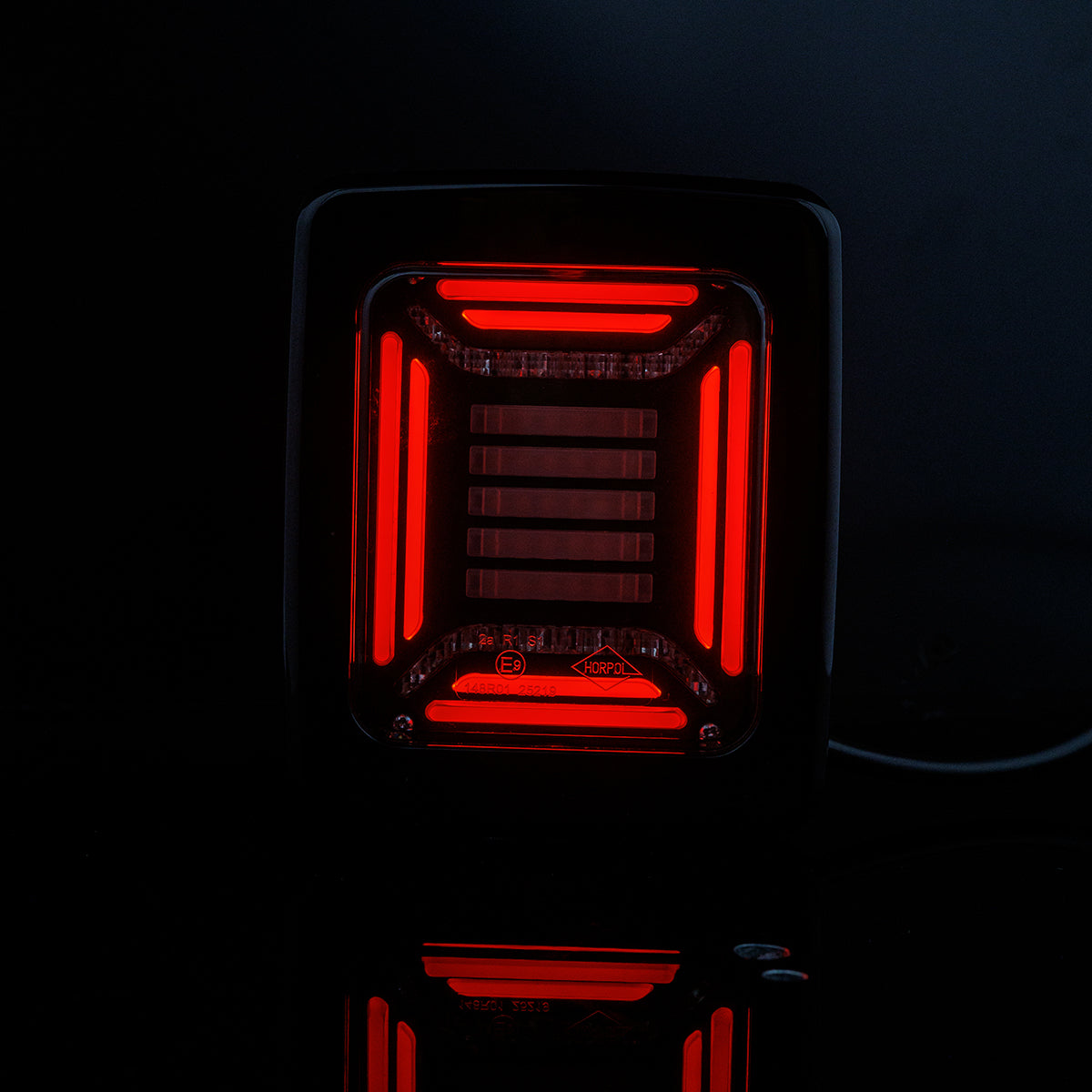

Rear Position Light: Yes – NEON

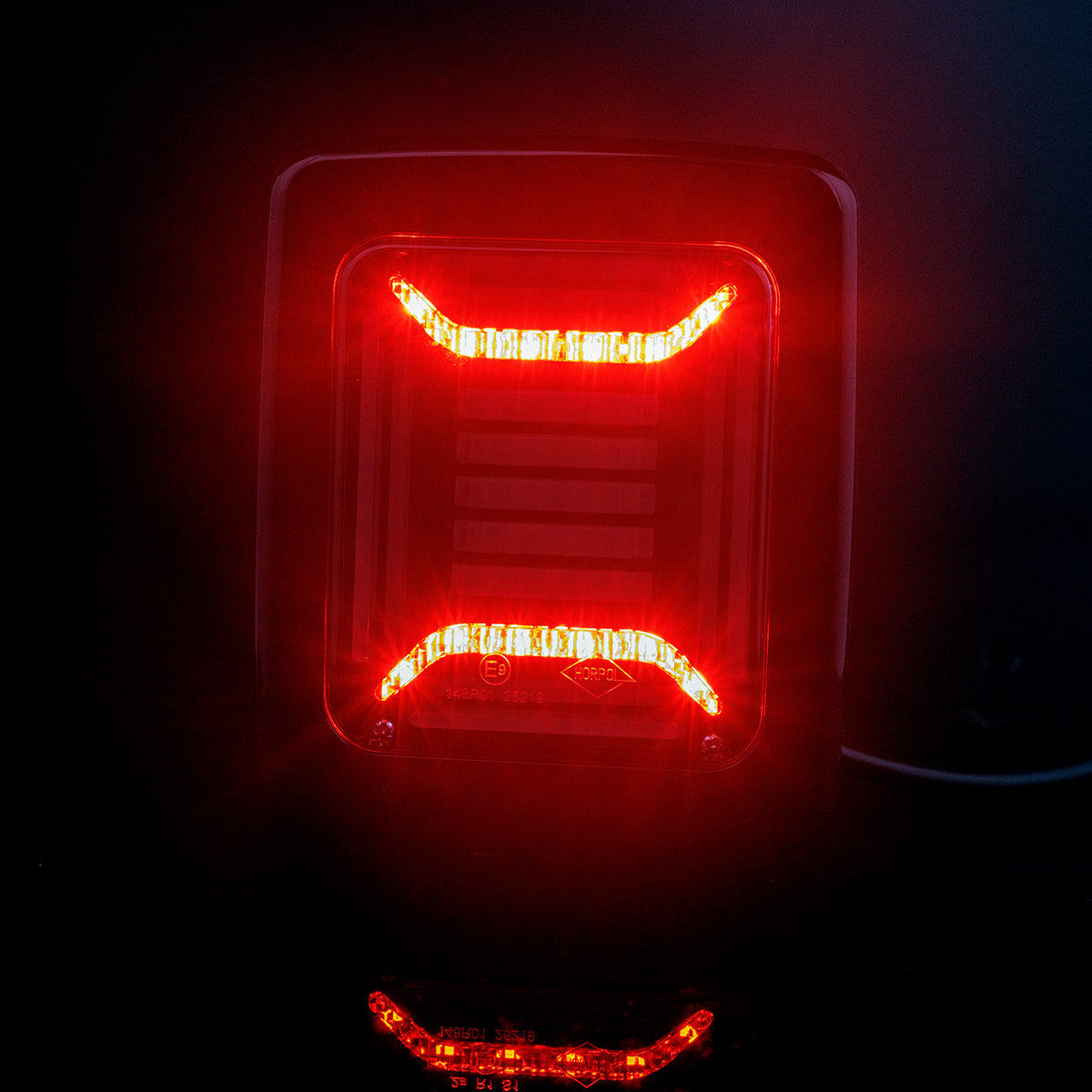

Brake Light: Yes
Rear Indicator: Yes – optional progressive operation across multiple lamps
Frame: Black
Lens: Lightly tinted
Mounting Side: Universal (left or right)
Mounting Orientation: Horizontal or vertical
Supply Voltage: 12 / 24 V
Position Light Power: 1.3 / 1.8 W (12 V / 24 V)
Brake Light Power: 1.9 / 2.4 W (12 V / 24 V)
Indicator Power: 3.3 / 4.4 W (12 V / 24 V)
Cable: 5 × 0.5 mm²

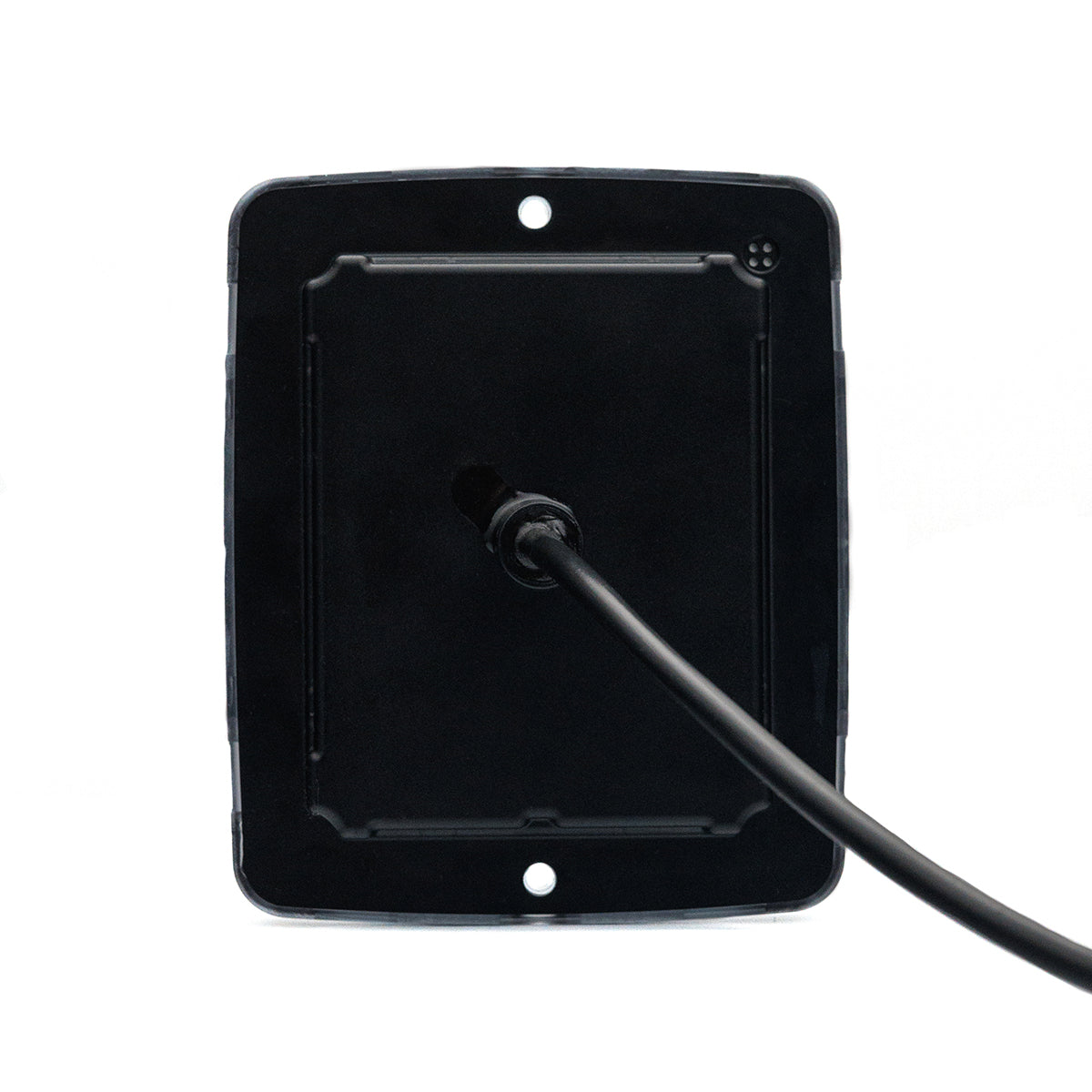

Cable Length: 1 m
Ingress Protection: IP68
Operating Temperature: –30°C to +50°C
Approvals: R148 and R10

Wiring Connections:

White: Earth / ground
Black: Rear position light
Red: Brake light
Yellow: Rear indicator
Blue: Optional progressive indicator connection between lamps

Use the manufacturer’s wiring instructions when connecting multiple lamps for progressive indicator operation.
