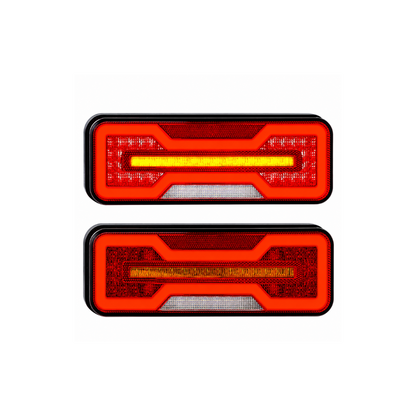

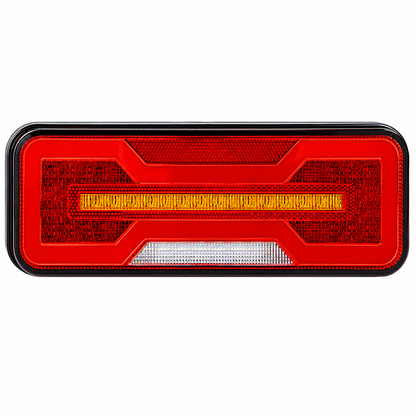

Multifunction Rear Lamp With Dynamic Indicator - RHS

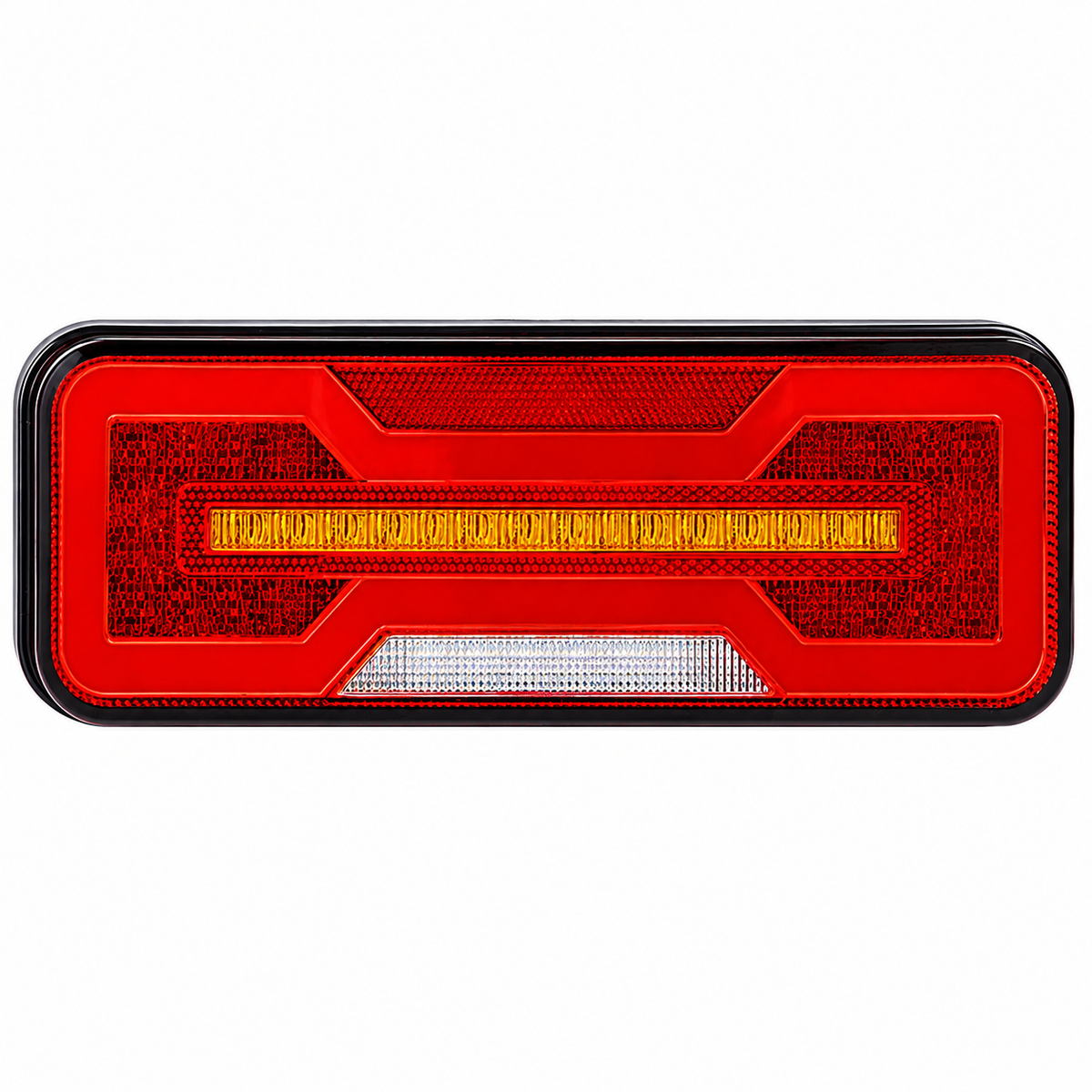

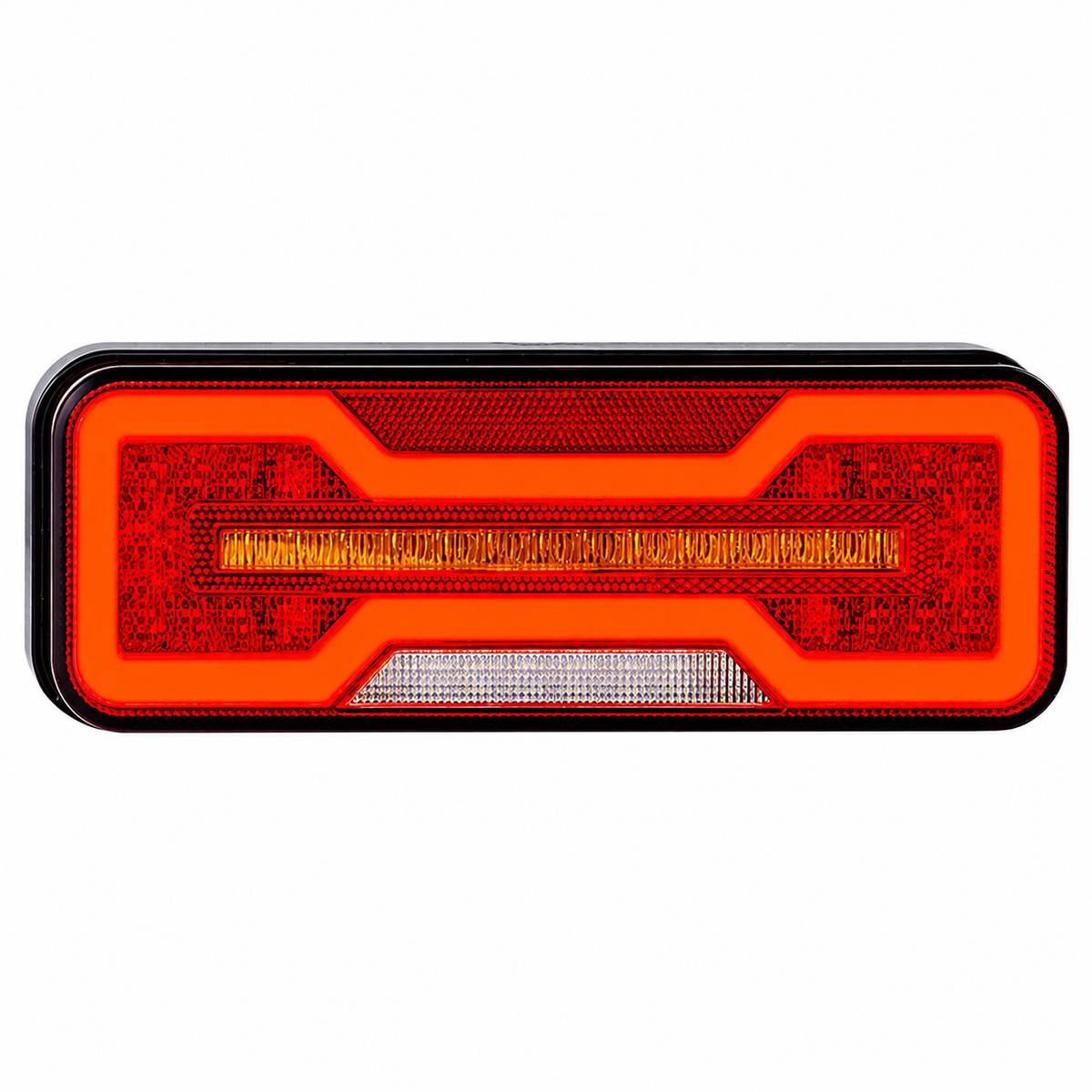

LumiLED Multifunction LED Dynamic Rear Tail Lamp - Right Hand Side

The LumiLED Multifunction LED Dynamic Rear Tail Lamp is a high-quality, modern rear lighting solution designed for trucks, trailers, commercial vehicles, vans and specialist vehicle applications.

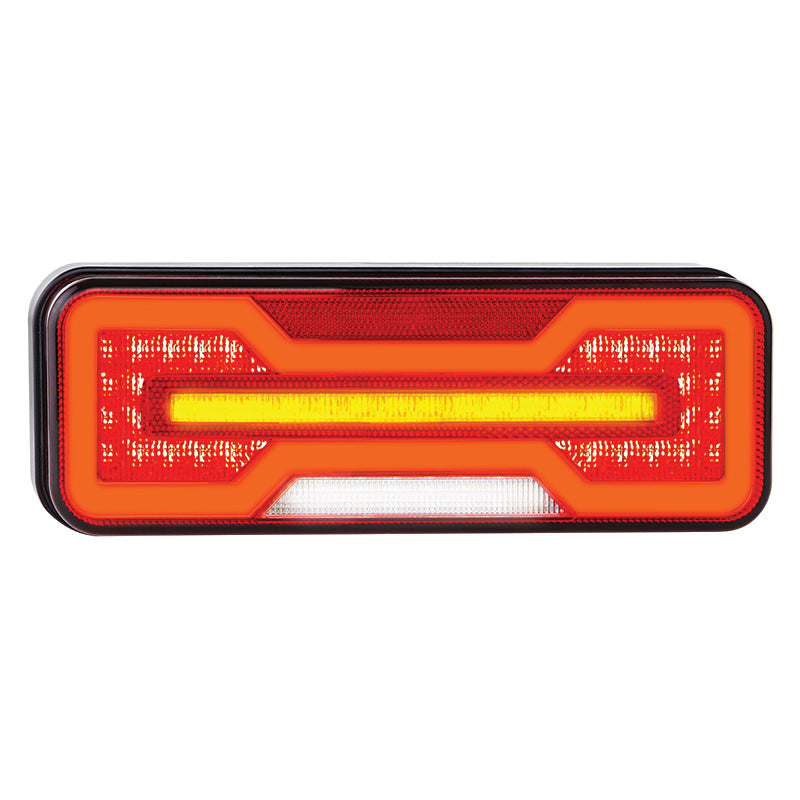

Combining multiple essential rear-lighting functions into one sleek and compact lamp, Which features a dynamic amber LED indicator, bright red stop and tail illumination, and an integrated white reverse light.

With a wide 10–30V operating range, the lamp is suitable for a variety of vehicle electrical systems and is designed to provide reliable performance in demanding commercial and automotive environments.

The dynamic amber indicator gives the lamp a distinctive modern appearance while providing a clear and highly visible indication to other road users.

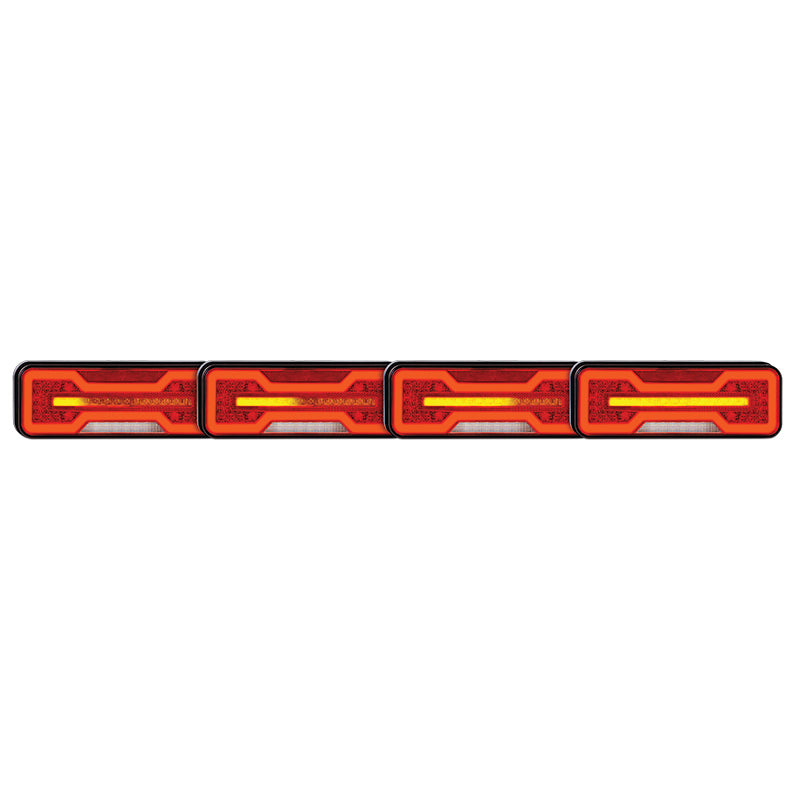

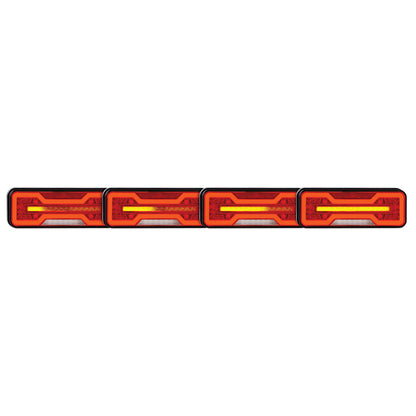

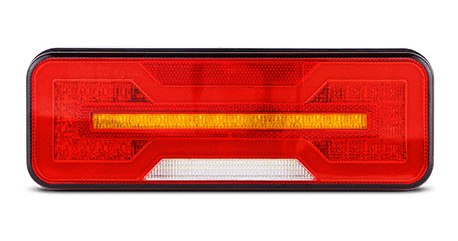

Key Features: Dynamic LED Indicator: The lamp features a dynamic sequential amber indicator, creating a smooth sweeping effect that provides a clear and distinctive indication when turning.

Wide 10–30V Operating Range: Designed to operate across a 10–30V DC voltage range, making the LumiLED suitable for both 12V and 24V vehicle electrical systems.

High-Visibility LED Technology: LED technology provides bright, fast-acting illumination with excellent visibility, helping to clearly communicate the vehicle's movements to other road users.

E9 Approved: The lamp carries E9 approval: E9-02 R1/22553, providing an important approval marking for vehicle lighting applications.

Durable Construction: Built with a robust housing and durable lens, the lamp is designed to withstand the demands of everyday commercial vehicle use.

IP65 Rated: The lamp is IP65 rated, providing protection against dust and water ingress for dependable operation in outdoor vehicle environments.

Multifunction Rear Lamp:

A compact all-in-one design incorporating:

Dynamic amber turn indicator

Red Stop/Brake Light

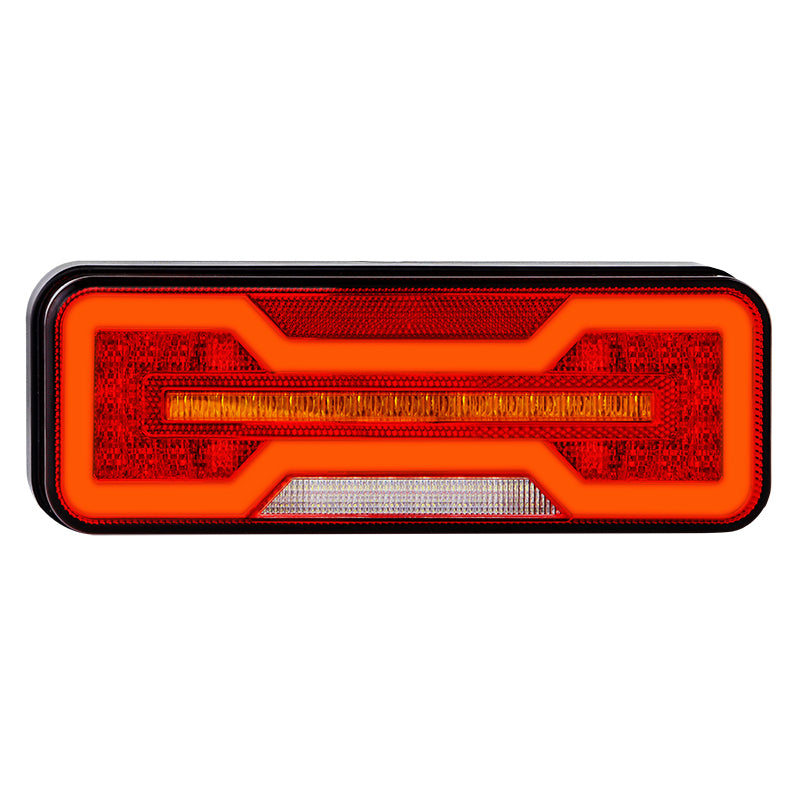

Red Tail/Rear Light

White Reverse Light

Specifications:

Operating Voltage: 10–30V DC

Functions: Multifunction rear lamp

Indicator: Dynamic / Sequential Amber

Stop: Red

Tail: Red

Reverse: White

Approval: E9-02 R1/22553

Protection Rating: IP65

Lens: UV-resistant polycarbonate

Housing: Durable plastic construction

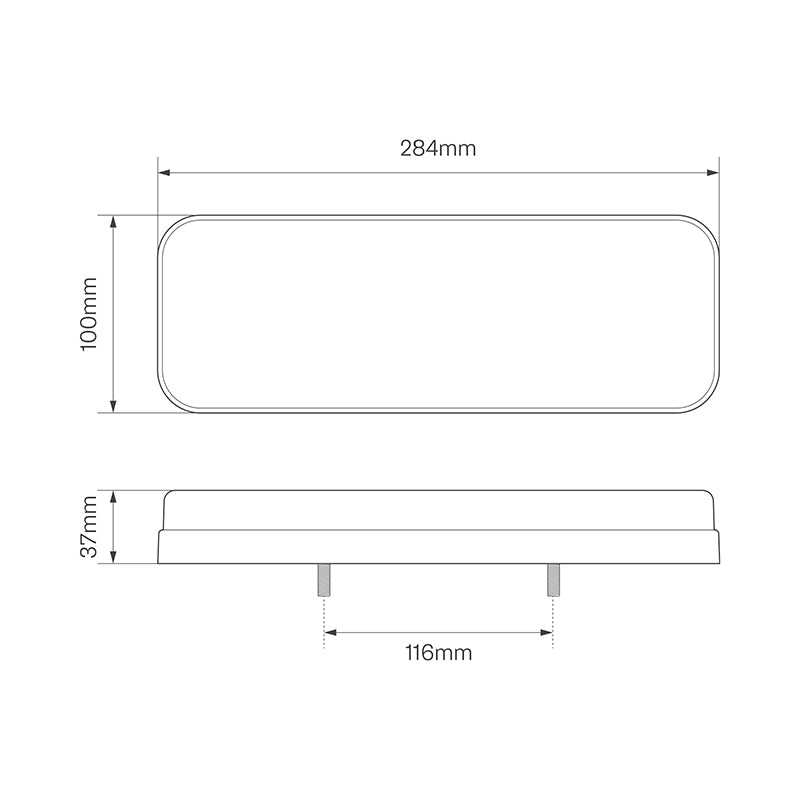

Dimensions: Approx. 284 × 100 × 37 mm

Fixing Hole Centres: Approx. 116 mm

Cable Length: Approx. 300 mm

Applications

The LumiLED Multifunction LED Dynamic Rear Tail Lamp is ideal for:

Trucks & HGVs, Trailers, Commercial Vehicles, Vans, Recovery Vehicles, Agricultural Machinery, Plant & Machinery, Specialist Vehicles, Vehicle Conversions, New Vehicle Builds, Rear Lighting Upgrades

Why Choose the LumiLED Multifunction Rear Tail Lamp?

Combining modern dynamic indicator technology, multifunction LED lighting and a wide 10–30V operating range, the LumiLED provides a practical and professional rear-lighting solution for today's commercial and specialist vehicles. The distinctive dynamic amber indicator gives your vehicle a modern appearance while providing a highly visible turning signal. Professional lighting performance. Modern dynamic styling. Built for commercial vehicles.
