LumiLED Ultra Flatline Series – Ultra-Slim LED Warning Light
The LumiLED Ultra Flatline Series delivers powerful warning performance packed into a remarkably low-profile LED module — perfect for vehicles where discreet, high-visibility signalling is needed without bulky lighting hardware. Designed for modern service, emergency, and commercial vehicles, this unit blends sleek styling with robust functionality to ensure both aesthetic and operational excellence.
Key Features:

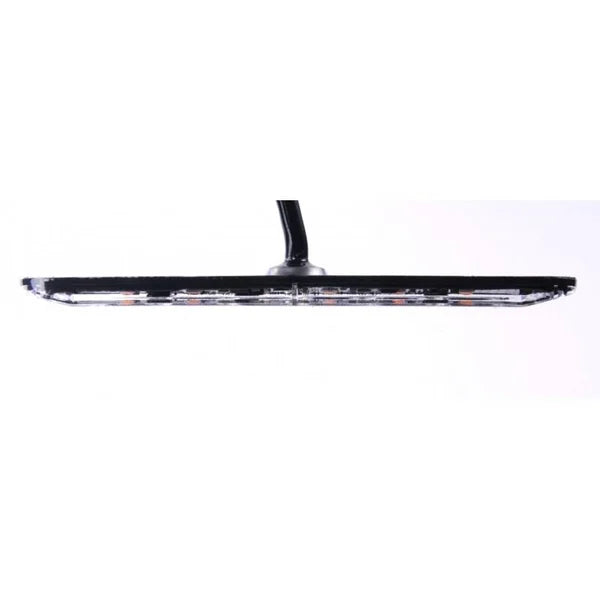

Ultra-Slim, Low-Profile Design: With just 6.6 mm thickness, the Ultra Flatline module installs cleanly into grilles, bumpers, or other flat surfaces — staying flush and reducing the risk of snagging or damage.
High-Output LED Array: Equipped with 4 high-power LEDs (each 3W) that produce bright, effective warning light output for maximum visibility.
Selectable Flash Patterns: Choose from 26 different flash patterns to suit a wide range of signalling needs.
Memory Recall: The unit remembers your selected flash pattern at power-up, saving time on reconfiguration.
Synchronisation Ready: Multiple units can be linked to operate in synchronised or alternating modes for enhanced warning sequences when used in groups.
Durable and Weather-Resistant: Built to withstand tough conditions with IP67/IP69K water and dust resistance and an aluminium base for effective heat dissipation.
Reverse Polarity Protection: Safeguards the module against accidental reverse wiring.
Specifications:
Voltage: DC 12–24 V — compatible with most automotive systems.
LED Colour: Amber
LEDs: x4 3 Watt high‑power amber LEDs (12w Total)
Approvals: ECE R65 Class 1, SAE J595 Class 1, ECE R10, CE, UKCA (meets CISPR 25 Class 3), ensuring compliance and performance.

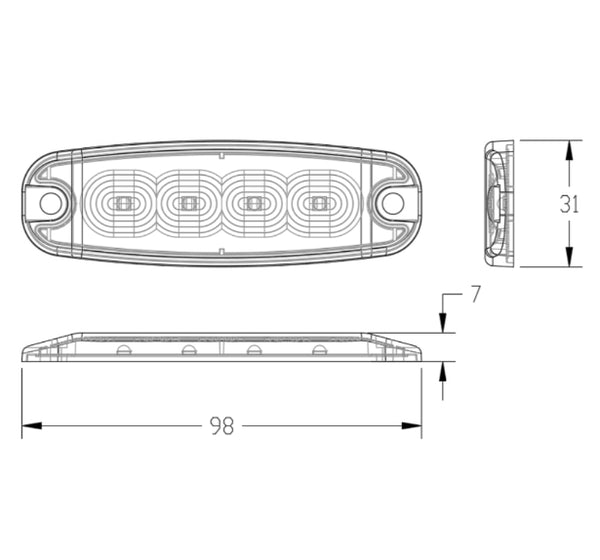

Dimensions: 98 × 31 × 6.6 mm — ultra-compact footprint.
Lens Material: Polycarbonate (PC).
Base Material: Aluminium.
Operating Temperature: –30 °C to +60 °C.
Warranty: 3-year manufacturer’s warranty.*
Why Choose the Ultra Flatline Series?
The LumiLED Ultra Flatline Series is ideal for professional installations on emergency, utility, and fleet vehicles. Its slim design integrates seamlessly into modern vehicle exteriors while delivering compliant warning performance and adaptable flash options — providing both form and function for demanding applications.
