TRALERT Edge Square LED Work Light 40W 3800 Lumens – WF-4038V
The TRALERT Edge WF-4038V delivers a wide flood beam from a compact square LED work lamp. Its 40W lighting unit has a built-in Deutsch connector and operates on 9–36V DC, making it suitable for a range of truck, commercial vehicle and machinery lighting installations.

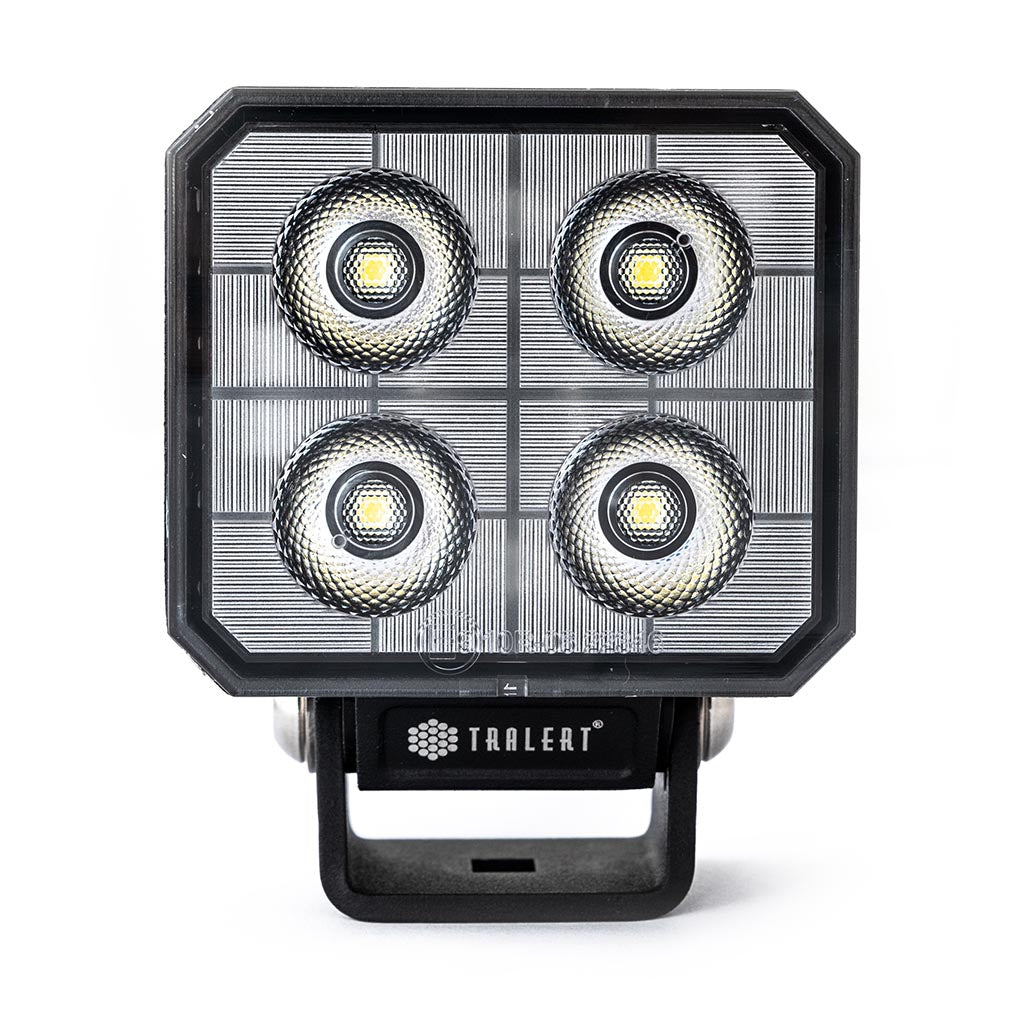

Four 10W LEDs deliver a flood beam for lighting work areas around a truck, commercial vehicle or machine. The clear polycarbonate lens and black aluminium housing form a compact square unit within the Edge range.

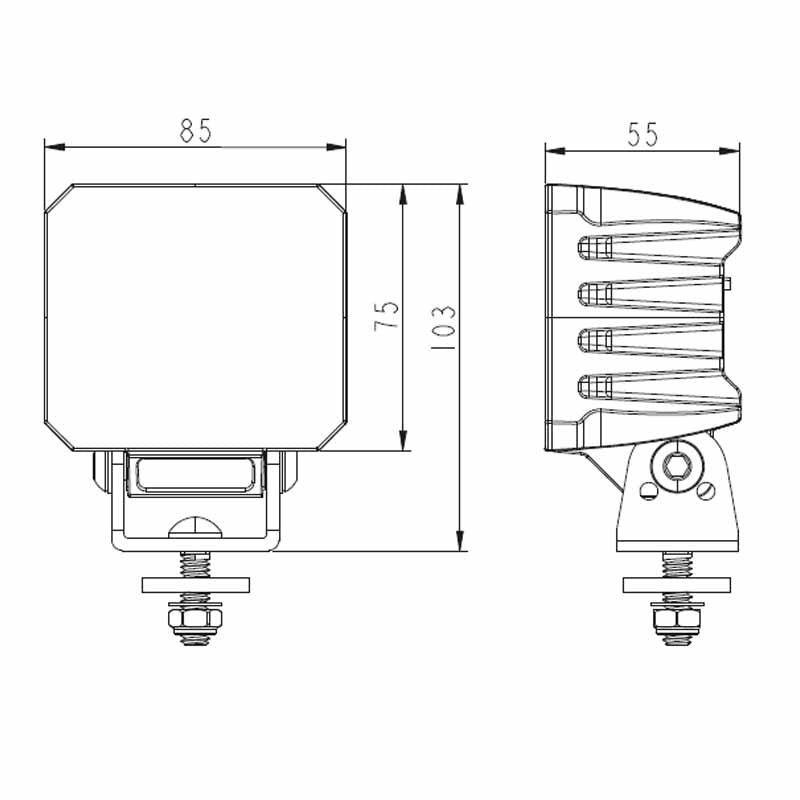

The body measures 85 × 75 × 55mm and has a built-in Deutsch connector. Its 9–36V DC operating range allows use with 12V and 24V vehicle systems, with the mating lead selected to suit the installation.
Key Features:
Square Edge Design: A compact 85 × 75 × 55mm housing for work-light installations.
3,800-Lumen Output: Four 10W LP LEDs provide a broad flood beam.
40W Work Lamp: Suitable for illuminating working areas around vehicles and machinery.
Built-In Deutsch Connection: The electrical connection is located at the lamp body for use with a compatible mating lead.

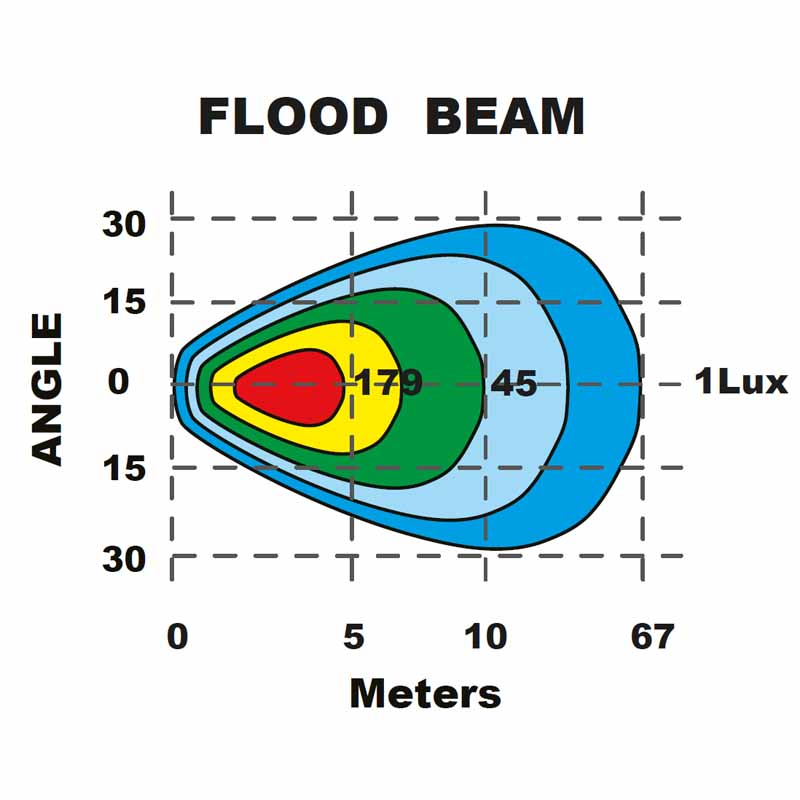

Published Beam Performance: TRALERT lists 45 lux at 10m and a 1-lux distance of 67m.
12V & 24V Compatibility: Suitable for 12V and 24V installations within the lamp’s specified supply range.

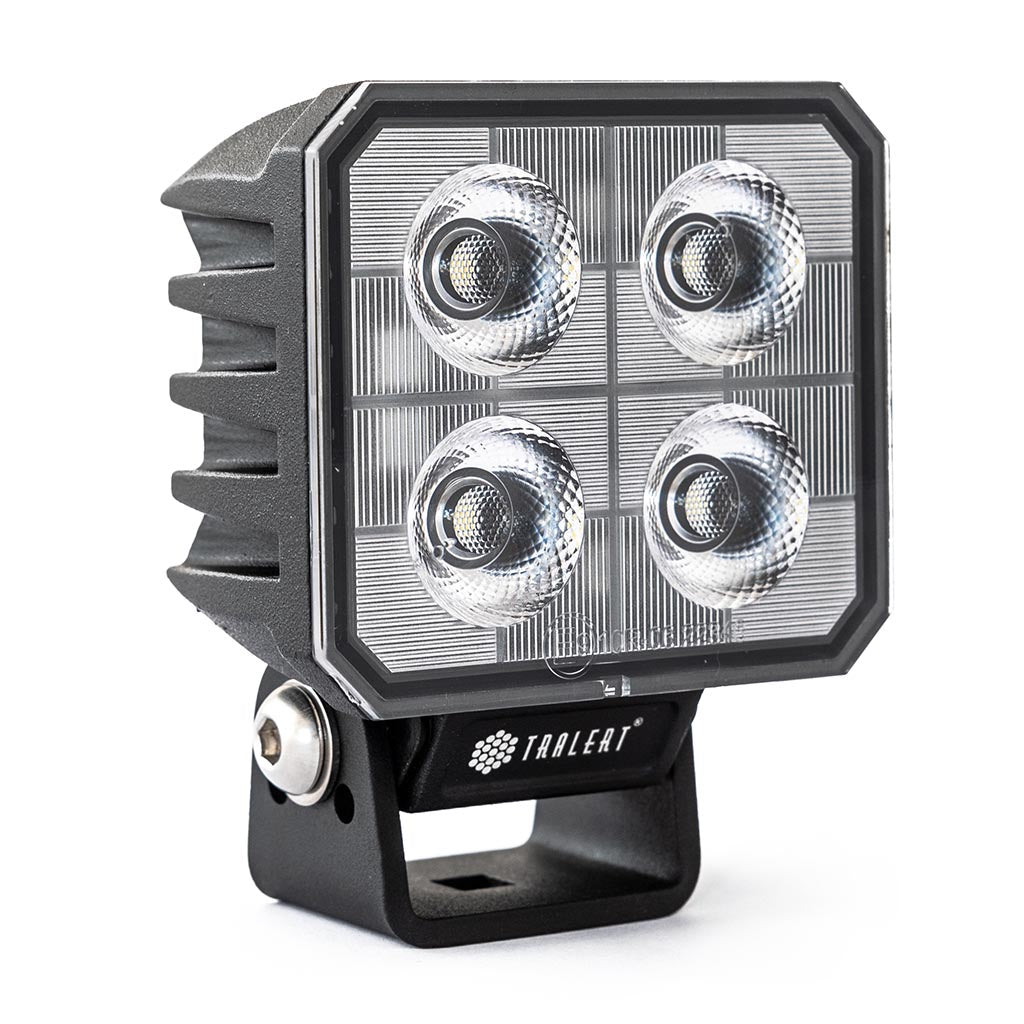

Housing & Lens: Black aluminium housing with a clear polycarbonate lens for commercial vehicle and machinery installations.
Ingress Protection: IP69K protection, as specified by TRALERT, for use in vehicle environments.
Manufacturer Warranty: TRALERT lists a 2-year manufacturer warranty for this model.
Specifications:
Product code: WF-4038V
Series: Edge
Voltage: 9–36V DC
Light output: 3,800 lumens
Power: 40W
Dimensions: 85 × 75 × 55mm
Beam: Flood
LEDs: 4 × 10W LP LEDs
Housing: Black aluminium
Lens: Clear polycarbonate
Protection: IP69K
Connection: Built-in Deutsch connector

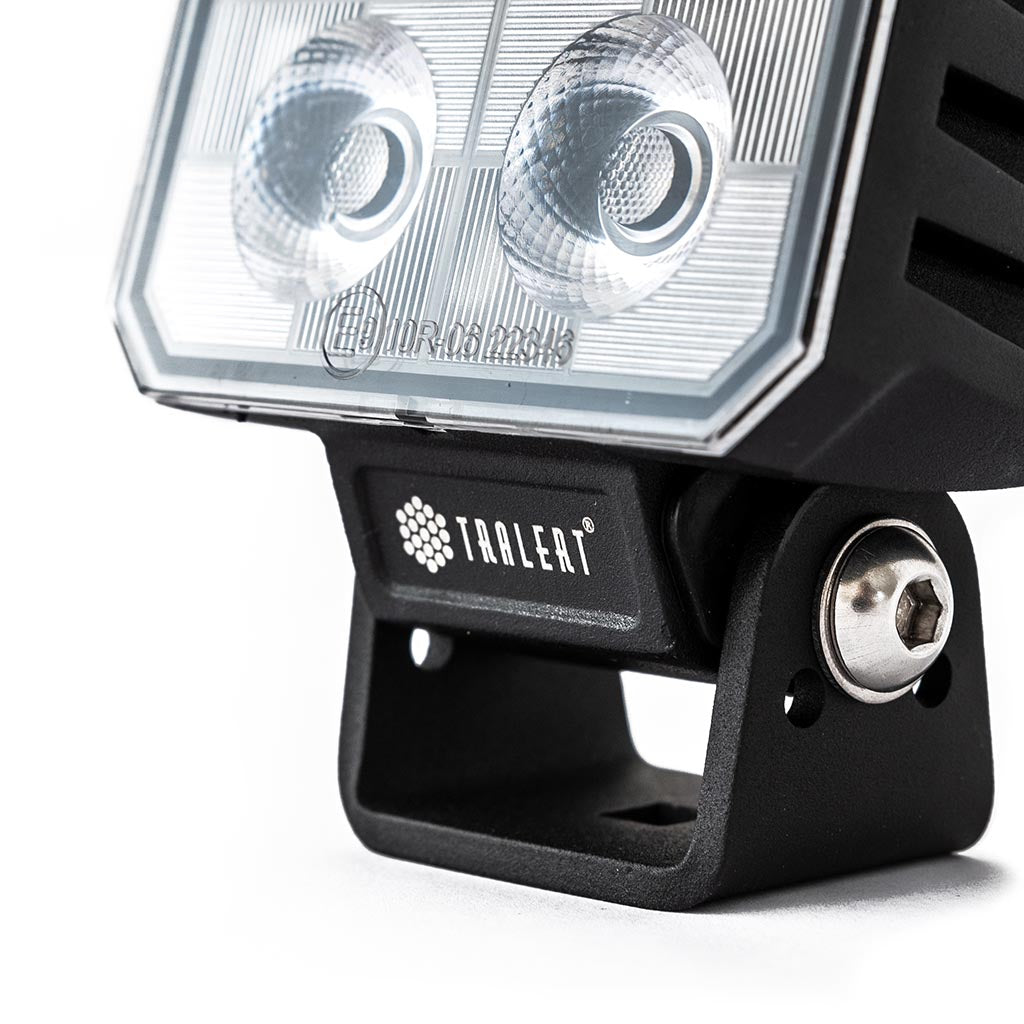

Mounting: Surface mount
Approvals: CE, ECE R10, CISPR25 Class 5
Manufacturer warranty: 2 years
Light Range: 45 lux at 10m / 1 lux at 67m
Shape: Square
Installation & Connections:

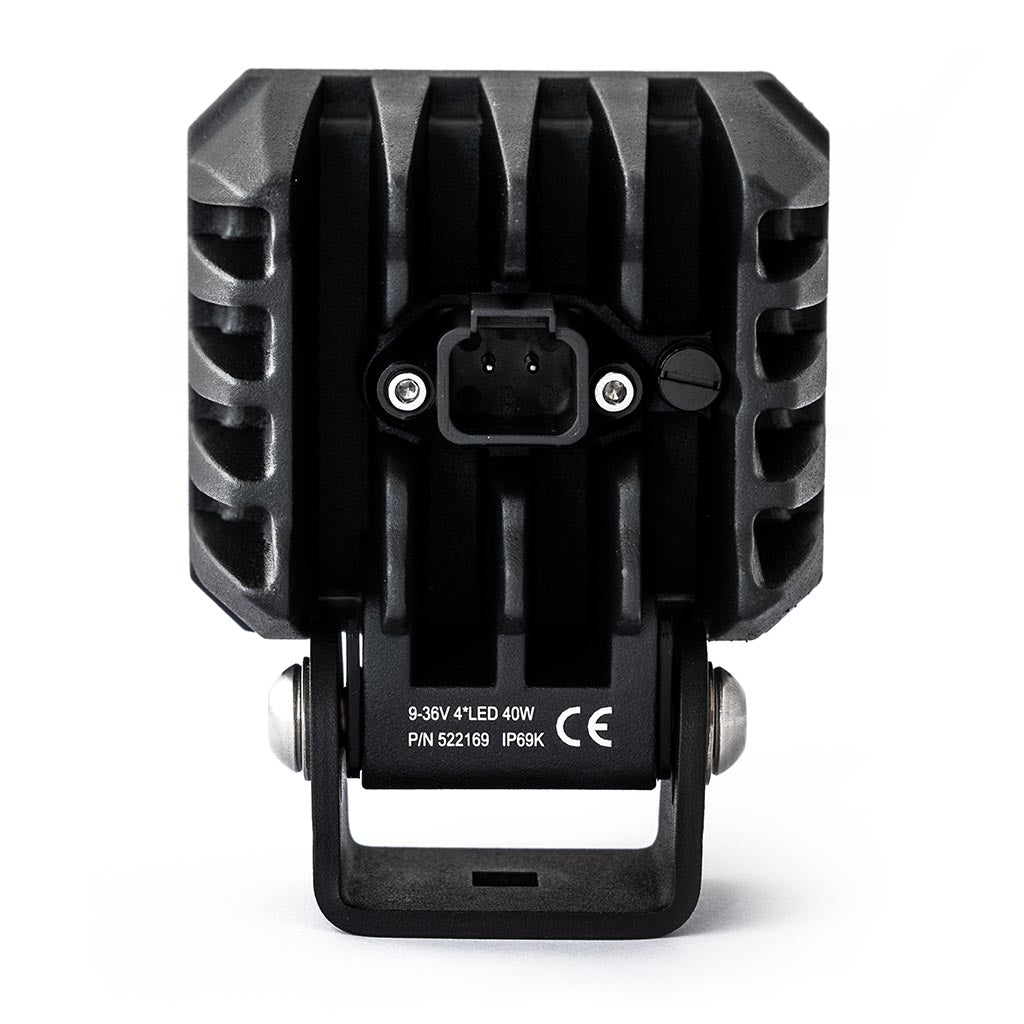

The lamp has a built-in Deutsch connector rather than an attached flying lead. Check connector compatibility and the required harness length before installation.
