TRALERT Edge Compact LED Work & Reverse Light 24W – WR-2428.1

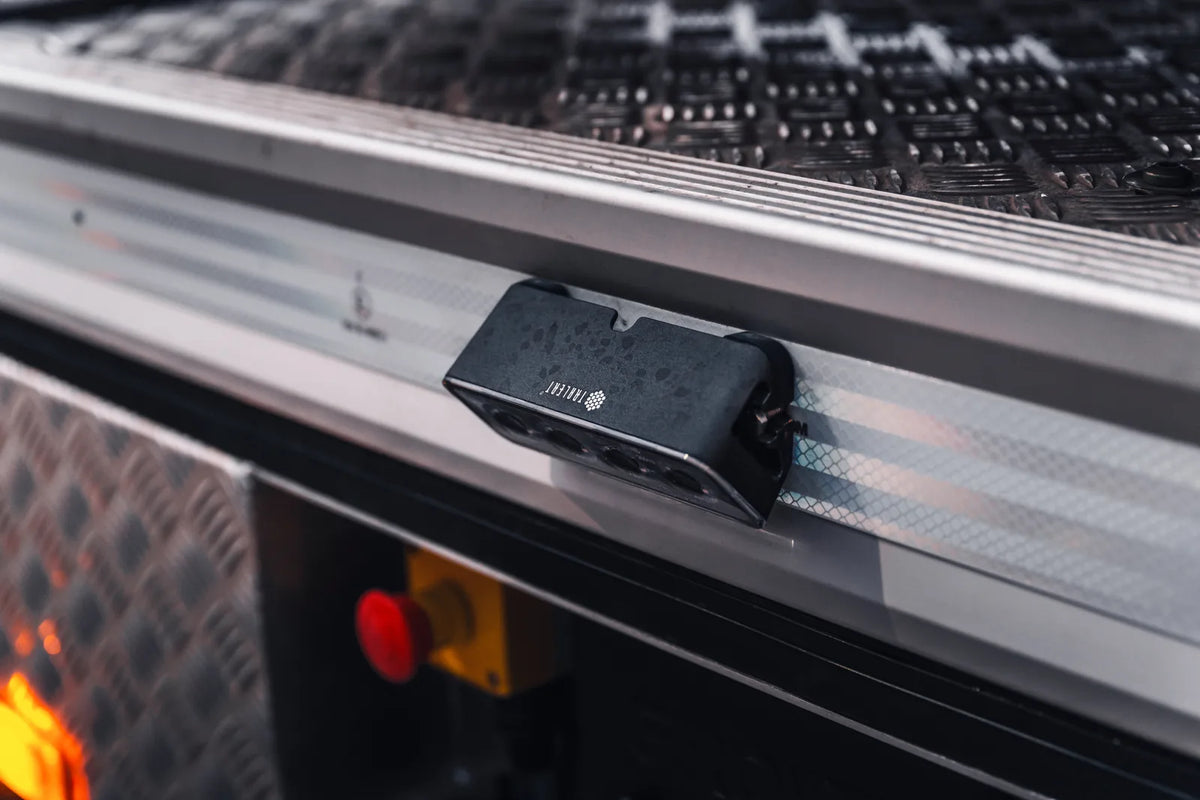

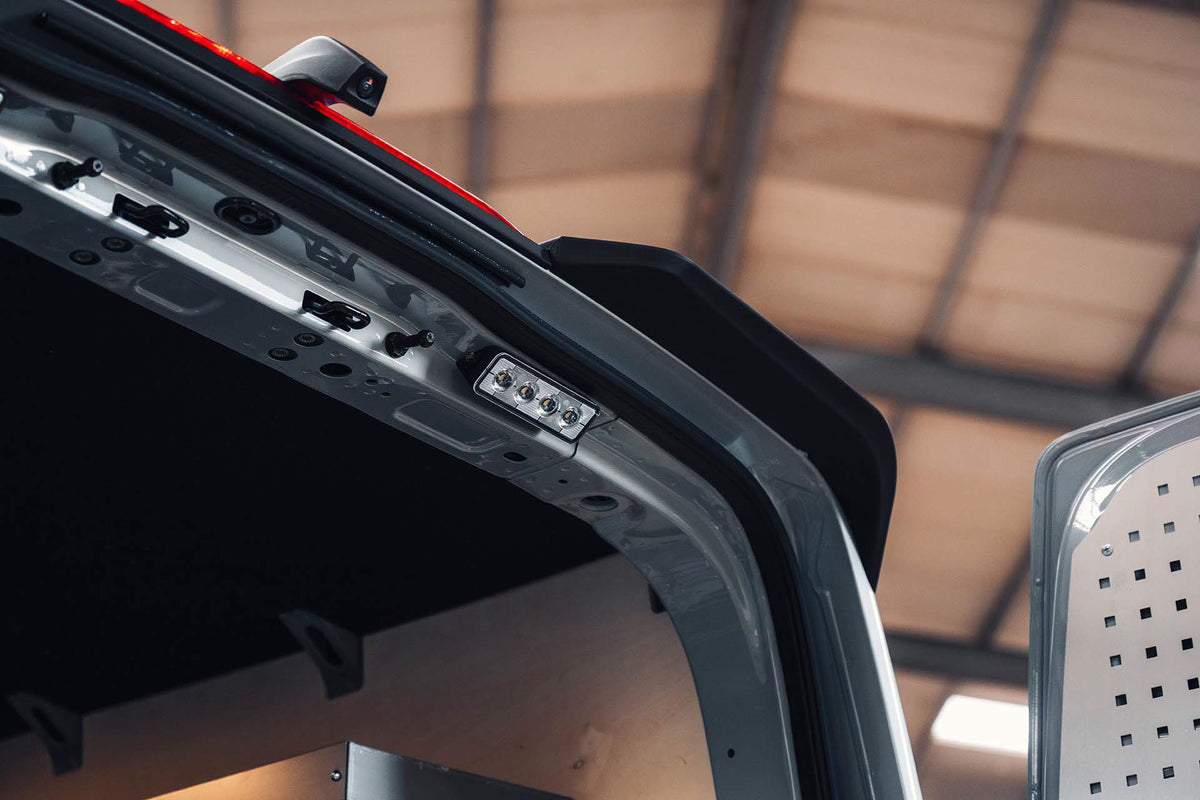

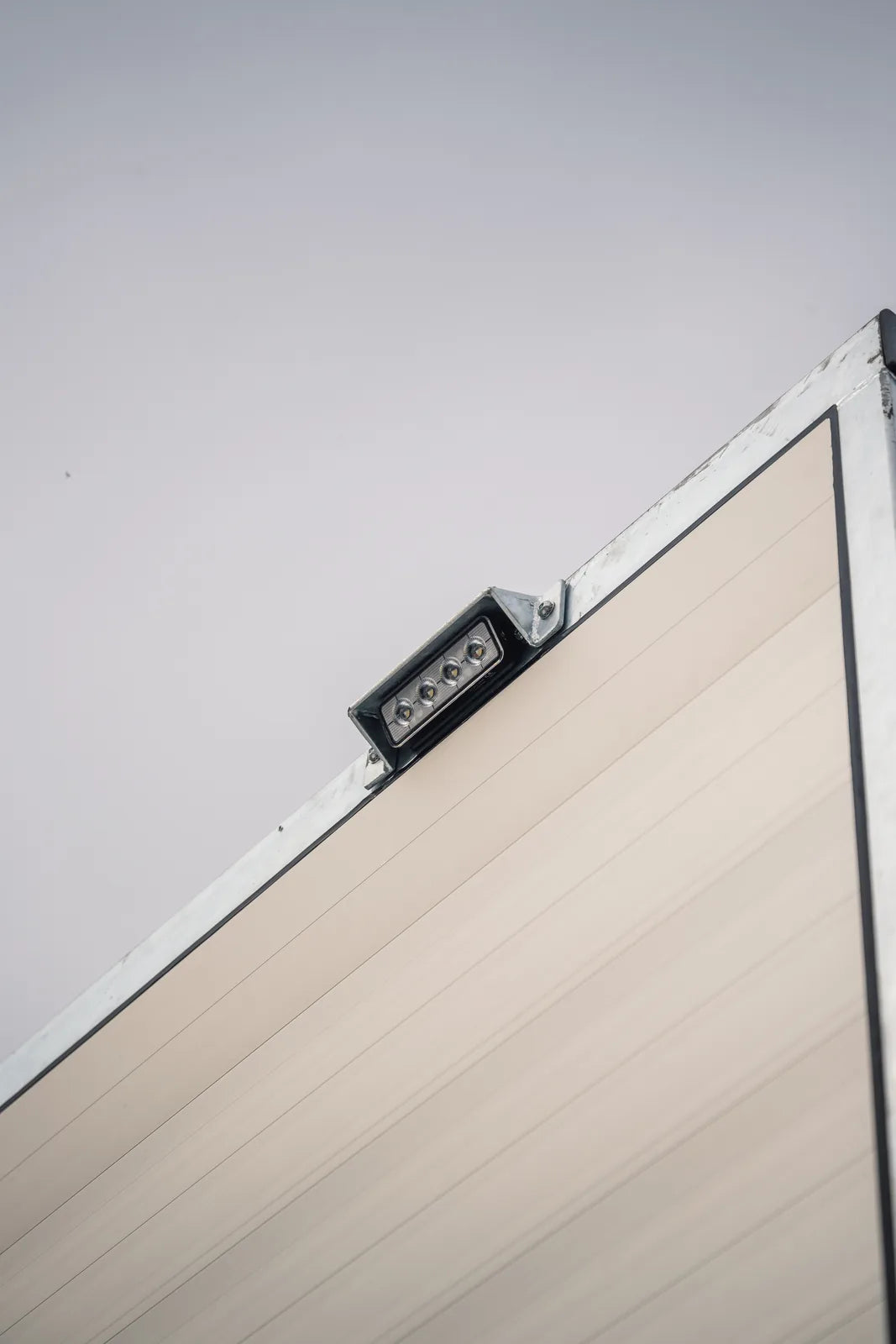

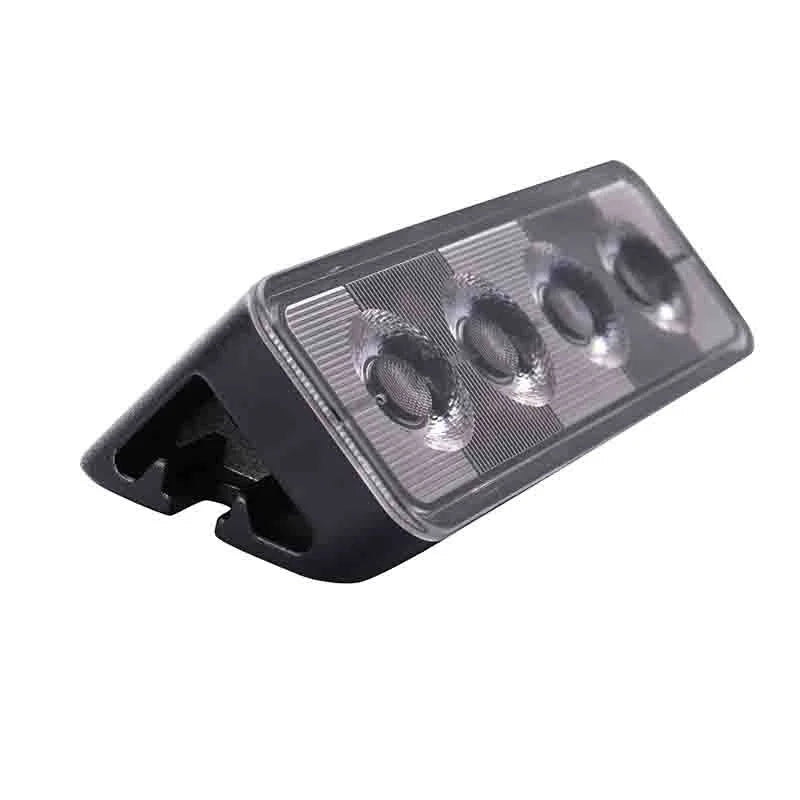

The TRALERT Edge WR-2428.1 is a slim LED flood-beam lamp for work and reversing-light applications. Its compact strip-shaped housing suits installations where mounting space is limited, including vehicle steps. A 2-metre cable and Deutsch connector provide the electrical connection.

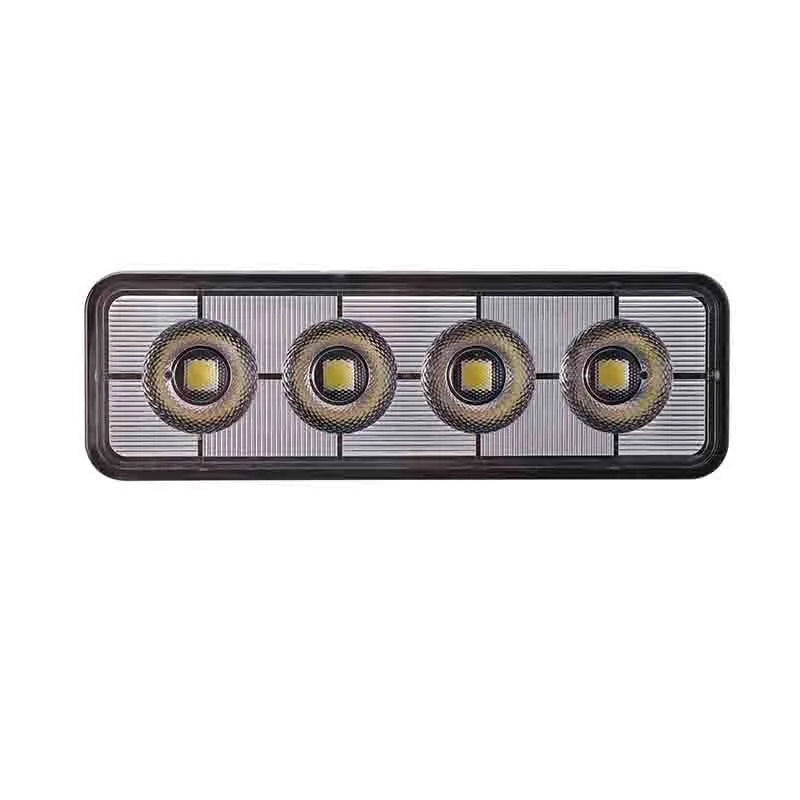

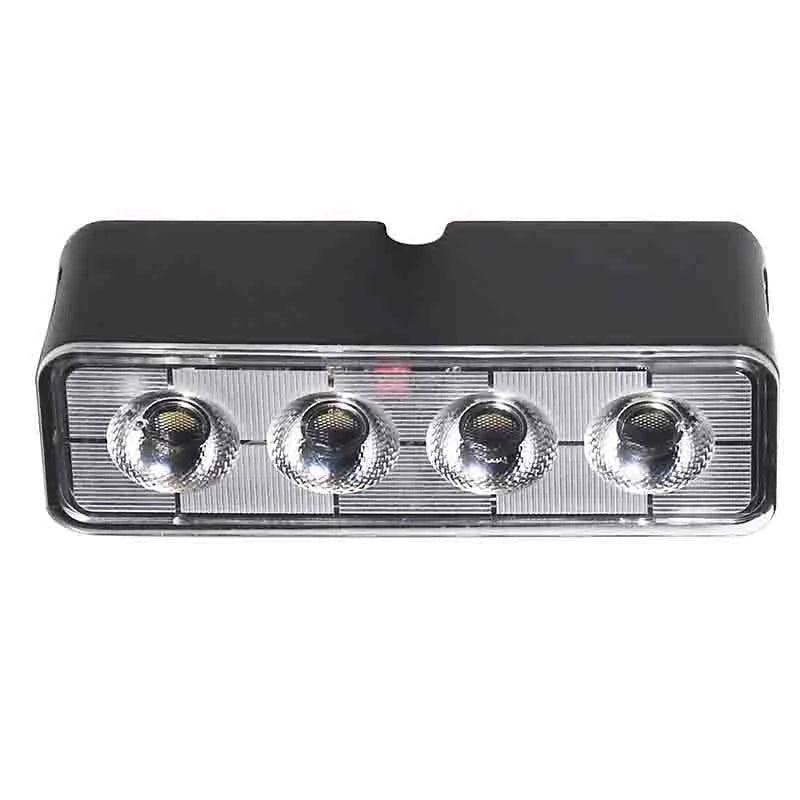

Part of the Edge range, the WR-2428.1 uses four LumiLEDs to produce a wide flood beam. Its low-profile strip shape is useful where a conventional round or square work lamp would take up too much space.

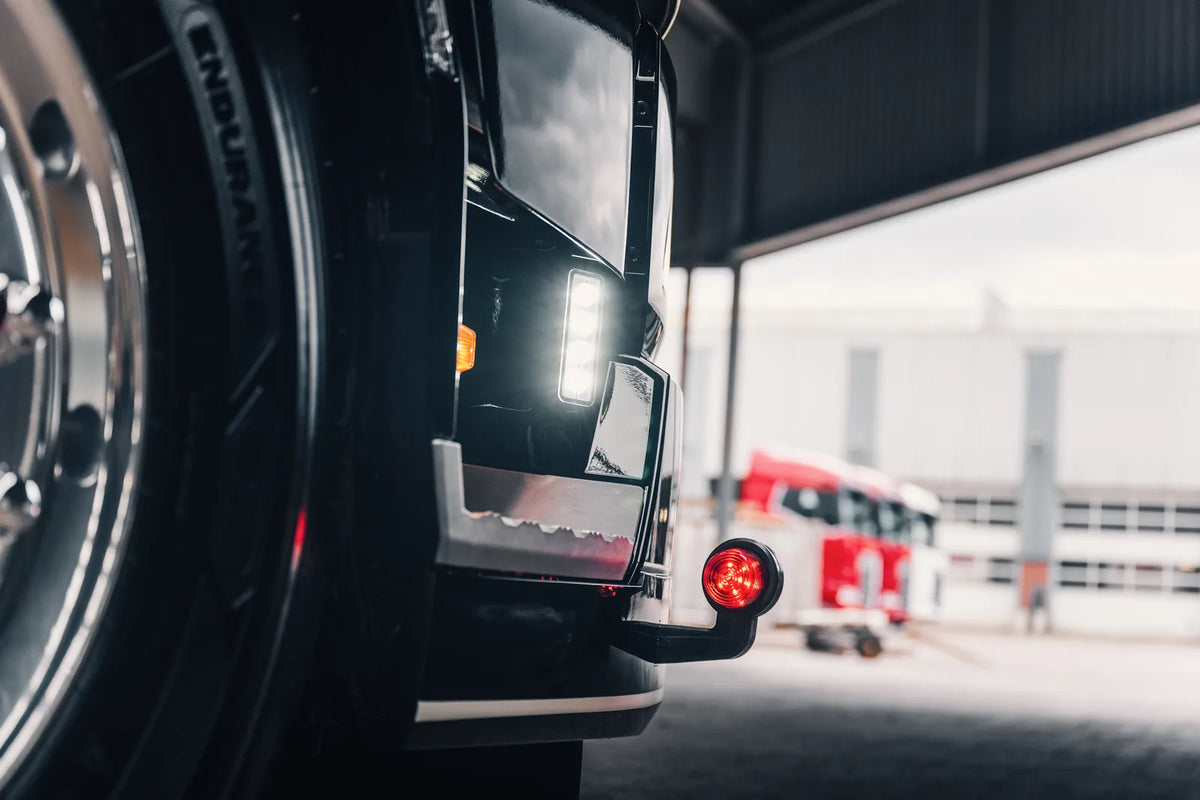

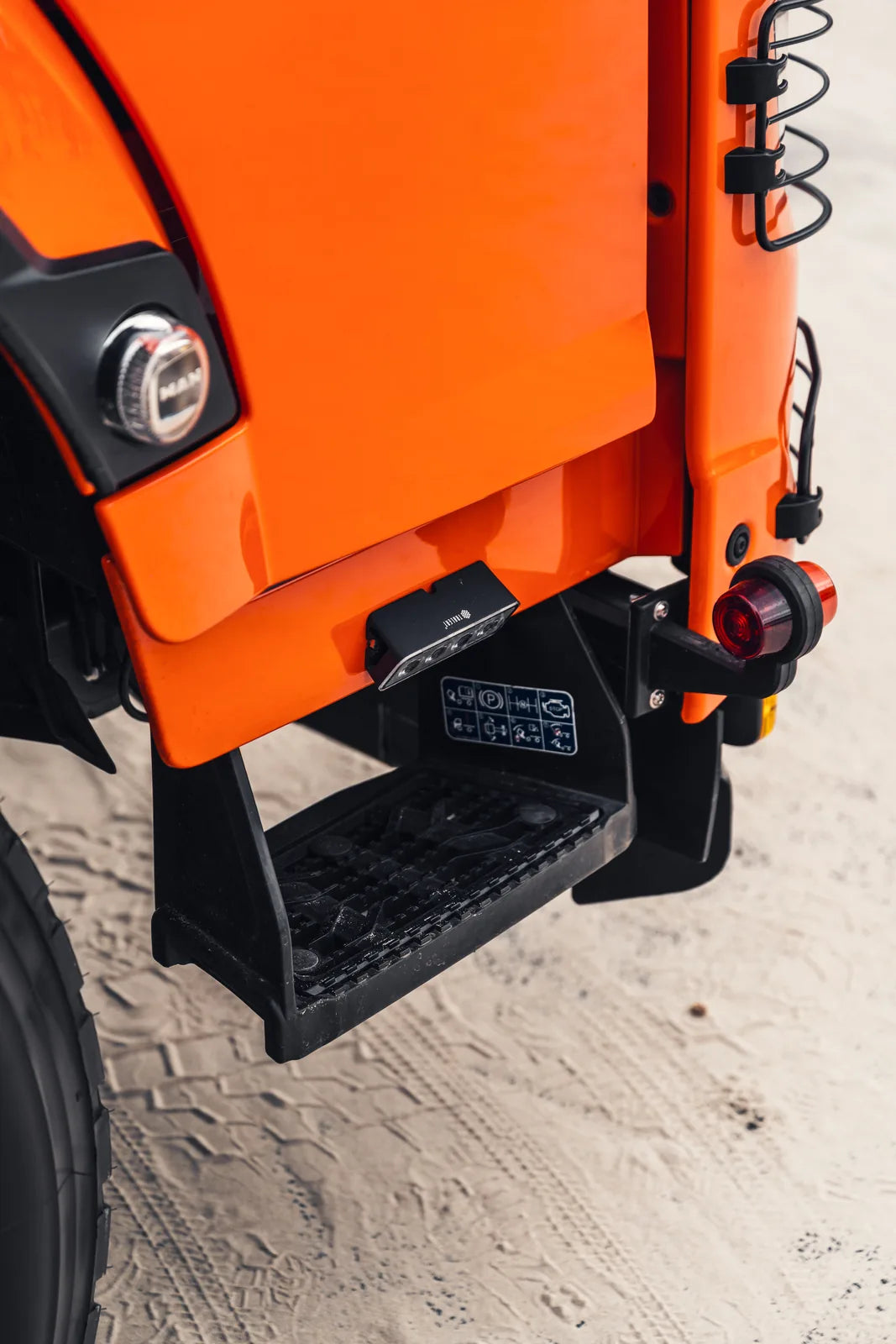

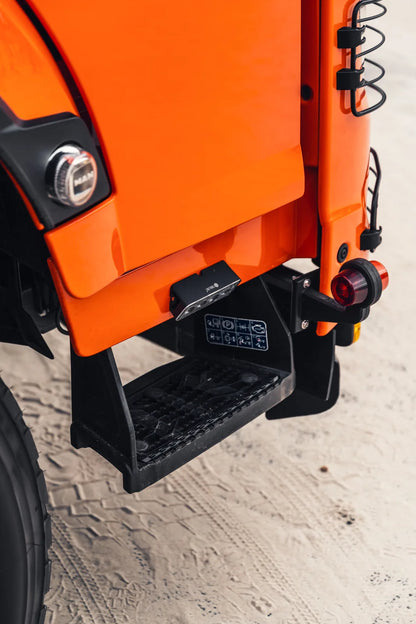

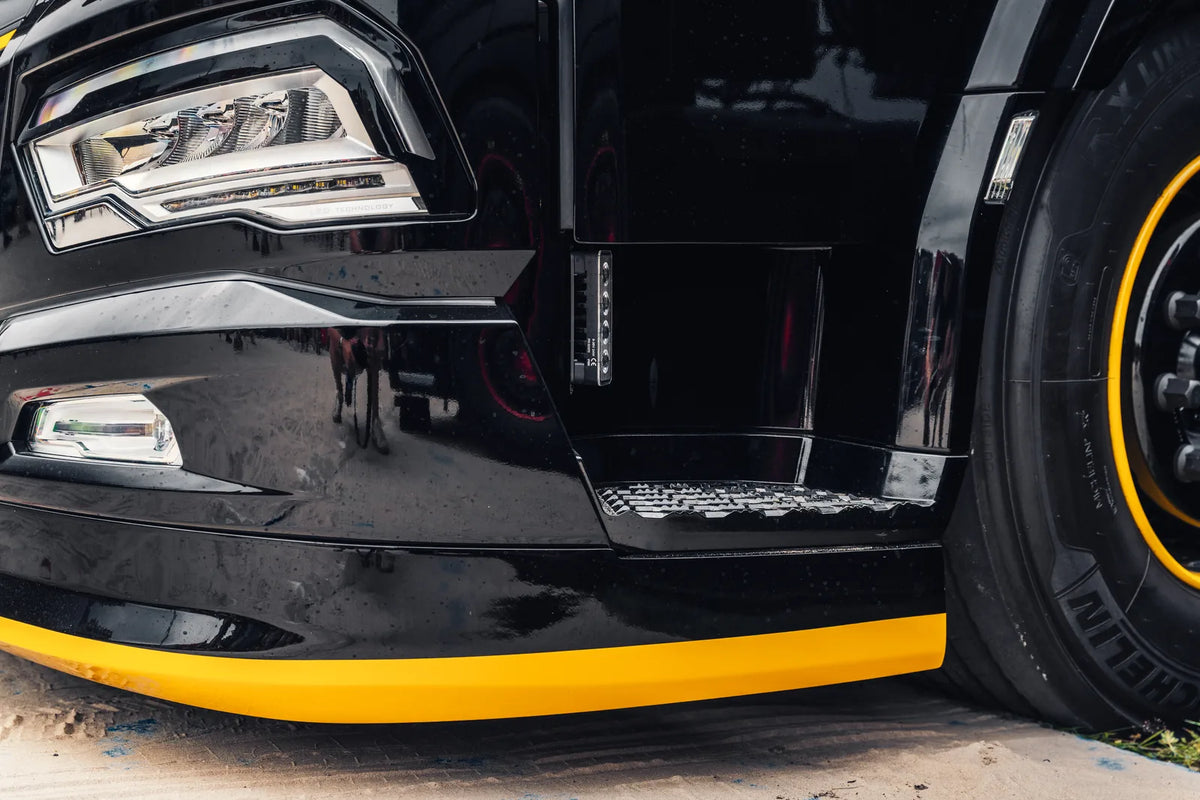

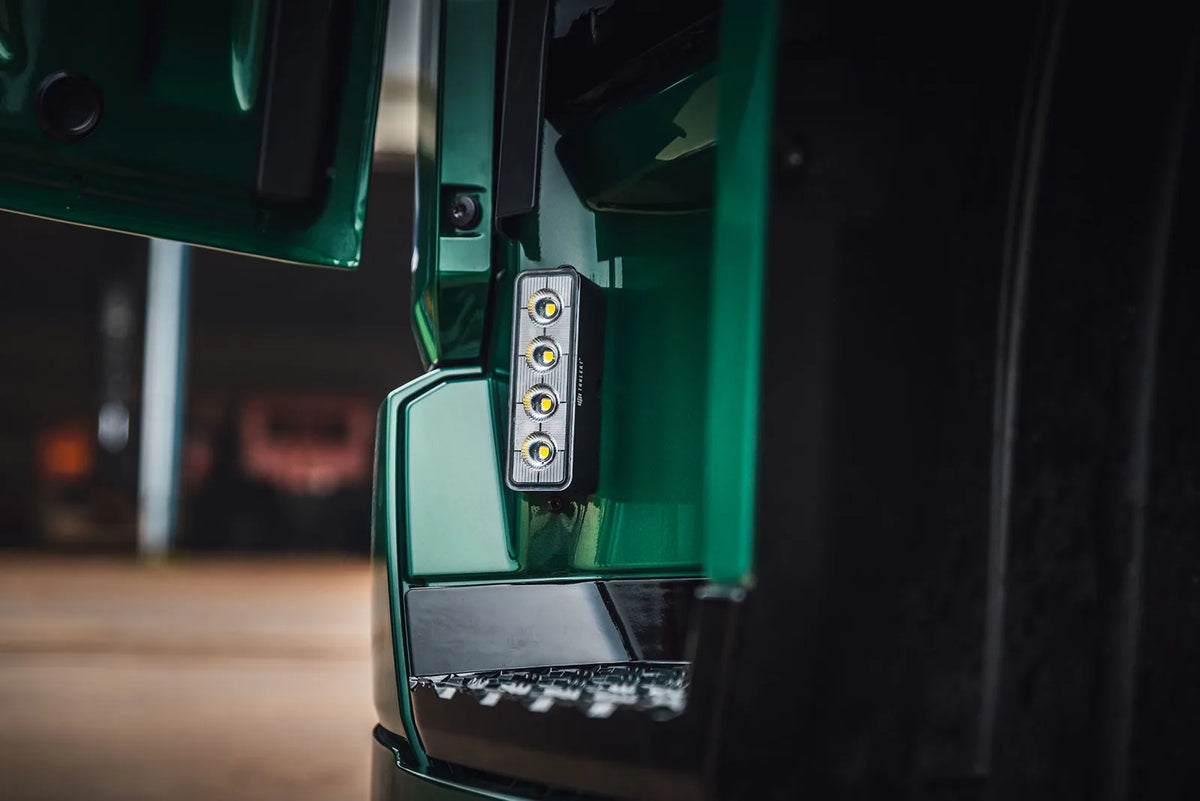

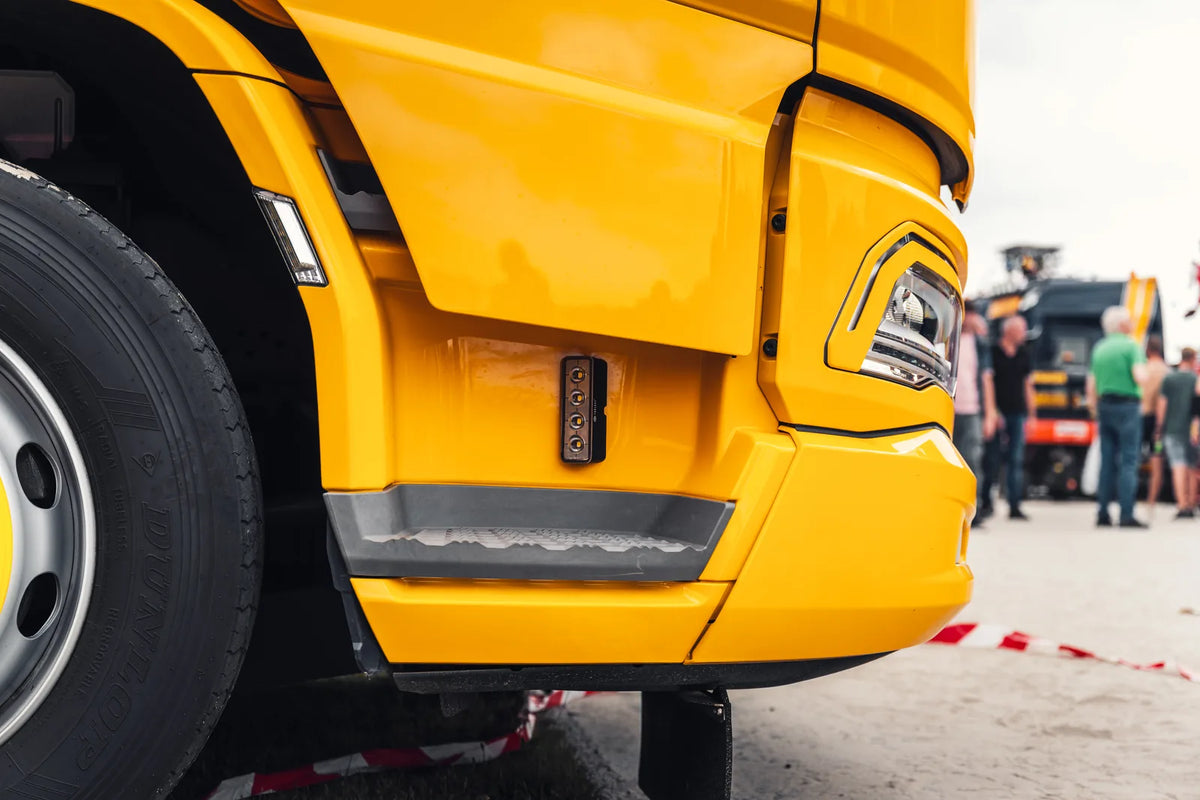

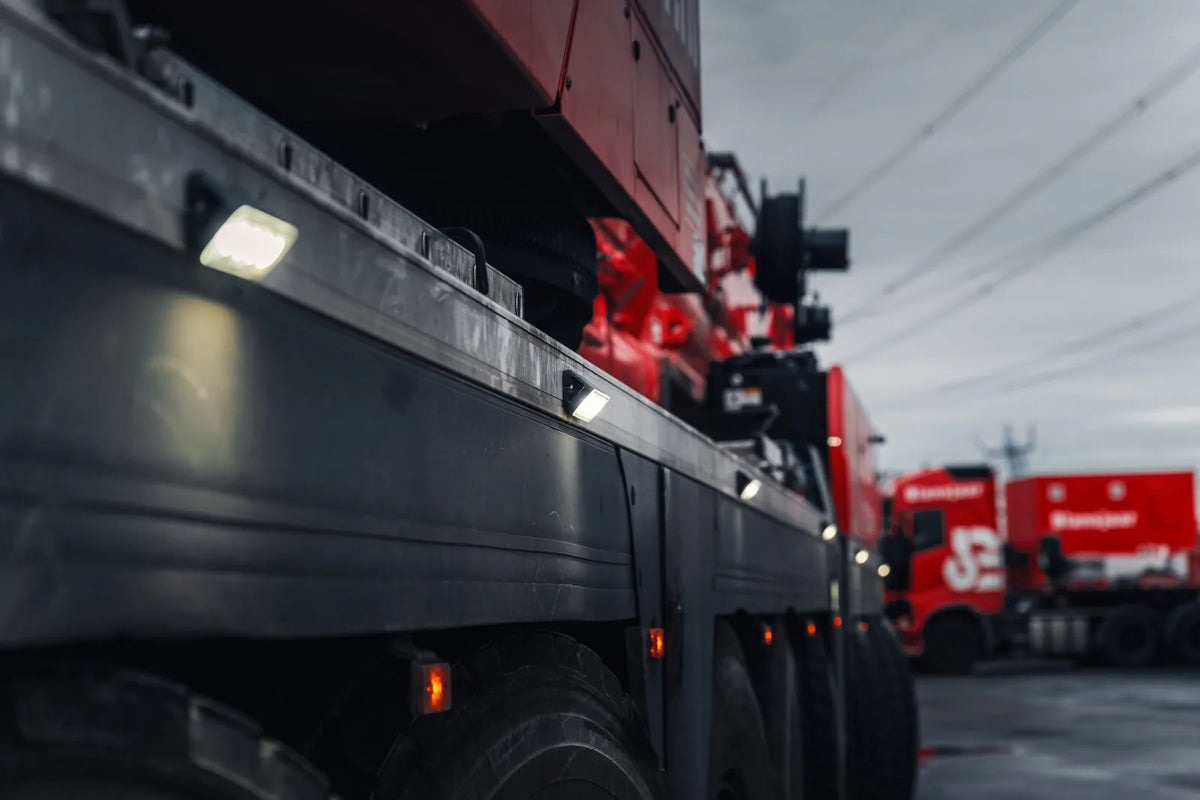

Measuring 131 × 42 × 56mm, the lamp can be considered for truck-step and other confined mounting positions. The 9–36V supply range supports 12V and 24V vehicle systems, and the 2m connection cable helps with routing to the vehicle harness.
Key Features:
Slim Edge Profile: The strip-shaped body offers a compact alternative to a conventional work-lamp housing.

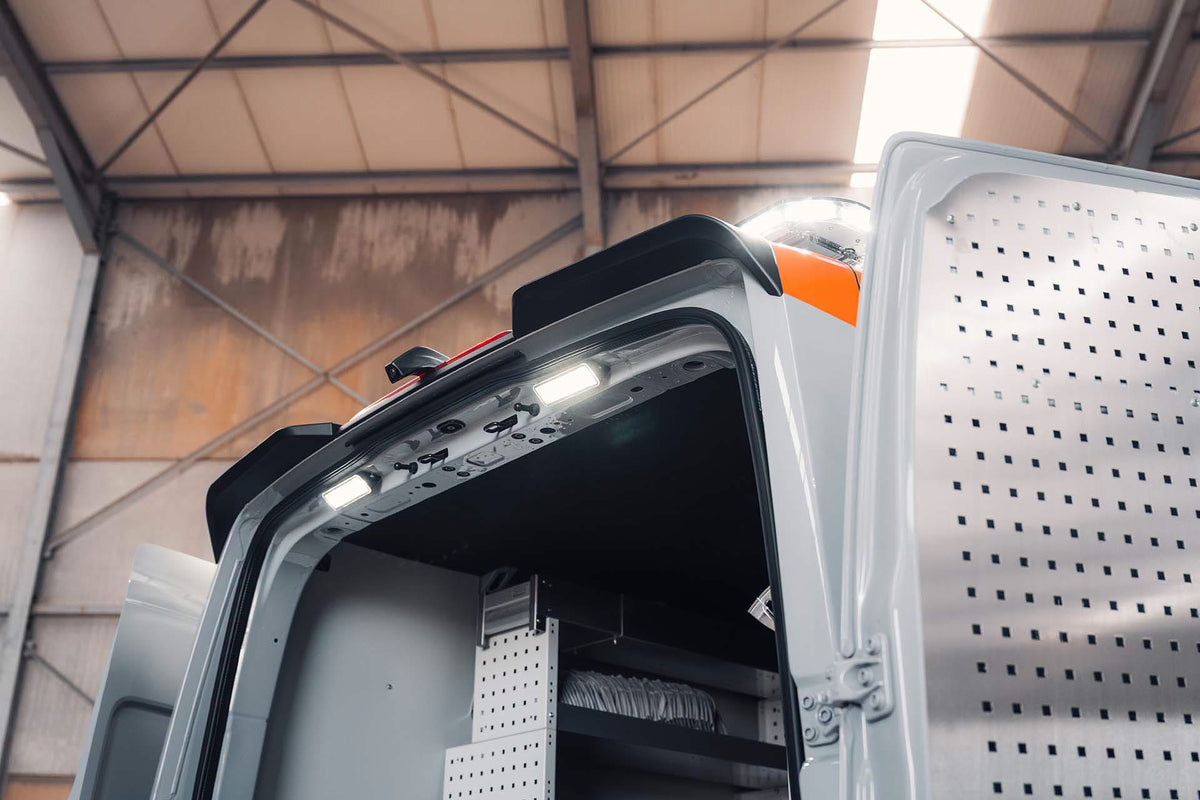

Work & Reversing Applications: A flood beam and ECE R23 approval support work and reversing-light installations.
2,801-Lumen Output: Four 6W LumiLEDs provide wide illumination with a listed 24W power rating.
Deutsch Connection: The 2m cable is fitted with a 2-pin Deutsch connector for connection to a compatible harness.

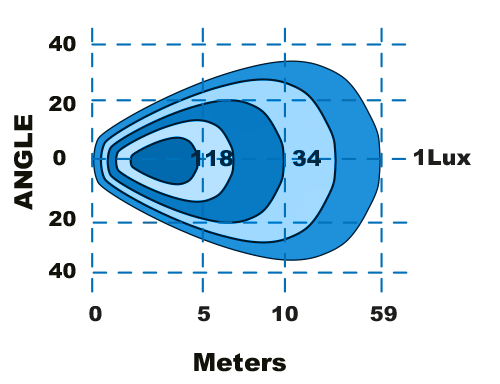

Published Beam Performance: TRALERT lists 34 lux at 10m and a 1-lux distance of 59m.
12V & 24V Compatibility: Suitable for 12V and 24V installations within the lamp’s specified supply range.
Housing & Lens: Black aluminium housing with a clear polycarbonate lens for commercial vehicle and machinery installations.
Ingress Protection: IP69K protection, as specified by TRALERT, for use in vehicle environments.
Manufacturer Warranty: TRALERT lists a 2-year manufacturer warranty for this model.
Specifications:
Product code: WR-2428.1
Series: Edge
Voltage: 9–36V DC
Light output: 2,801 lumens
Power: 24W

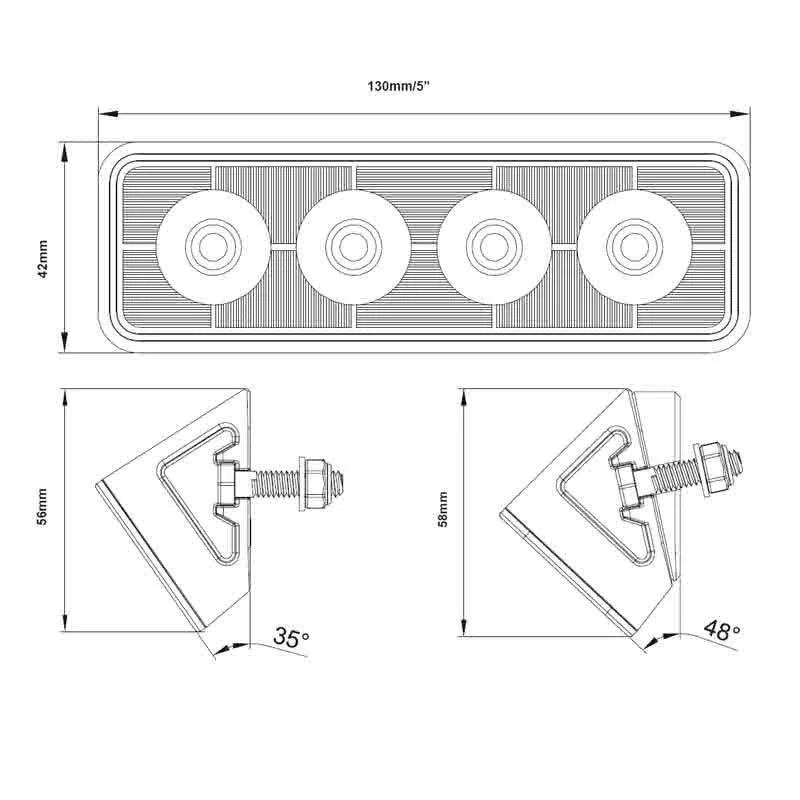

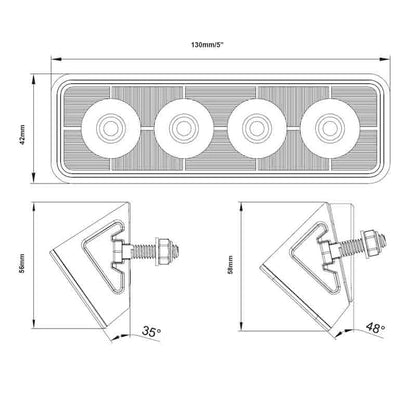

Dimensions: 131 × 42 × 56mm
Beam: Flood
LEDs: 4 × 6W LumiLEDs
Housing: Black aluminium
Lens: Clear polycarbonate
Protection: IP69K
Connection: 2m cable with 2-pin Deutsch connector
Mounting: Surface mount
Approvals: CE, ECE R10, ECE R23, CISPR25 Class 1
Manufacturer warranty: 2 years
Light Range: 34 lux at 10m / 1 lux at 59m
Installation & Connections:
Supplied with a 2m cable and 2-pin Deutsch connector. Check the mating connector and available cable route when planning the installation.
