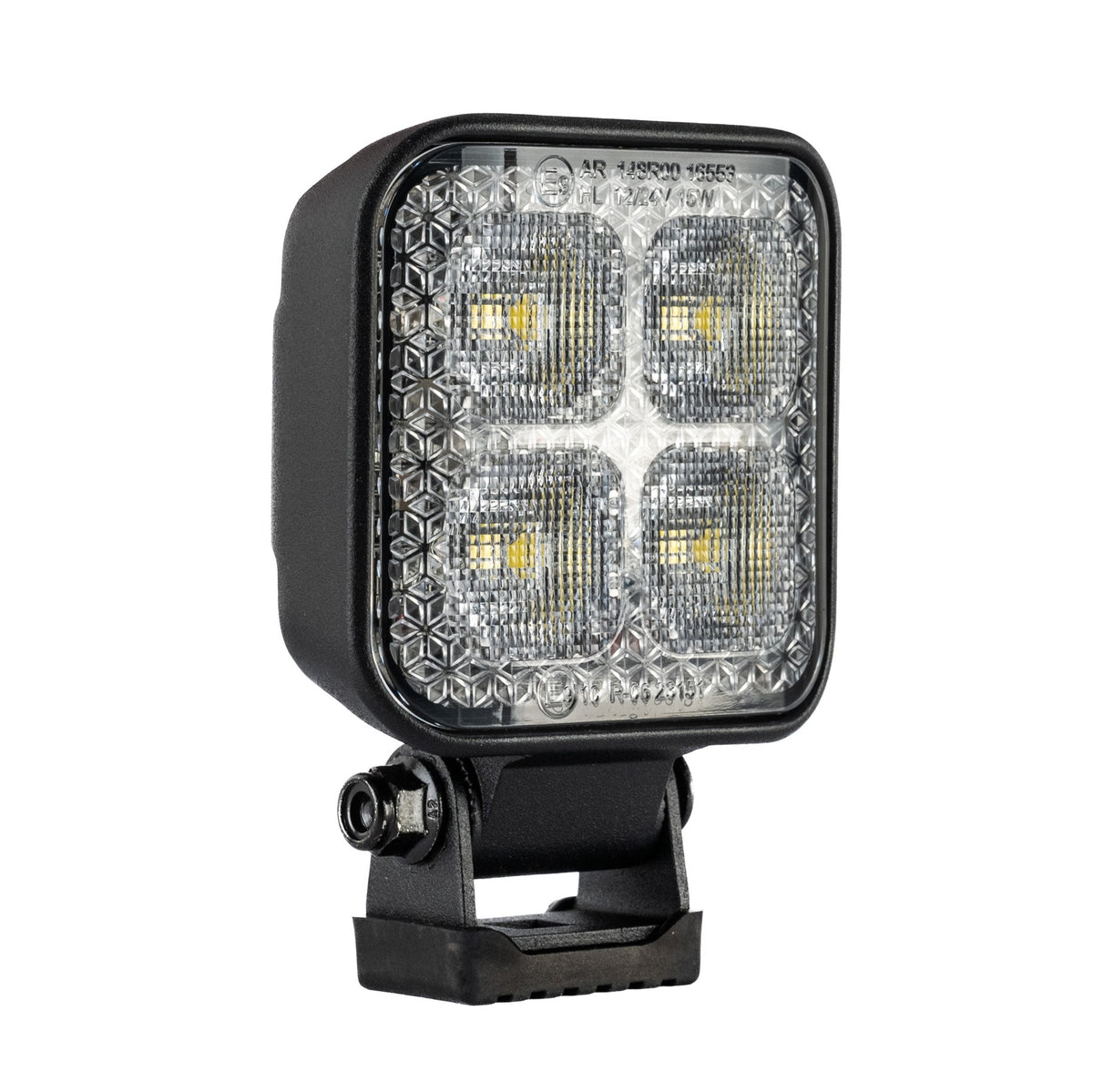

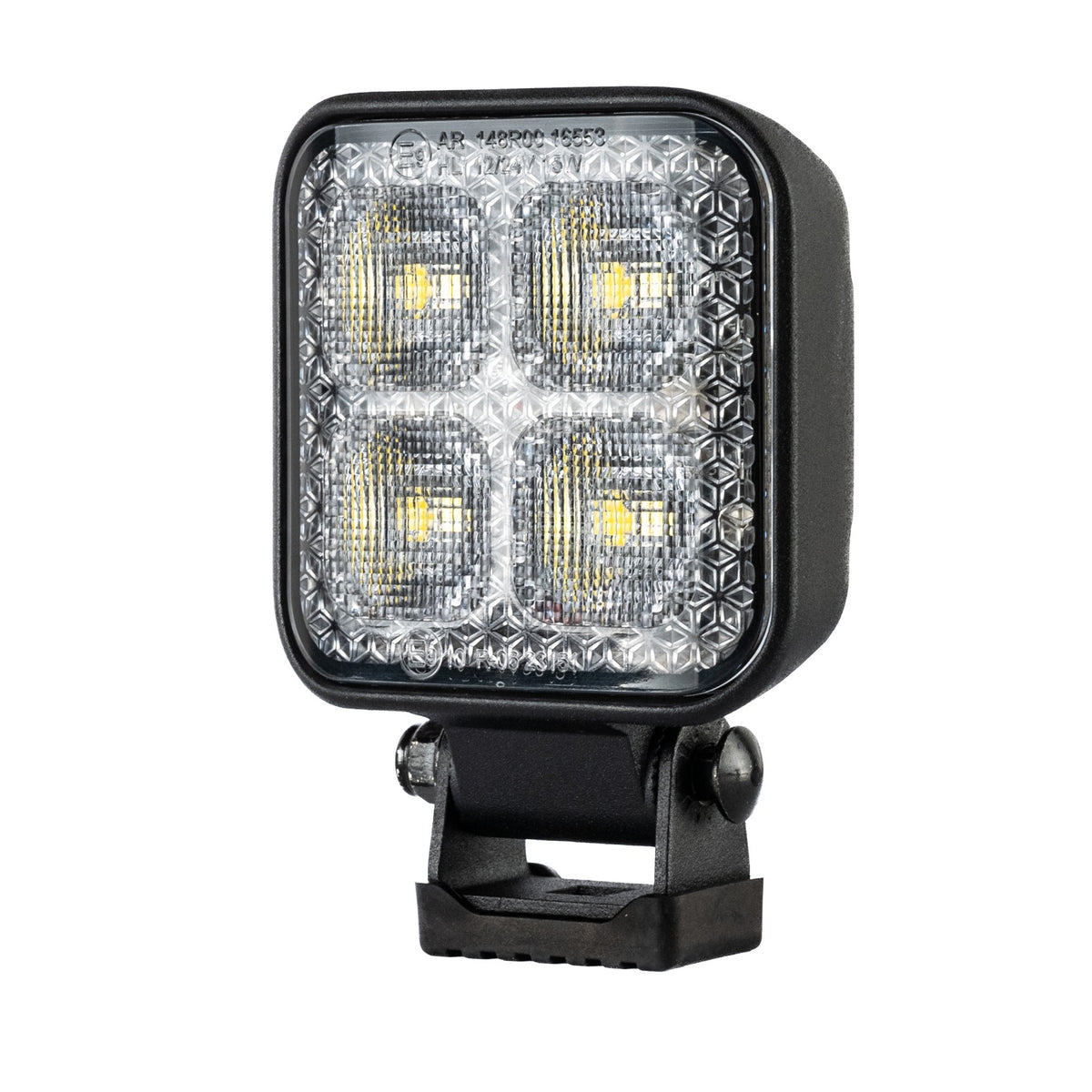

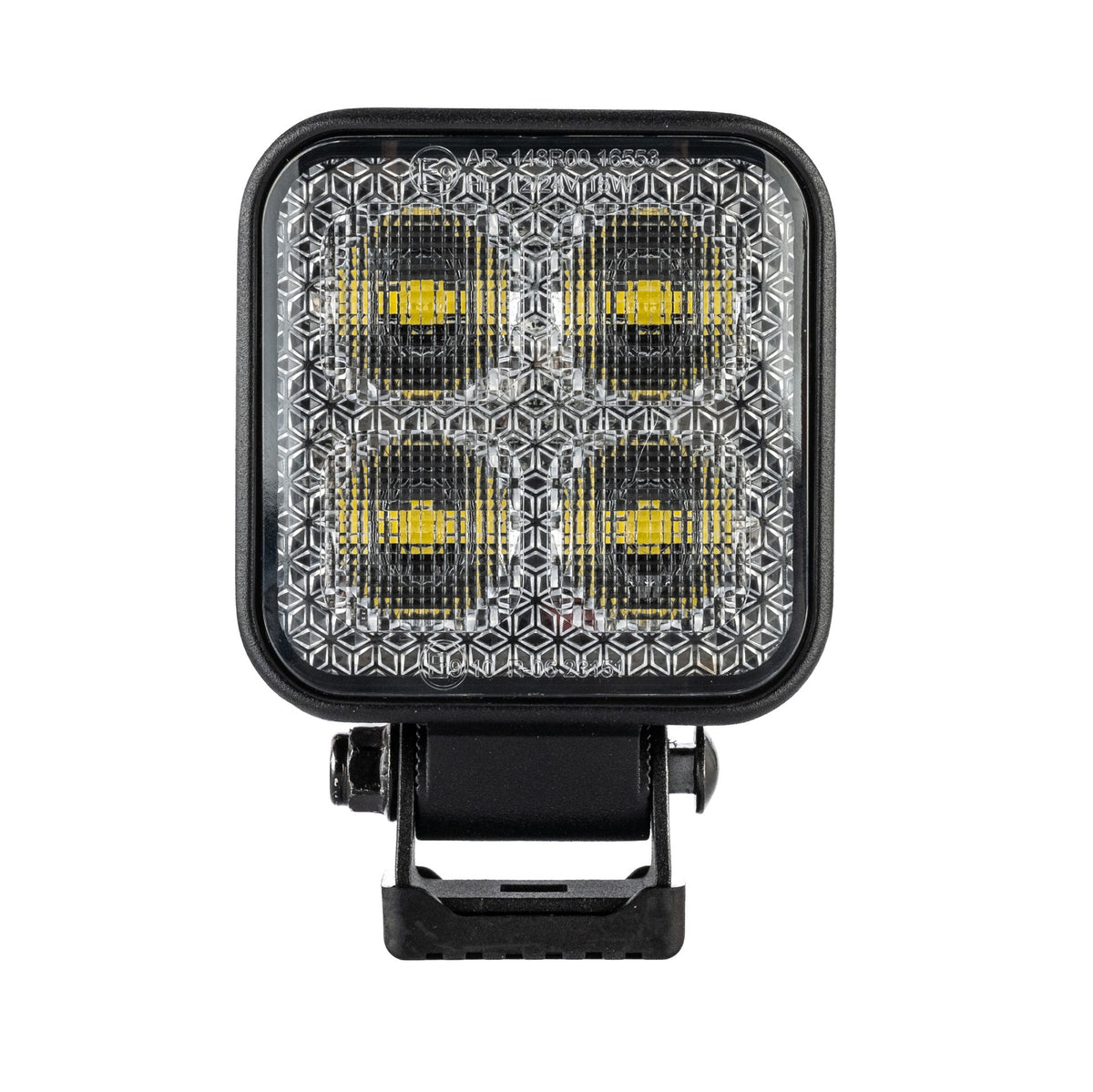

TRALERT Apex Square LED Work & Reverse Light 18W – WR-1829V
The TRALERT Apex WR-1829V provides flood-beam illumination in a compact square housing for commercial vehicles, trailers and machinery. This version has a 50cm cable with a 2-pin Deutsch connector. The aluminium housing, polycarbonate lens and IP69K protection suit demanding working environments.
The square Apex design uses 12 Osram LEDs to deliver a wide beam from a small lamp body. It is suited to installations that require local working-area illumination or an approved reversing-light function.

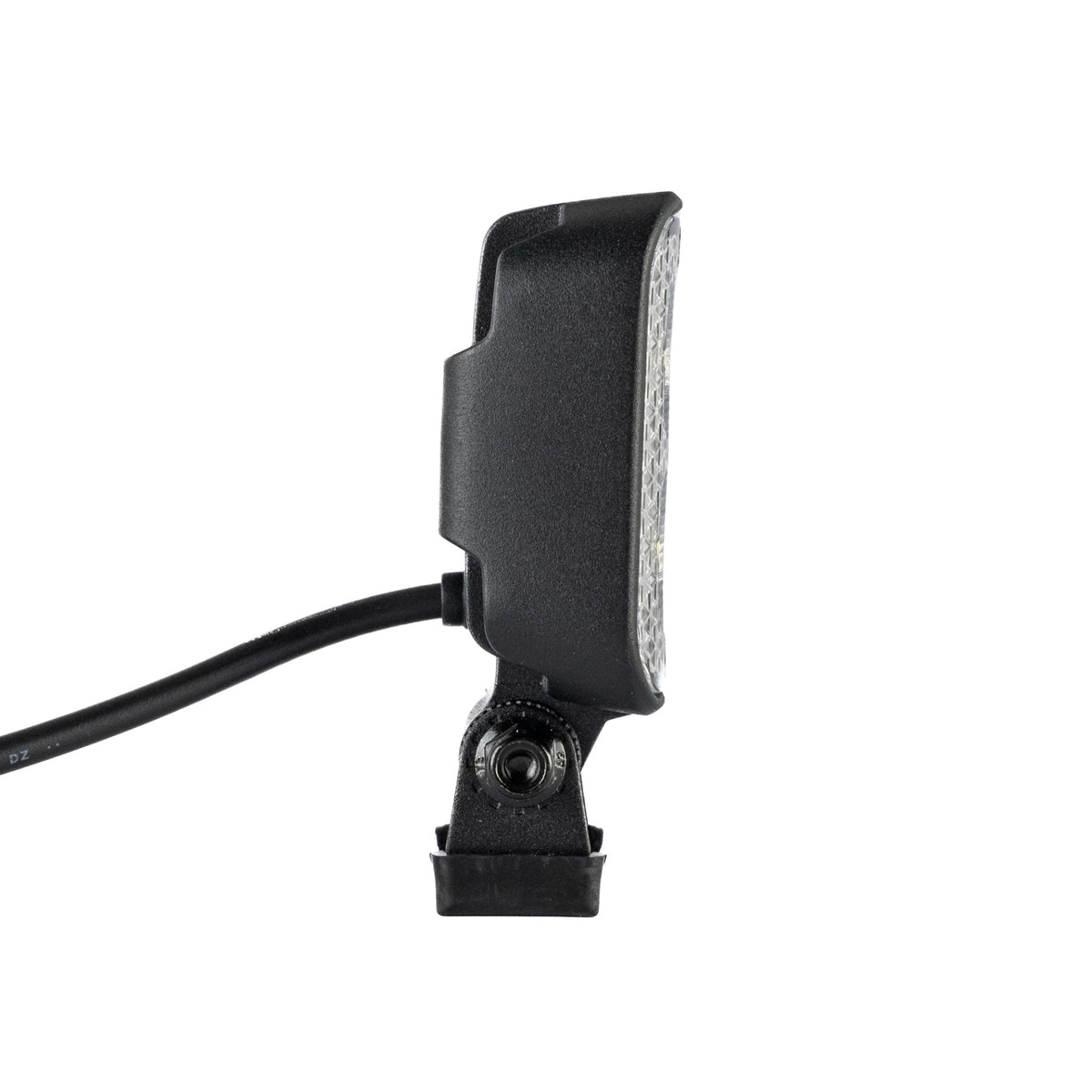

The 74.8 × 76 × 33.8mm housing helps keep the lamp compact on vehicle bodies and mounting brackets. This is the 50cm Deutsch-connector version, providing a short connection lead to a suitable vehicle harness.
Key Features:
Square Apex Housing: A compact square format for truck, trailer, commercial vehicle and machinery applications.
2,929-Lumen Output: Twelve Osram 3030 LEDs provide flood-beam work-area illumination.
Reversing-Light Function: Listed with ECE R23 and ECE R148 approvals for its reversing-light application.
18W LED Unit: The lamp’s listed power rating is 18W, with a 9–30V DC operating range.
50cm Deutsch Lead: Fitted with a 50cm cable and 2-pin Deutsch connector.
12V & 24V Compatibility: Suitable for 12V and 24V installations within the lamp’s specified supply range.

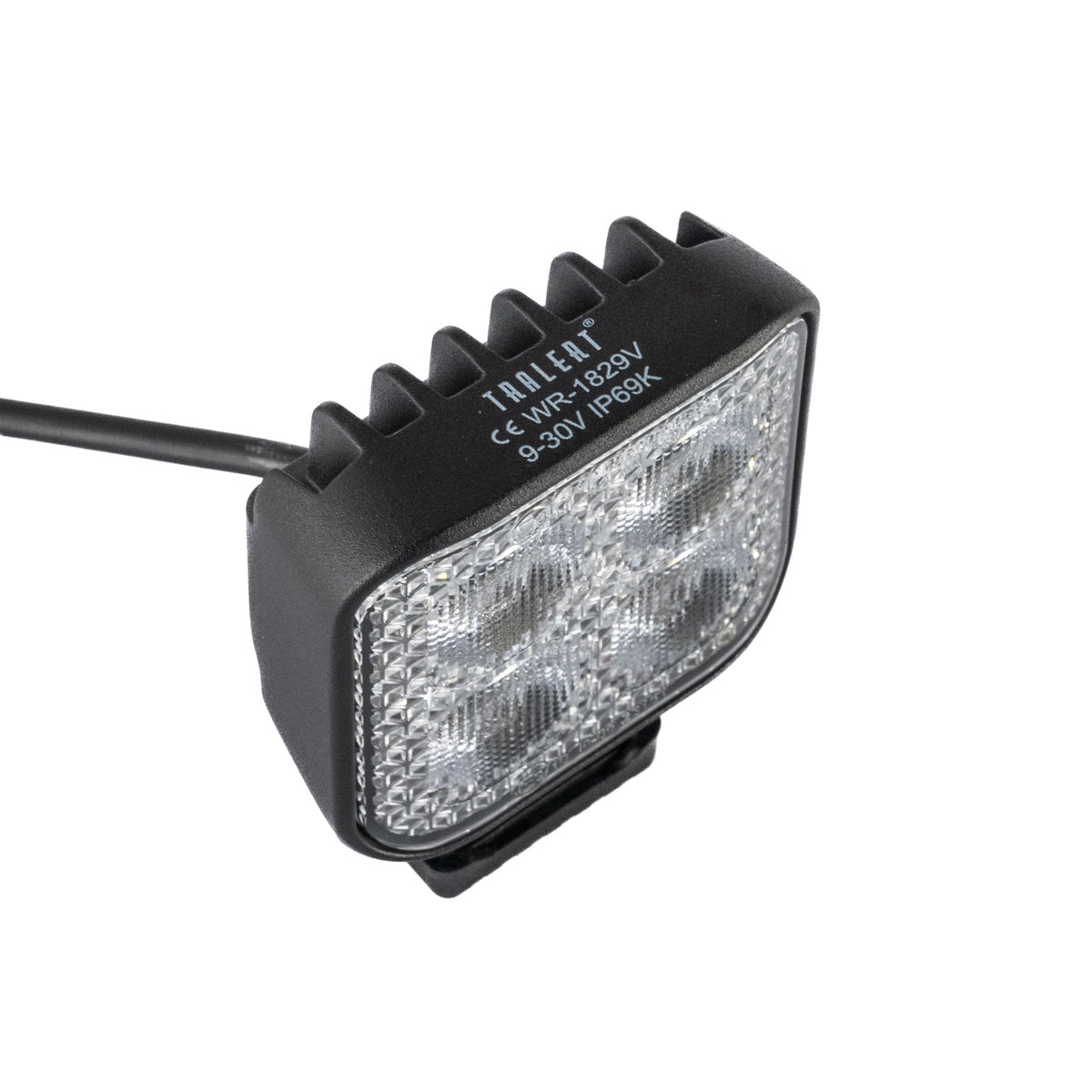

Housing & Lens: Black aluminium housing with a clear polycarbonate lens for commercial vehicle and machinery installations.
Ingress Protection: IP69K protection, as specified by TRALERT, for use in vehicle environments.
Manufacturer Warranty: TRALERT lists a 3-year manufacturer warranty for this model.
Specifications:
Product code: WR-1829V
Series: Apex
Voltage: 9–30V DC; peak voltage resistance to 36V
Light output: 2,929 lumens
Power: 18W

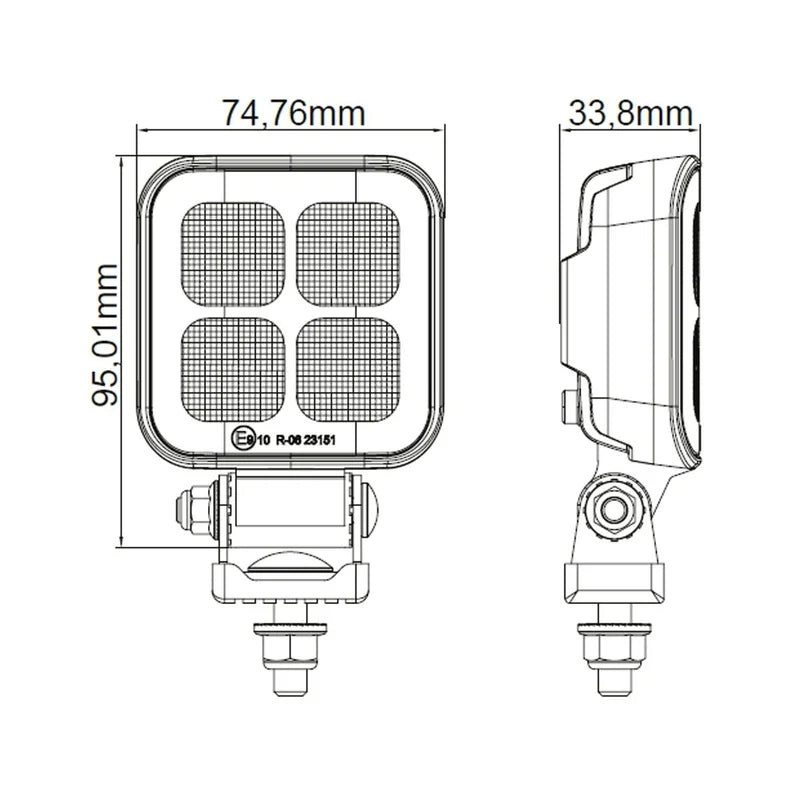

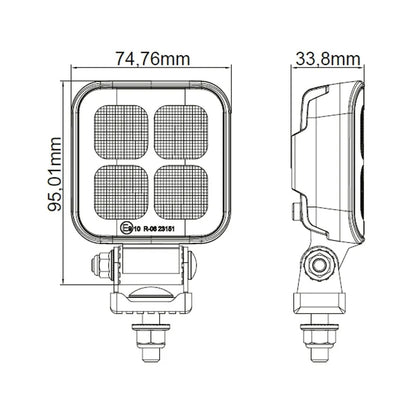

Dimensions: 74.8 × 76 × 33.8mm
Beam: Flood / reversing
LEDs: 12 × Osram 3030
Housing: Black aluminium
Lens: Clear polycarbonate
Protection: IP69K

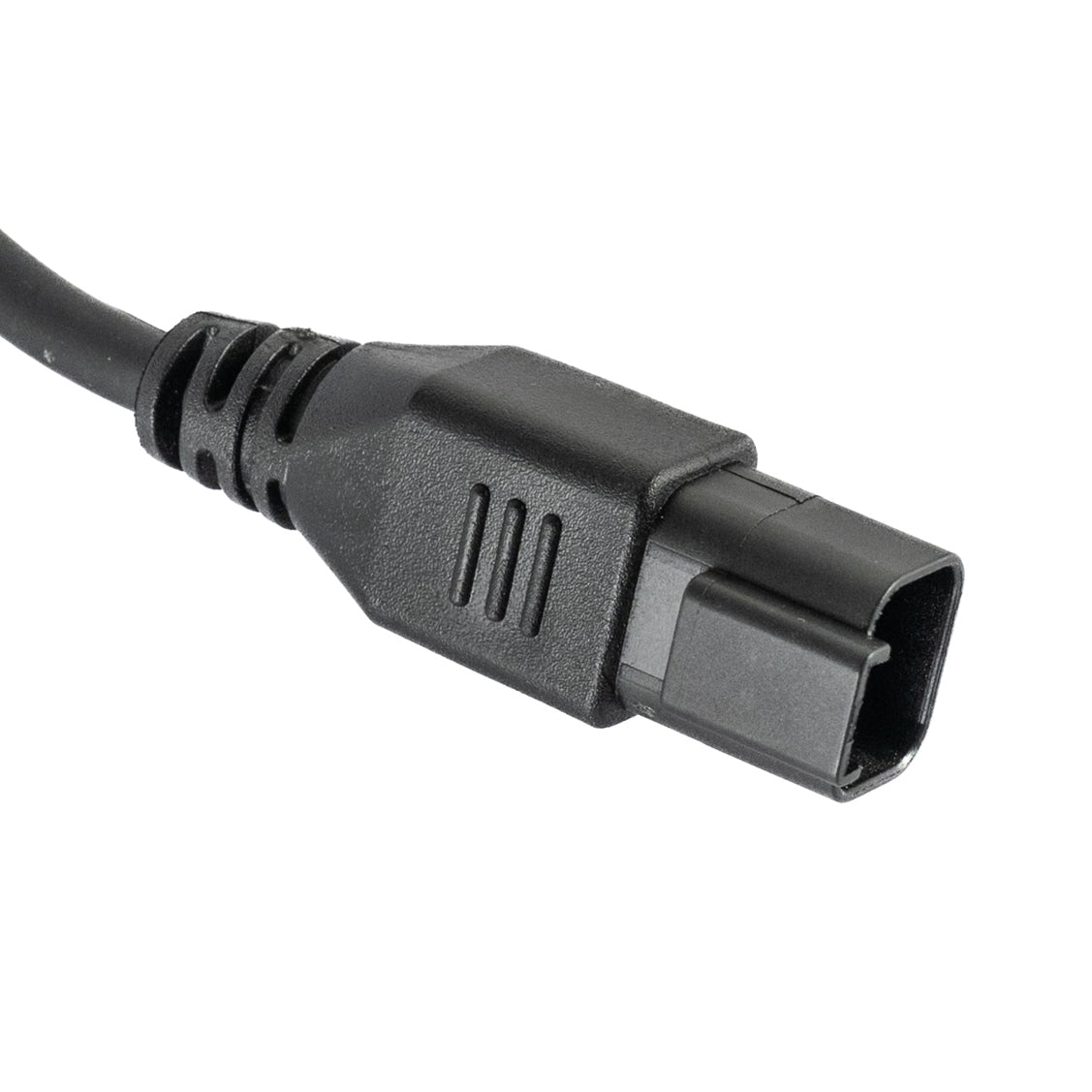

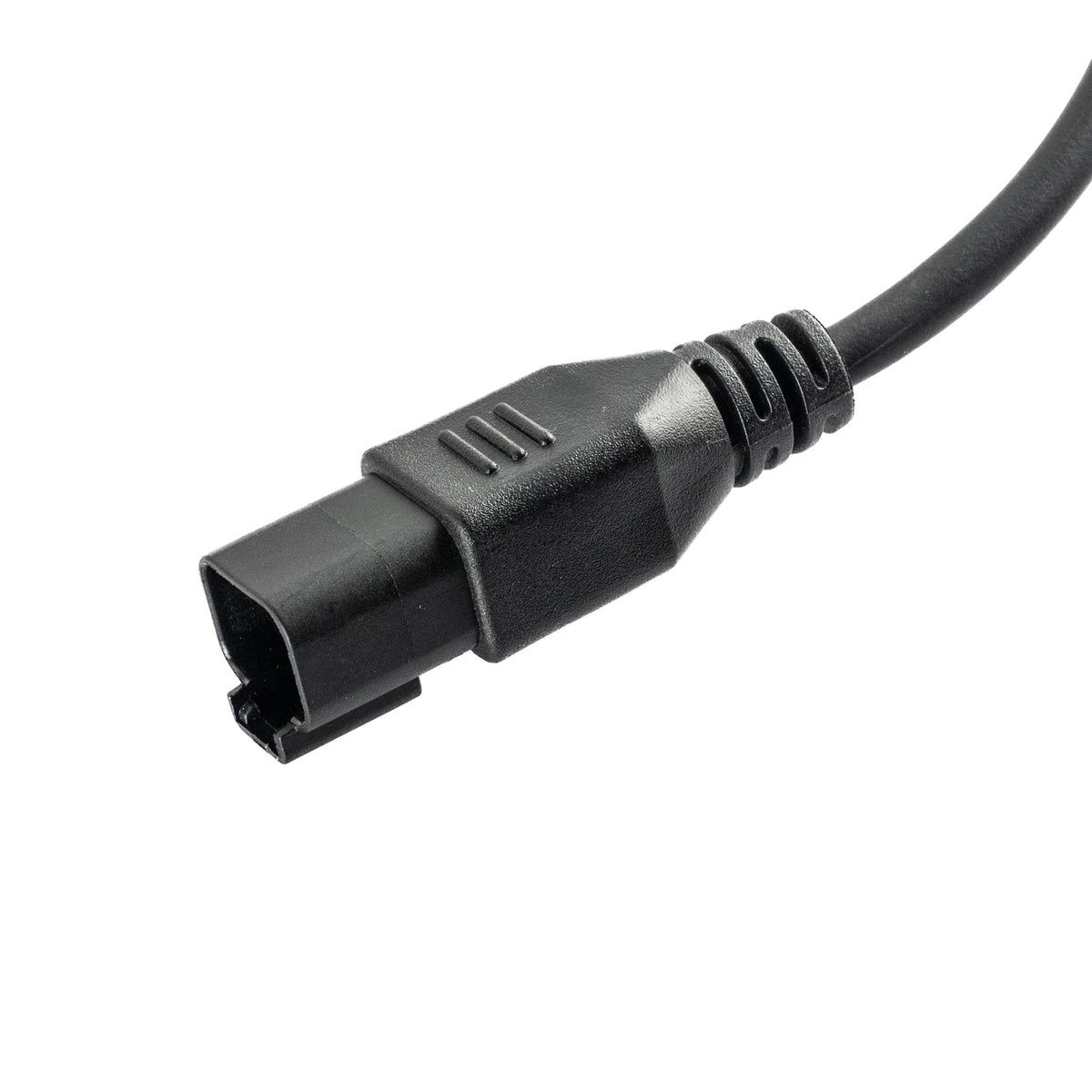

Connection: 50cm cable with 2-pin Deutsch connector
Mounting: Surface mount
Approvals: CE, ECE R10, ECE R148, ECE R23, CISPR25 Class 3
Manufacturer warranty: 3 years
Current Draw: 1.7A at 12V / 0.84A at 24V
Shape: Square
Installation & Connections:
This WR-1829V version has a 50cm cable with a 2-pin Deutsch connector. Check the connector and mounting space before fitting.
