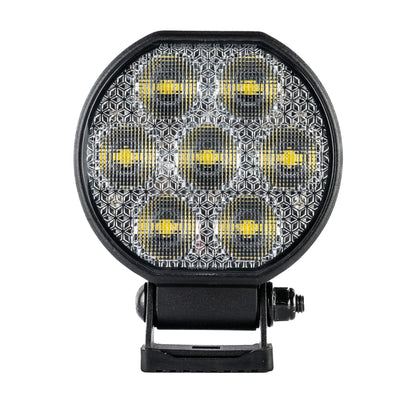

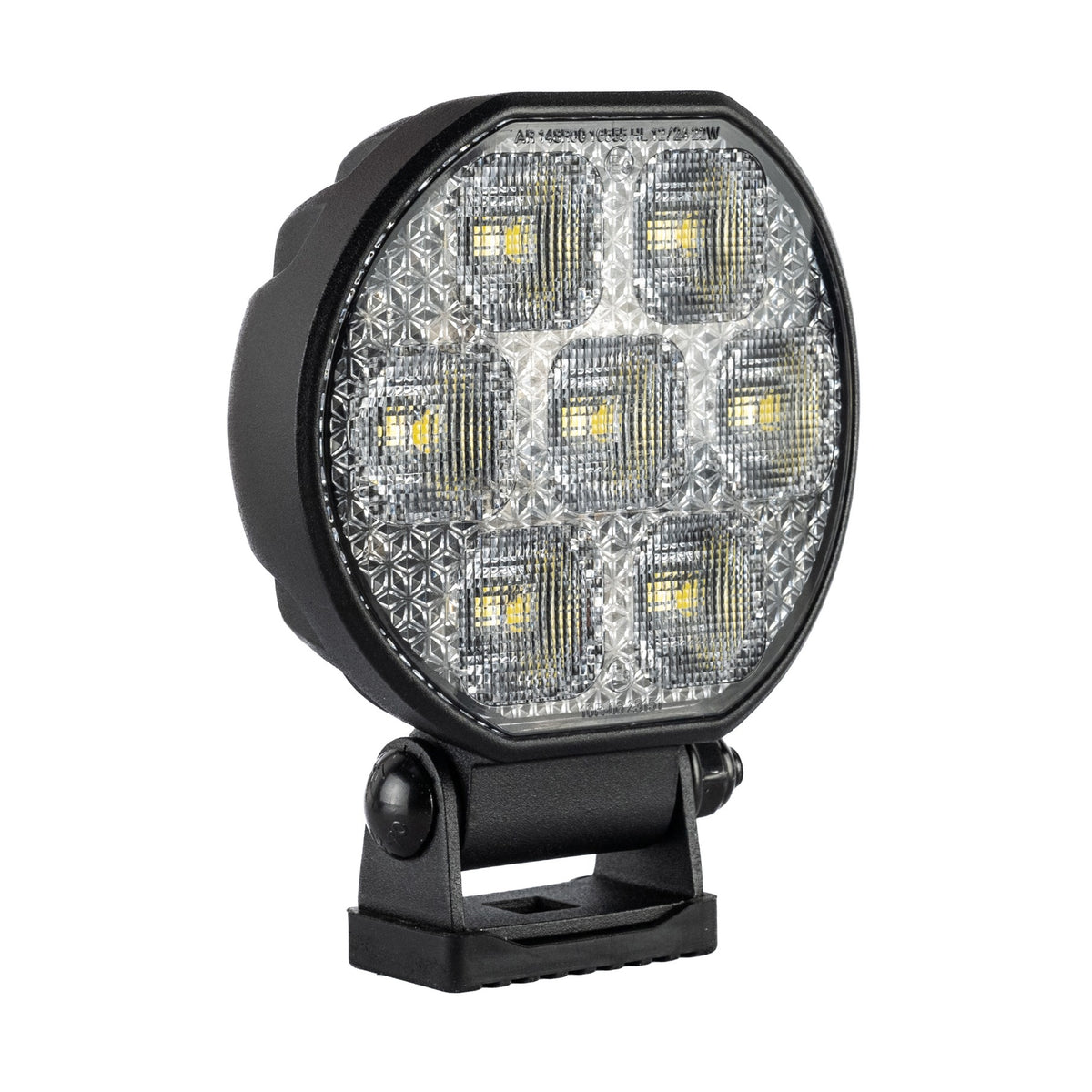

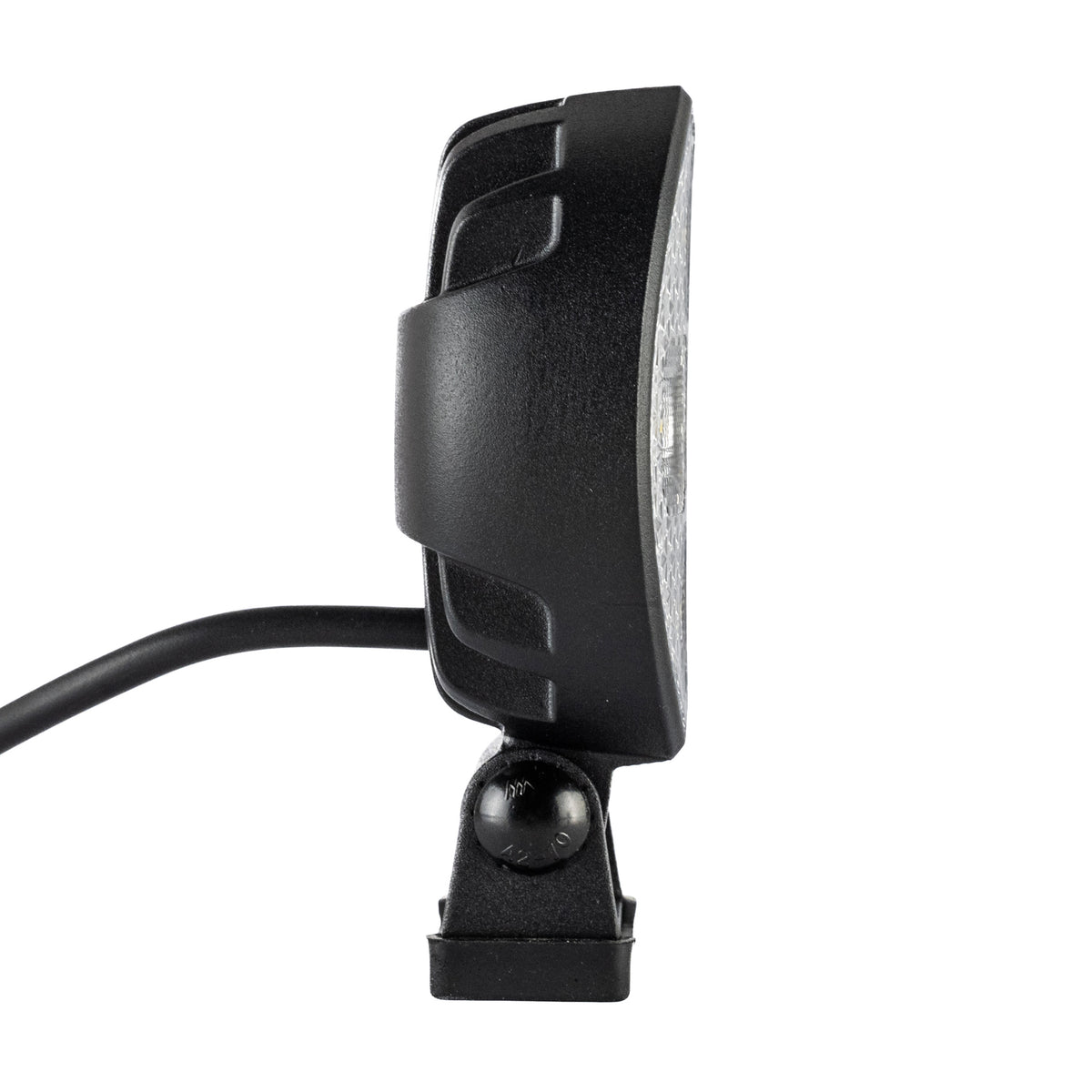

TRALERT Apex Round LED Work & Reverse Light 31.5W – WR-3151R

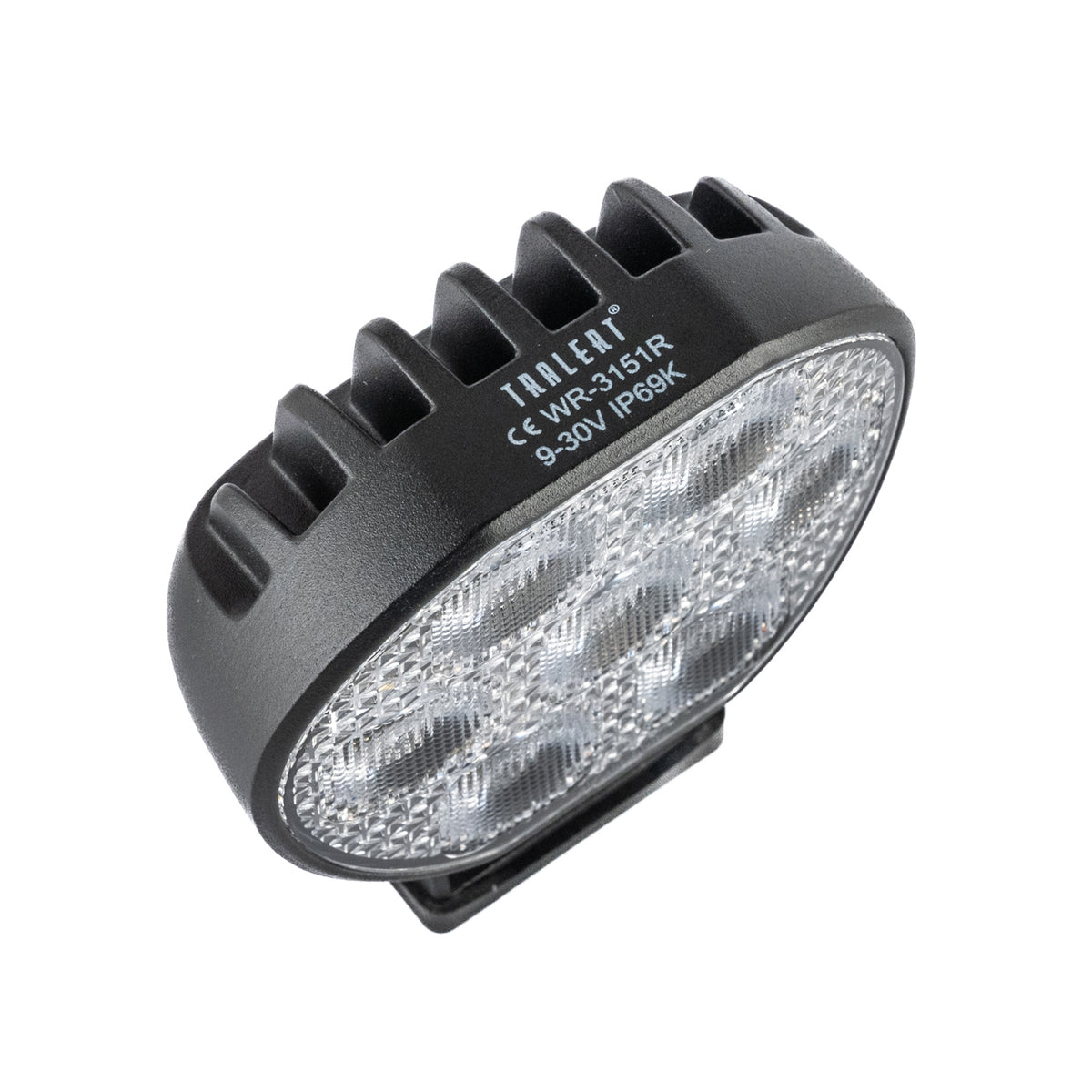

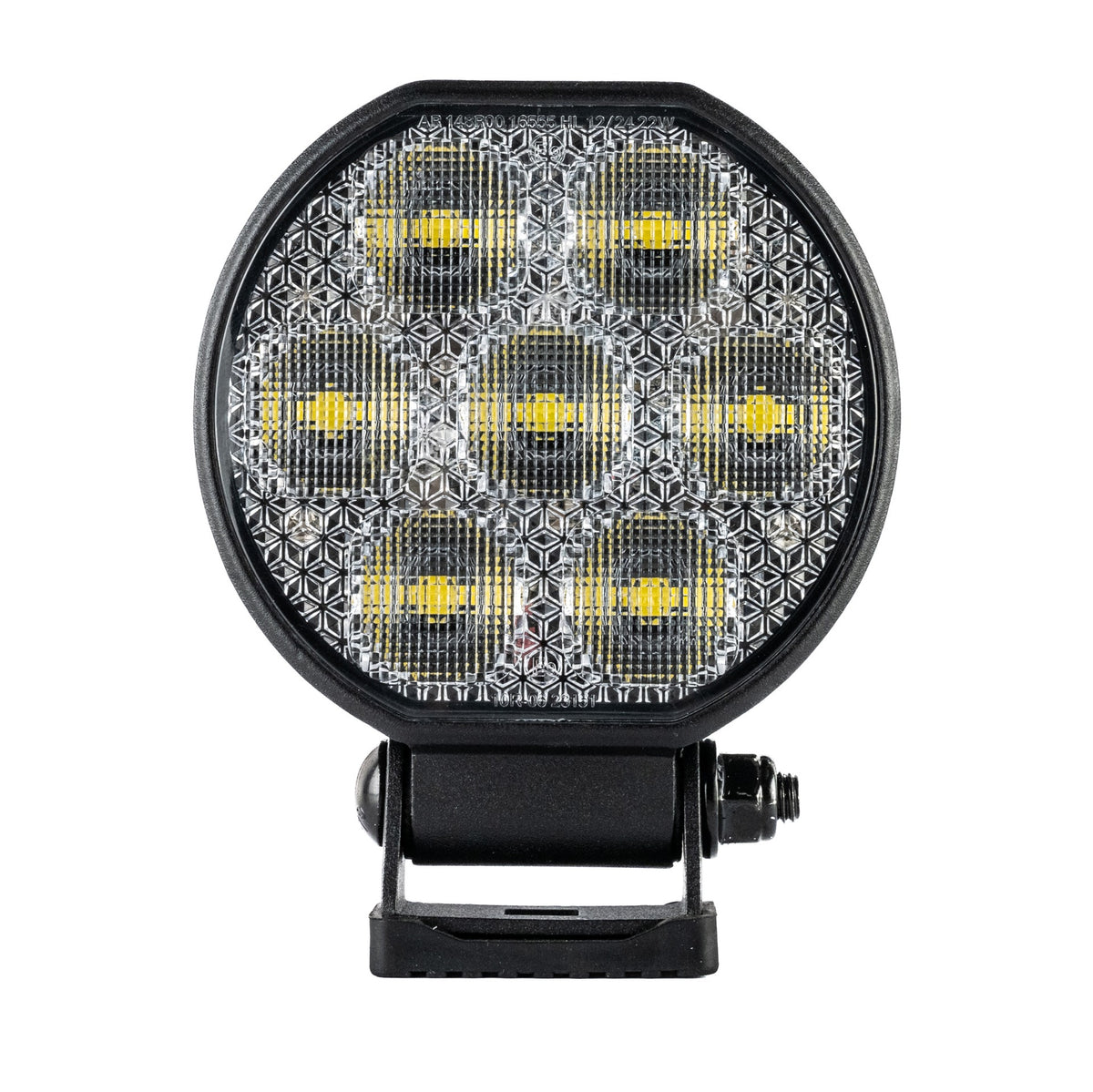

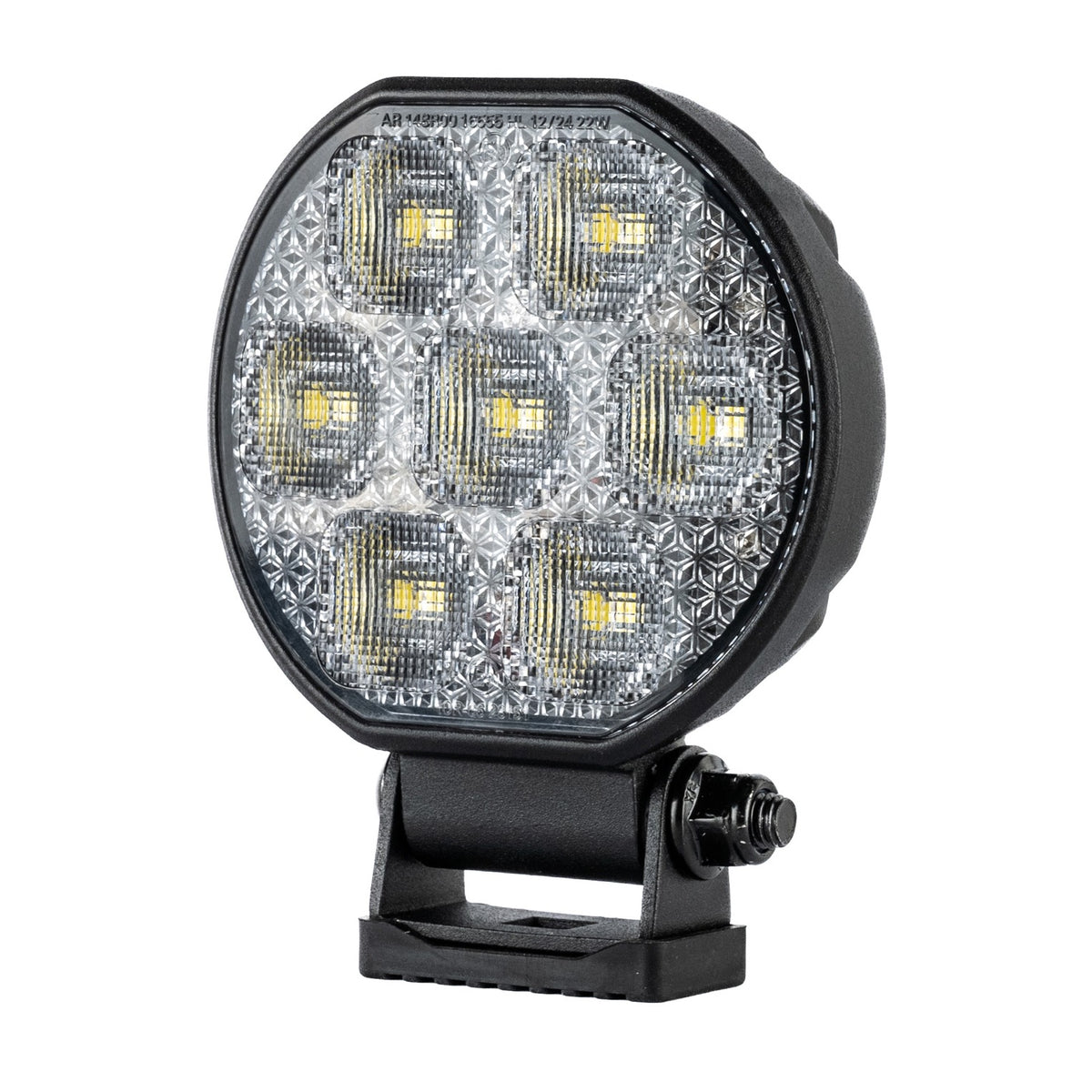

The TRALERT Apex WR-3151R is a round LED flood-beam lamp for work and reversing-light applications. Its 21 Osram LEDs deliver 5,126 lumens, housed in a compact aluminium body with a polycarbonate lens. A 50cm cable with Deutsch connector provides the connection for truck, trailer and machinery installations.
The larger round Apex lamp uses 21 Osram LEDs to deliver a flood beam for working-area and reversing-light applications. Its 5,126-lumen output provides a higher-output option within the round Apex range.

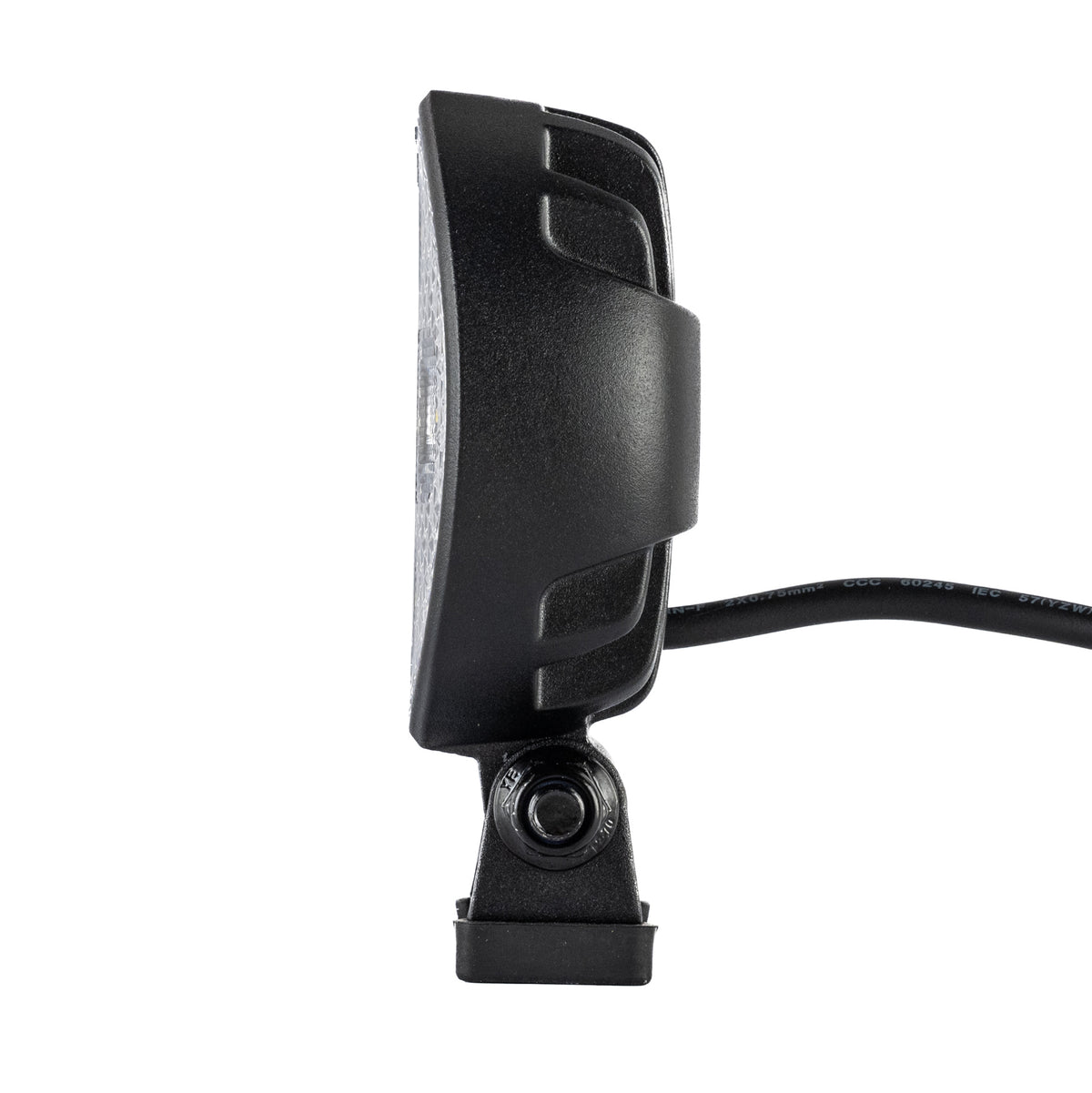

The aluminium body measures 99.8 × 93.6 × 40.9mm and is fitted with a clear polycarbonate lens. A 50cm cable and 2-pin Deutsch connector provide the connection to the vehicle harness, with a 9–30V DC supply range for 12V and 24V systems.
Key Features:
Round Apex Design: A round LED work lamp for trucks, trailers, commercial vehicles and machinery.
5,126-Lumen Output: Twenty-one Osram 3030 LEDs provide flood-beam illumination.
Work & Reversing Functions: Supports work-area lighting and its approved reversing-light application.
31.5W LED Unit: Offers a larger LED array than the compact 18W Apex models.

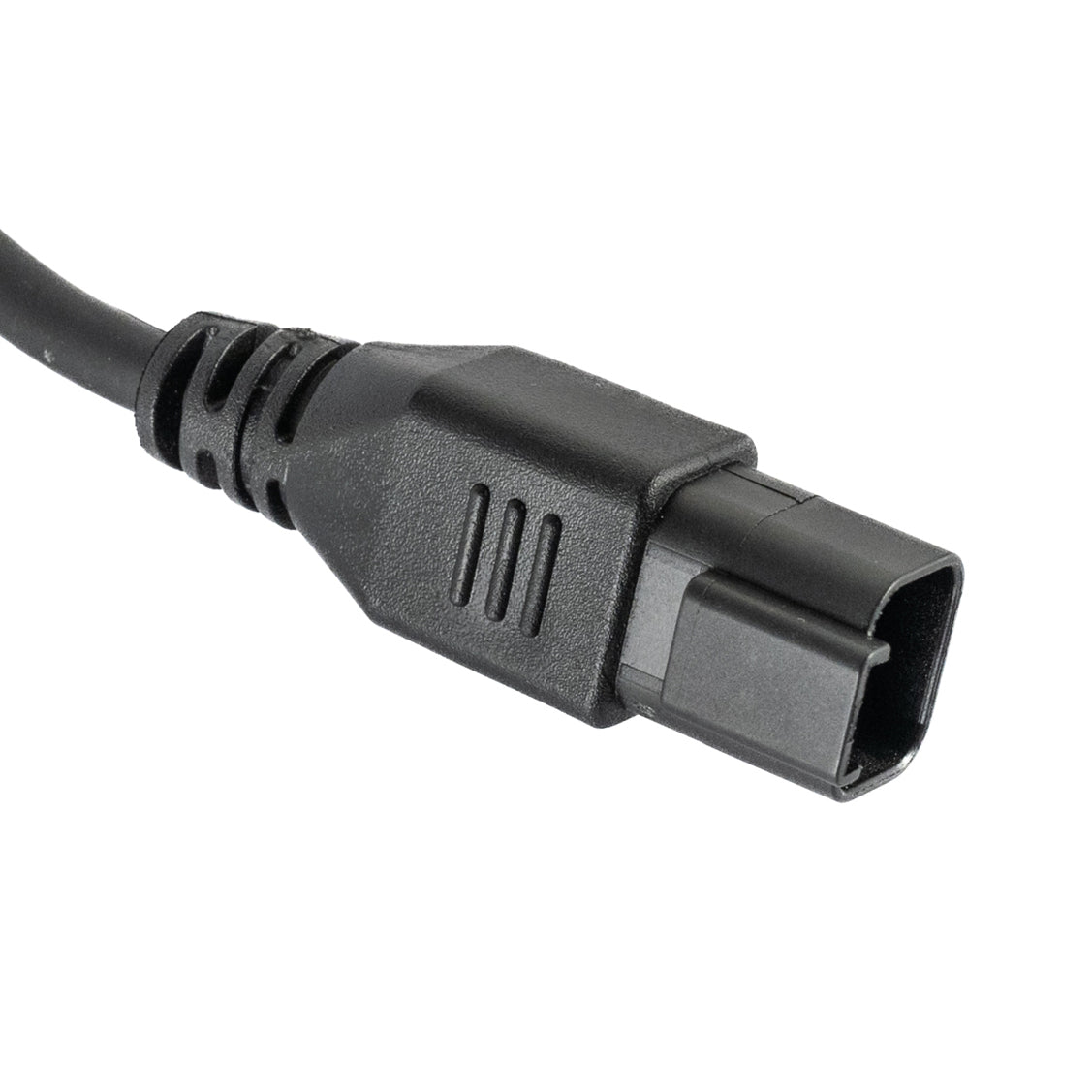

50cm Deutsch Lead: Supplied with a short cable terminating in a 2-pin Deutsch connector.
12V & 24V Compatibility: Suitable for 12V and 24V installations within the lamp’s specified supply range.

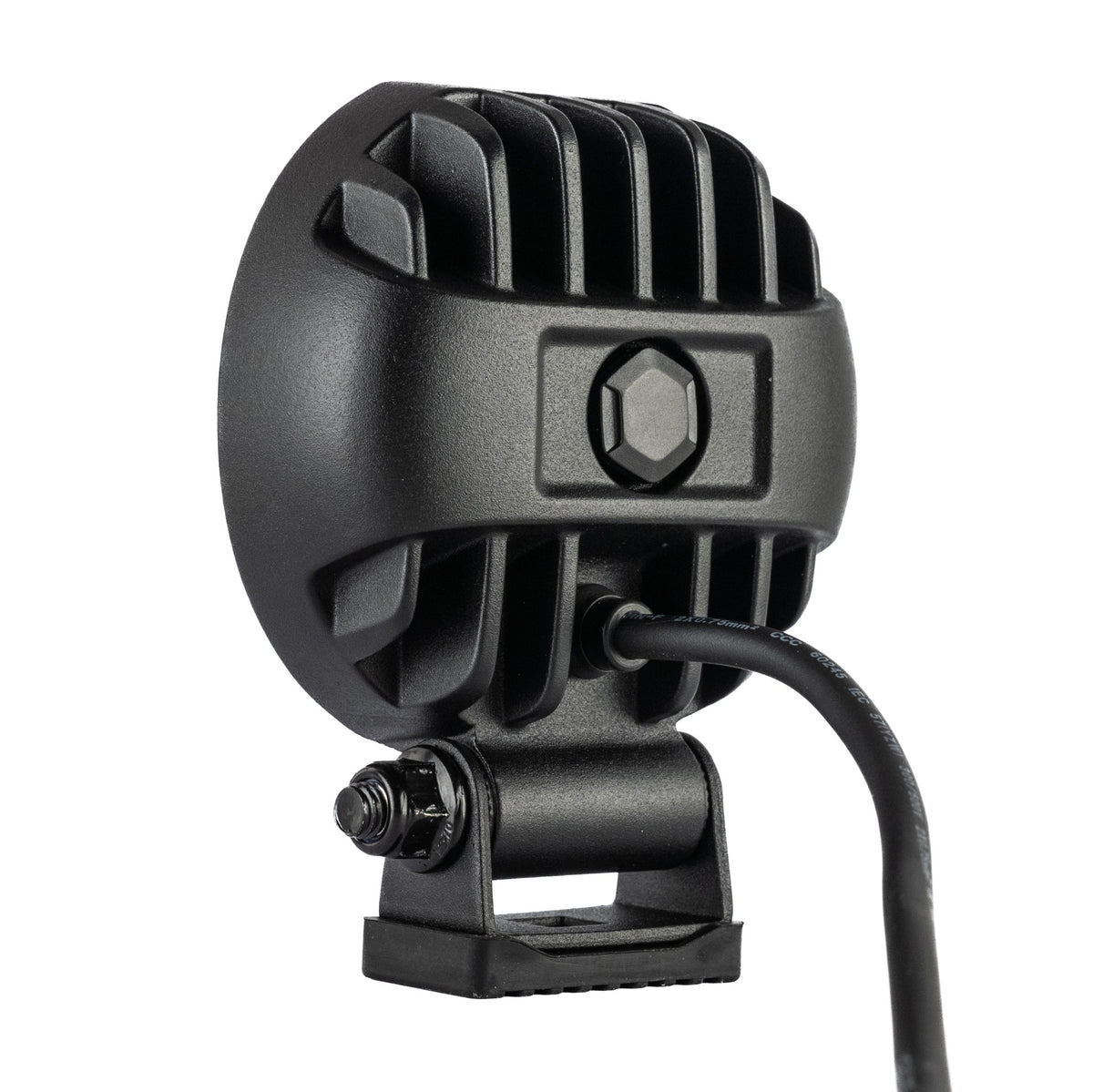

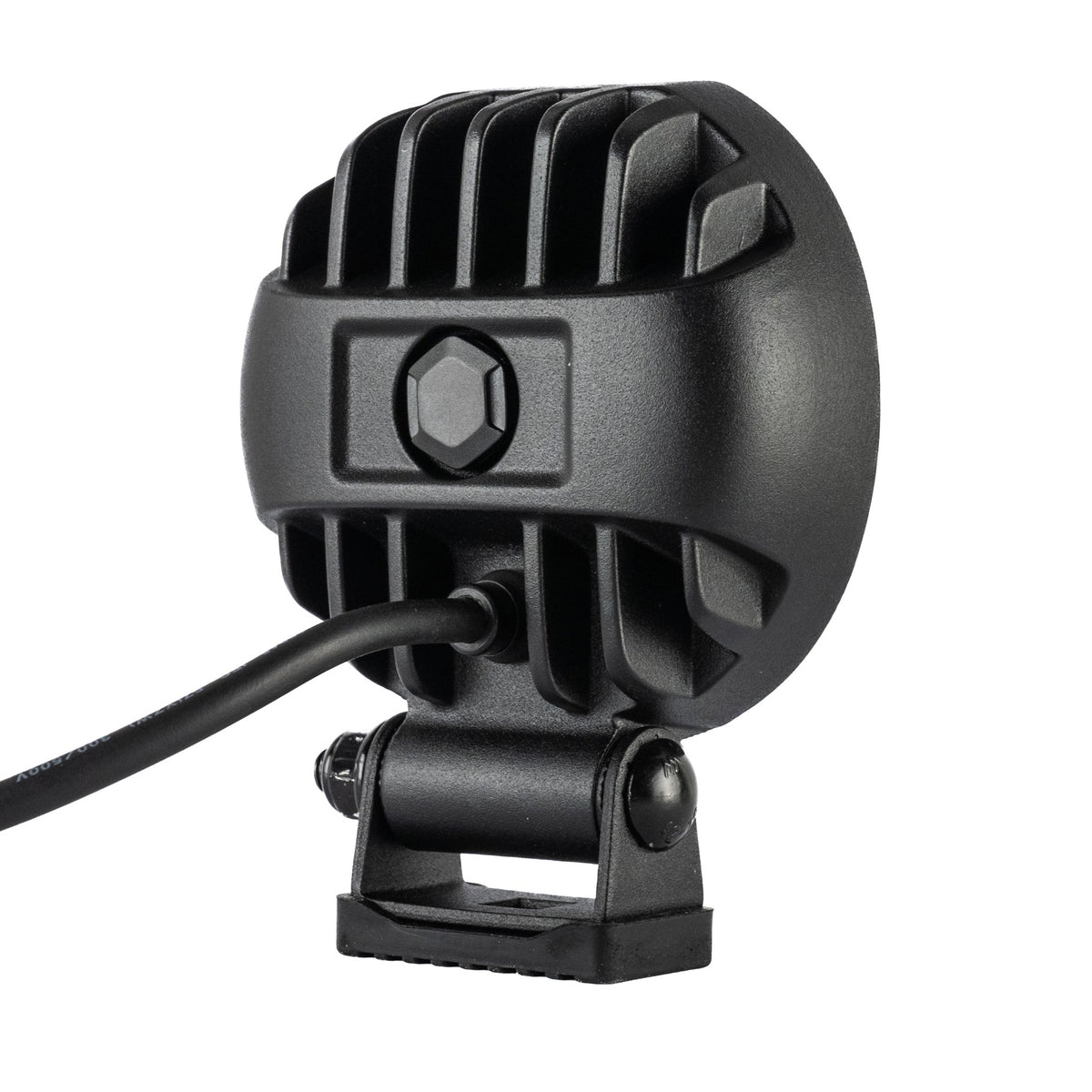

Housing & Lens: Black aluminium housing with a clear polycarbonate lens for commercial vehicle and machinery installations.
Ingress Protection: IP69K protection, as specified by TRALERT, for use in vehicle environments.
Manufacturer Warranty: TRALERT lists a 3-year manufacturer warranty for this model.
Specifications:
Product code: WR-3151R
Series: Apex
Voltage: 9–30V DC; peak voltage resistance to 36V
Light output: 5,126 lumens
Power: 31.5W

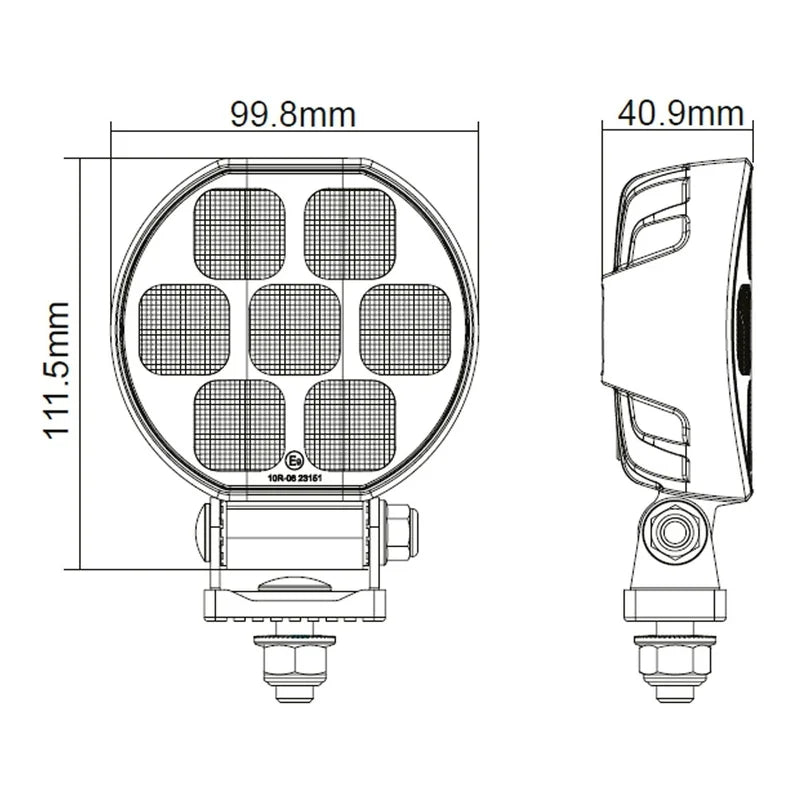

Dimensions: 99.8 × 93.6 × 40.9mm

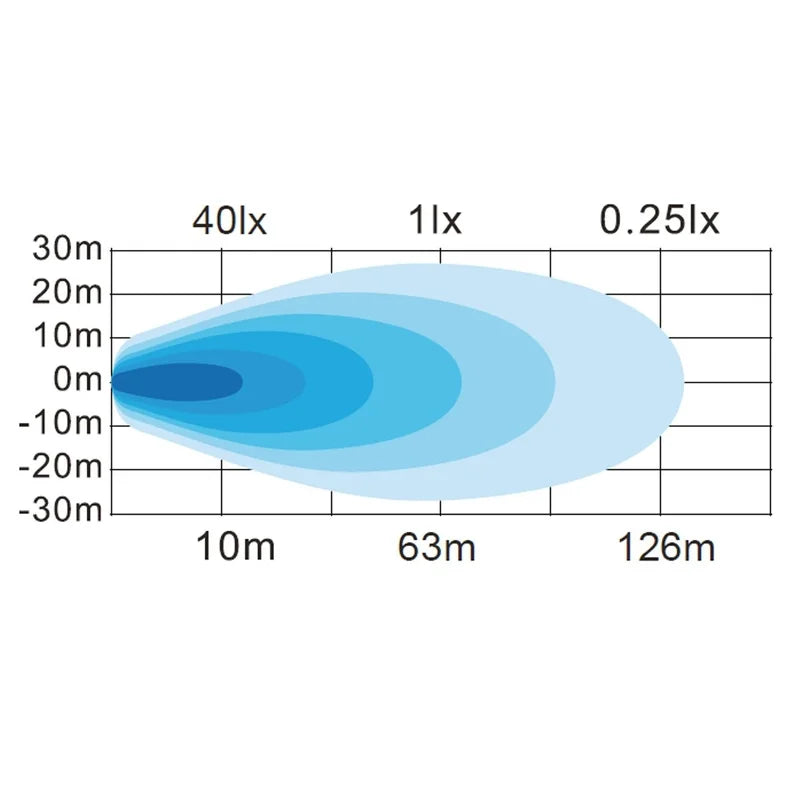

Beam: Flood / reversing
LEDs: 21 × Osram 3030
Housing: Black aluminium
Lens: Clear polycarbonate
Protection: IP69K

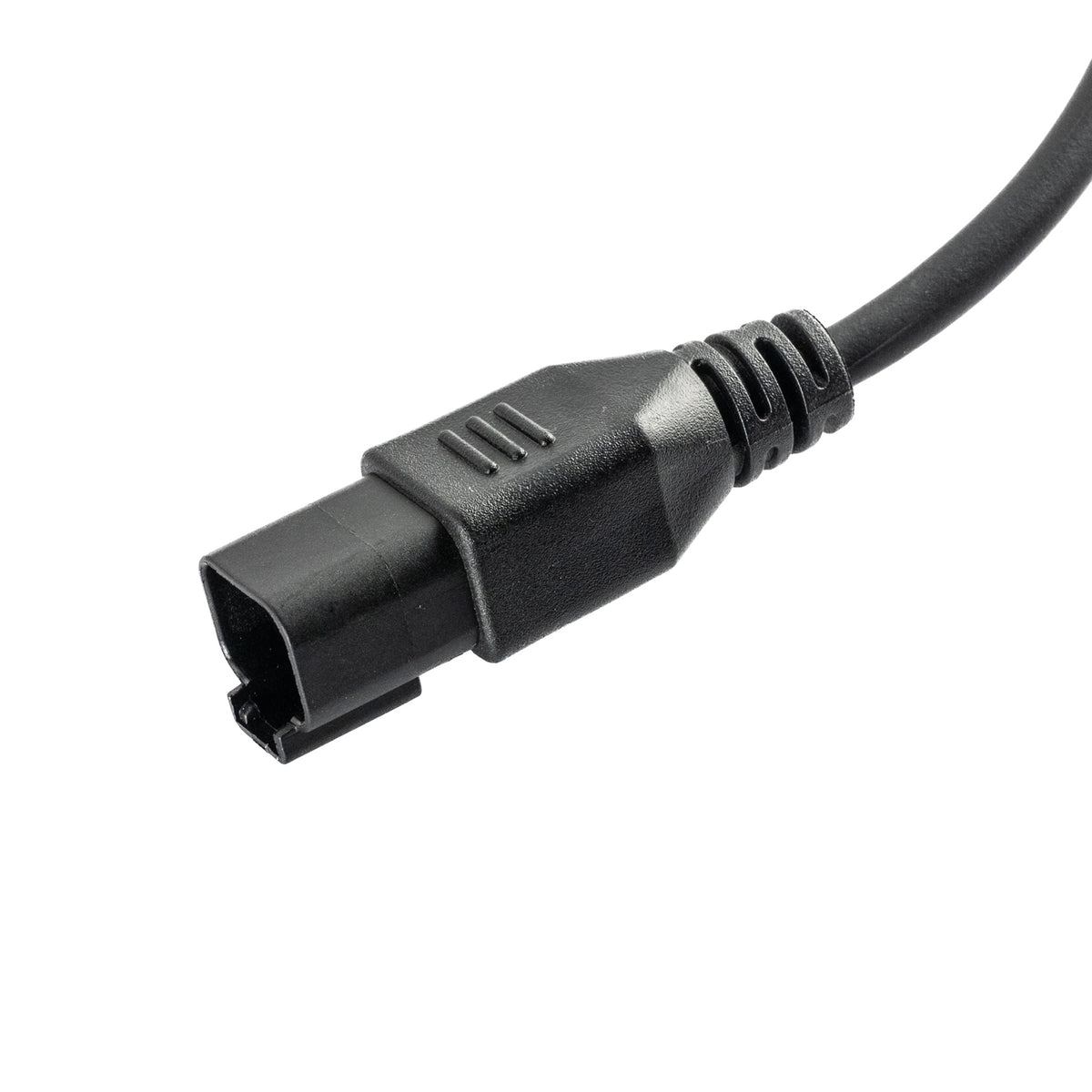

Connection: 50cm cable with 2-pin Deutsch connector
Mounting: Surface mount
Approvals: CE, ECE R10, ECE R148, ECE R23, CISPR25 Class 3
Manufacturer warranty: 3 years
Current Draw: 3.1A at 12V / 1.51A at 24V
Shape: Round
Installation & Connections:
Supplied with a 50cm cable and 2-pin Deutsch connector. Check the body dimensions and bracket clearance against the intended mounting position.
