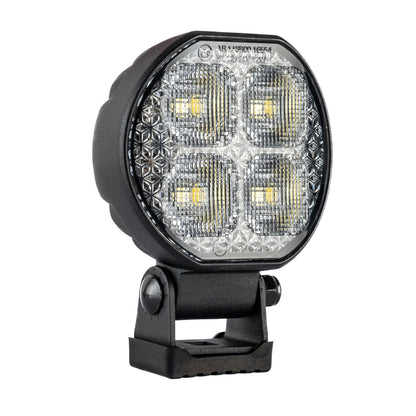

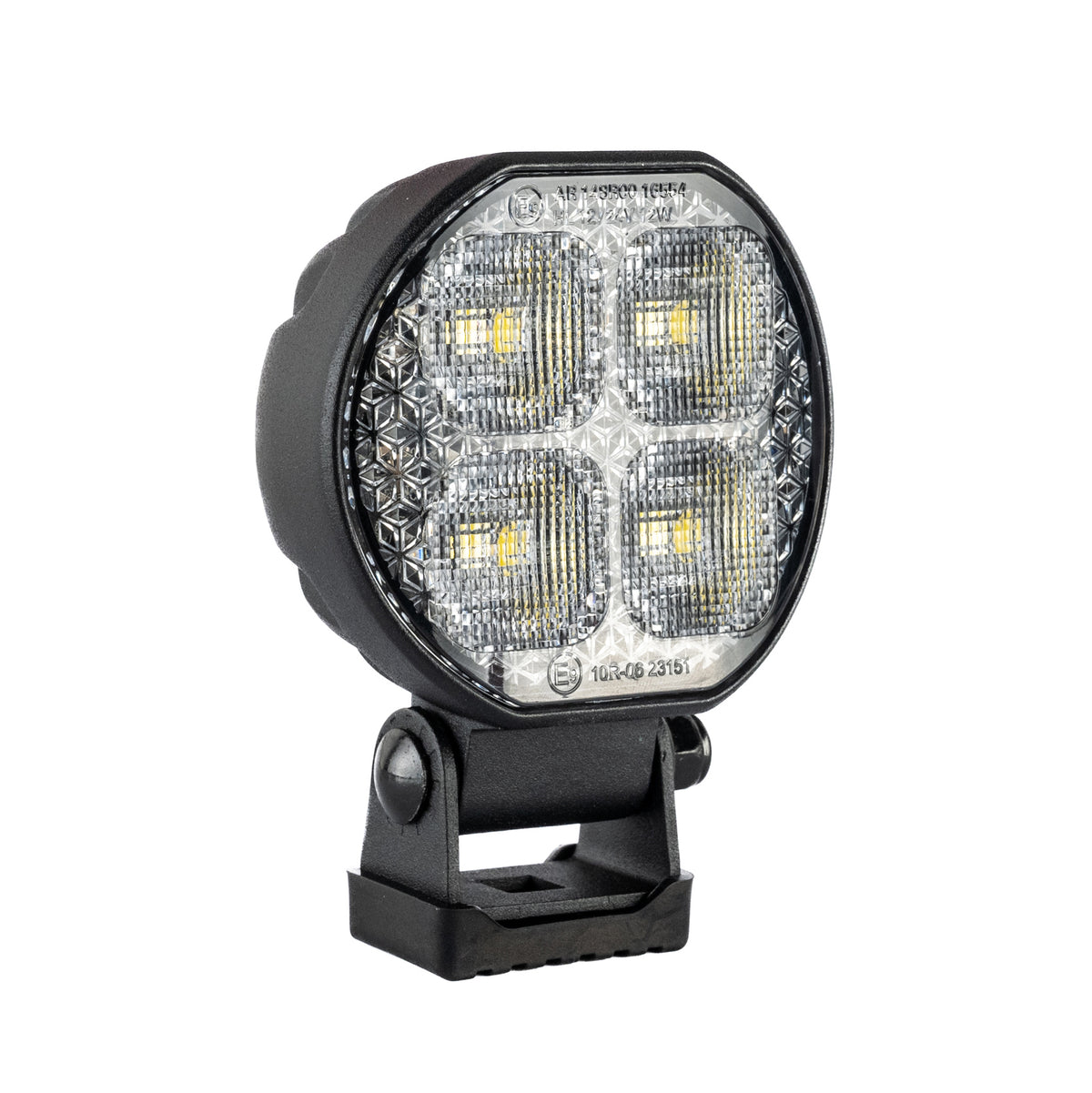

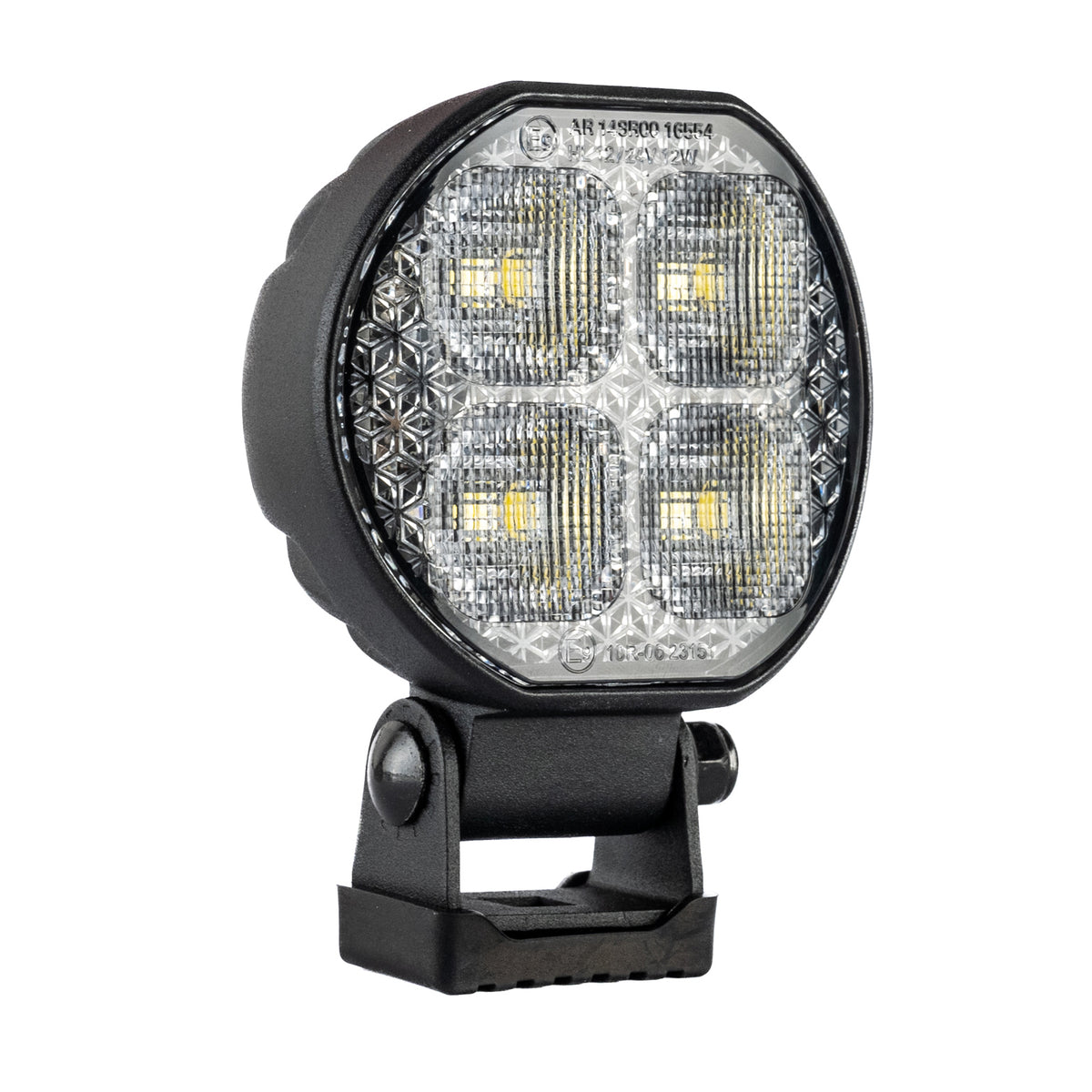

TRALERT Apex Round LED Work & Reverse Light 18W – WR-1829R

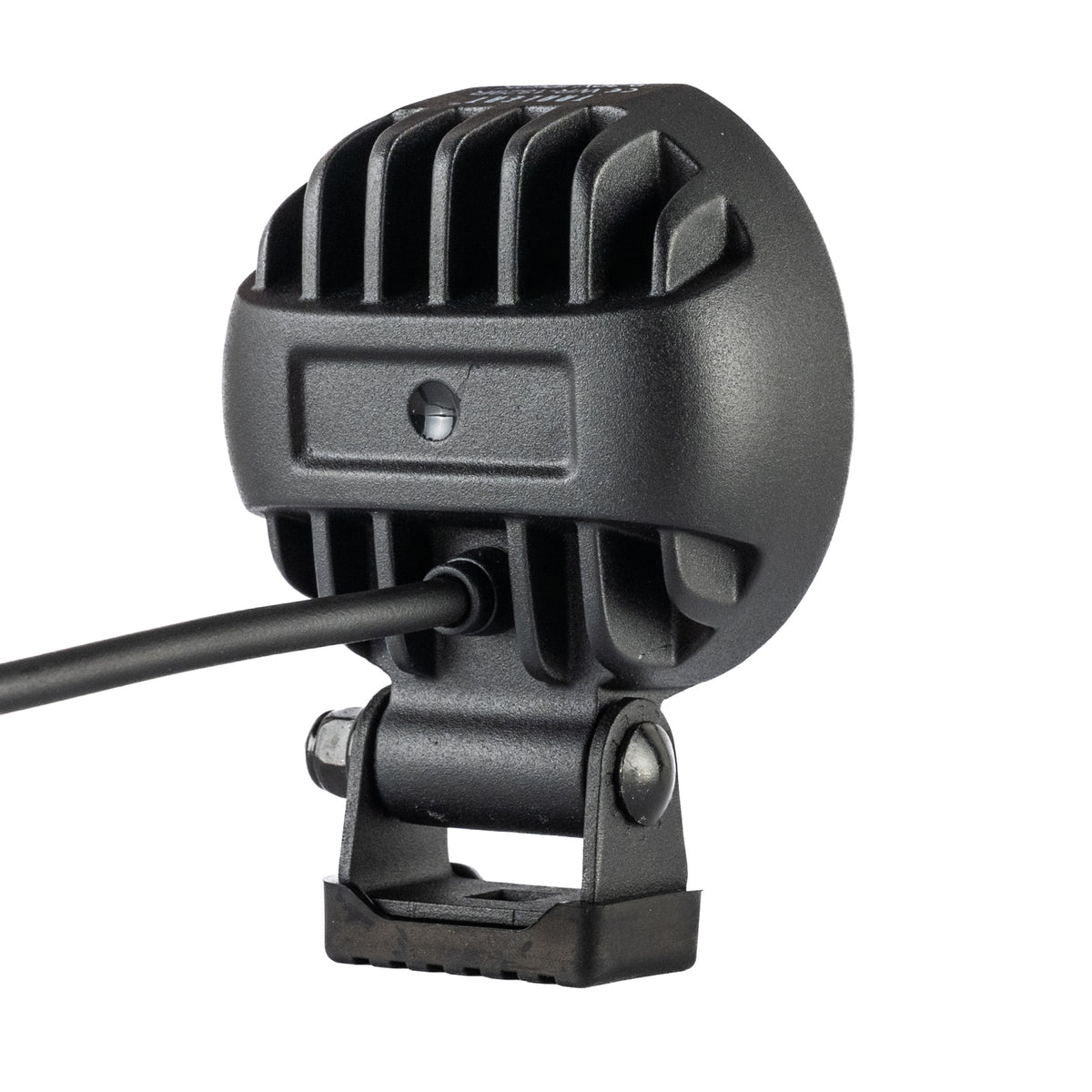

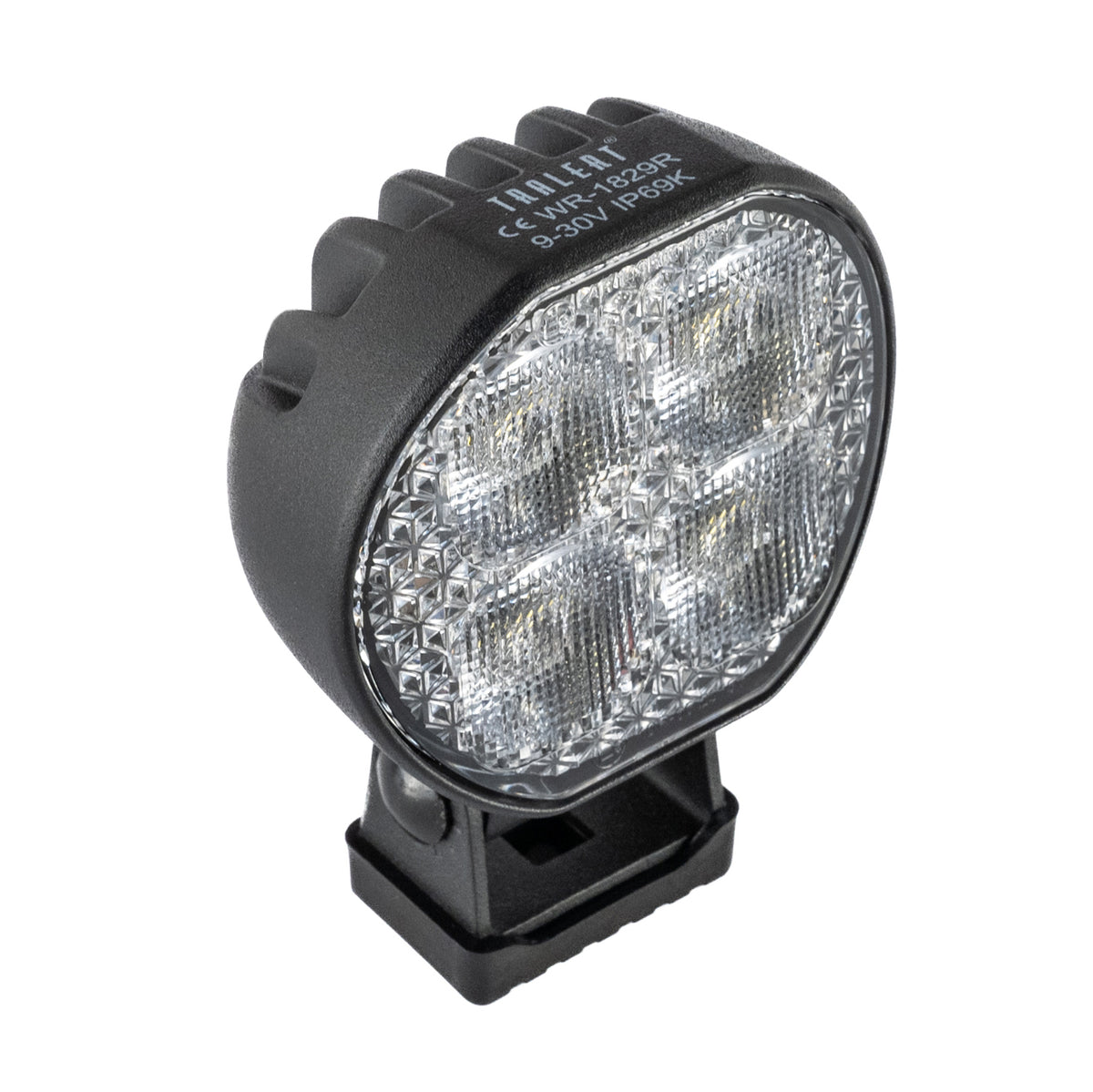

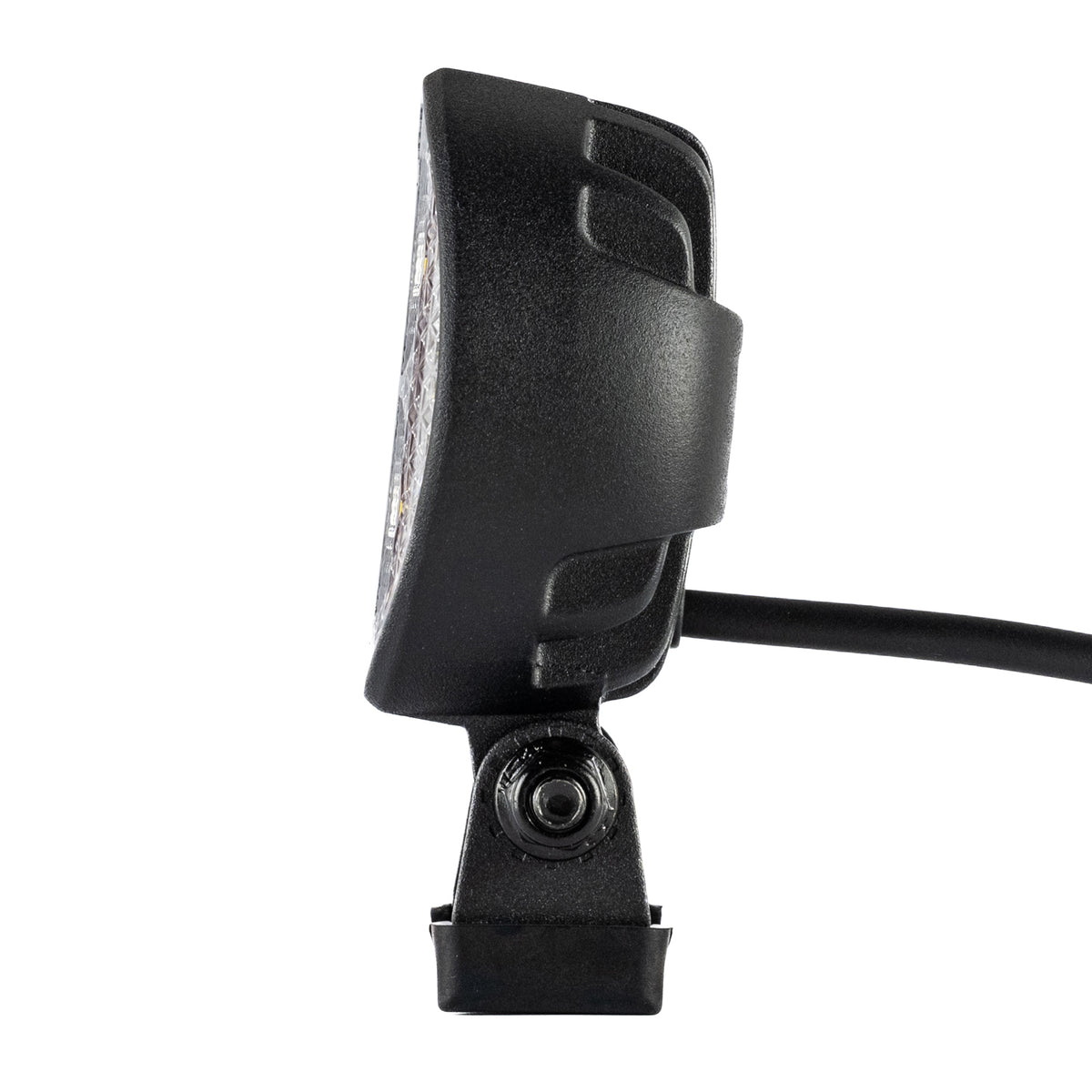

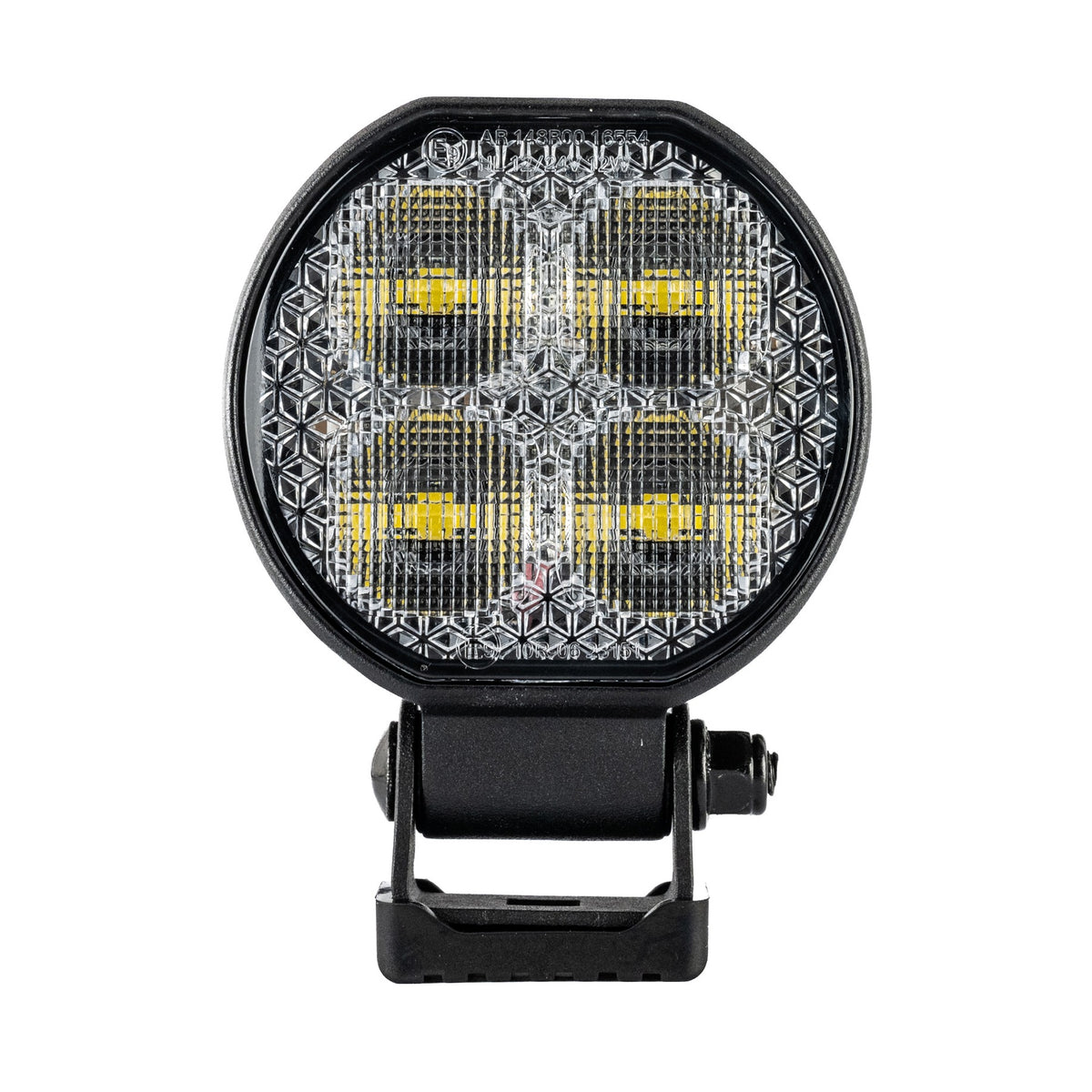

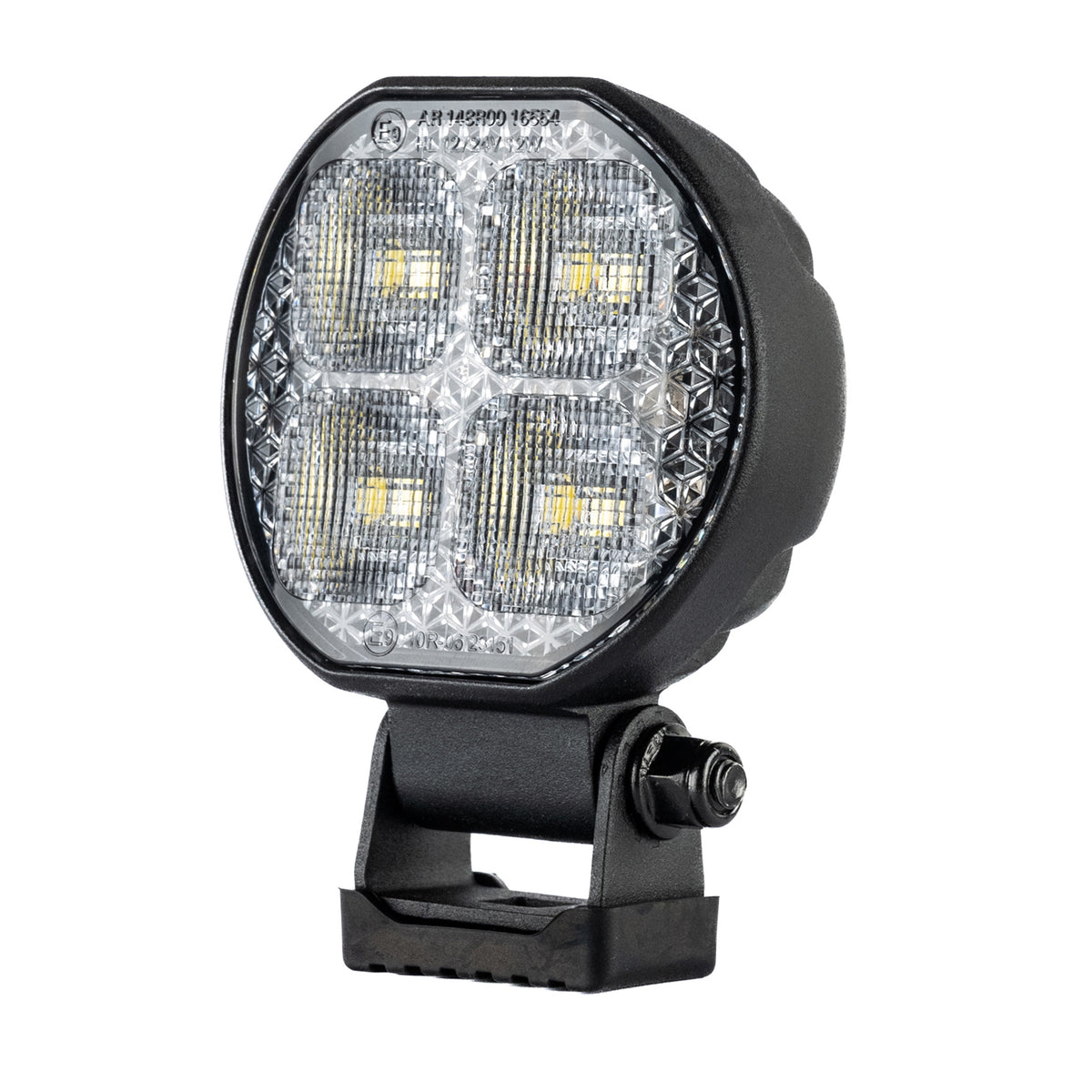

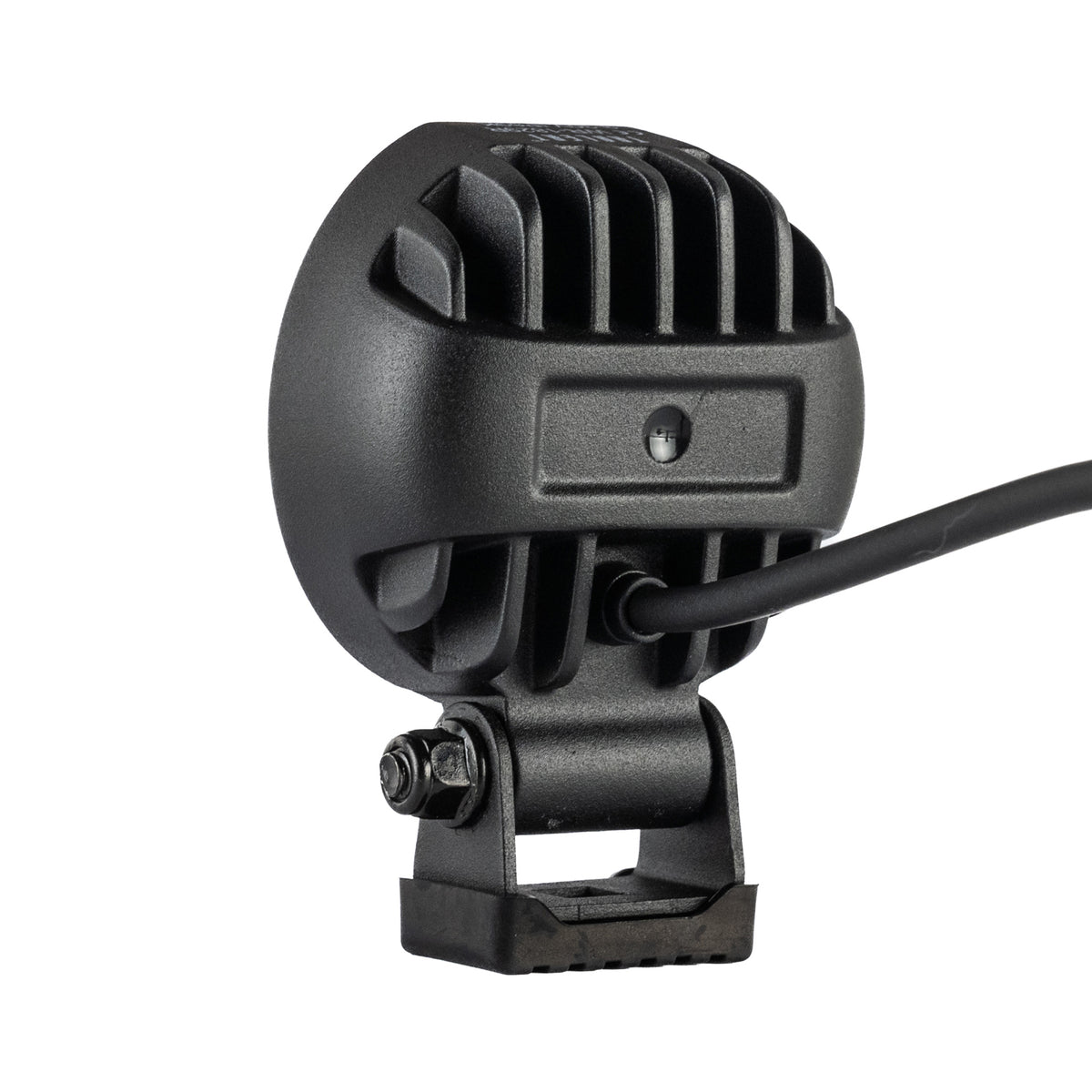

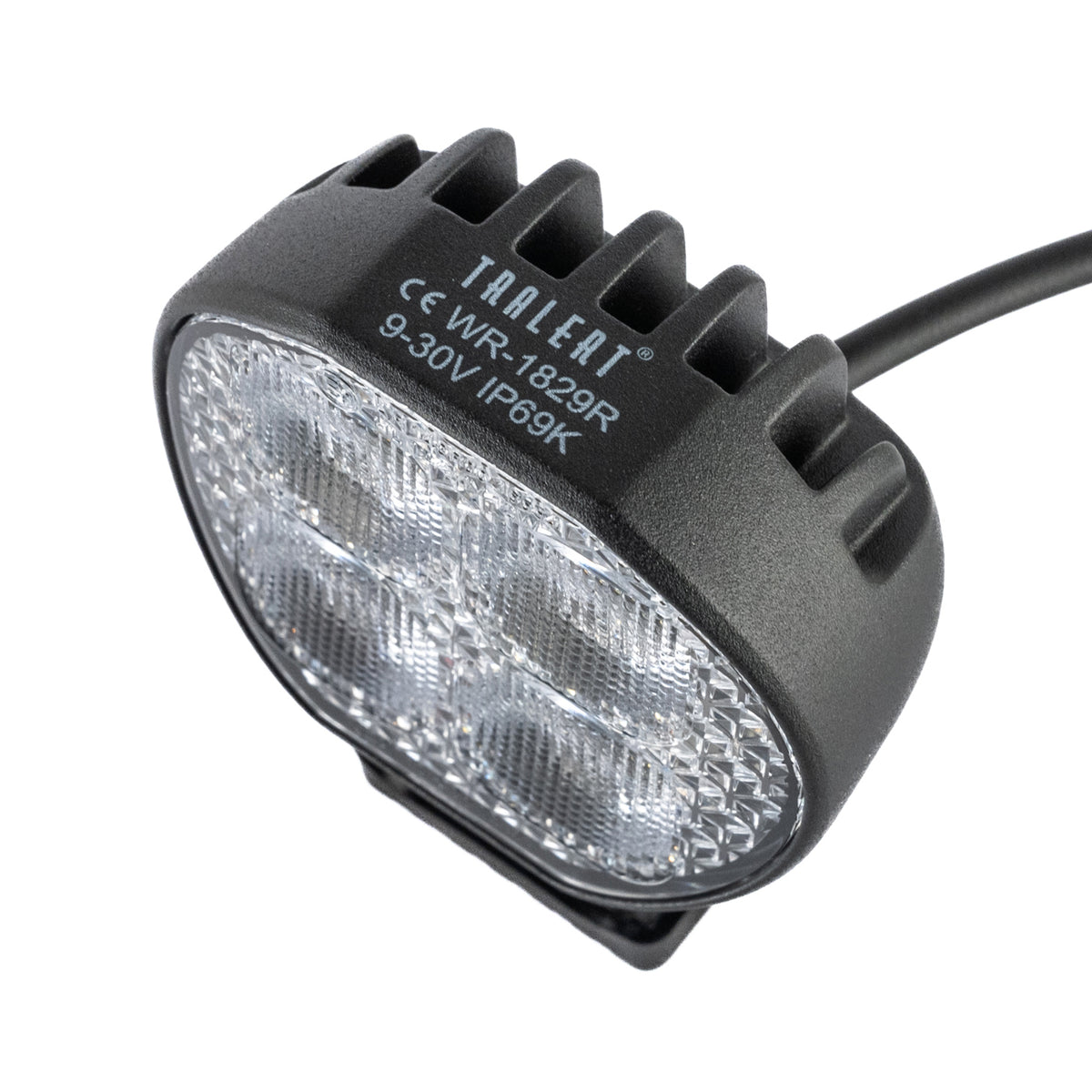

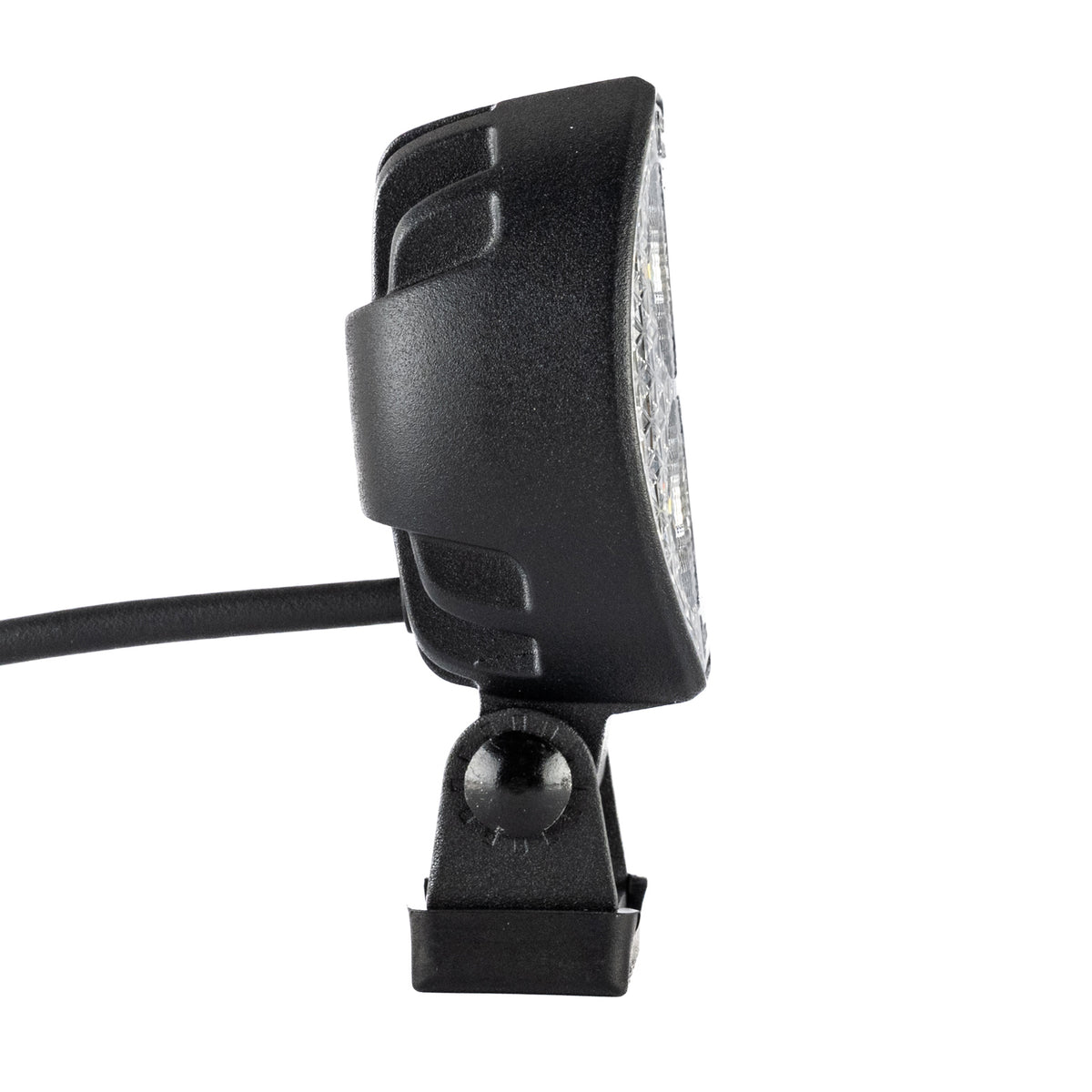

The TRALERT Apex WR-1829R is a compact round LED lamp with a flood beam for work and reversing-light applications. It combines a black aluminium housing with a clear polycarbonate lens and a 50cm cable with Deutsch connector, making it suitable for truck, trailer and machinery lighting installations.
The round Apex housing offers a compact option for working-area and reversing illumination. Twelve Osram LEDs produce a flood beam, with a clear lens and black body to suit commercial vehicle installations.
With a body measuring 74.8 × 69.5 × 37.1mm, the lamp is useful where a small mounting footprint is needed. Its 9–30V DC range supports both 12V and 24V systems, while the 50cm lead connects through a 2-pin Deutsch plug.
Key Features:
Round Apex Design: Compact round housing for truck, trailer and machinery lighting installations.
2,929-Lumen Output: Twelve Osram 3030 LEDs provide a broad flood beam.
Work & Reverse Lighting: Suitable for work-light use and its approved reversing-light function.
18W Power Rating: A compact LED unit with a listed 18W rating and 9–30V DC operation.
Deutsch Connector: A 50cm cable terminates in a 2-pin Deutsch connector for a compatible wiring harness.
12V & 24V Compatibility: Suitable for 12V and 24V installations within the lamp’s specified supply range.
Housing & Lens: Black aluminium housing with a clear polycarbonate lens for commercial vehicle and machinery installations.
Ingress Protection: IP69K protection, as specified by TRALERT, for use in vehicle environments.
Manufacturer Warranty: TRALERT lists a 3-year manufacturer warranty for this model.
Specifications:
Product code: WR-1829R
Series: Apex
Voltage: 9–30V DC; peak voltage resistance to 36V
Light output: 2,929 lumens
Power: 18W

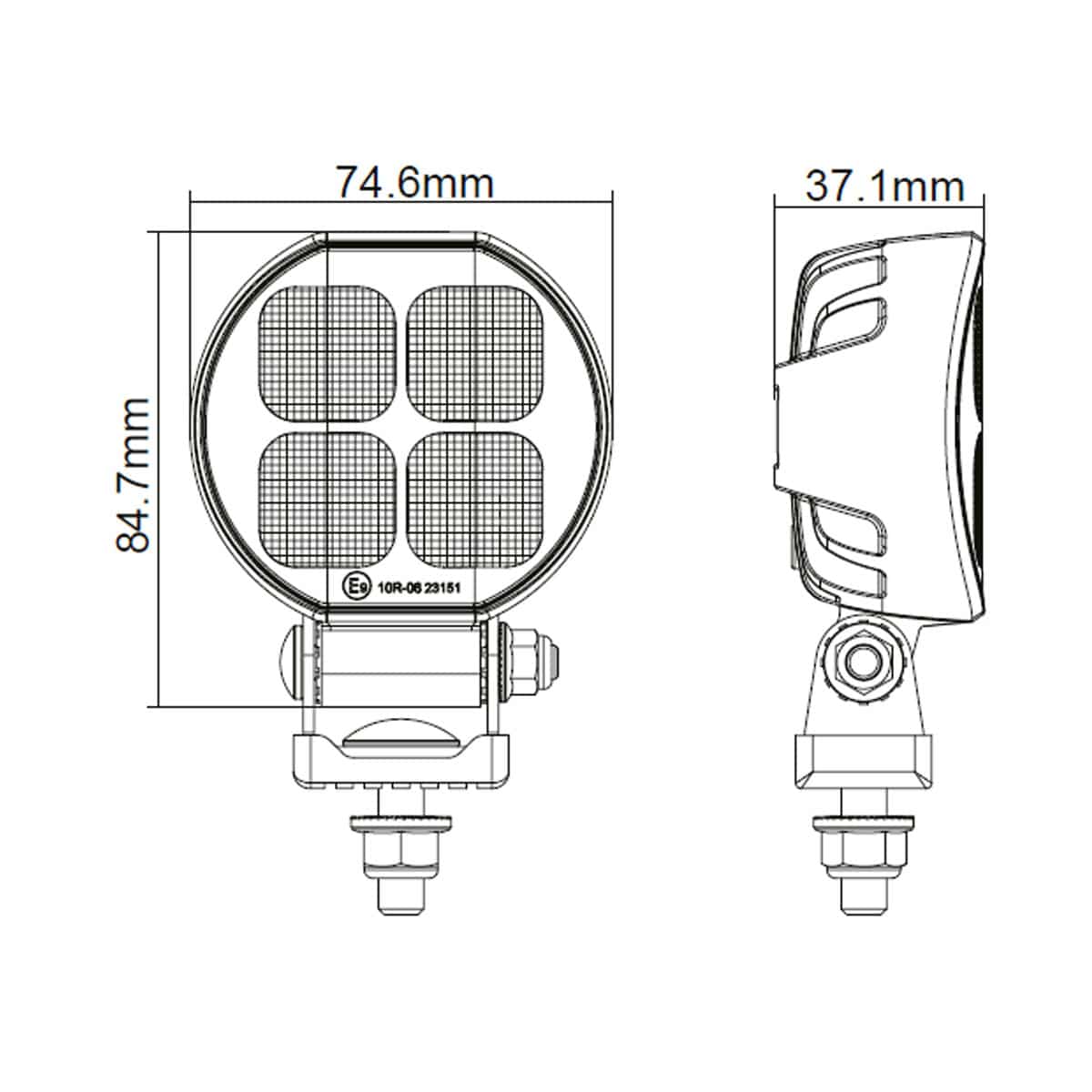

Dimensions: 74.8 × 69.5 × 37.1mm
Beam: Flood / reversing
LEDs: 12 × Osram 3030
Housing: Black aluminium
Lens: Clear polycarbonate
Protection: IP69K

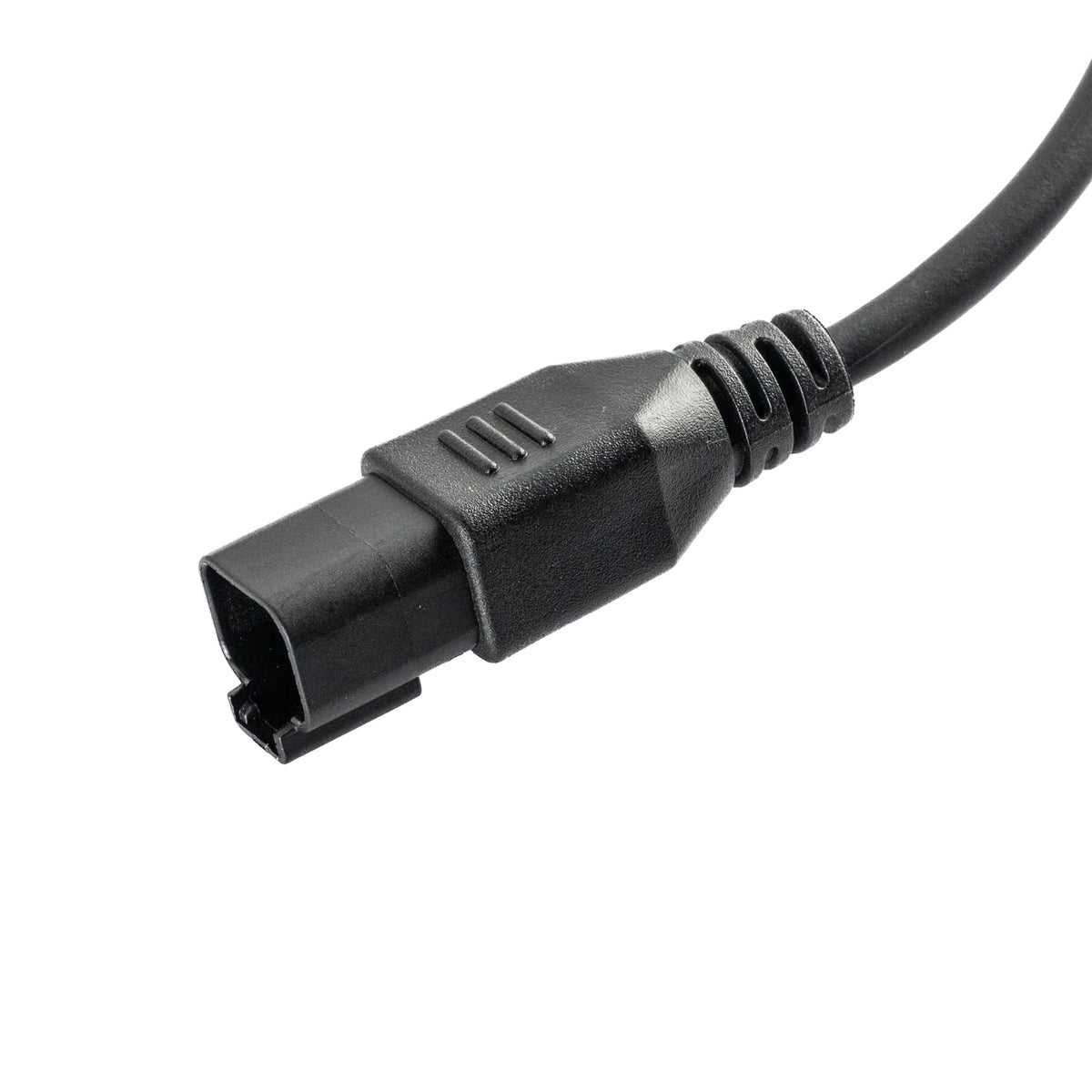

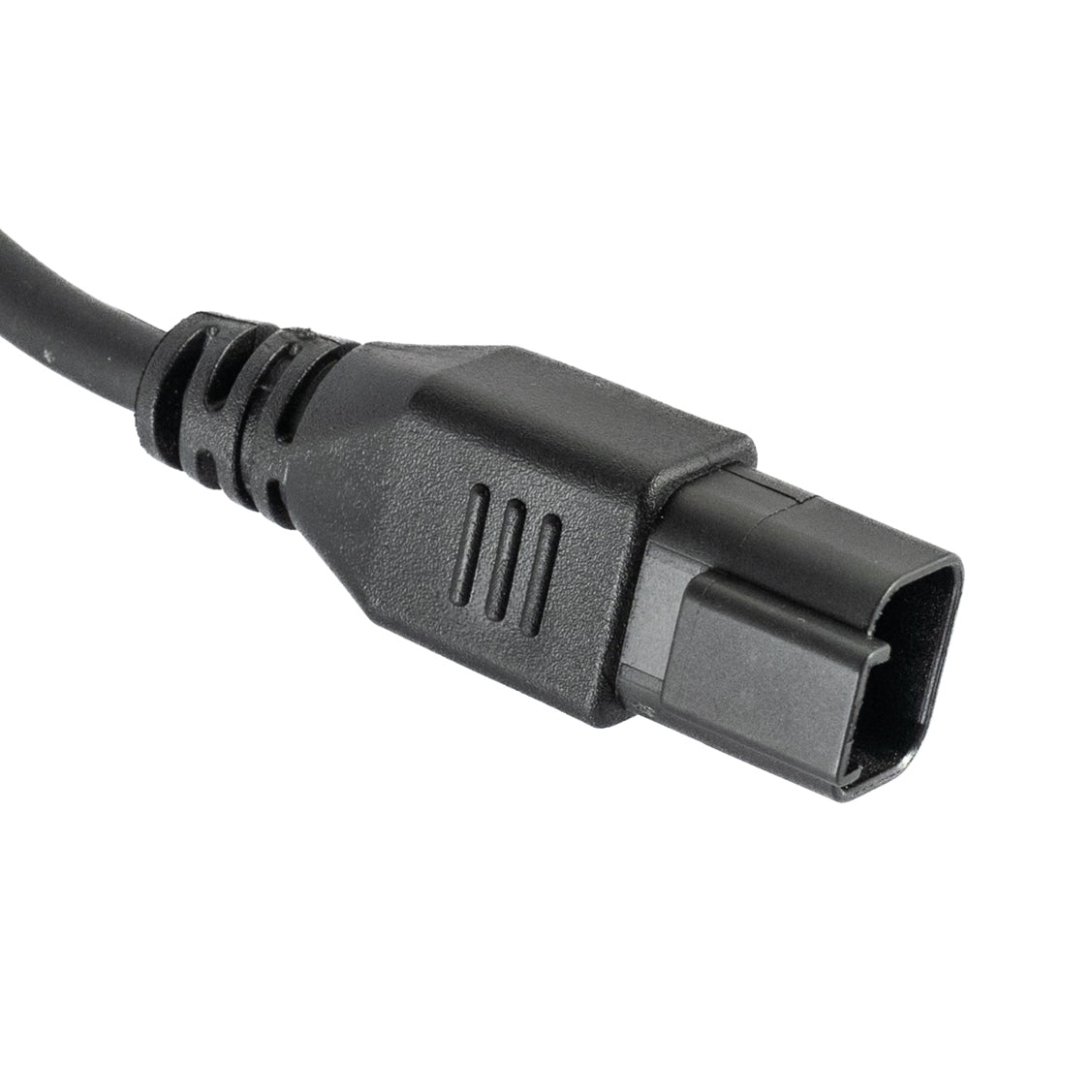

Connection: 50cm cable with 2-pin Deutsch connector
Mounting: Surface mount
Approvals: CE, ECE R10, ECE R148, ECE R23, CISPR25 Class 3
Manufacturer warranty: 3 years
Current Draw: 1.88A at 12V / 0.94A at 24V
Shape: Round
Installation & Connections:
Supplied with a 50cm cable and 2-pin Deutsch connector. The lamp body dimensions are listed separately from any mounting clearance required.
