Surface & Bracket Mount Amber Hide-Away Amber Warning Light

LumiLED Surface & Bracket Mount Amber Hide-Away Amber Warning Light – Discreet High-Performance LED Warning Module

The LumiLED Surface & Bracket Mount Amber Hide-Away Amber Warning Light delivers professional-grade warning performance in a compact, low-profile housing ideal for discreet installations. Designed to fit seamlessly into bumpers, body panels, grilles, or under trim, this hide-away module offers bright amber warning output with selectable flash patterns and rugged weather protection — perfect for service, utility, fleet, or emergency vehicles where discreet yet effective illumination is needed.

Key Features:

Covert Hide-Away Design: Low-profile light head allows discreet mounting on flat or recessed surfaces, with an L-bracket included for surface or bracket-mount installations.

High-Power LEDs: Equipped with 4 high-powered LEDs to deliver bold amber warning flashes visible in daytime and low-light conditions.

Selectable Flash Patterns: Offers 21 built-in flash patterns to suit different warning styles and application needs, including options for steady and strobe effects.

Memory Recall: Remembers the last selected flash pattern when powered on, streamlining repeated daily use.

Synchronisation Capability: Can sync up to 12 lights in two separate groups for coordinated multi-light flash sequences.

Robust & Weather-Resistant: IP69K jet-wash rating and vibration resistance make this unit suitable for heavy-duty outdoor use.

Rugged Construction: Aluminium base for effective heat dissipation and long-life performance with reverse polarity protection and UV-resistant lens.

Dual Voltage: Wide input range (9–30 V DC) for compatibility across vehicles with 12 V or 24 V electrical systems.

Compact Size: Small light head with bracket allows flexible mounting where space is limited.

Specifications:

Voltage: DC 12–24 V (suitable for most automotive electrical systems)

LED Colour: Amber

LEDs: x4 3 Watt high‑power amber LEDs (12w Total)

Flash Patterns: 21 selectable

Synchronisation: Up to 12 units, two separate groups

Approvals: ECE R65 Class 1, ECE R10 EMC, E-Marked, CE, UKCA; also SAE J595 Class 1 and CISPR 25 Class 3 compliant — road-legal and interference-tested.

Ingress Protection: IP67 / IP69K weatherproof and jet-wash resistant

Memory Function: Remembers last flash pattern used

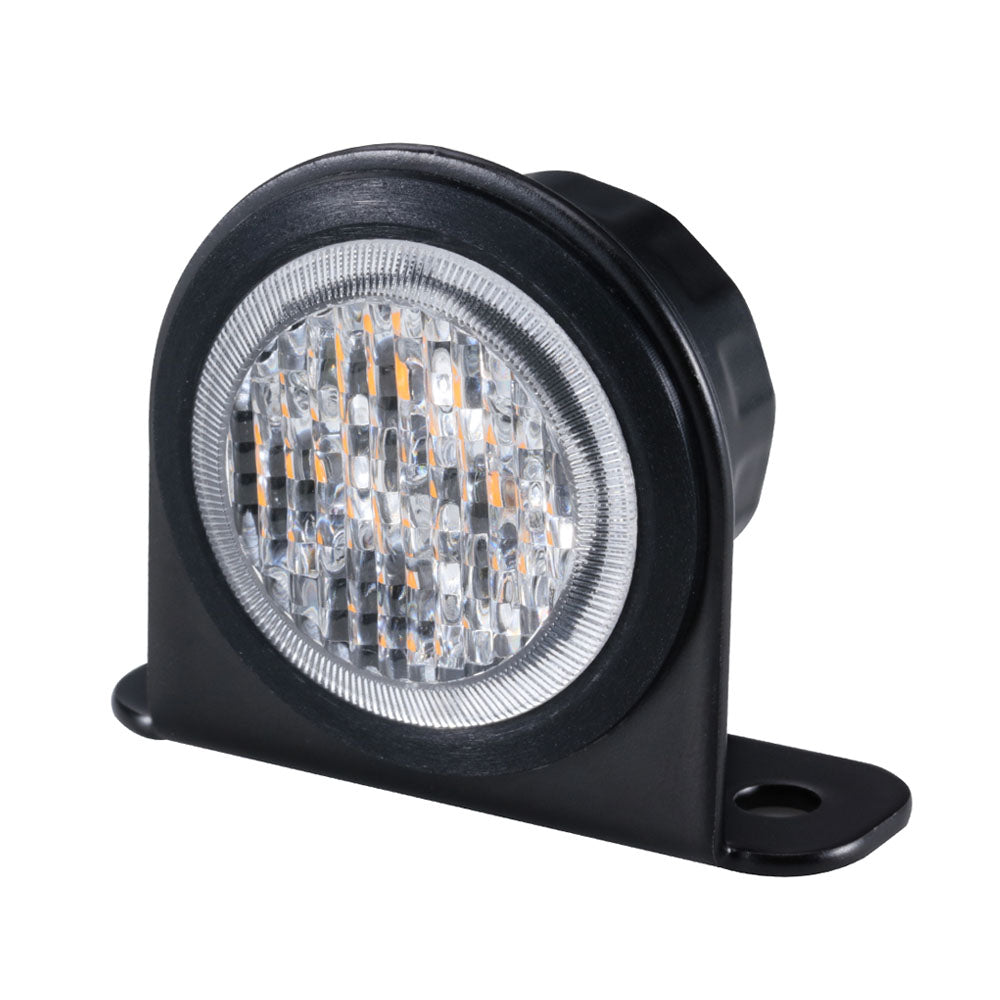

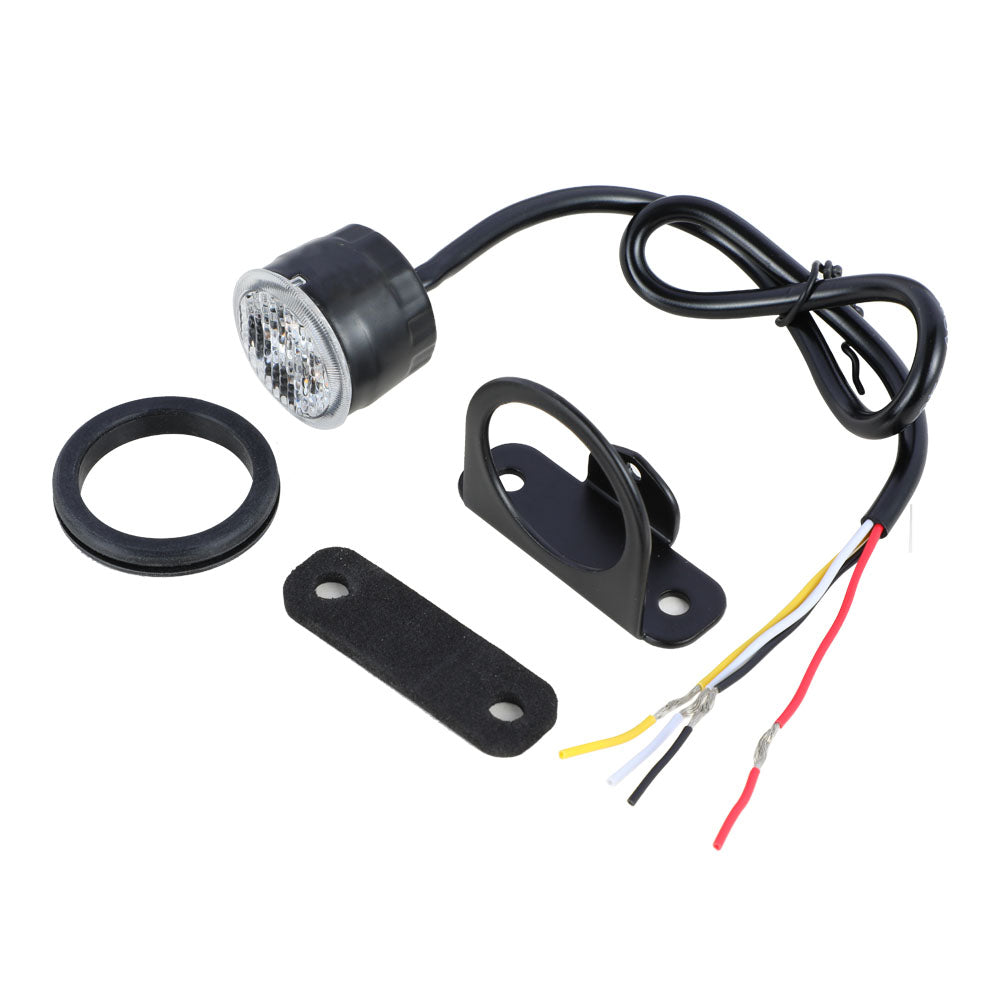

Mounting: Bracket or surface mount (L-bracket included)

Materials: Aluminium base with UV-resistant lens

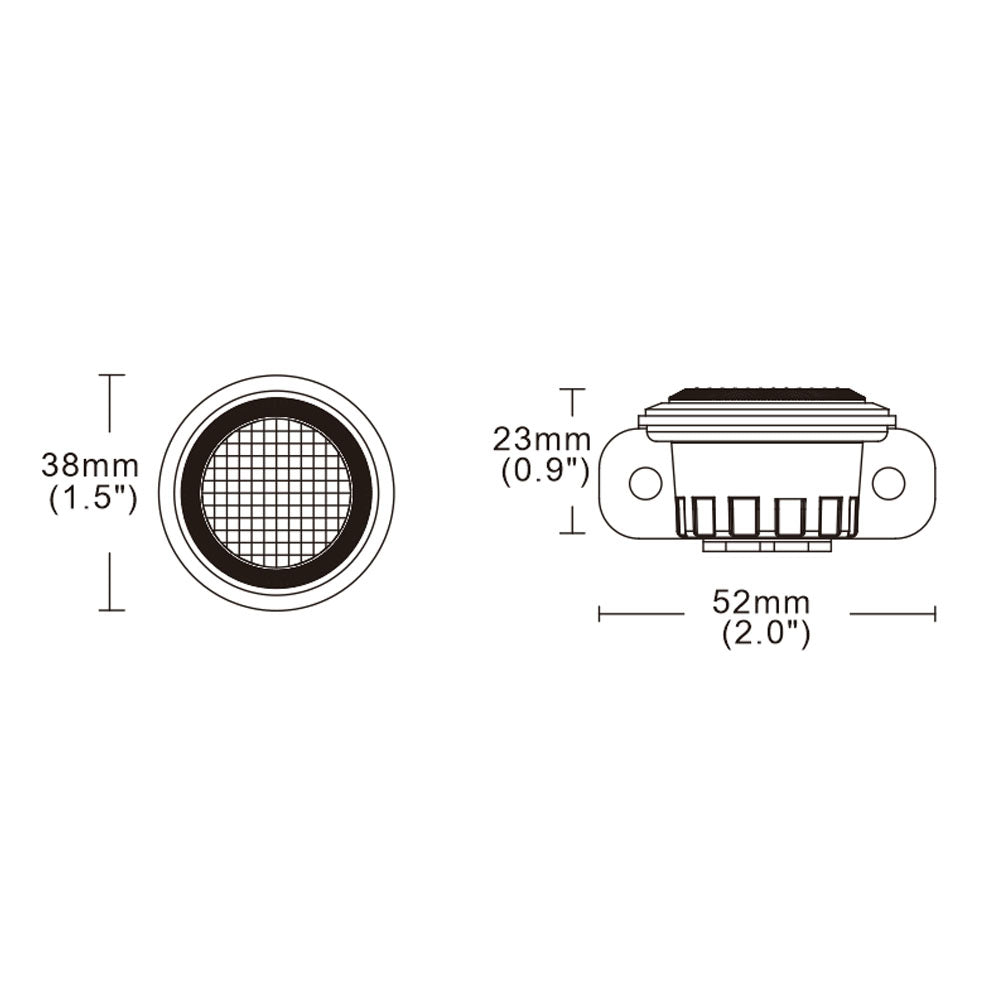

Dimensions: Light head approx. 38 mm × 23 mm, with bracket 52.5 mm × 42.1 mm (hole size required approx. 31.6 mm)

Warranty: 3-year manufacturer’s warranty

Why Choose the LumiLED Surface Bracket Mount Amber Hide-Away Amber Warning Light?

The LumiLED Surface Bracket Mount Amber Hide-Away Amber Warning Light blends discreet aesthetics with high-visibility warning performance — perfect for commercial fleets, service vehicles, roadside units, and operators needing a compact module that stays out of sight until needed. With selectable flash patterns, synchronisation capability, and robust IP69K construction, this unit delivers reliable performance in demanding environments and ensures your vehicle’s warning system stays effective and compliant.
