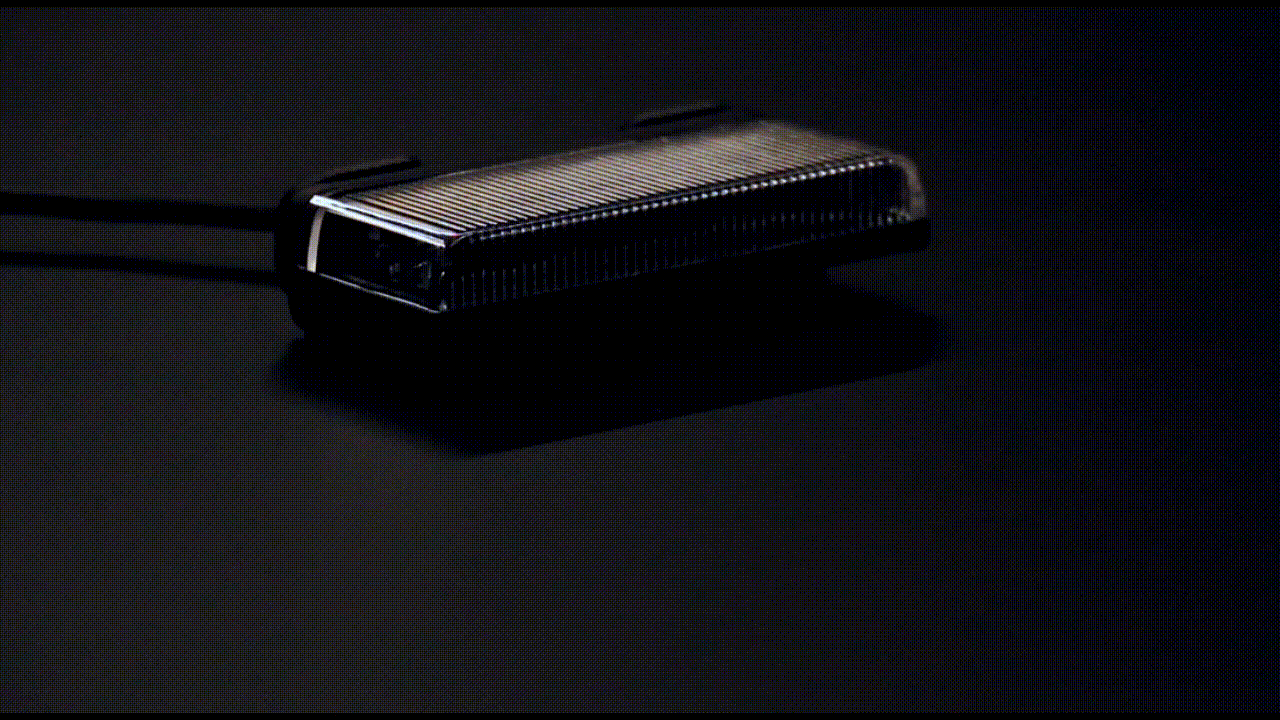

Stealth+S Discreet Reverse Light With Strobe & Sync Function

LumiLED Stealth + S Discreet Reverse Light With Strobe & Sync Function – Ultra-Slim Dual-Function Reverse & Warning Light

The LumiLED Stealth + S Discreet Reverse Light With Strobe & Sync Function combines effective reverse illumination with integrated strobe warning performance in a compact, low-profile LED module that’s ideal for modern vehicle installations. Whether used to improve rear visibility when backing up or to provide additional warning presence behind your vehicle in slow-moving or roadside situations, this discreet unit delivers reliable, high-quality light in a stealthy housing that can be easily mounted beneath bumpers or on vehicle frames.

Key Features:

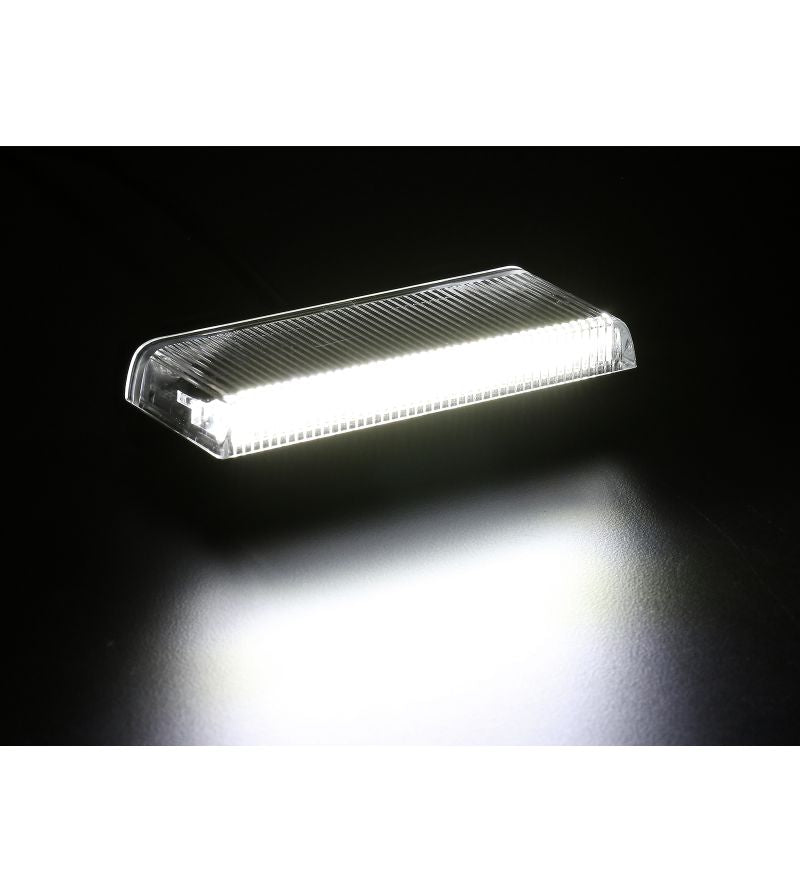

Dual-Function Lighting: Acts as both a reverse light to improve rear visibility and a strobe warning light to alert other road users.

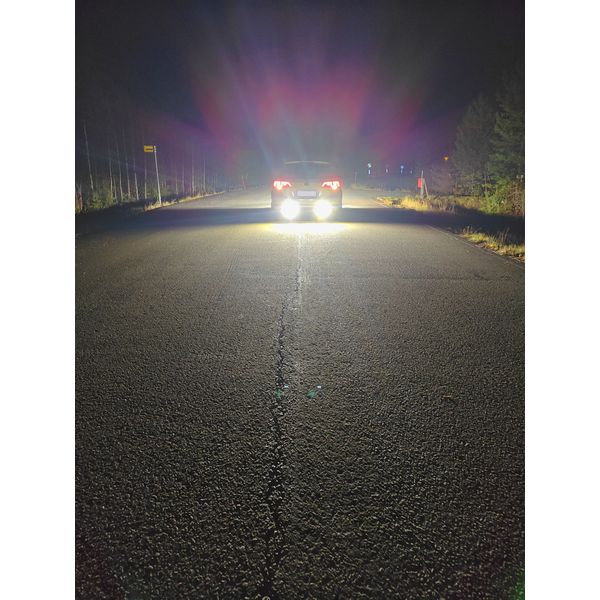

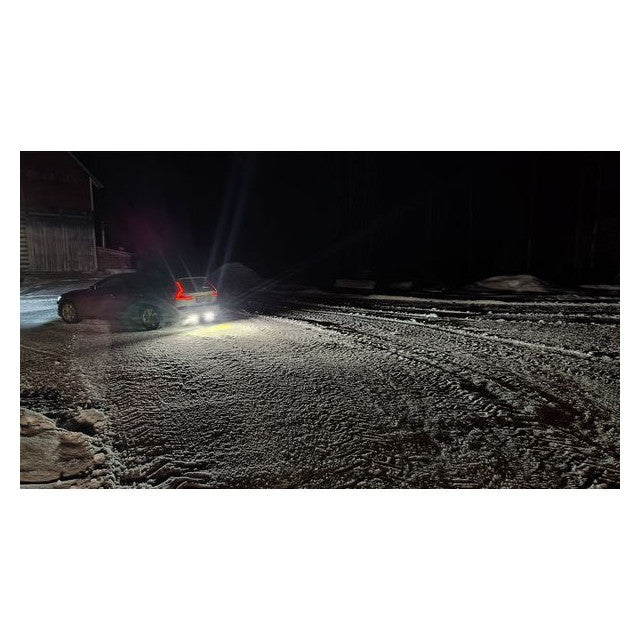

Wide Flood Beam: 120° flood beam spread provides broad, even illumination behind the vehicle for improved safety during reversing manoeuvres.

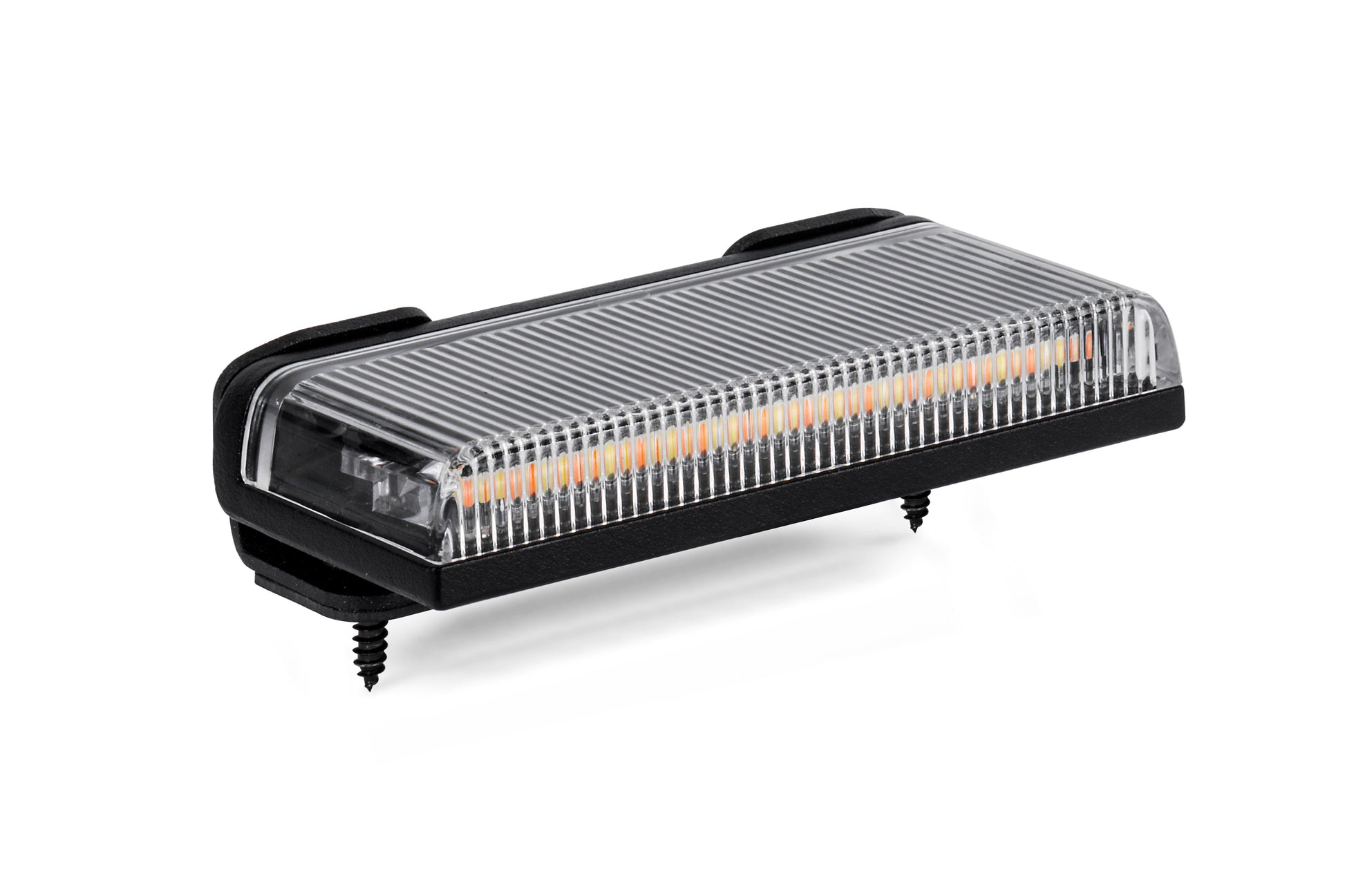

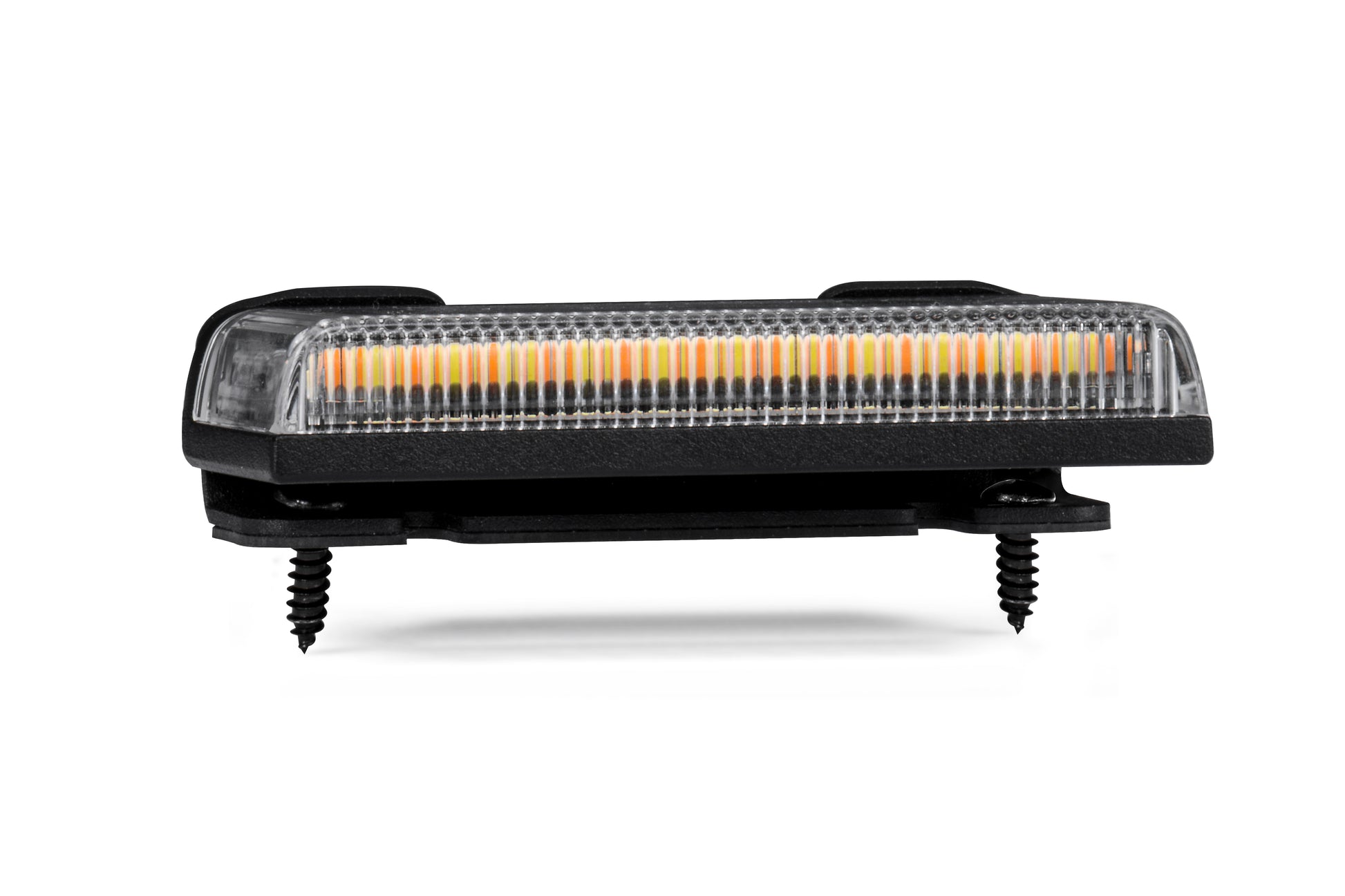

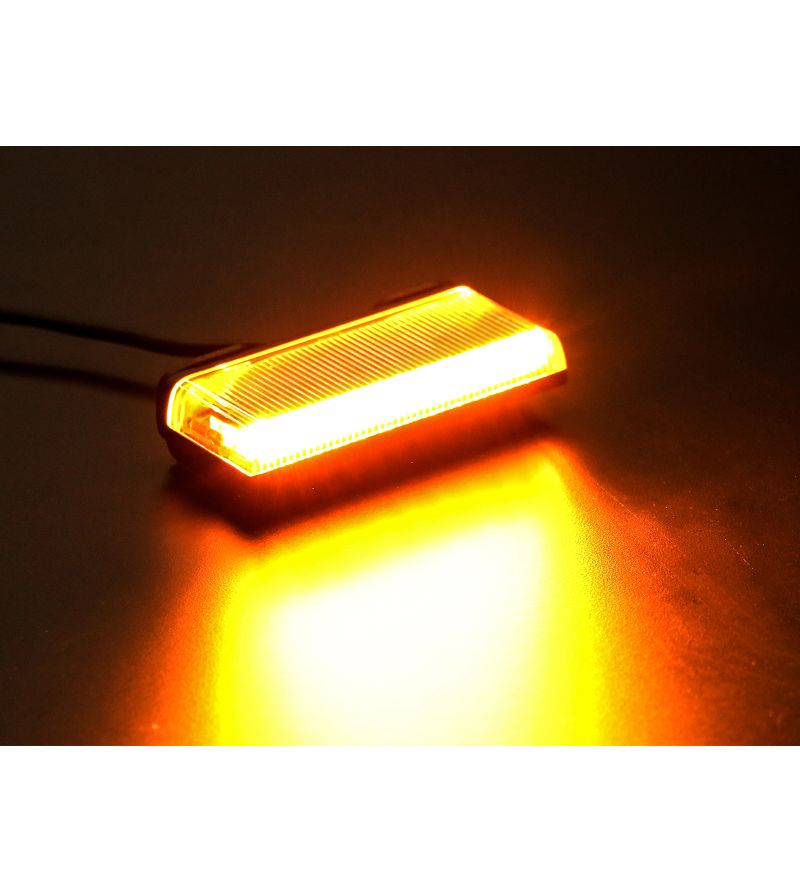

Integrated Strobe Function: Amber strobe output enhances visibility when stationary or performing roadside tasks, adding a professional warning capability to the reverse lamp.

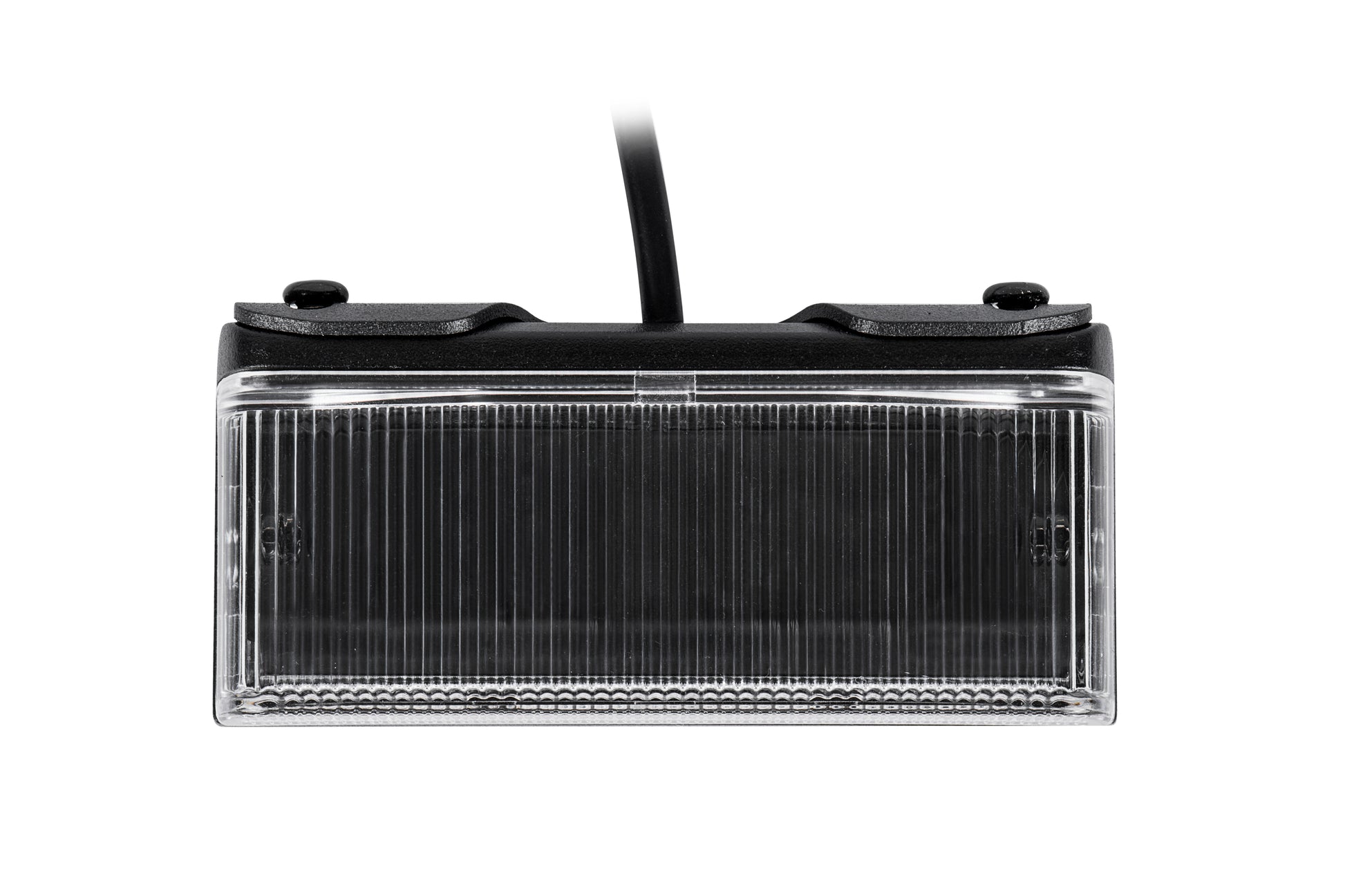

Low-Profile Design: Slim housing (just ~23 mm tall) allows discreet installations under body panels, bumpers, or chassis without bulky protrusion.

Synchronisation Ready: Includes a sync function input to link multiple units for coordinated strobe operation. (White sync cable)

Durable Construction: IP67/IP69K rating offers strong protection against water, dust, and high-pressure cleaning — ideal for rugged, all-weather use.

Certified & Road-Legal: E-marked approvals including ECE R23 (reverse function), ECE R148 (strobe), and R65 support lawful use on the road and compliance with lighting regulations.

Specifications:

Voltage: DC 12–24 V — suitable for most vehicle electrical systems

Functions: Reverse Illumination + Amber Strobe Warning

Beam Spread: 120° flood pattern

Reverse Light Range: Up to ~23 m (1 lux)

Colour Temperature: ~5000 K daylight-white (reverse function) with amber strobe output

LEDs: 23 × Osram LEDs (16 W)

Voltage: 10–30 V DC (supports 12 V and 24 V systems)

Approvals: ECE R23/R148, R65, R10 EMC, CE compliant

Ingress Protection: IP67/IP69K for water & dust resistance

Current Draw: ~0.66 A @ 12 V / ~0.35 A @ 24 V

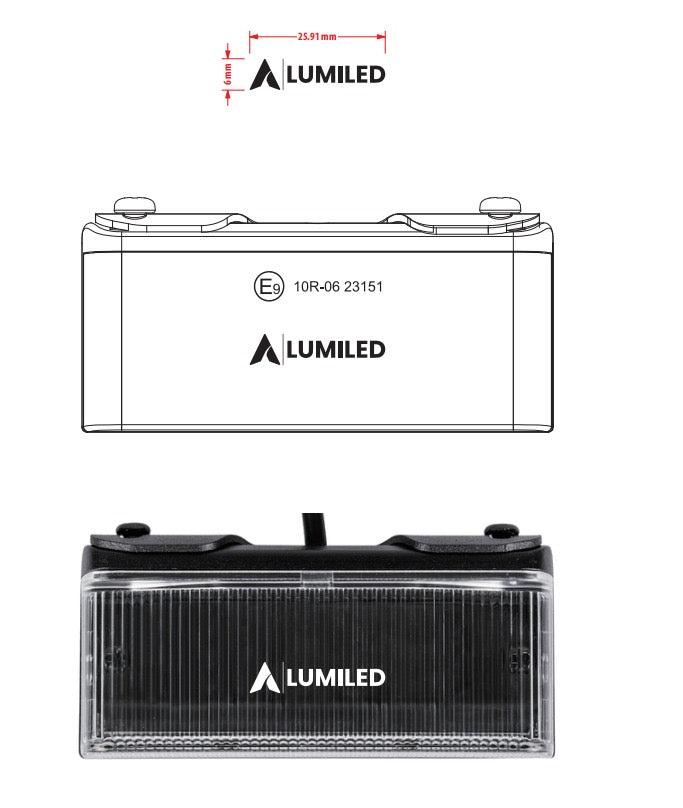

Dimensions: ~90 mm (W) × 23 mm (H) × 45 mm (D)

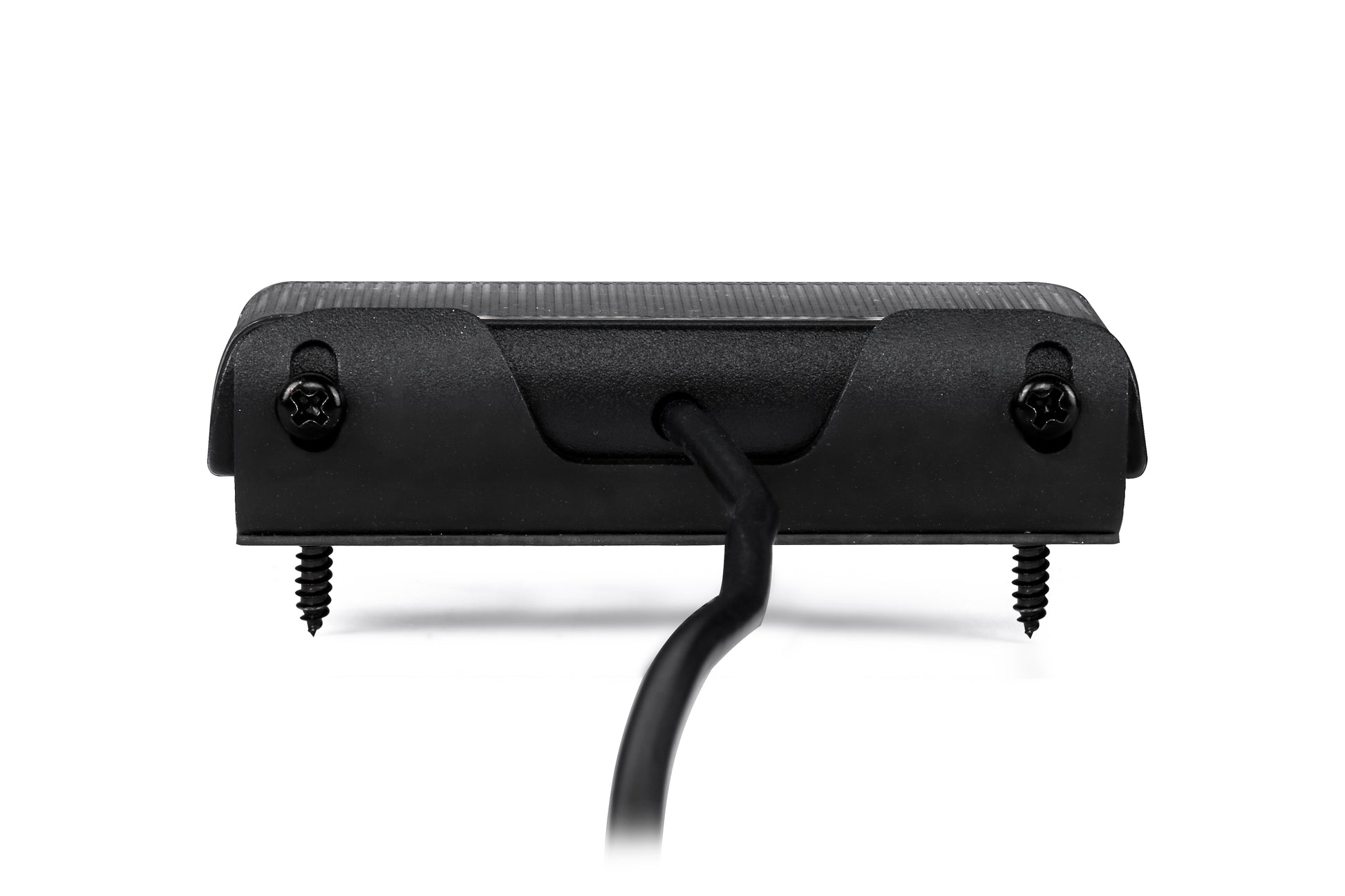

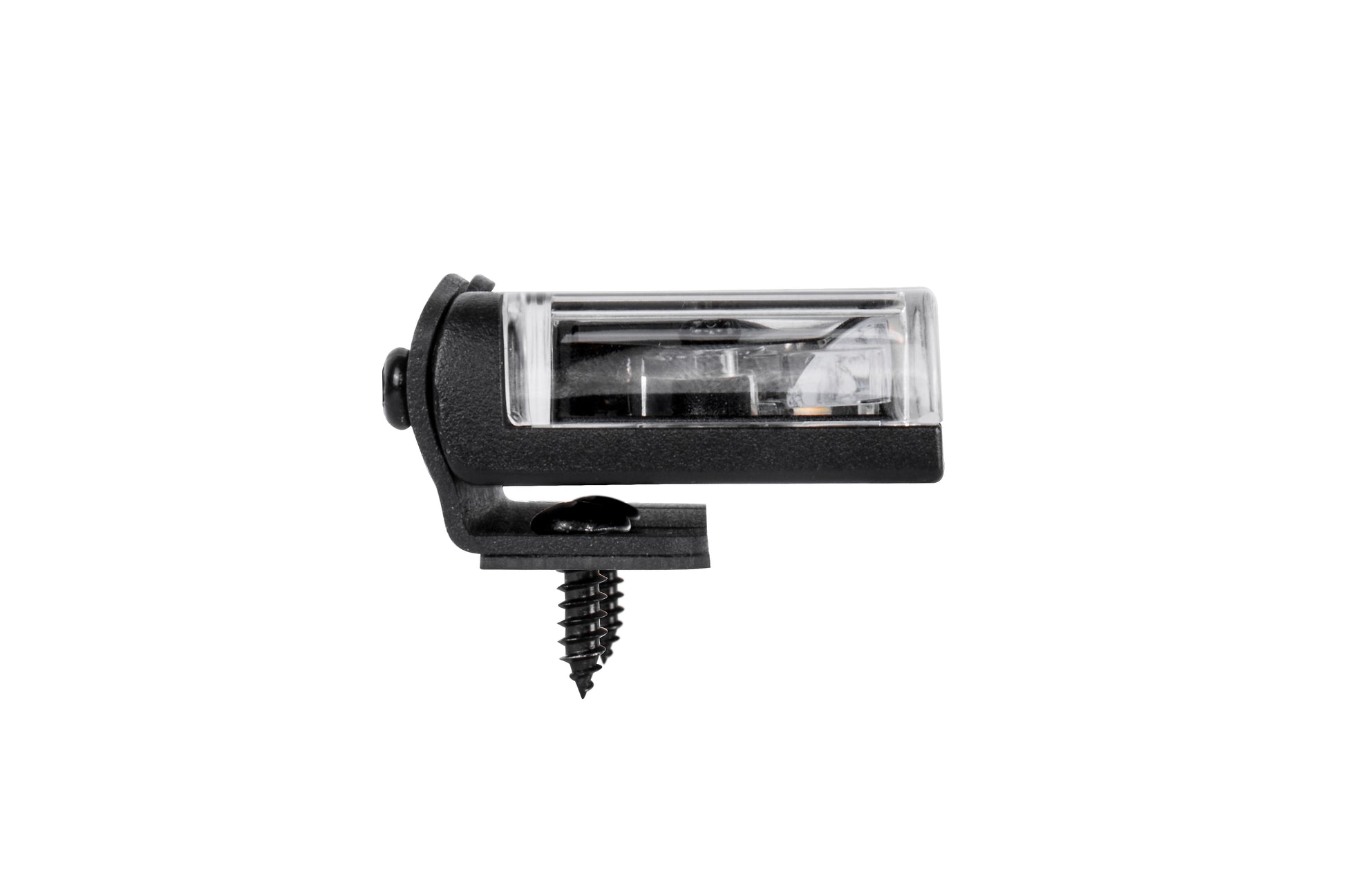

Mounting: Stainless steel bracket included for underside or discreet body mounting

Cable Colours: Black = Ground; Red = Reverse; Yellow = Flash; White = Sync

Warranty: 3-year manufacturer’s warranty

Why Choose the LumiLED Stealth+S Discreet Reverse Light With Strobe & Sync Function?

The LumiLED Stealth+S combines essential rear lighting with a built-in strobe warning function in a compact and unobtrusive design — making it an excellent choice for service vehicles, work vans, fleet units, and any application where added reverse visibility and warning presence are desired without bulky lighting fixtures. With broad flood illumination, certified approval standards, synchronisation support, and rugged IP-rated construction, this unit delivers professional-grade performance you can rely on in challenging environments.
