Next Gen Dual Function LED Warning Light With Halo Ring

LumiLED Next Gen Dual Function LED Warning Light With Halo Ring – 2‑in‑1 Strobe & Halo Marker Light

The LumiLED Next Gen Dual Function LED Warning Light With Halo Ring combines powerful amber warning strobes with a versatile halo ring for marker, DRL, or tail‑light functions — all in a sleek, low‑profile LED module. With independent control of strobe and halo functions plus selectable patterns and a robust build, this unit is ideal for emergency, utility, and commercial vehicles that need both warning and marker illumination in a single, compact assembly.

Key Features:

Dual Function Lighting: Features a bright amber LED Strobe Centre and a Halo Ring that can be configured as DRL, marker, or tail/position lighting depending on the selected halo colour.

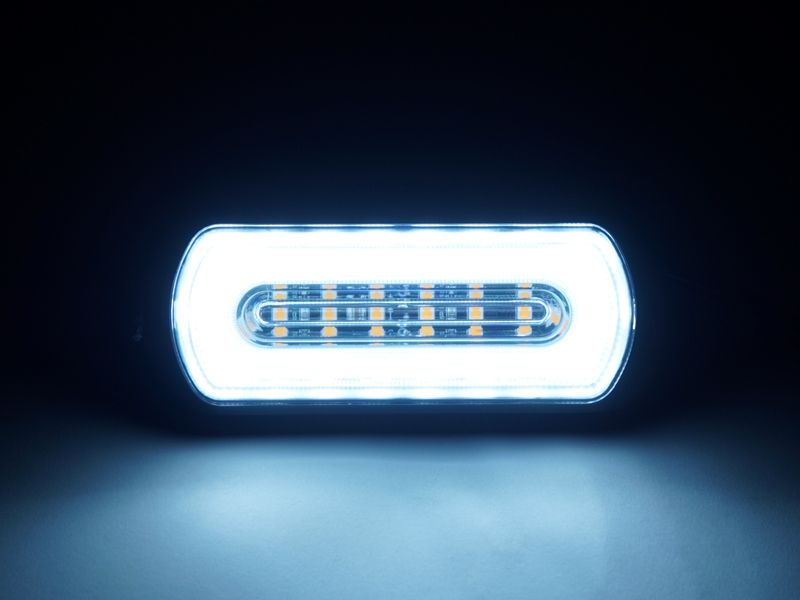

White Halo: Daytime Running Light (DRL) / front position marker

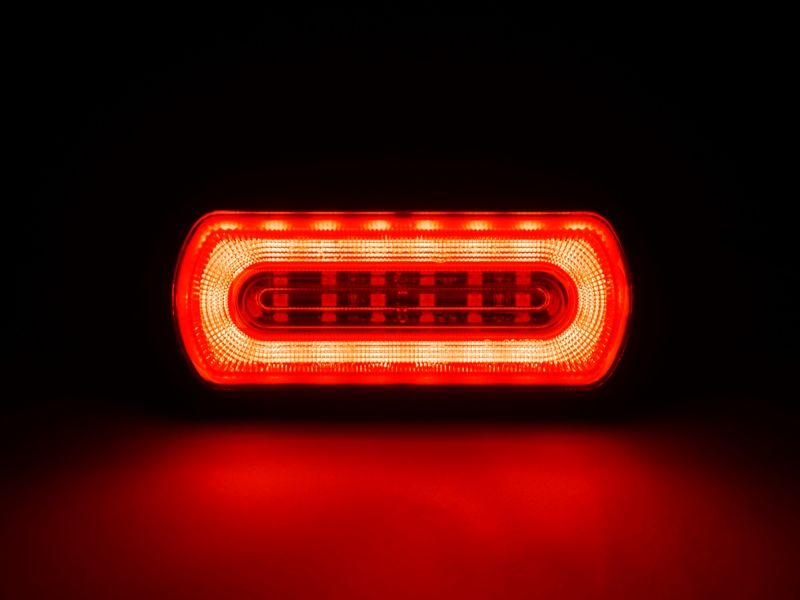

Red Halo: Rear tail light / marker

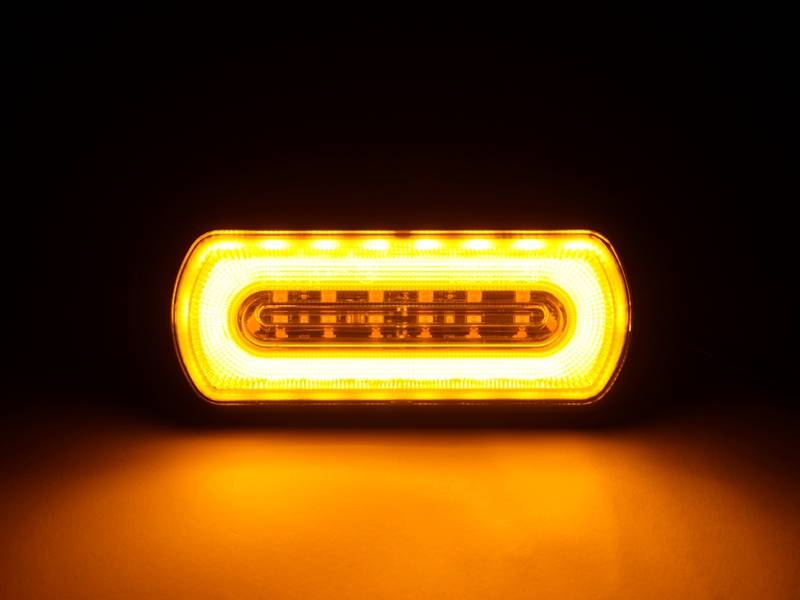

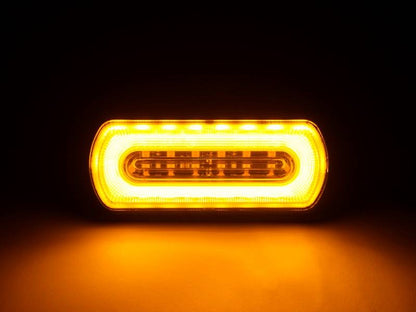

Amber Halo: Position, directional indicator, or marker light

Powerful LED Output: Central 6 × 3 W amber SMD LEDs for strong warning strobe performance, with 18 × 0.5 W LEDs around the halo ring for marker/DRL illumination.

Independent Control: Separate wiring for strobe and halo functions allows each to operate individually or simultaneously — giving flexible usage for different vehicle lighting needs.

Selectable Flash Patterns: Includes 21 user‑selectable flash patterns, including steady burn, to suit various signalling preferences.

Memory Recall: Remembers the last selected flash pattern on power‑up, saving setup time.

Ultra‑Slim Profile: At only 19 mm deep, the low‑profile design helps minimise snagging and contact damage while still delivering excellent light output.

Robust Construction: Aluminium base provides effective heat dissipation and long‑term durability.

Flexible Mounting: Surface or bracket mount with 2‑point fixing and 200 mm cable included.

Specifications:

Voltage: DC 12–24 V dual voltage (works with most automotive electrical systems)

LED Configuration: 6 × 3 W amber strobes + 18 × 0.5 W halo LEDs

Selectable Flash Patterns: 21 (including steady burn)

Dimensions: 128 × 45 × 19 mm

Average Current: ~1 A @ 12 V / 0.5 A @ 24 V

Approvals: CE, UKCA, ECE R10, ECE R65, ECE R148, XA1/XB1; meets SAE J595 Class 1 and CISPR 25 Class 3 standards

Ingress Protection: IP67 / IP69K water & dust resistant

Weight: 0.140kg

Halo Colour Options: White, Amber, Red (halo ring function varies by colour)

Warranty: 3‑year manufacturer’s warranty

Why Choose the LumiLED Next Gen Dual Function LED Warning Light With Halo Ring?

The LumiLED Next Gen Dual Function LED Warning Light With Halo Ring is a versatile and compact solution that blends strong amber warning performance with configurable halo marker or DRL lighting. Its independent control of both functions, selectable patterns, memory recall, and rugged weatherproof construction make it perfect for fleet, service, emergency, and work vehicles — especially where space is limited but visibility is essential.
