SKU:CNTL-4
Couldn't load pickup availability

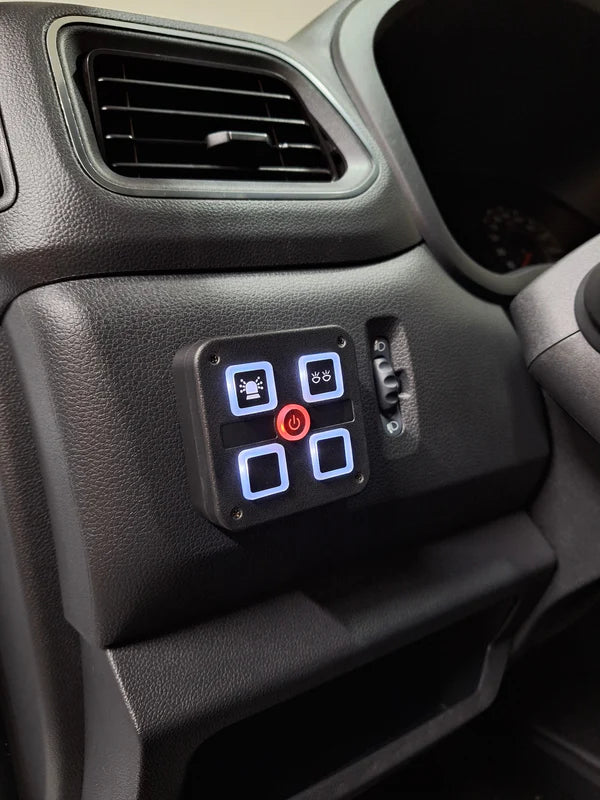

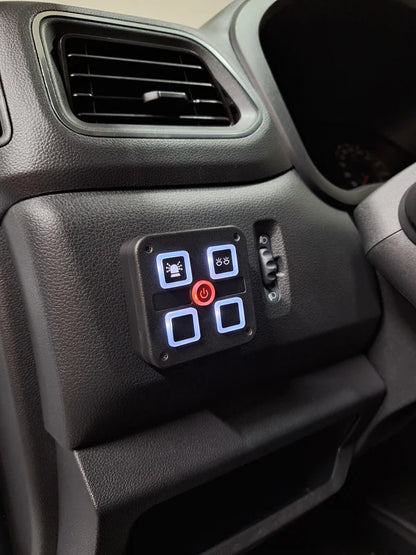

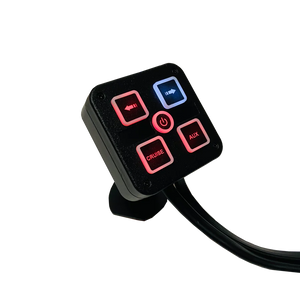

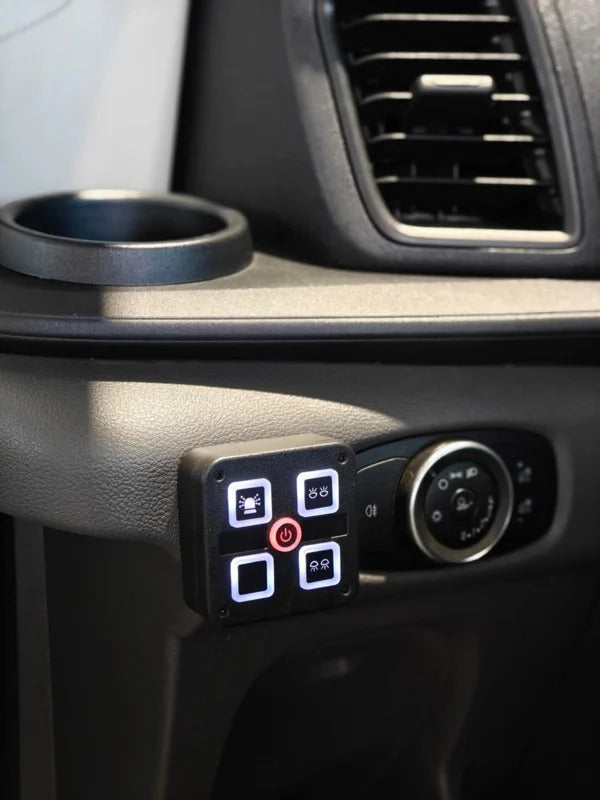

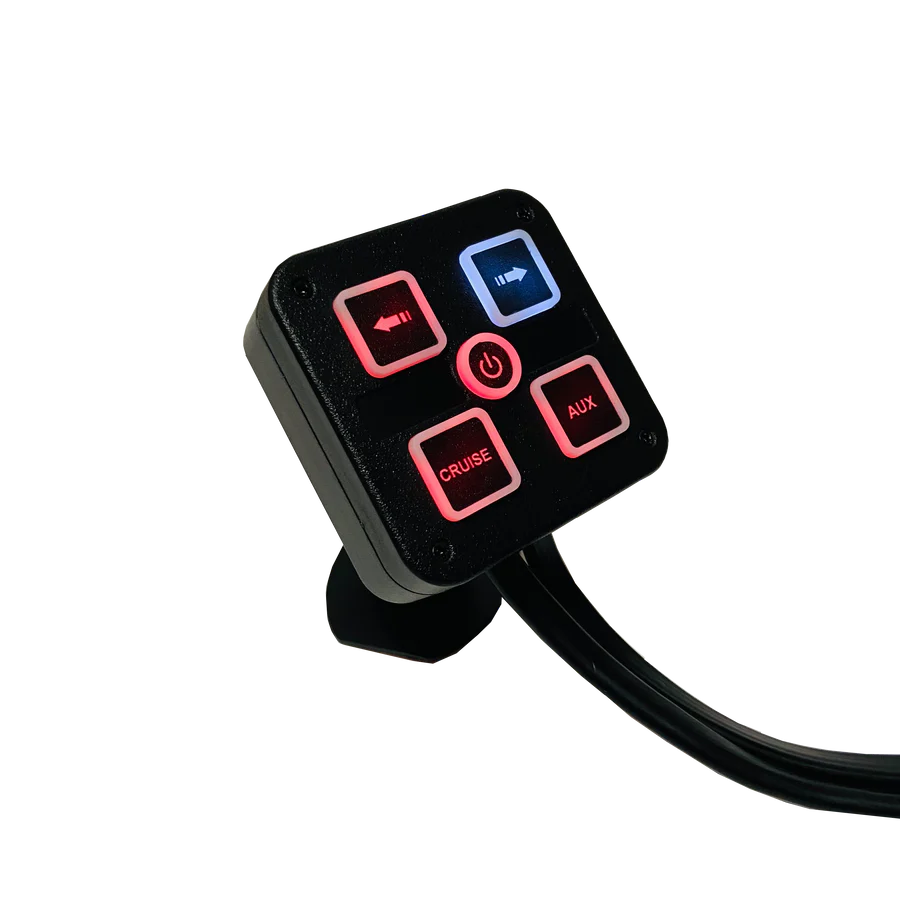

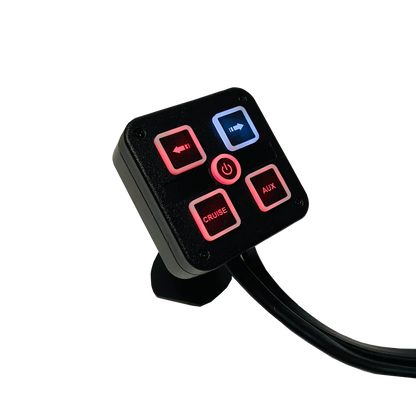

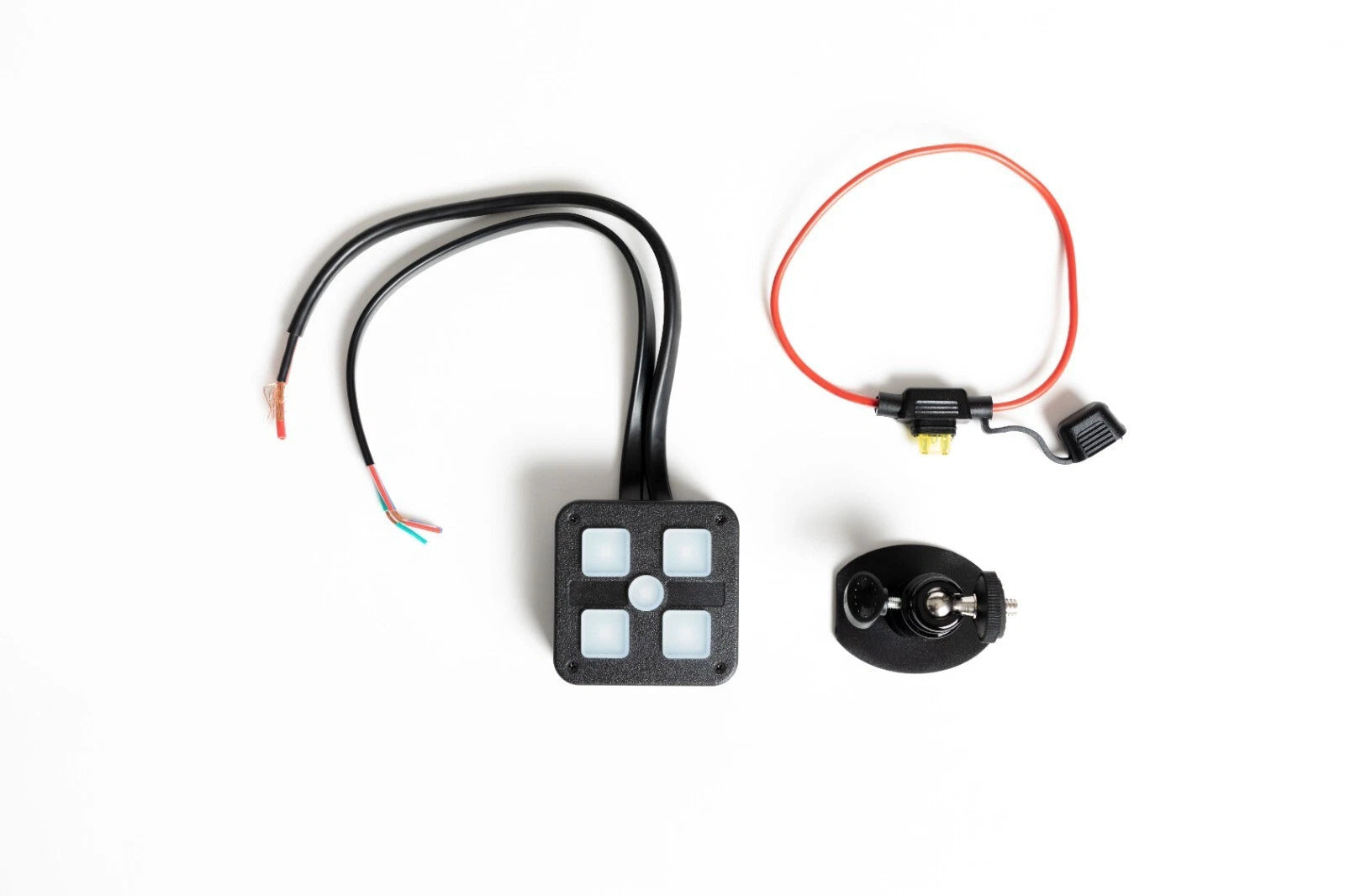

The Multi-Purpose 4 Way Switch Control Panel 12/24V by 24/7 Response is a compact and highly versatile control solution designed for trucks, vans and commercial vehicles. Featuring four programmable switches and integrated relays, this unit allows you to efficiently control warning lights, strobes, work lamps and auxiliary equipment from a single, streamlined panel. Its sleek, low-profile design and flexible mounting options make it ideal for modern vehicle interiors.
Key Features:
4 Programmable Switches: Each switch can be configured as on/off (latching) or momentary, allowing control of lighting, sirens or flash patterns.
All-in-One Controller: Built-in relays (rated at 5A per switch) remove the need for additional relay wiring in most setups.
20A Total Output Capacity: Supports a maximum shared load of 20 amps, suitable for multiple accessories.
Dual Voltage Compatibility: Works with both 12V and 24V systems, ideal for a wide range of commercial vehicles.

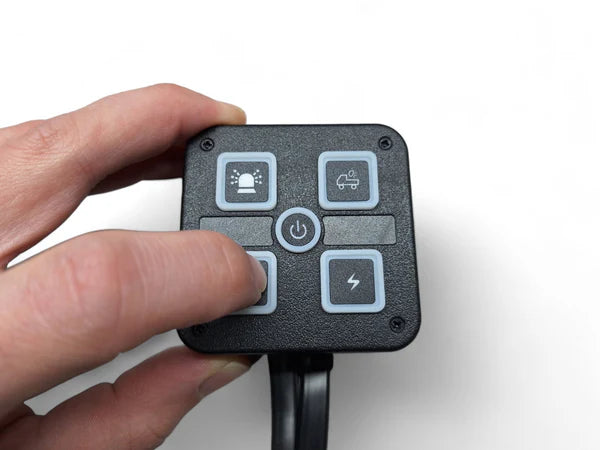

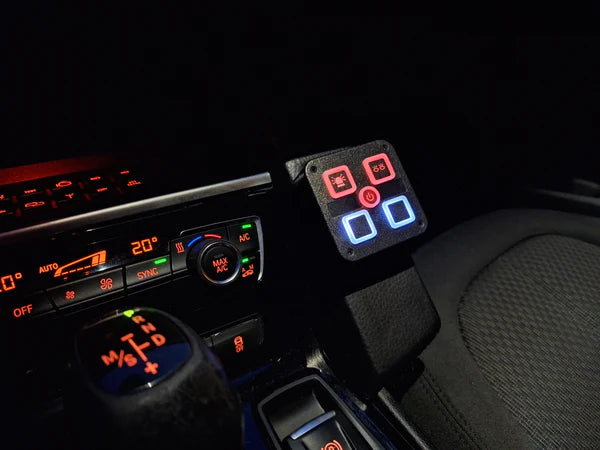

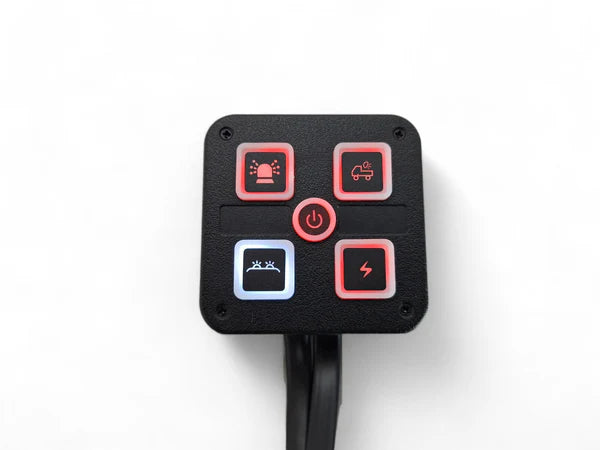

Backlit Soft-Touch Buttons: Illuminated switches feature red backlighting (standby) and white when active for clear visibility.
Customisable: Supplied with multiple icon stickers so each switch can be clearly labelled.

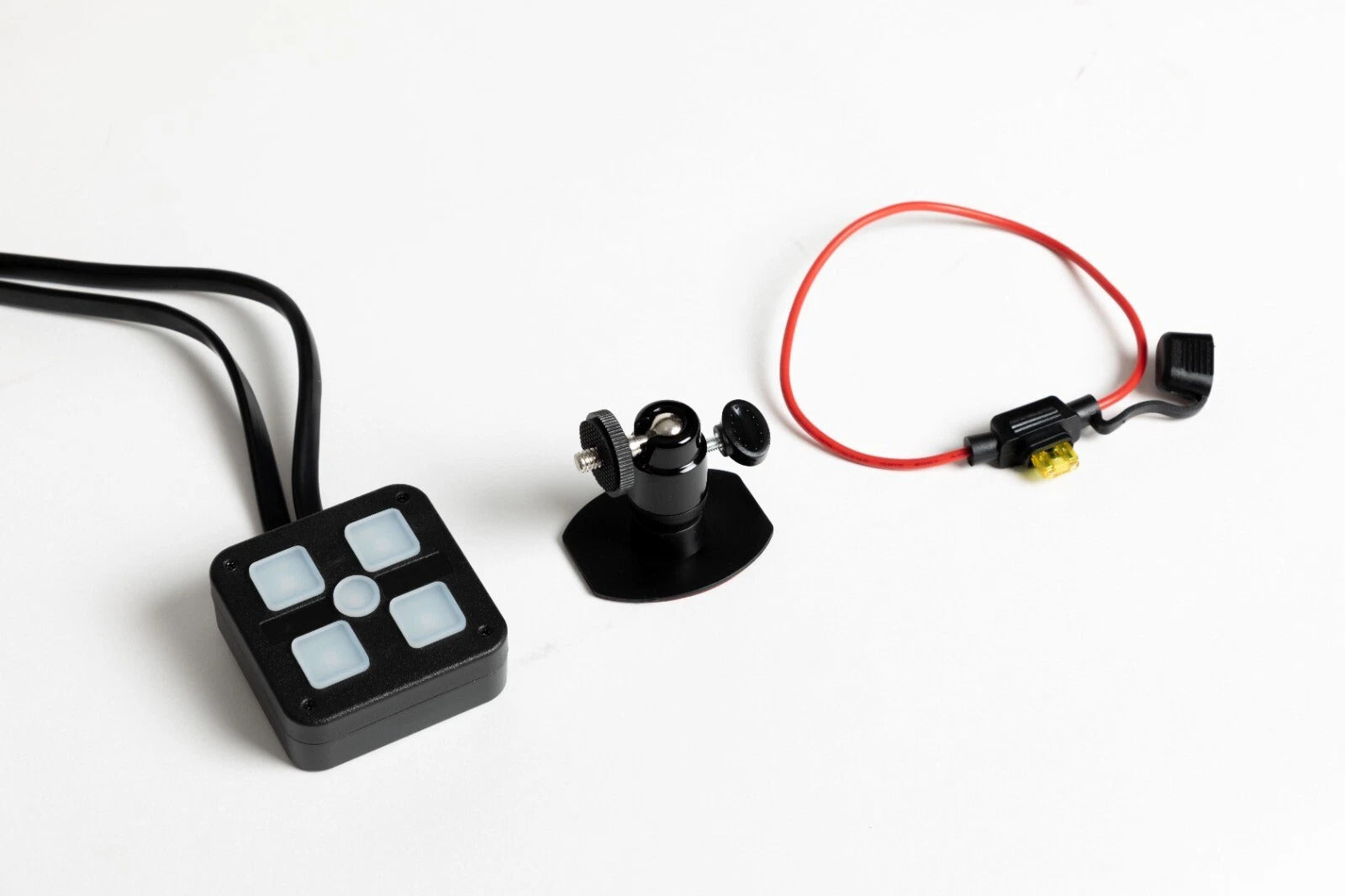

Multiple Mounting Options: Can be installed using adhesive backing & bracket mount
Built-In Protection: Includes over-temperature and short circuit protection for safe operation.

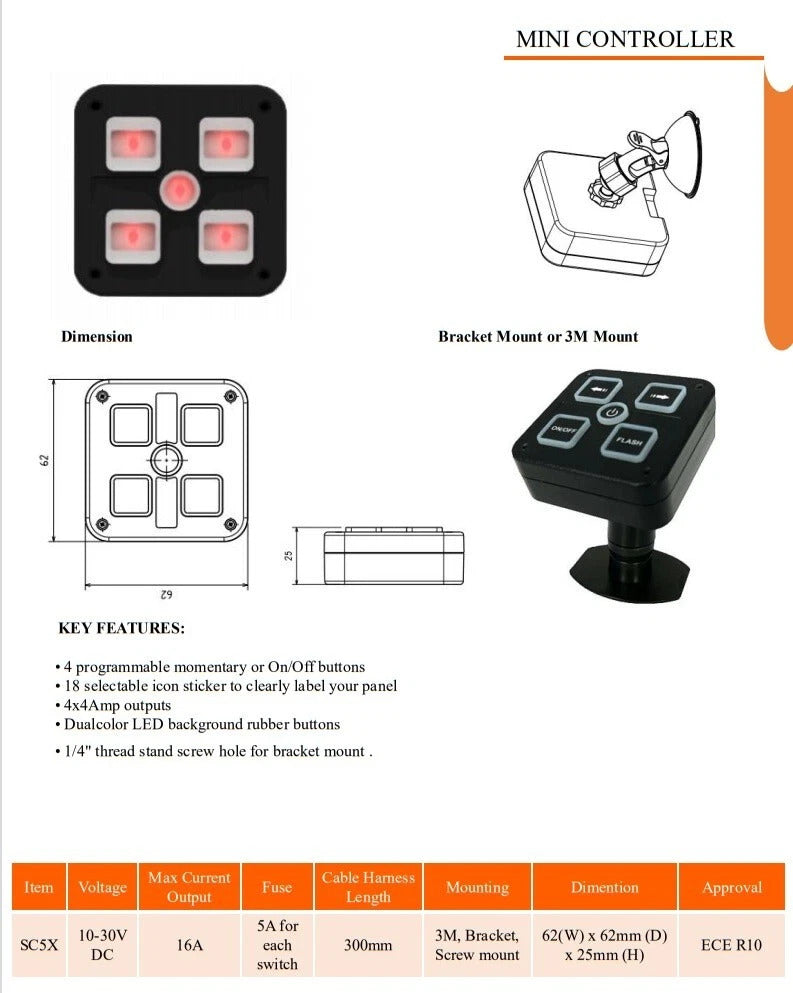

Specifications:
Product Name: Multi-Purpose 4 Way Switch Control Panel
Number of Switches: 4
Switch Type: Programmable (On/Off or Momentary)
Voltage: 12–24V DC
Output Capacity: 20A max shared load (5A per output)
Backlighting: Red (standby) / White (active)

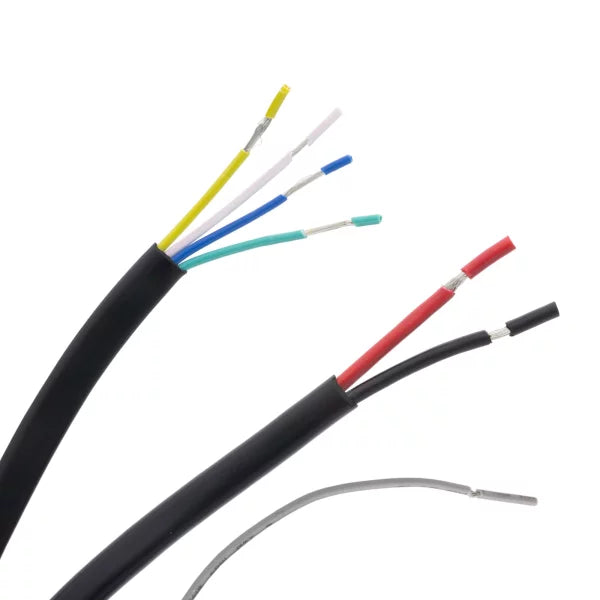

Cable Length: 300mm harness
Ingress Protection: IP44
Approvals: ECE R10 (EMC approved)

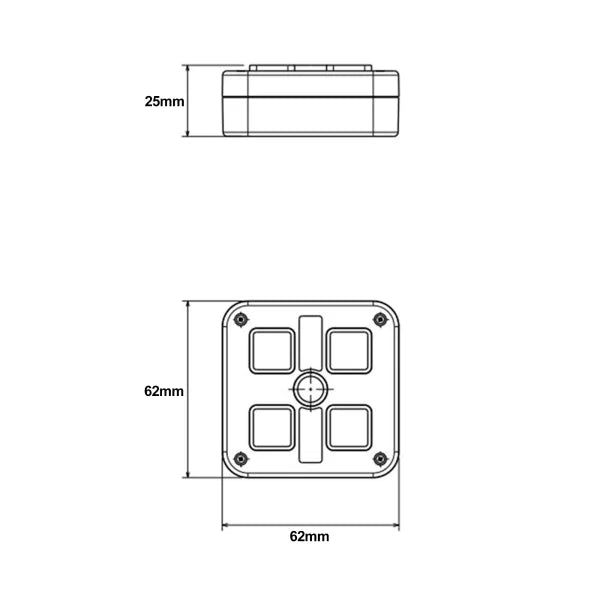

Dimensions: Approx. 63 x 63 x 24 mm

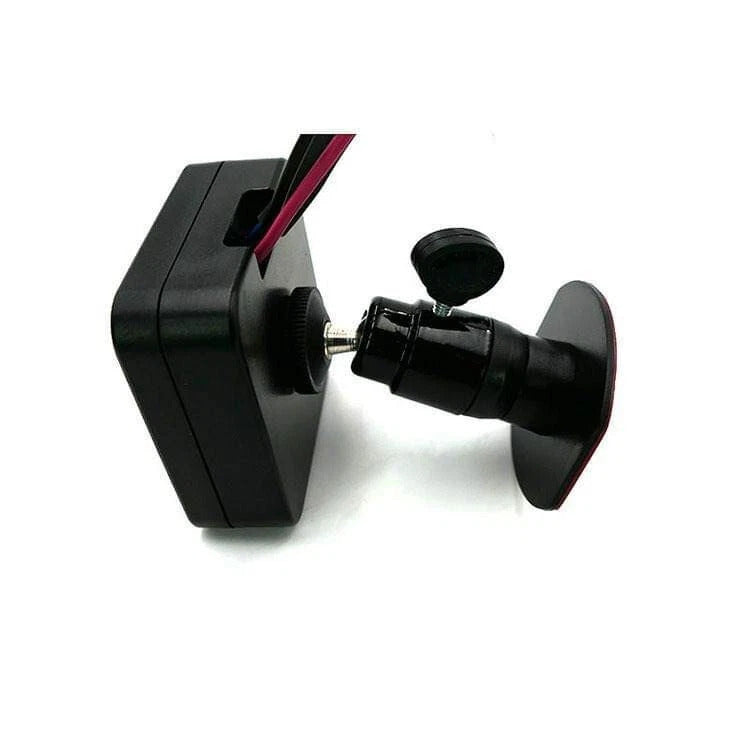

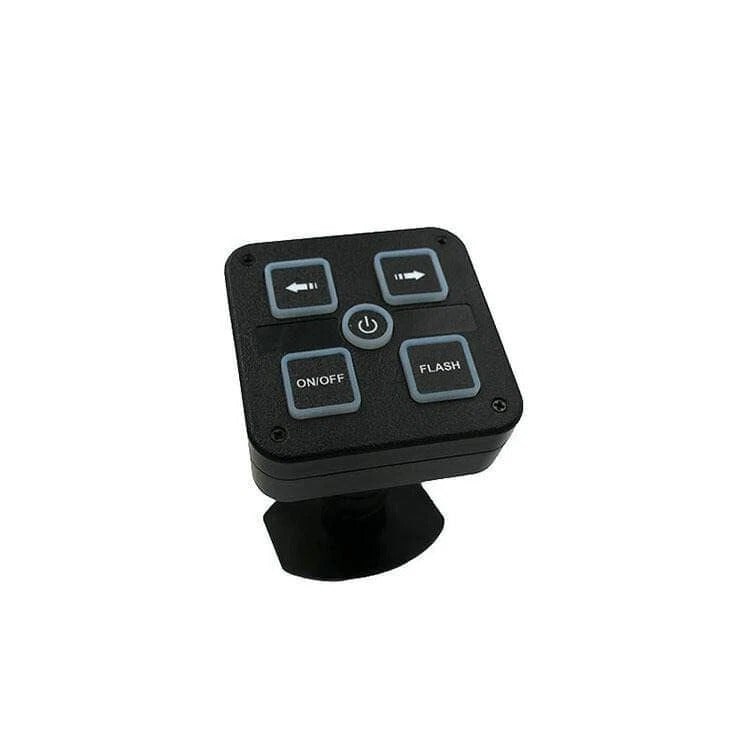

Mounting Options: Adhesive pad, bracket or suction mount
Why Choose the Multi-Purpose 4 Way Switch Control Panel?
The Multi-Purpose 4 Way Switch Control Panel 12/24V is an ideal solution for simplifying the control of multiple electrical accessories in a clean and professional setup. With programmable switches, integrated relays and flexible installation options, it reduces wiring complexity while improving usability. Perfect for managing beacons, strobes, work lights and auxiliary systems, it delivers a reliable and space-saving control solution for any commercial vehicle.
