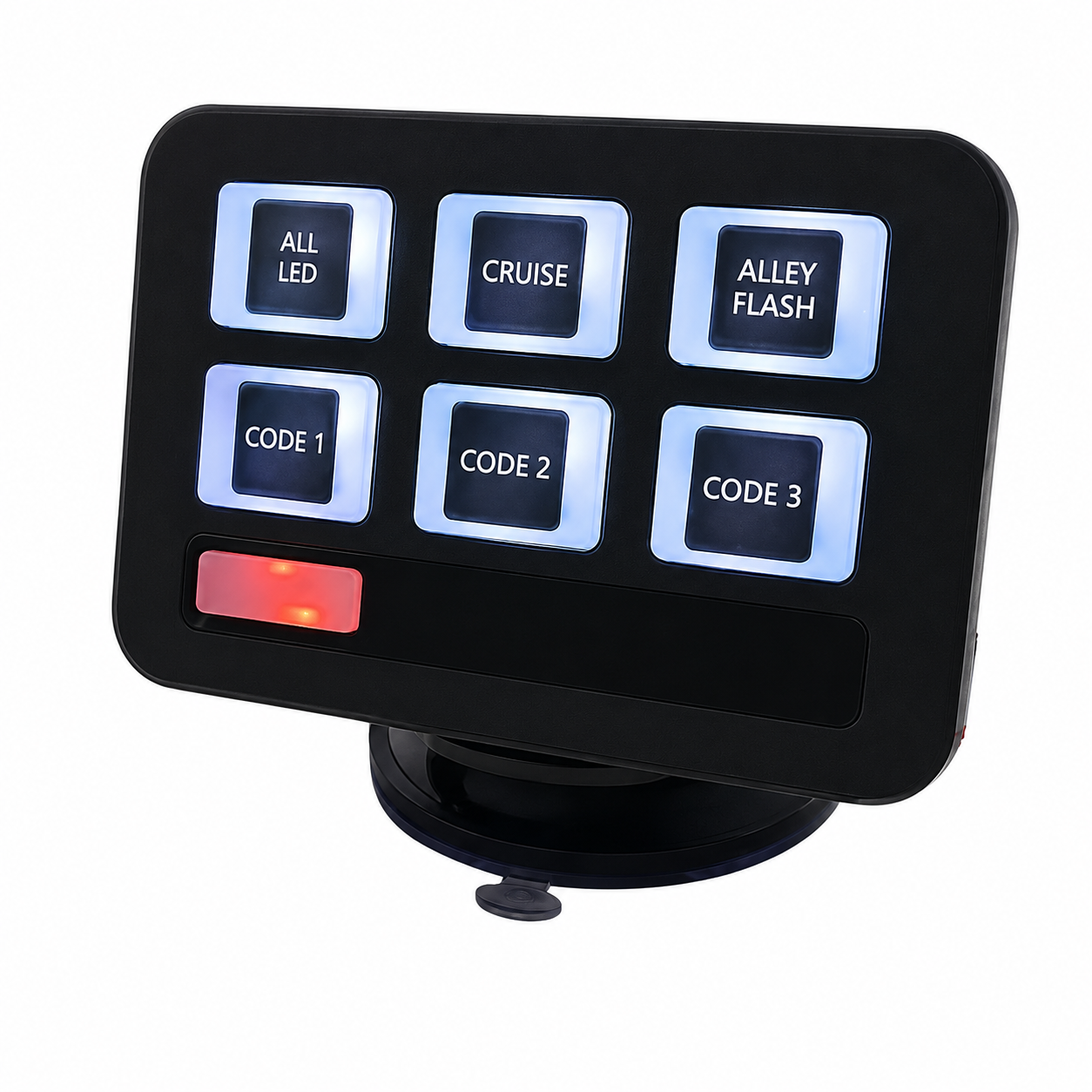

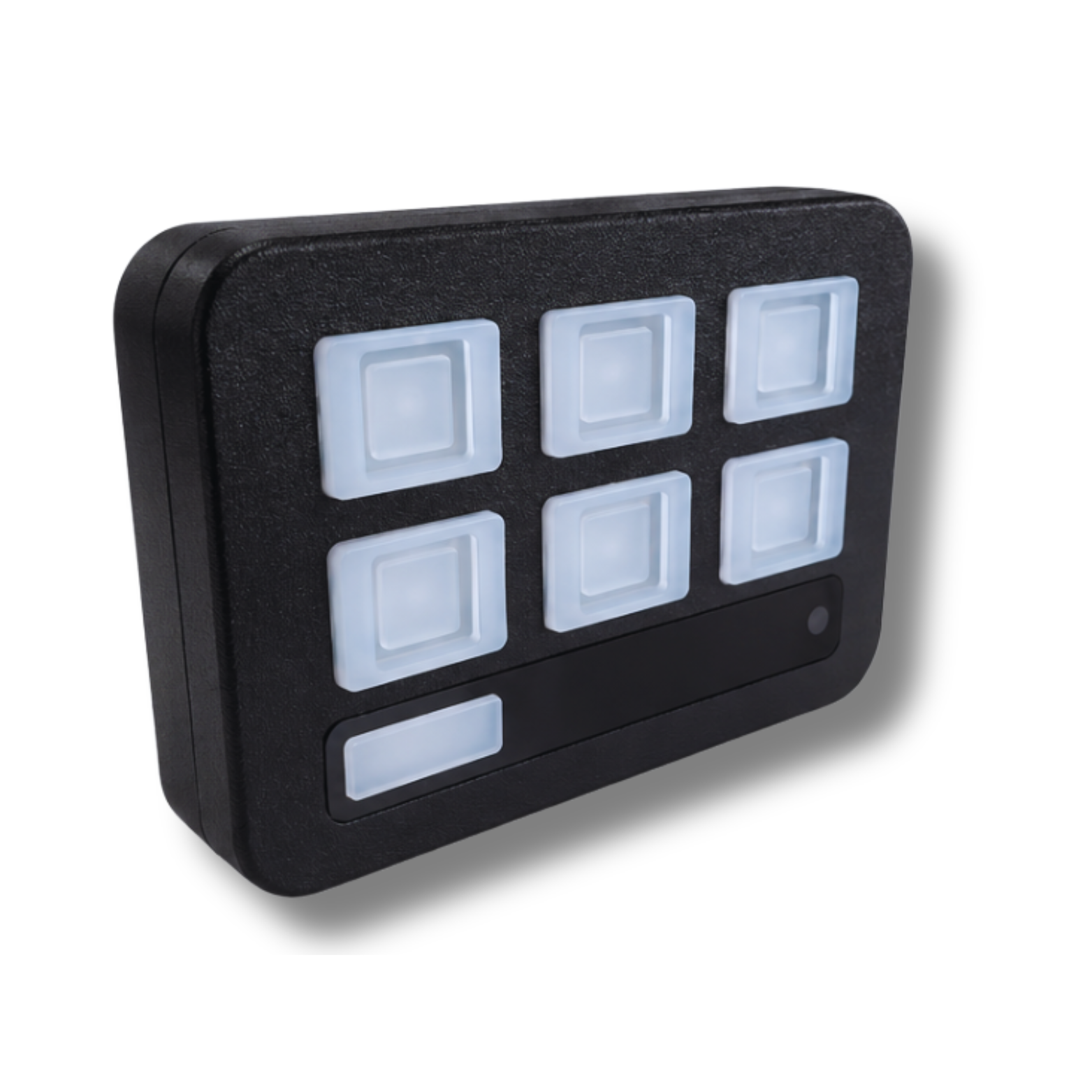

The Multi-Purpose 6 Way Switch Control Panel 12/24v by 24/7 Response is a compact and professional switching solution designed for controlling LED warning lights, strobes, lightbars, work lamps and auxiliary vehicle equipment. Suitable for both 12V and 24V vehicle systems, the control panel features six programmable outputs, integrated relays and customisable switch icons, making it ideal for emergency service, recovery, utility and commercial vehicle applications.
Key Features:
6 Programmable Switches: Each switch can be configured as on/off (latching) or momentary, allowing control of lighting, sirens or flash patterns.
All-in-One Controller: Built-in relays (rated at 5A per switch) remove the need for additional relay wiring in most setups.
30A Total Output Capacity: Supports a maximum shared load of 30 amps, Output Configuration: 2 x 10A, 4 x 5A
Dual Voltage Compatibility: Works with both 12V and 24V systems, ideal for a wide range of commercial vehicles.

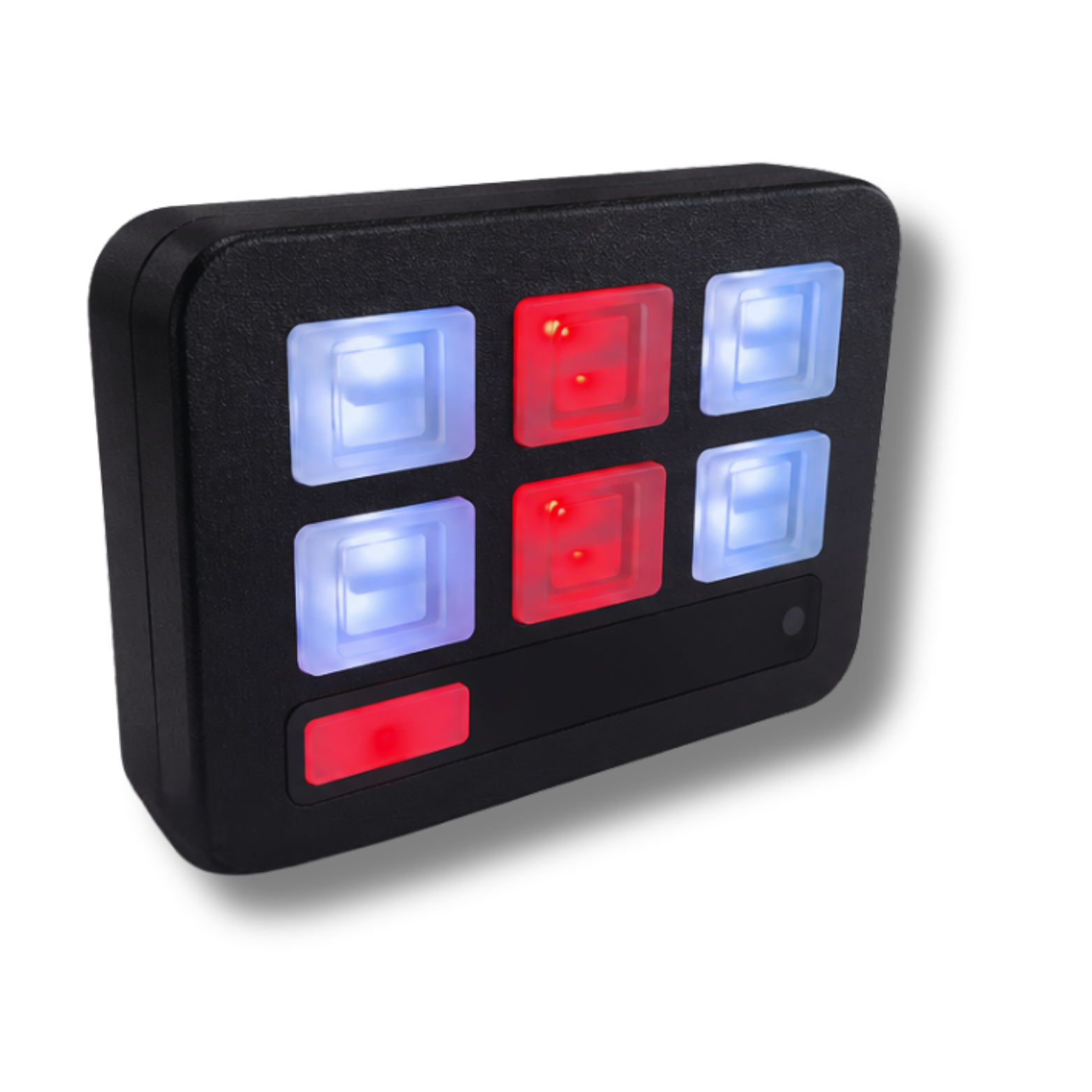

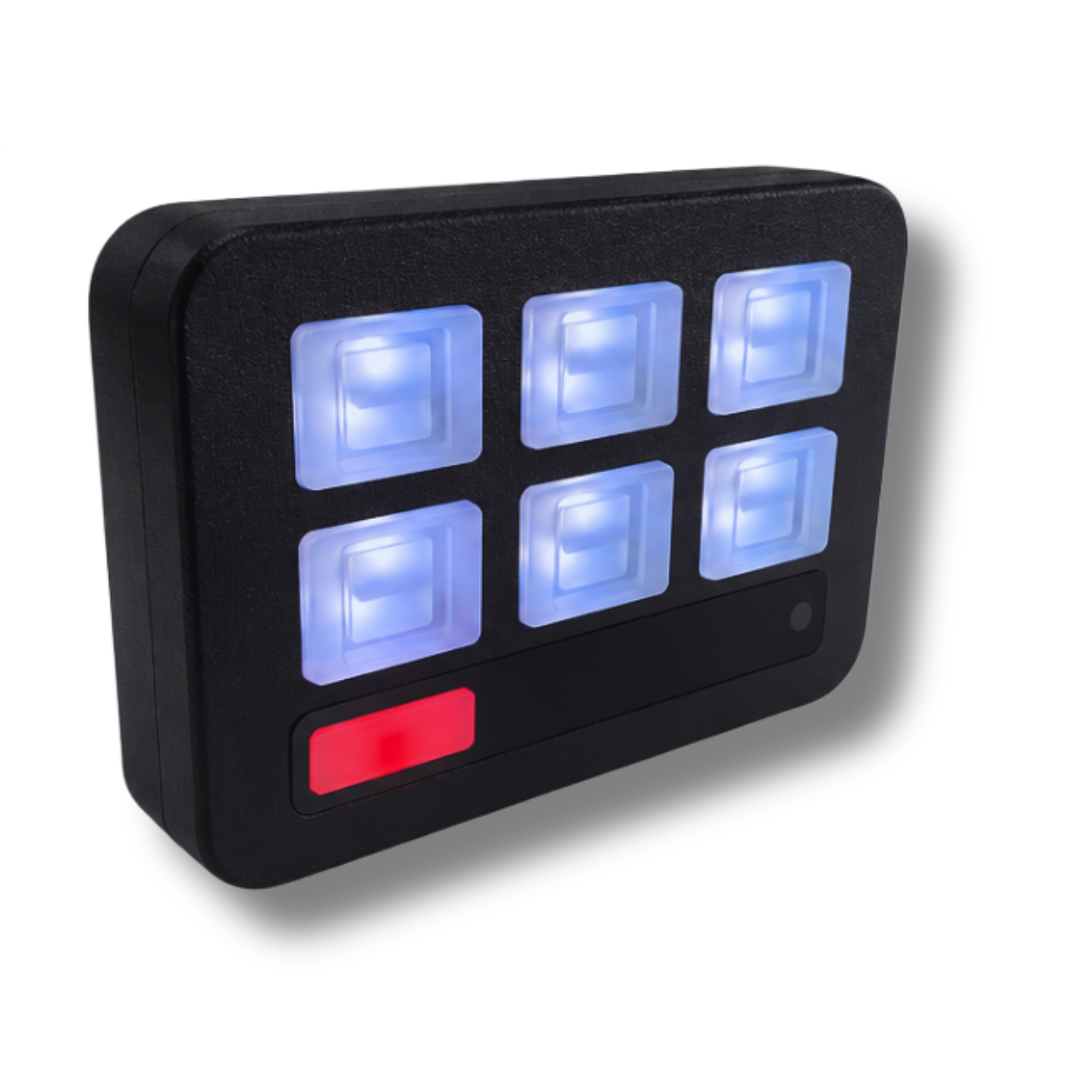

Backlit Soft-Touch Buttons: Illuminated switches feature red backlighting (standby) and white when active for clear visibility.
Customisable: Supplied with multiple icon stickers so each switch can be clearly labelled.
Multiple Mounting Options: Can be installed using adhesive backing & bracket mount
Built-In Protection: Includes over-temperature and short circuit protection for safe operation.
Specifications:
Product Name: Multi-Purpose 6 Way Switch Control Panel
Number of Switches: 6
Switch Type: Programmable (On/Off or Momentary)
Voltage: 12–24V DC
Output Capacity: 30A max shared load (2 x 10A, 4 x 5A)
Backlighting: Red (standby) / White (active)
Cable Length: 300mm harness
Ingress Protection: IP64
Approvals: ECE R10 (EMC approved)

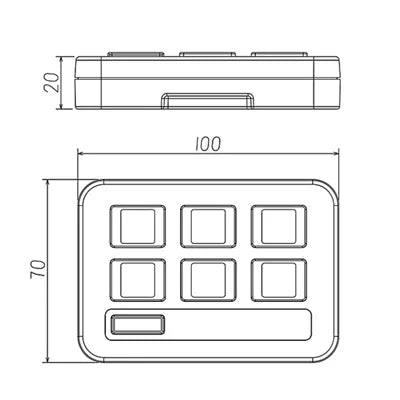

Dimensions: Approx. 100mm L x 70mm W x 20mm H
Mounting Options: Adhesive pad, bracket or suction mount
Why Choose the Multi-Purpose 6 Way Switch Control Panel?
The Multi-Purpose 6 Way Switch Control Panel 12/24V is an ideal solution for simplifying the control of multiple electrical accessories in a clean and professional setup. With programmable switches, integrated relays and flexible installation options, it reduces wiring complexity while improving usability. Perfect for managing beacons, strobes, work lights and auxiliary systems, it delivers a reliable and space-saving control solution for any commercial vehicle.
