HORPOL Gylle / Stalk Short Arm Marker Light Amber & Red – LD2622

Horpol LD 2622 Marker Light Amber & Red – Short Arm – Universal

The Horpol LD 2622 is an LED marker lamp for commercial vehicles, trucks, trailers and semi-trailers where clear position marking and a traditional stalk-lamp appearance are required.

Featuring amber and red illumination, including a red rear position light function, the LD 2622 combines a distinctive two-colour appearance with the classic styling of an “old school” marker lamp. It is an option for vehicle owners looking to continue an amber and red lighting theme across their installation.

The lamp features a short arm design and universal side configuration, allowing installation on either the left or right side of the vehicle. With 12/24 V compatibility, 10 LEDs and an IP68 ingress protection rating, it combines a compact mounting arrangement with practical specifications for everyday vehicle use.

Key Features:

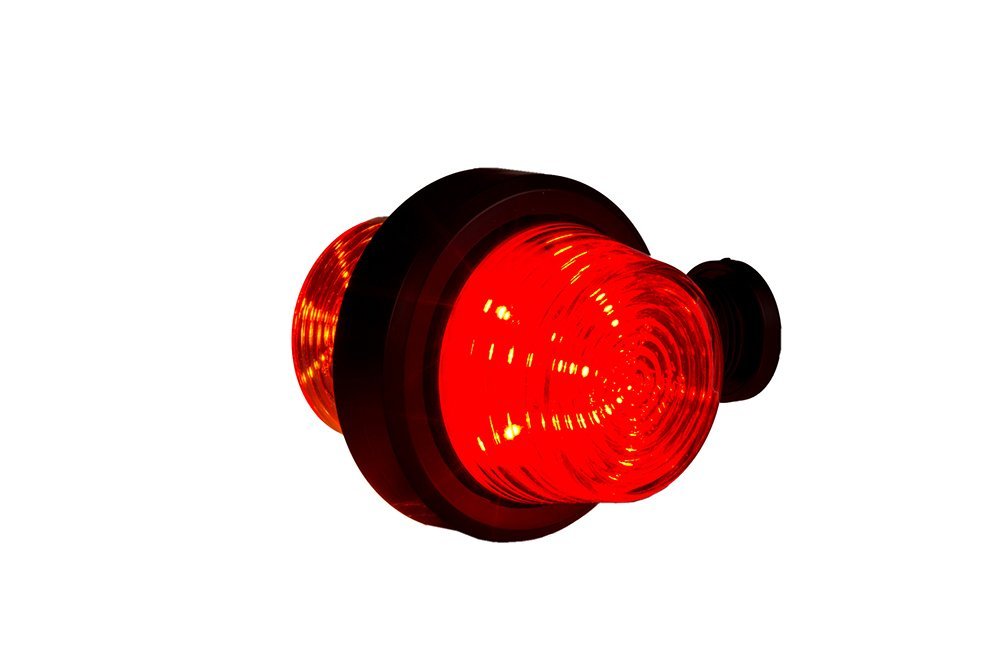

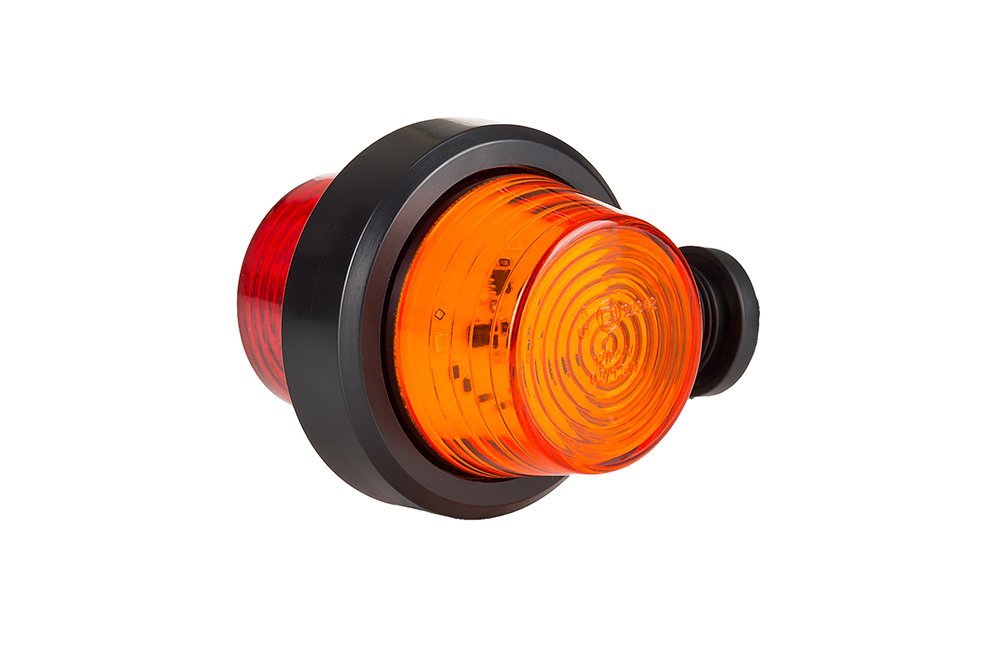

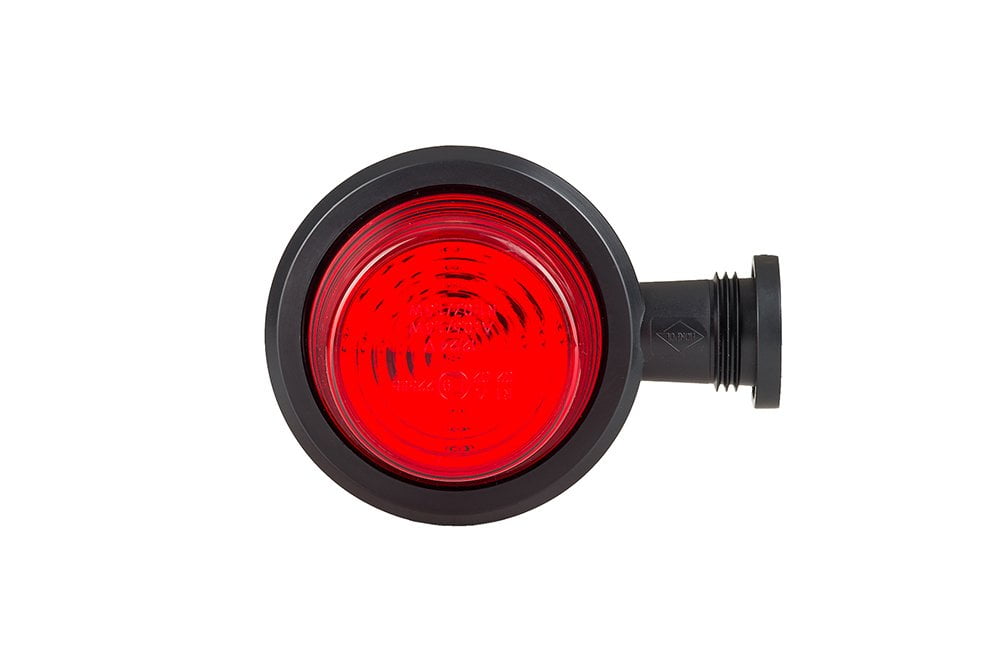

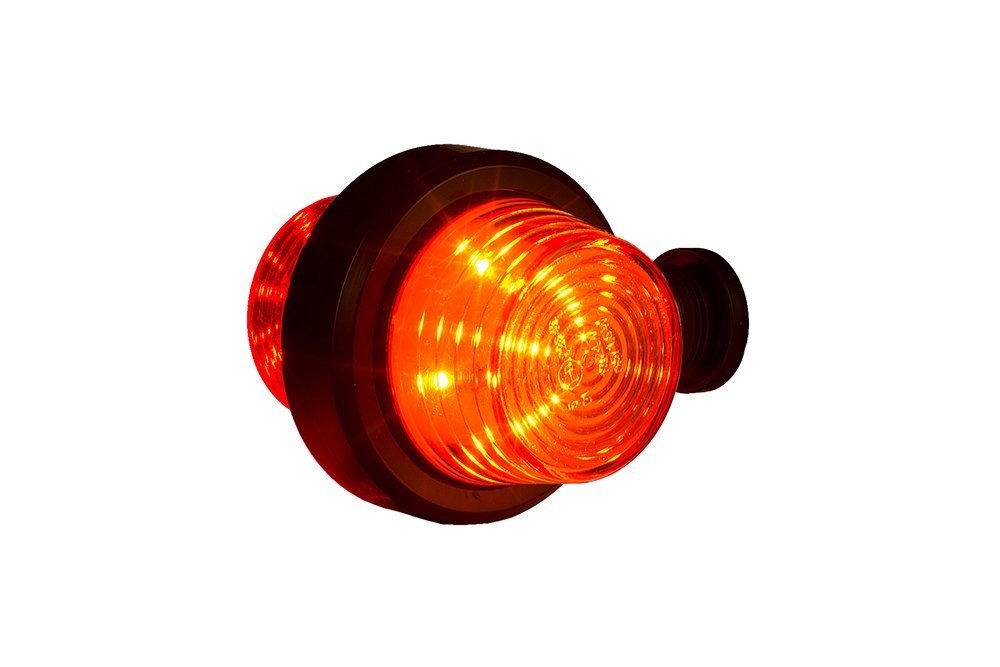

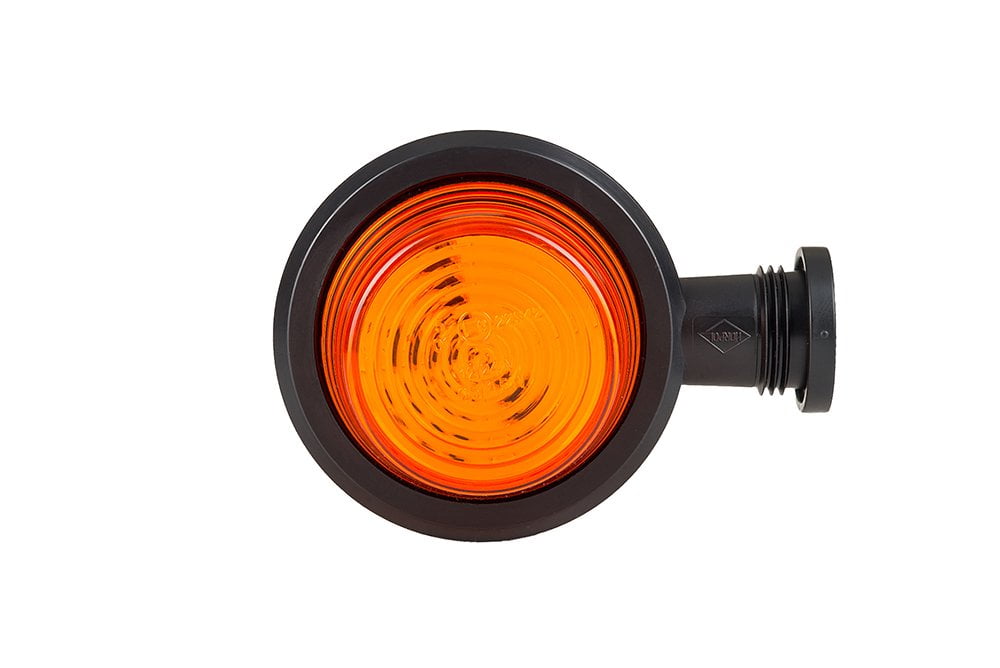

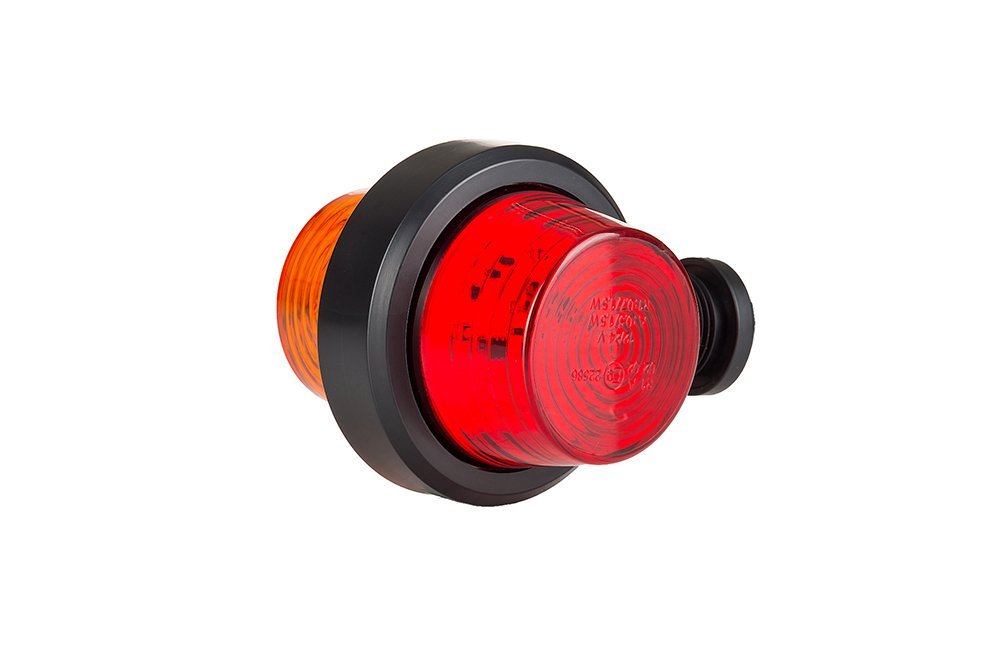

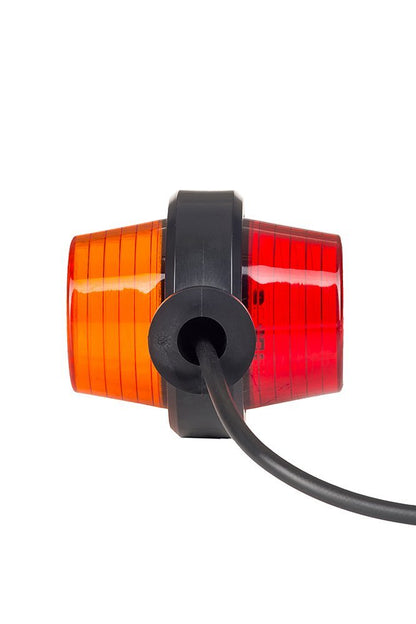

Amber & Red Marker Lighting: Combines amber and red illumination in one compact lamp, with a red rear position light function to help mark the vehicle’s outline.

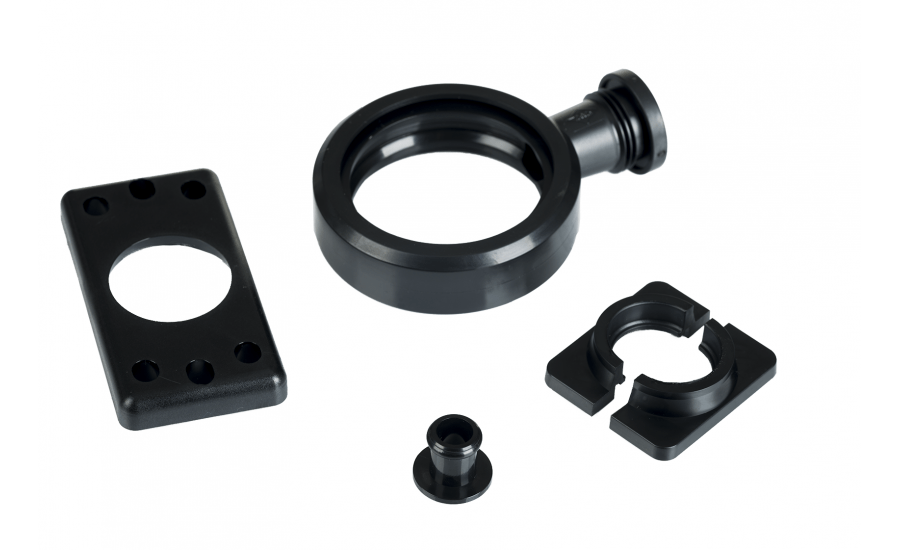

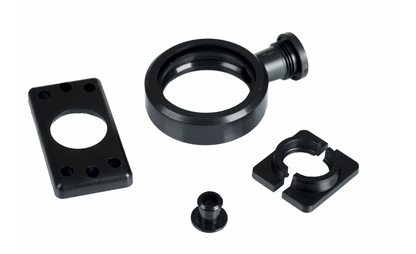

Short Arm Mount: The compact short-arm design provides a neat and practical installation close to the vehicle body, complementing an existing stalk-marker setup.

Amber & Red Colour Combination: Offers an alternative to the white and red version for installations requiring an amber and red lighting arrangement.

Universal Installation: Designed with a universal side configuration, allowing the same lamp model to be used on either side of the vehicle.

LED Technology: Equipped with 10 LEDs, with a rated power consumption of 1.2 W at 12 V and 3 W at 24 V.

12/24 V Compatibility: Suitable for both 12 V and 24 V vehicle electrical systems, with a 0.6 m cable supplied for connection.

Weather Protection: An IP68 ingress protection rating provides protection against dust and water ingress. The specified operating temperature range is –30°C to +50°C.

“Old School” Design: Combines a traditional marker-lamp appearance with LED technology, offering classic styling for commercial vehicle lighting installations.

Specifications:

Model: LD 2622
Light Group: HOR 102A
Light Category: Marker
LED Light: Yes
LED Quantity: 10 LEDs
Light Colours: Amber & Red
Rear Position Light: Yes
Mounting Side: Universal (left or right)
Arm Type: Short Arm
Supply Voltage: 12 / 24 V
Power Rating: 1.2 / 3 W (12 V / 24 V)

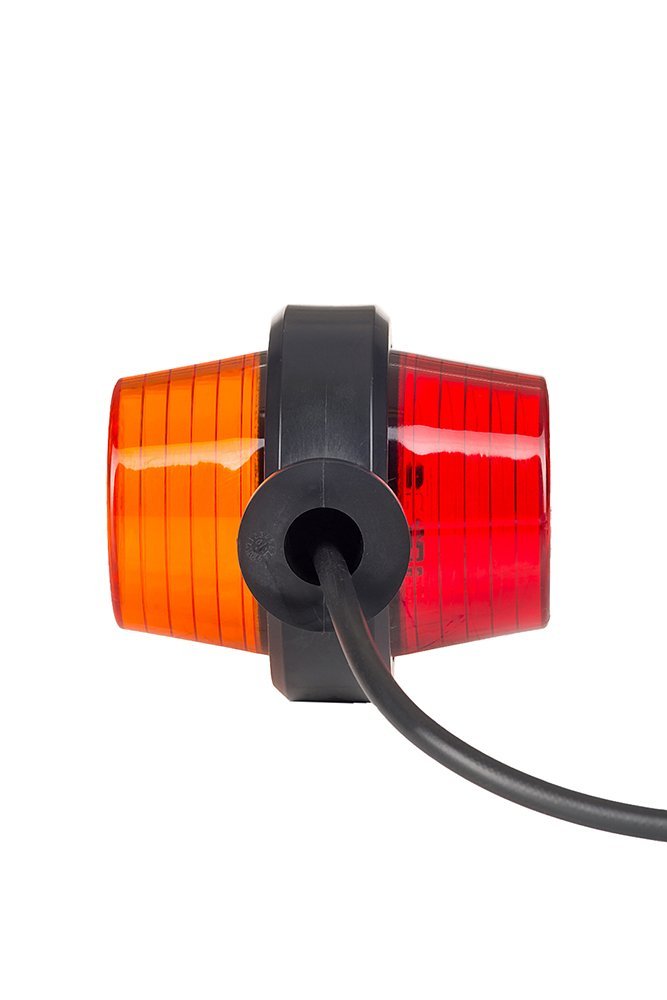

Cable: 2 × 0.75 mm²
Cable Length: 0.6 m
Ingress Protection: IP68
Operating Temperature: –30°C to +50°C
