Horpol Graphite Red Module Gylle / Stalk Marker Light

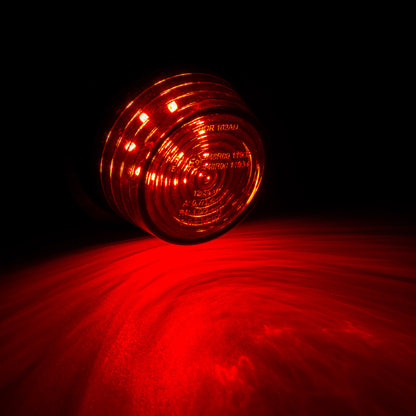

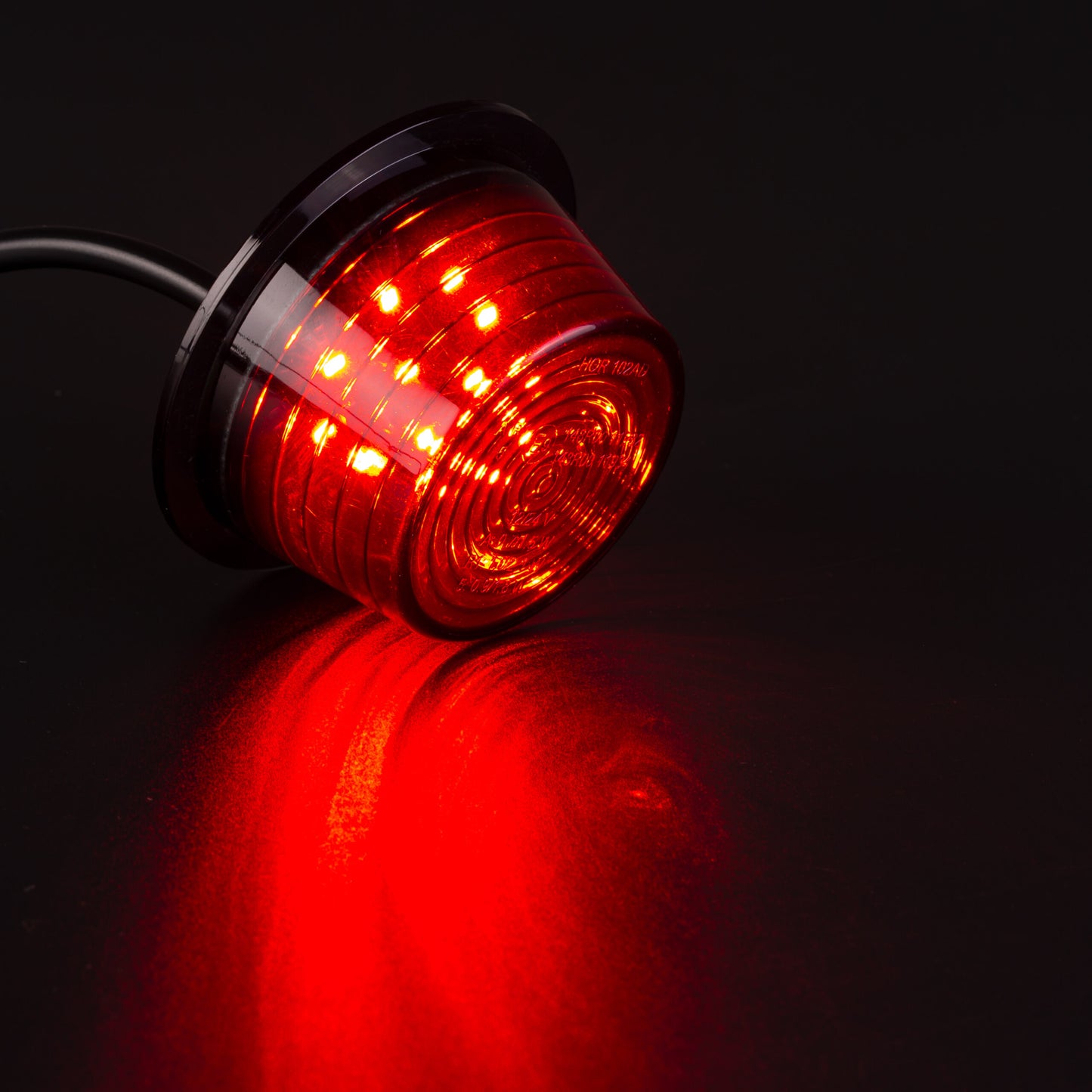

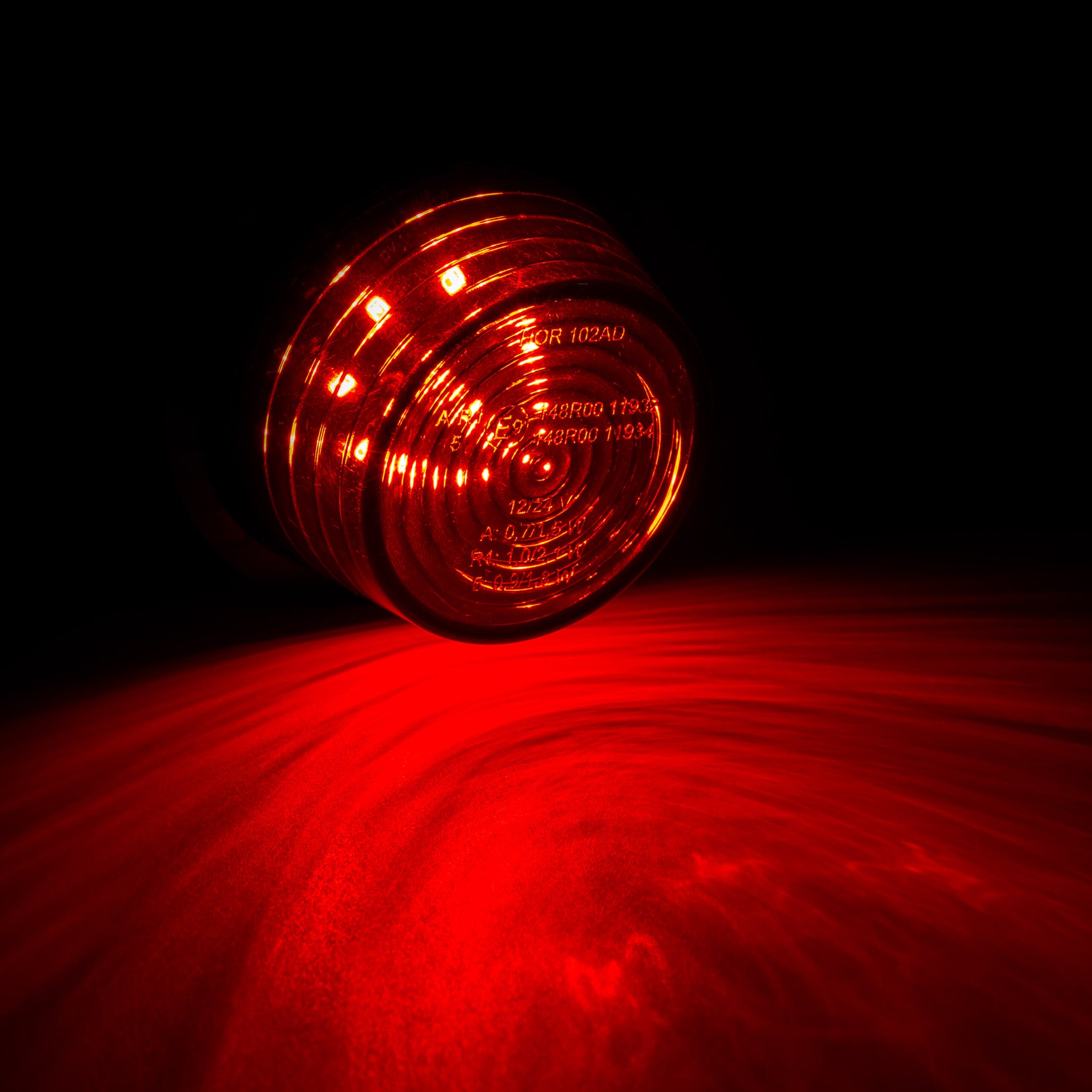

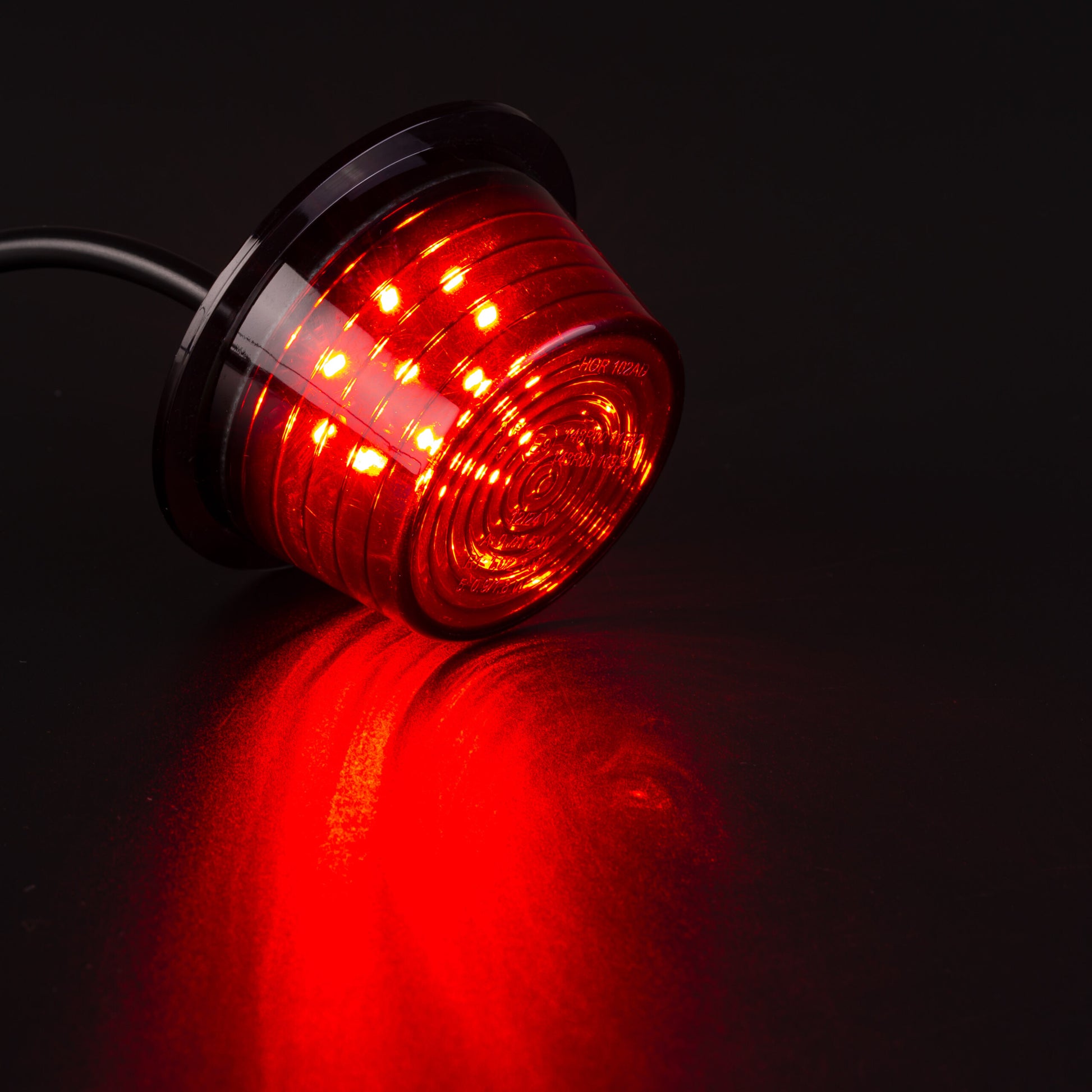

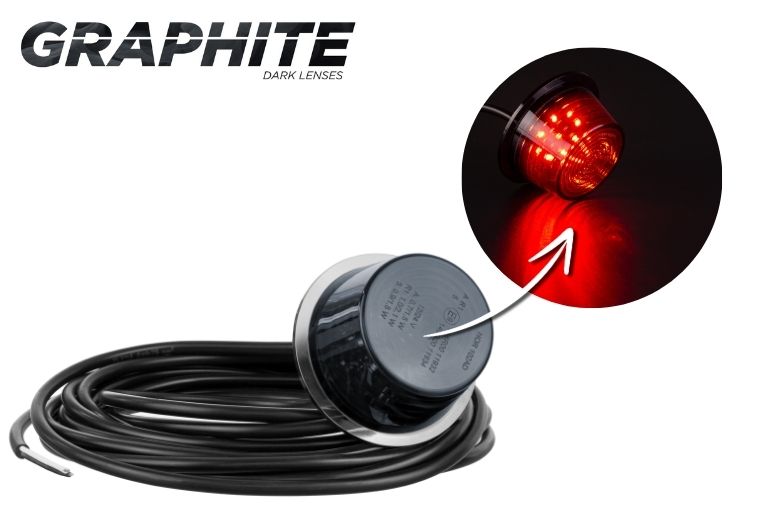

Horpol Red Module for Stalk Marker Light – LED Rear Position & Marker Module

The Horpol Red Module for Stalk Marker Light (MDC 2570/GRAPHITE/3M) is a rugged and efficient LED lighting component designed for rear marker/position signalling on trailers, commercial vehicles, and semi-trailers. Part of the Horpol HOR 102AD family and featuring the stylish GRAPHITE housing, this module delivers bright, consistent red illumination with excellent visibility and weatherproof performance — ideal for enhancing safety and compliance on the road.

Key Features:

Purpose-Built Rear Marker Module: Designed as a rear position and marker light module, providing effective red LED illumination for vehicle rear-end visibility.

Universal Mounting: Can be installed on either the left or right side of the vehicle, offering flexibility for trailer and truck configurations.

GRAPHITE Collection Housing: Finished in Horpol’s modern GRAPHITE dark-tone housing for an attractive, low-profile appearance that complements vehicle aesthetics.

LED Efficiency: Uses branded high-efficiency LEDs that deliver bright light output while minimising power consumption.

Dual Voltage Operation: Compatible with both 12 V and 24 V DC systems, making it suitable for a wide range of commercial vehicle applications.

Robust Weather Protection: IP68 rated, offering excellent resistance to water, dust, and road contaminants — ideal for exterior mounting in diverse environments.

Wide Operating Range: Performs reliably across a broad operating temperature range (–30 °C to +50 °C), even in extreme conditions.

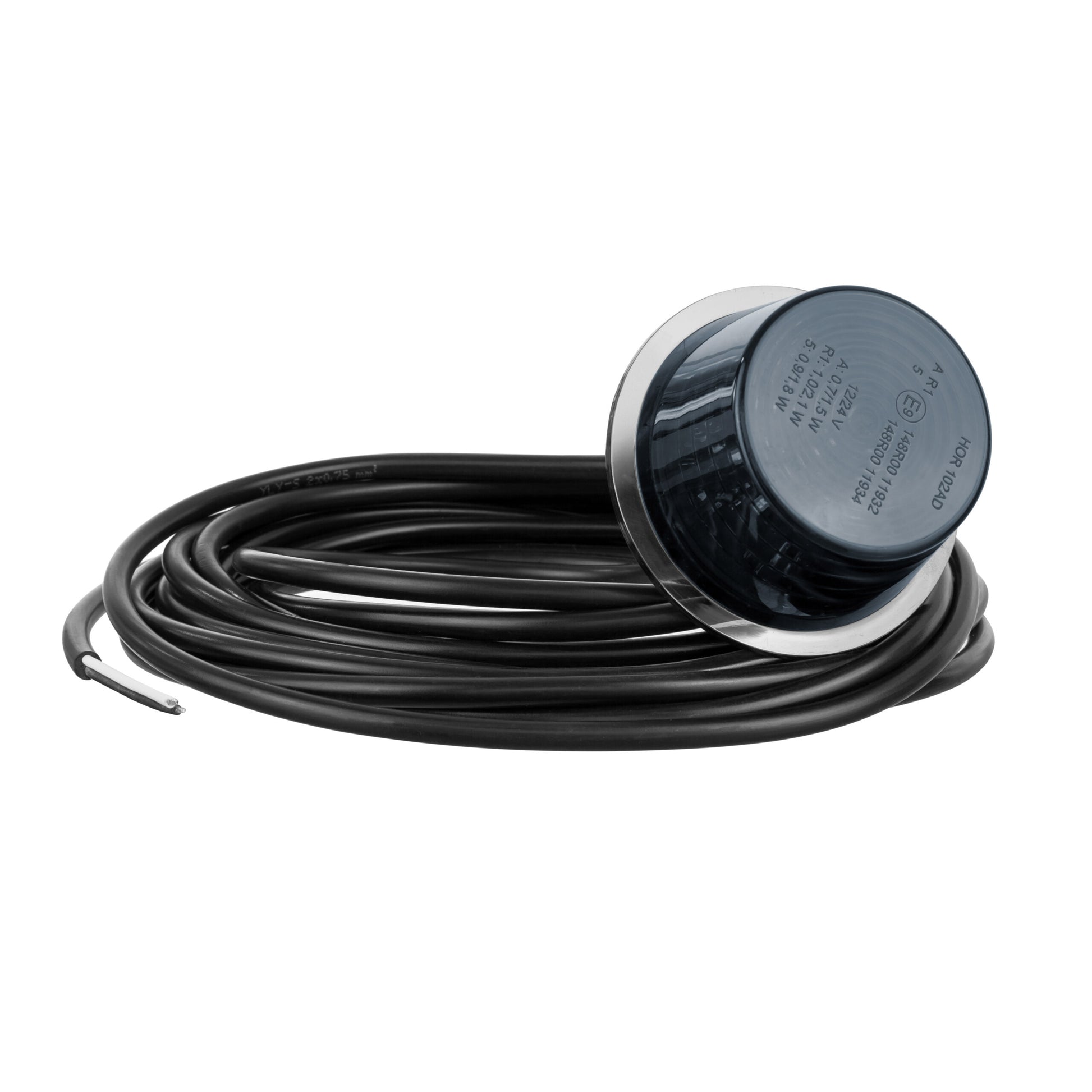

Extended Cable: Supplied with a ~3.2 m cable (2×0.75 mm²) for flexible installation and routing.

Specifications:

Model: MDC 2570/GRAPHITE/3M

Light Group: HOR 102AD (rear marker/position lamp)

LED Count: 5 branded LED elements

Light Colour: Red (rear marker/position function)

Supply Voltage: 12–24 V DC (dual-voltage compatibility)

Power Rating: Approx. 0.9–1.8 W

Cable: 2×0.75 mm², ~3.2 m length

Side Compatibility: Universal (left or right)

Ingress Protection: IP68 (outstanding dust & water resistance)

Operating Temperature: –30 °C to +50 °C

Mounting: Designed for use with stalk-mounted marker arm systems
