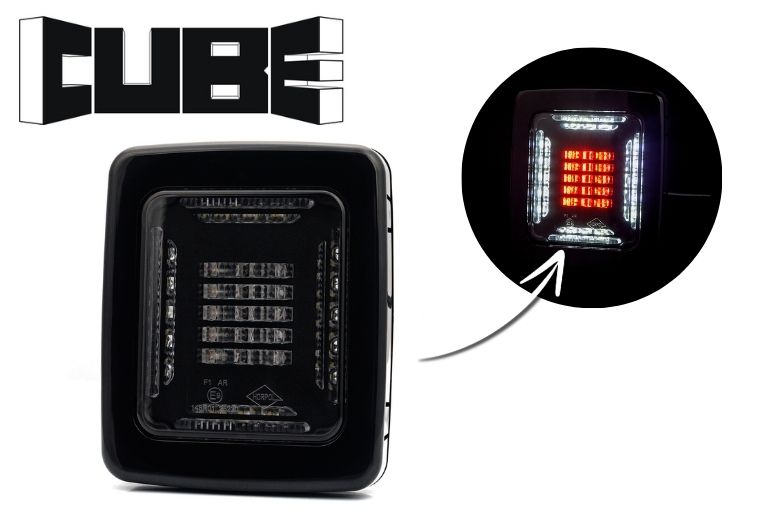

Horpol CUBE LZD 2876 LED Rear Fog & Reverse Lamp – Black Frame – 12/24 V
The Horpol CUBE LZD 2876 is a rear LED combination lamp for trucks, trailers, semi-trailers, agricultural machinery and specialist vehicles. It brings rear fog and reversing light functions together in one compact unit, making it a practical choice when both functions are needed within the same rear lighting arrangement.
Featuring a black outer frame and lightly tinted lens, the LZD 2876 offers a modern finish that complements a coordinated vehicle lighting installation. Its 31 LEDs provide illumination for the two functions, with separate connections for the rear fog light and reversing light.
The lamp is suitable for either side of the vehicle and must be installed vertically. A supplied spacer frame assists mounting on flat surfaces, while 12/24 V compatibility, IP68 protection and a one-metre connection cable provide practical fitting options for commercial vehicle applications.
Key Features:

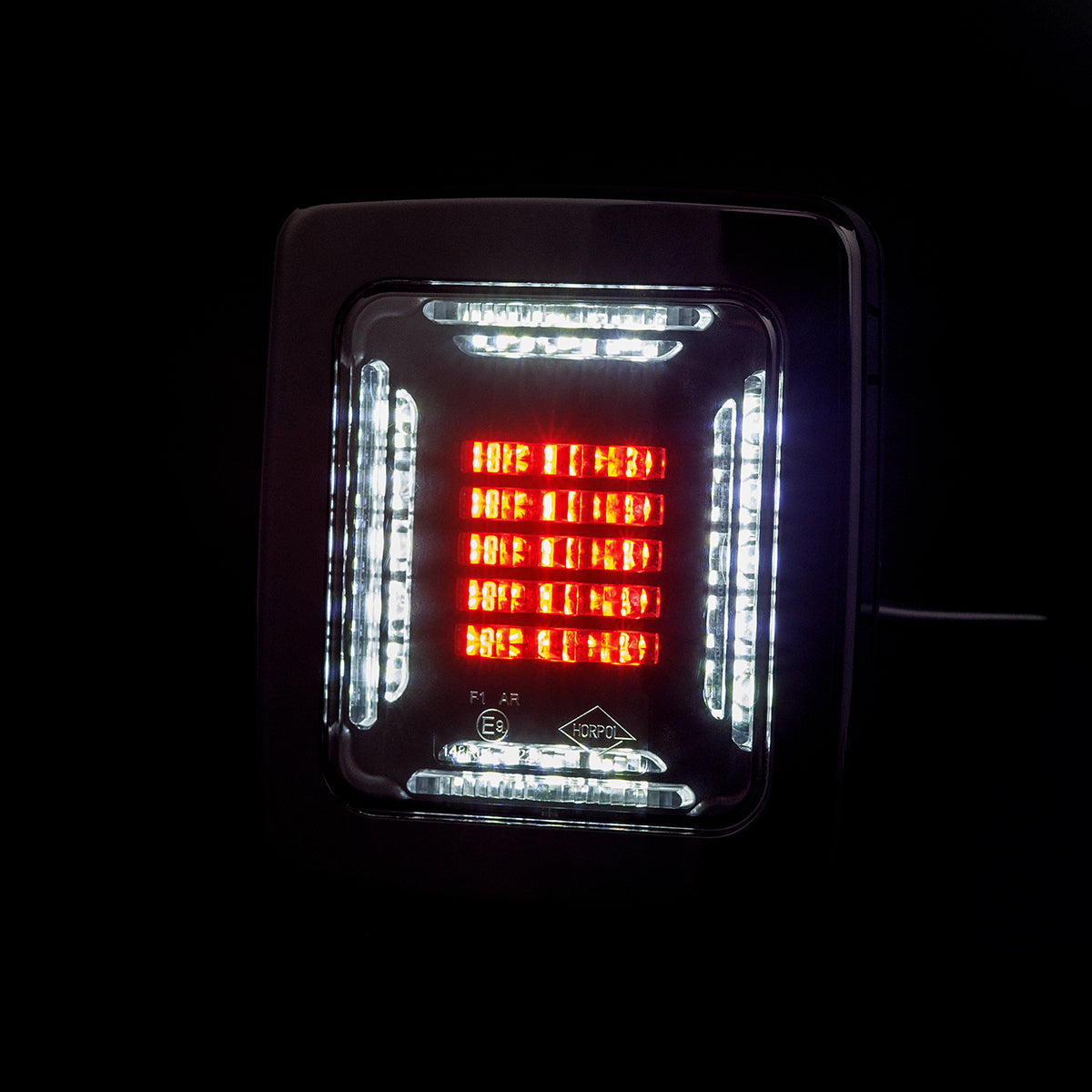

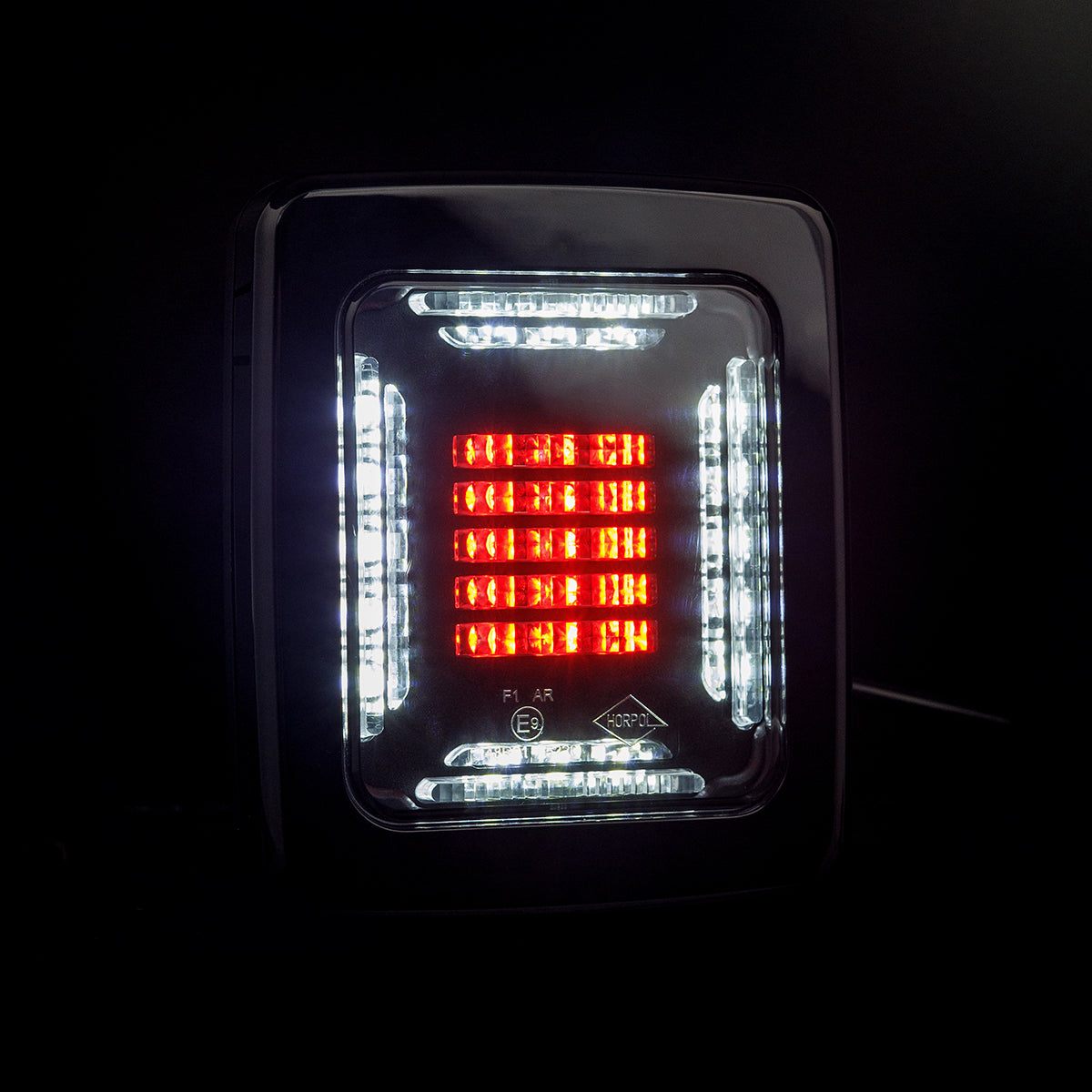

Combined Fog & Reverse Lighting: Integrates a rear fog lamp and reversing lamp into a single unit, simplifying the arrangement of these two functions at the rear of the vehicle.

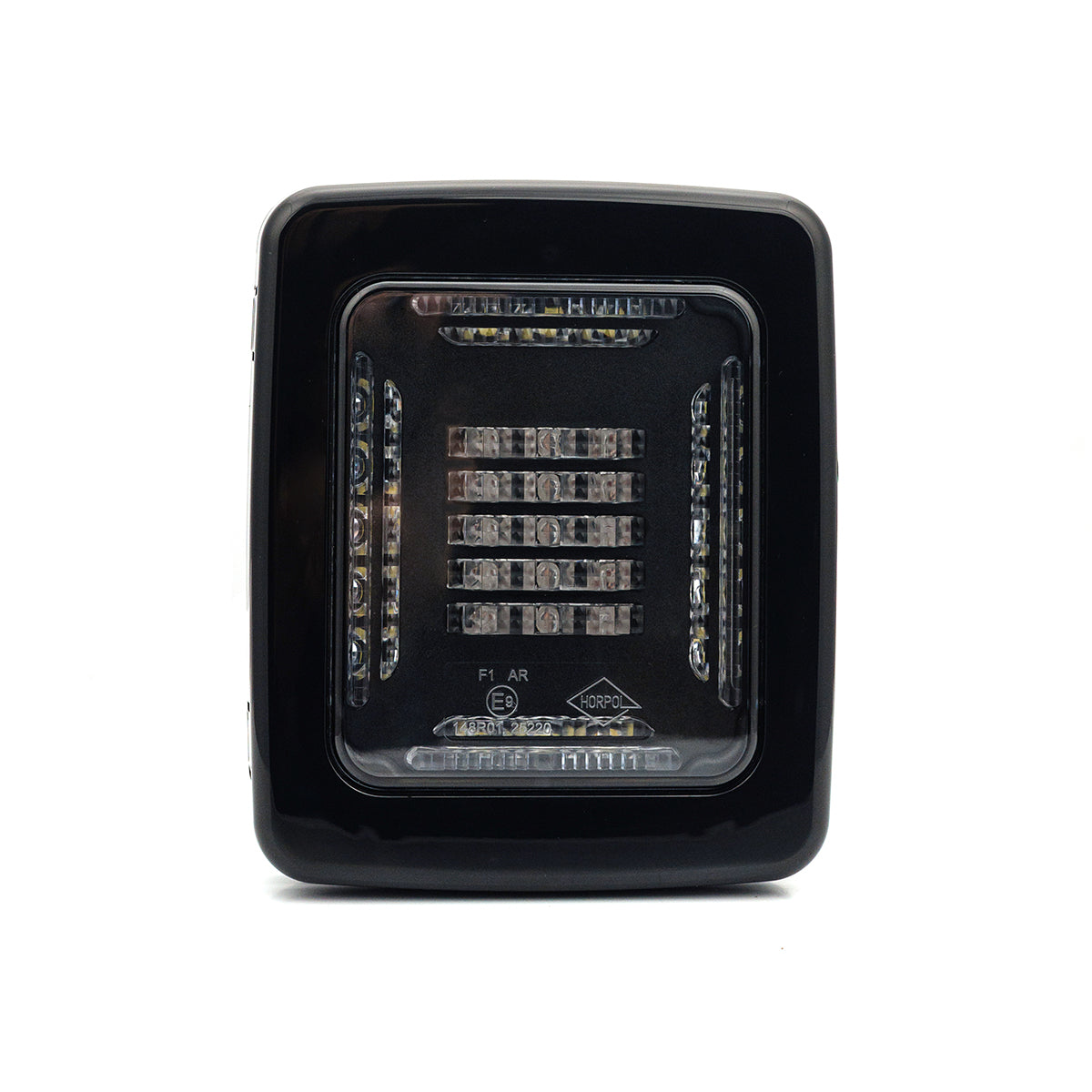

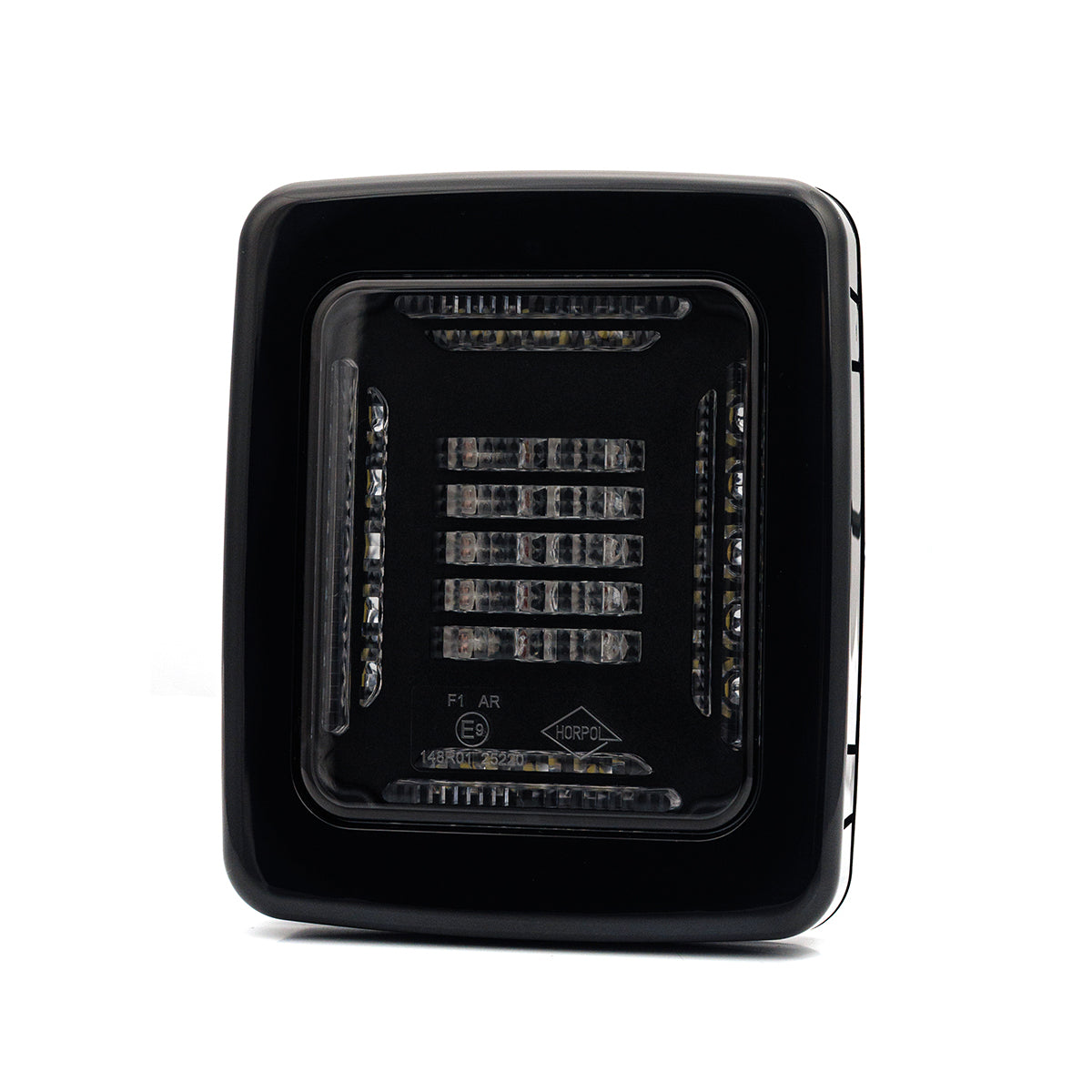

Black Frame & Tinted Lens: The black outer frame and lightly tinted lens create a neat, modern appearance for a coordinated rear lighting setup.
Universal Side Fitment: Suitable for left- or right-side installation. Vertical mounting only is specified for this model.

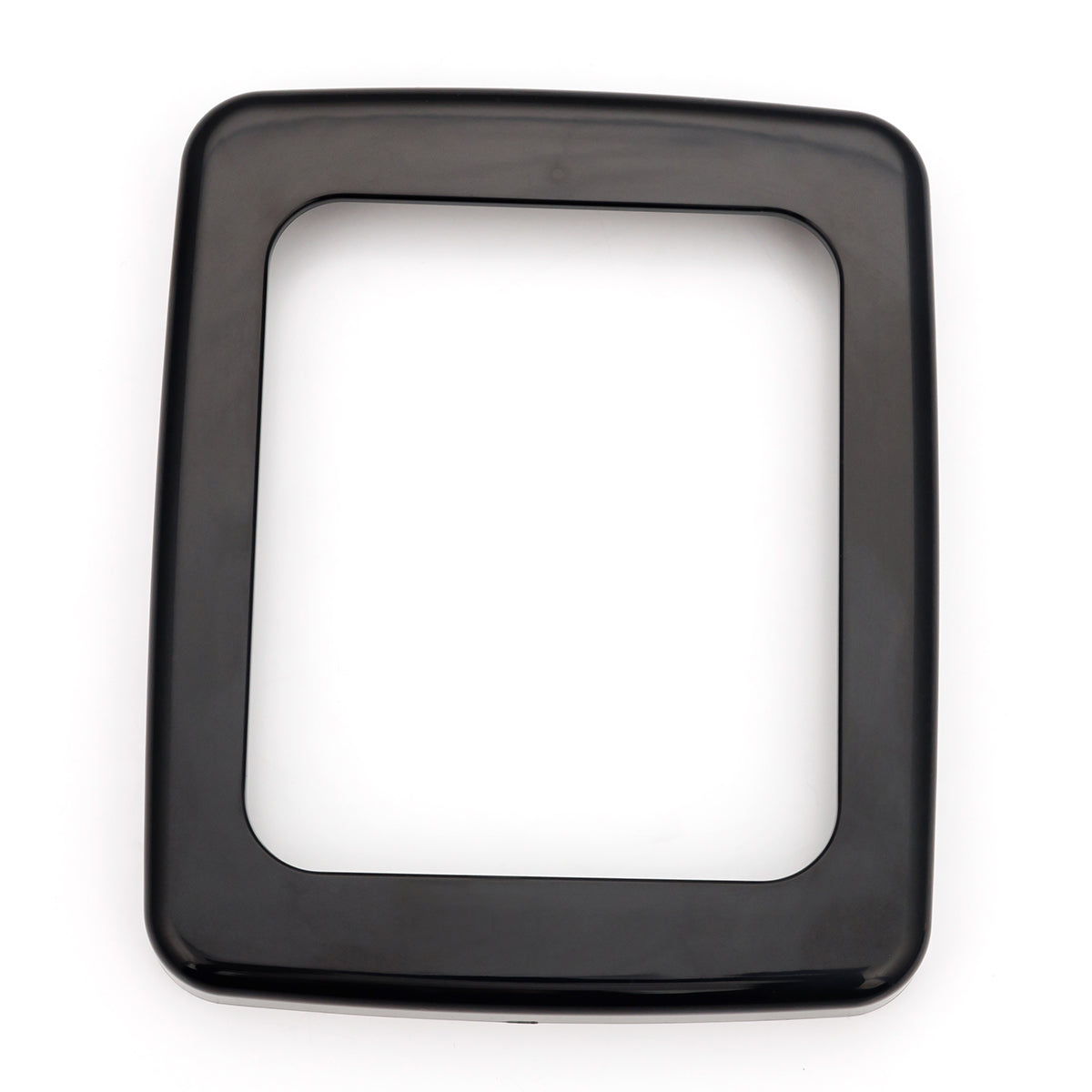

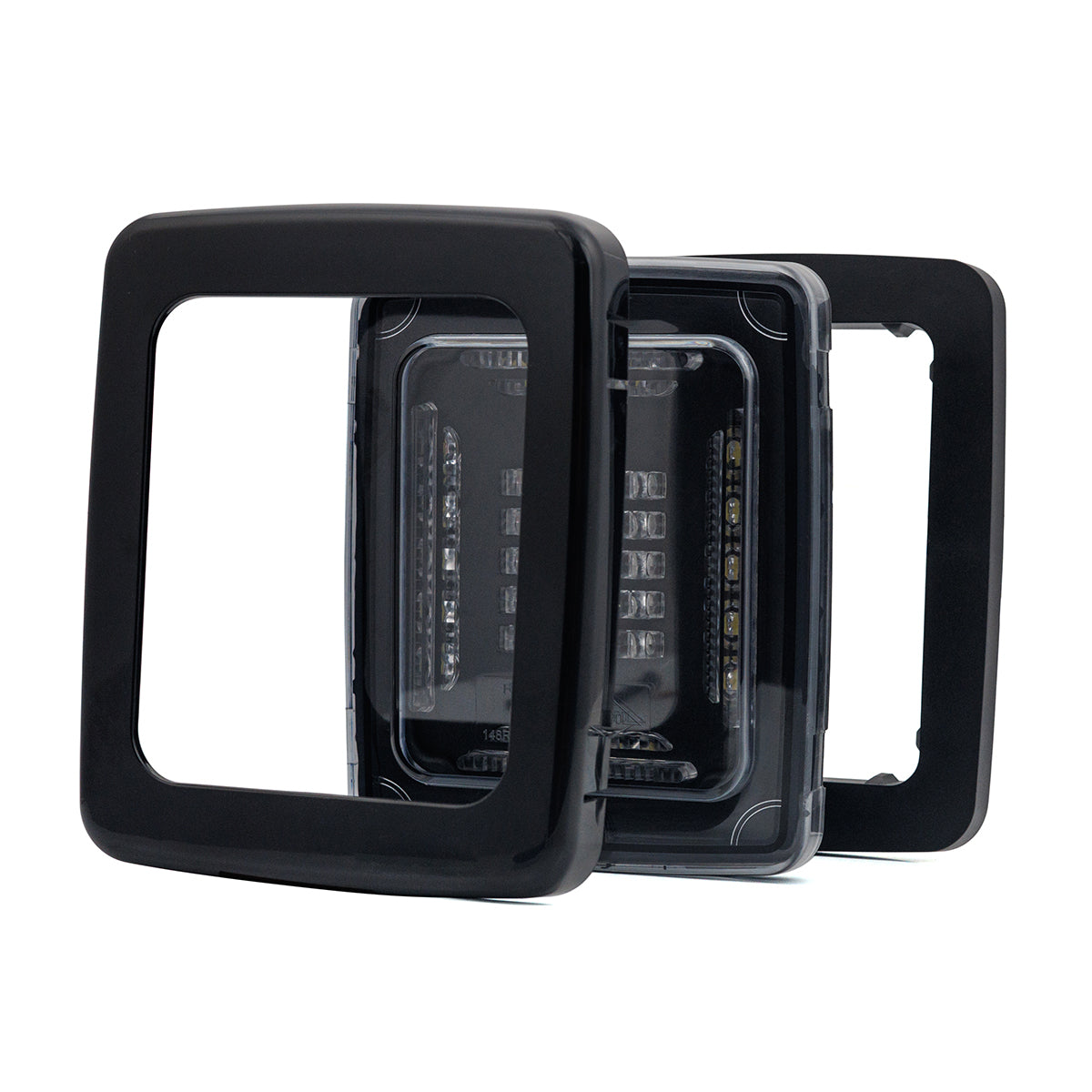

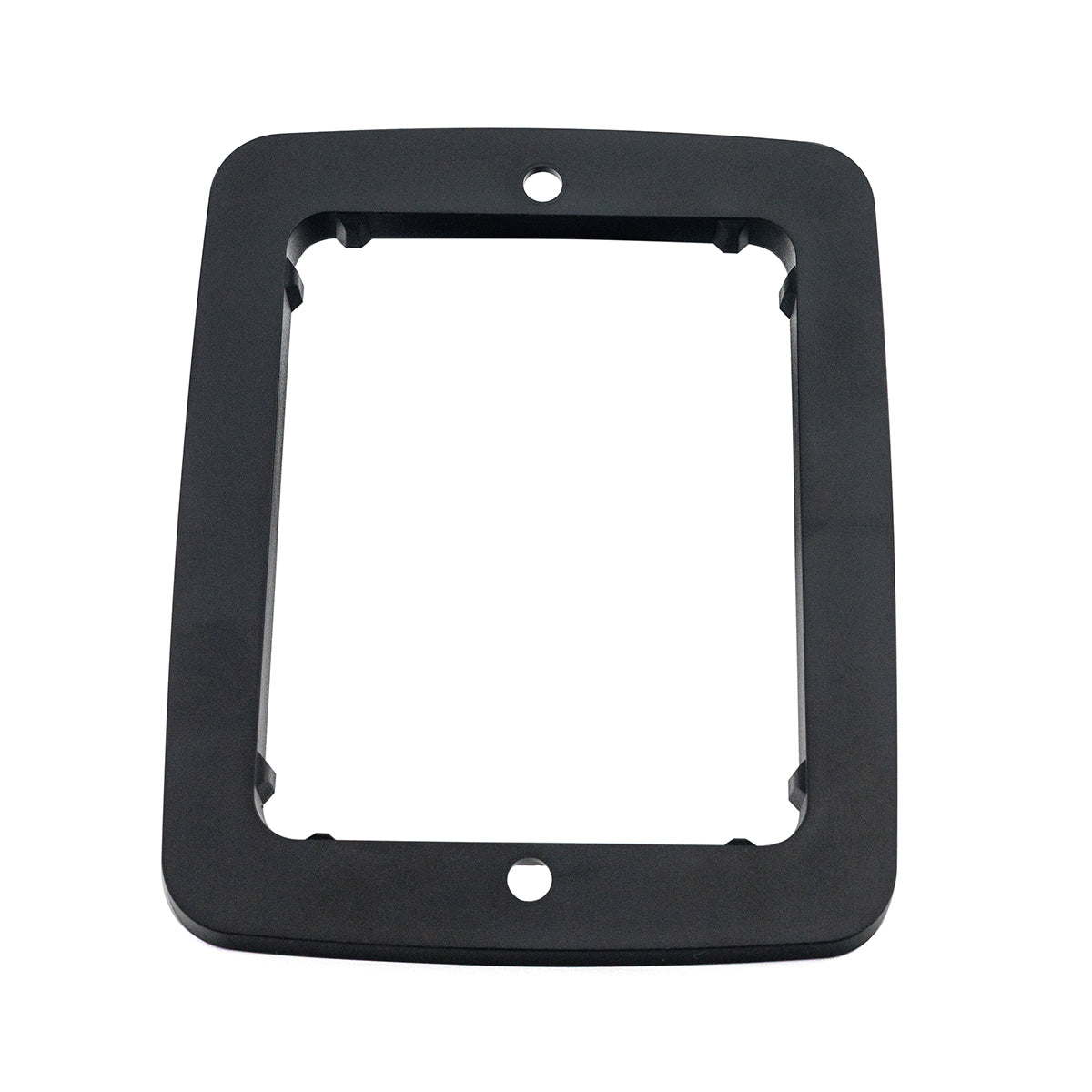

Spacer Frame Included: Supplied with a spacer frame to assist mounting on flat surfaces, alongside the outer frame that finishes the lamp’s edges.
31-LED Design: Uses 31 LEDs, with each lighting function rated at 3.3 W on a 12 V supply or 3.8 W on a 24 V supply.

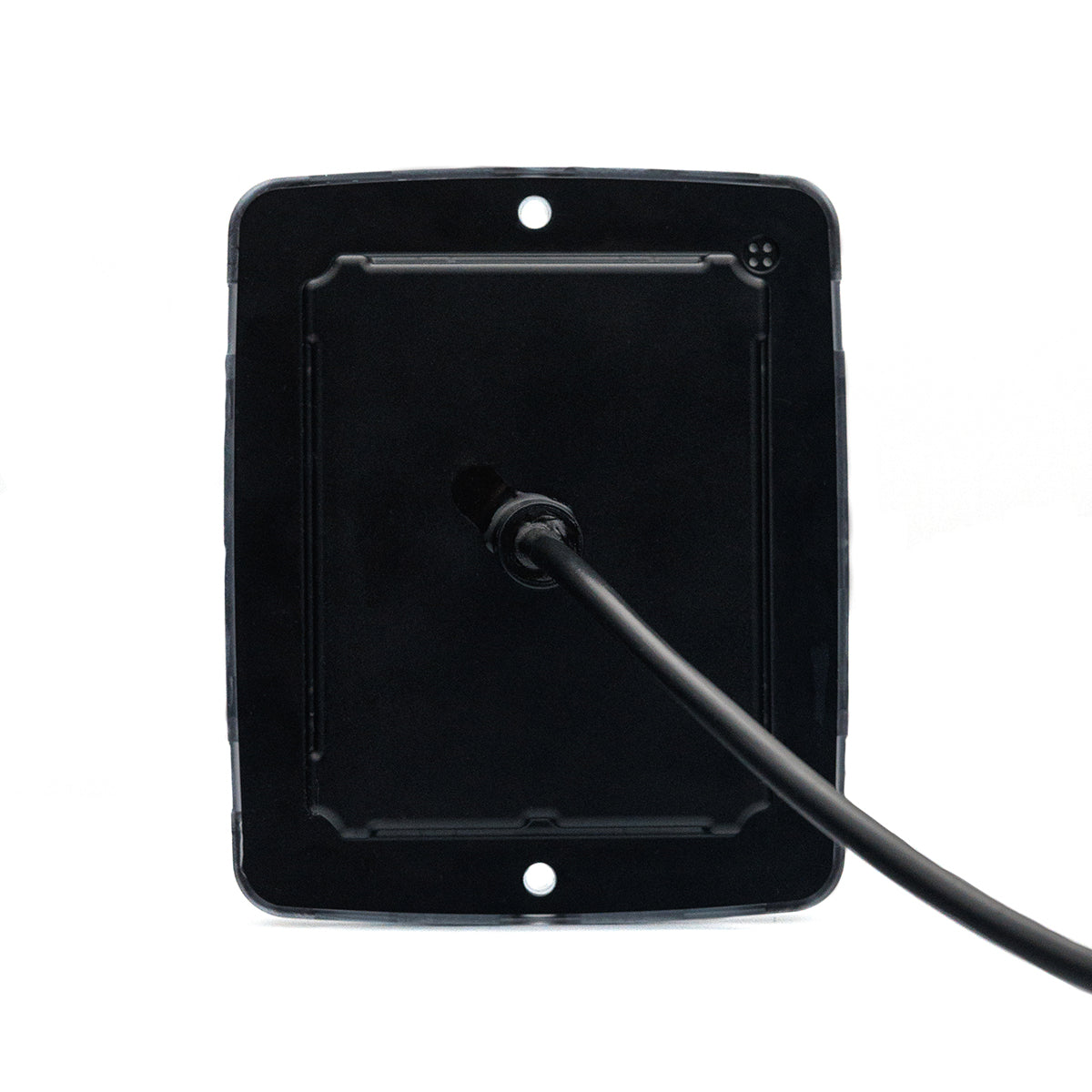

12/24 V Compatibility: Suitable for either voltage, with a one-metre, three-core cable and colour-coded connections for installation.
Weather Protection: IP68 protection against dust and water ingress, with a specified operating temperature range of –30°C to +50°C.

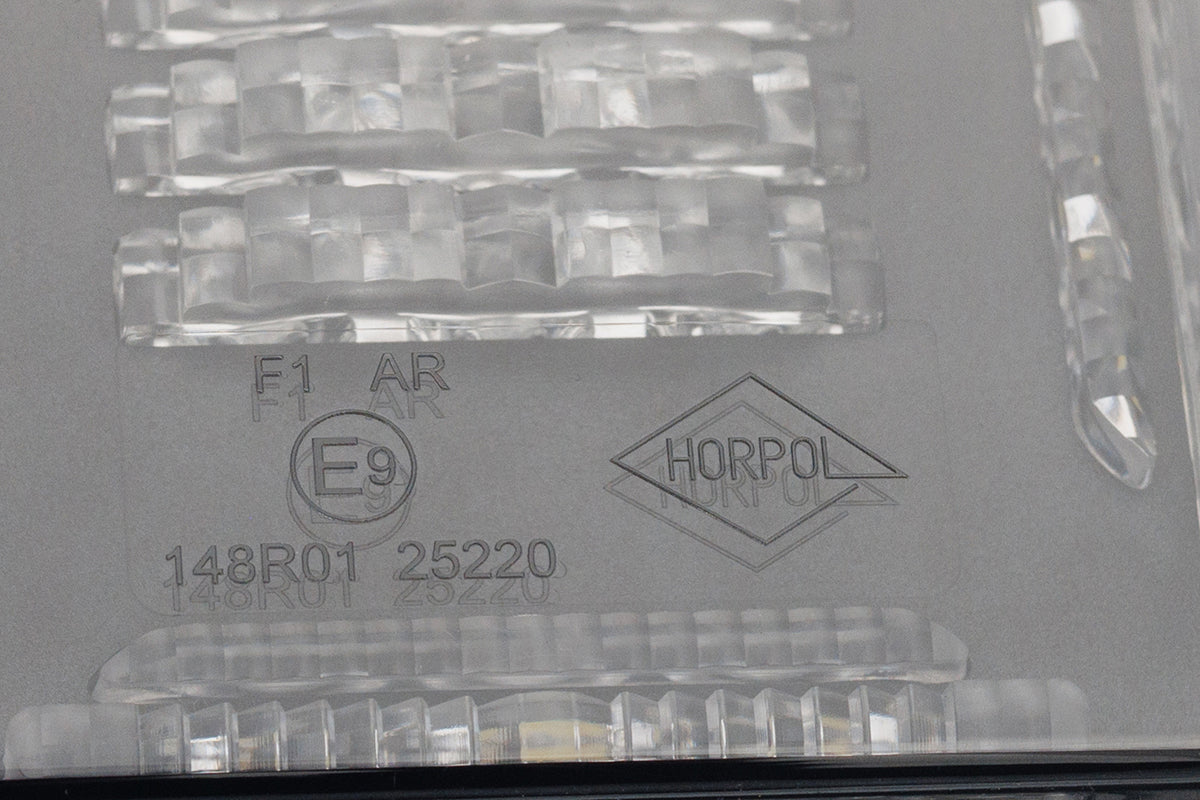

Approvals & Manufacture: Holds R148 and R10 approvals, including electromagnetic compatibility requirements. Designed and manufactured in Poland by HORPOL.
Specifications:
Model: LZD 2876
Range: CUBE
Light Group: HOR 164
Light Category: Multifunction Rear
LED Light: Yes
LED Quantity: 31 LEDs
Rear Fog Light: Yes
Reversing Light: Yes
Frame: Black
Lens: Lightly tinted
Mounting Side: Universal (left or right)
Mounting Orientation: Vertical only
Supply Voltage: 12 / 24 V
Fog Light Power: 3.3 / 3.8 W (12 V / 24 V)
Reverse Light Power: 3.3 / 3.8 W (12 V / 24 V)
Cable: 3 × 0.5 mm²
Cable Length: 1 m
Ingress Protection: IP68
Operating Temperature: –30°C to +50°C
Approvals: R148 and R10
Wiring Connections:
White: Earth / ground

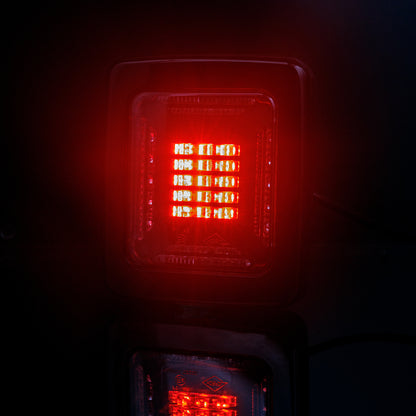

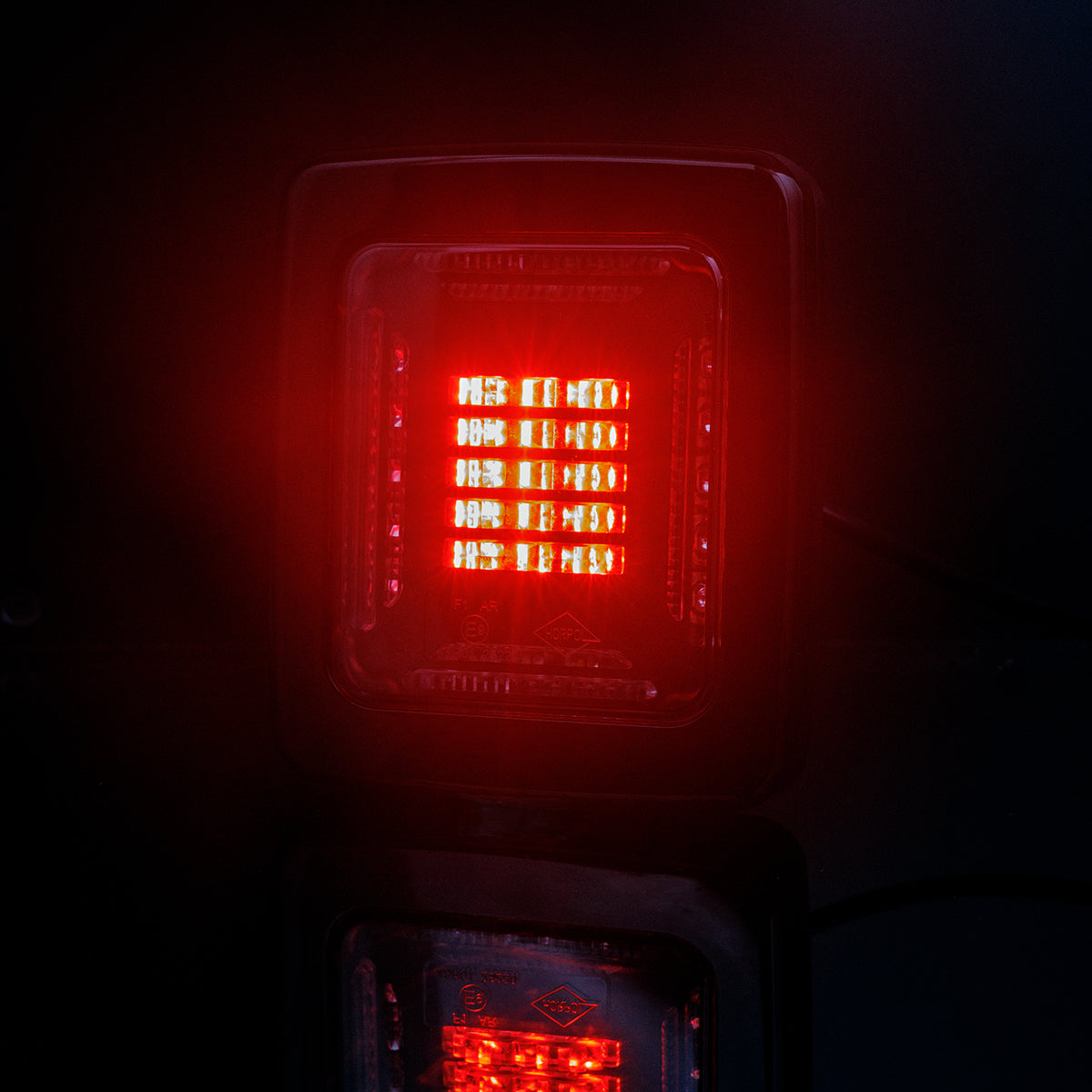

Red: Rear fog light

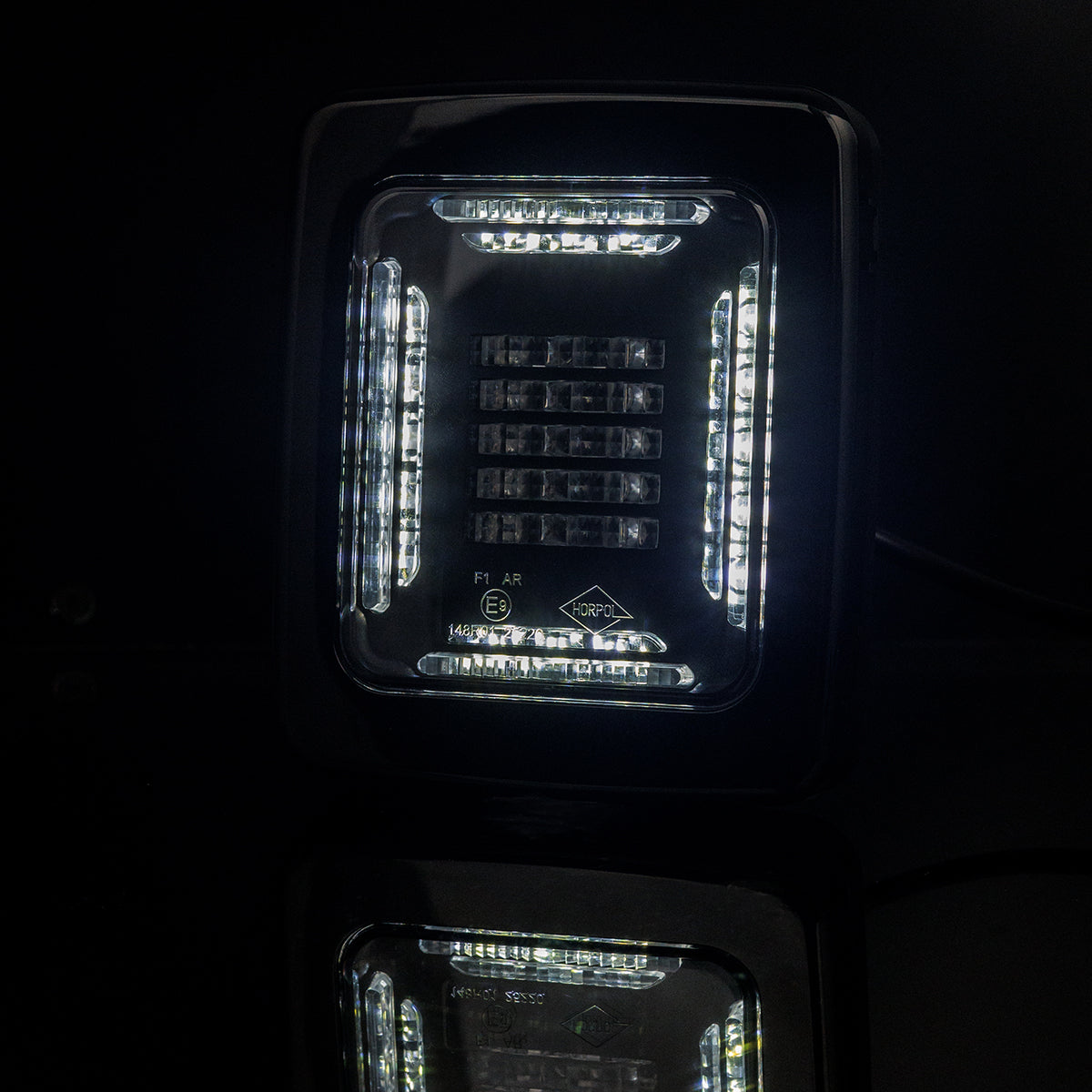

Blue: Reversing light
