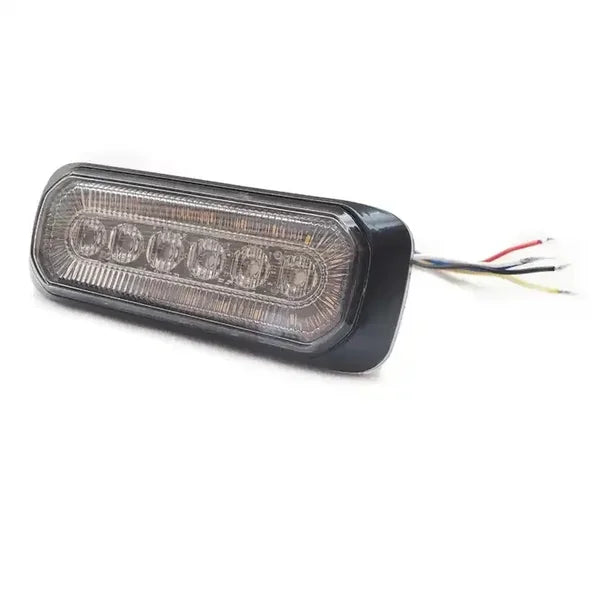

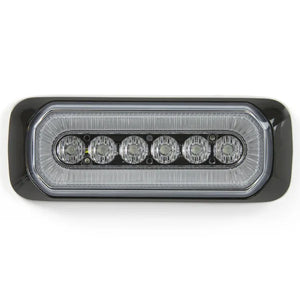

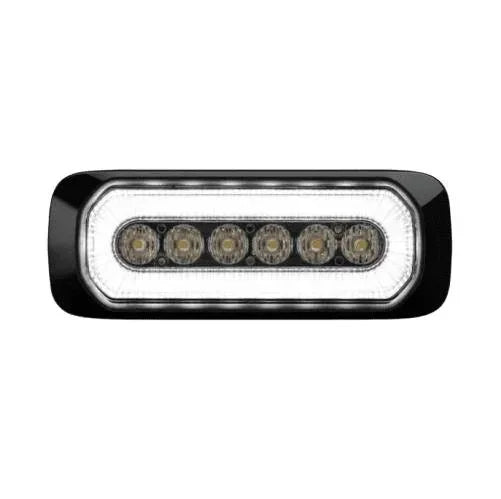

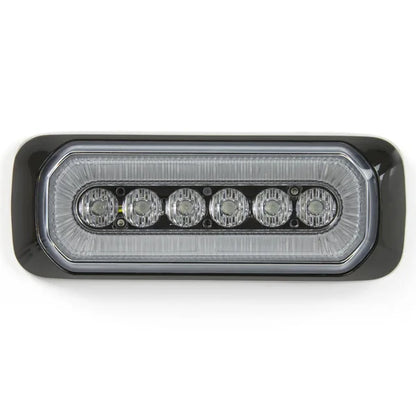

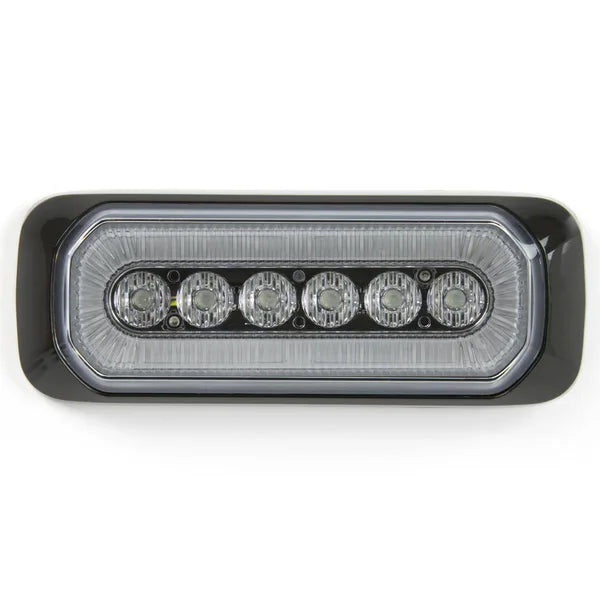

Dual Function LED Amber Warning Light With Halo Ring

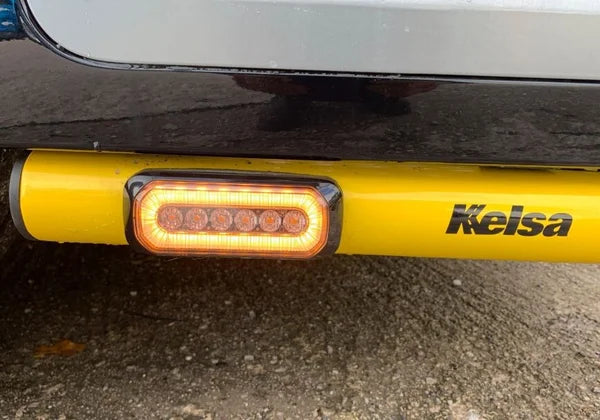

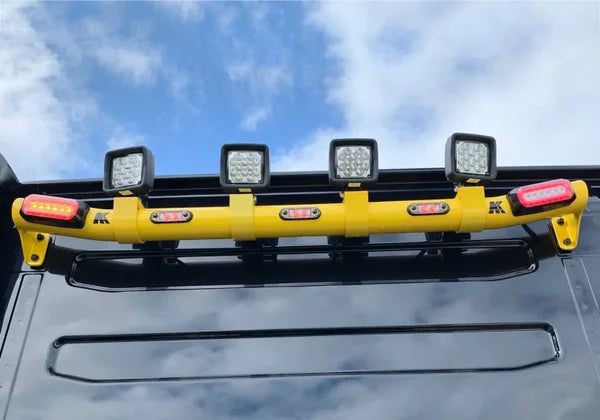

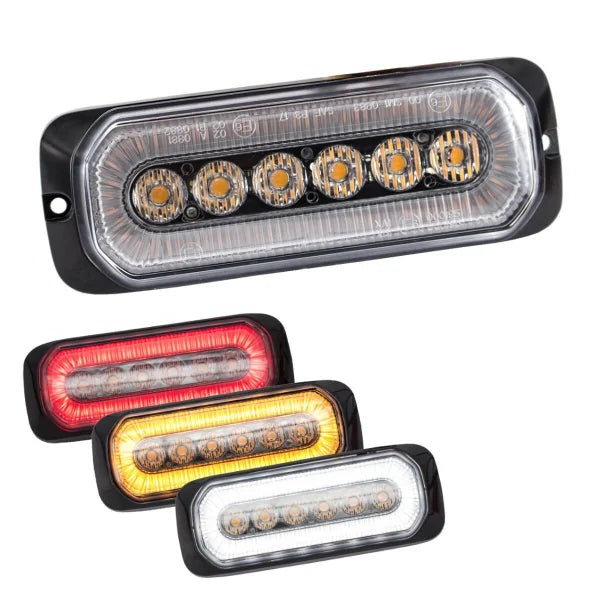

Halo Strobe LED warning lights are the ideal 2in1 solution for increasing safety and visibility of your vehicle with the choice of coloured Halo that ring around the outer lens of of the module.

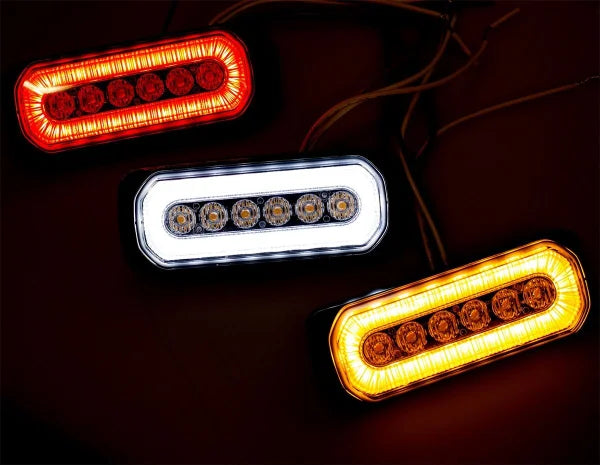

White: DRL/Front Position Marker.

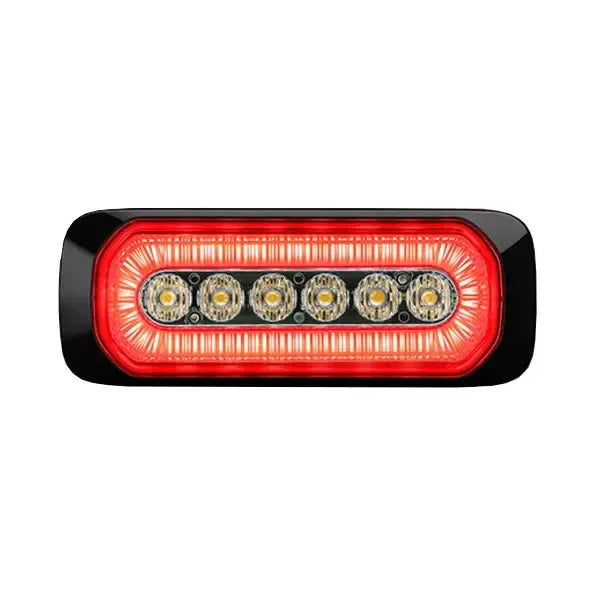

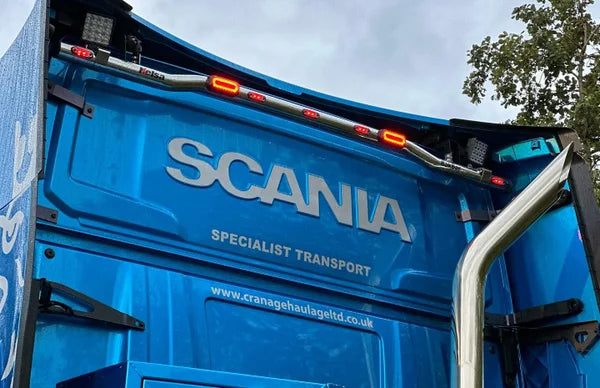

Red: Rear Tail Or Marker Light.

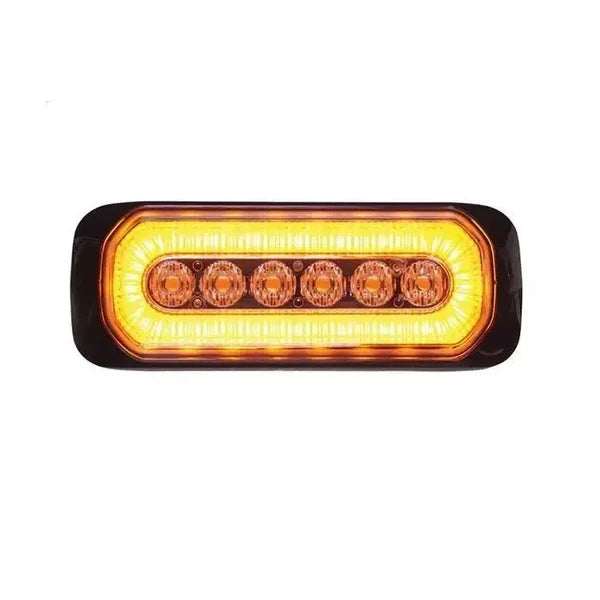

Amber: Position, Directional Indicator Or Marker Light.

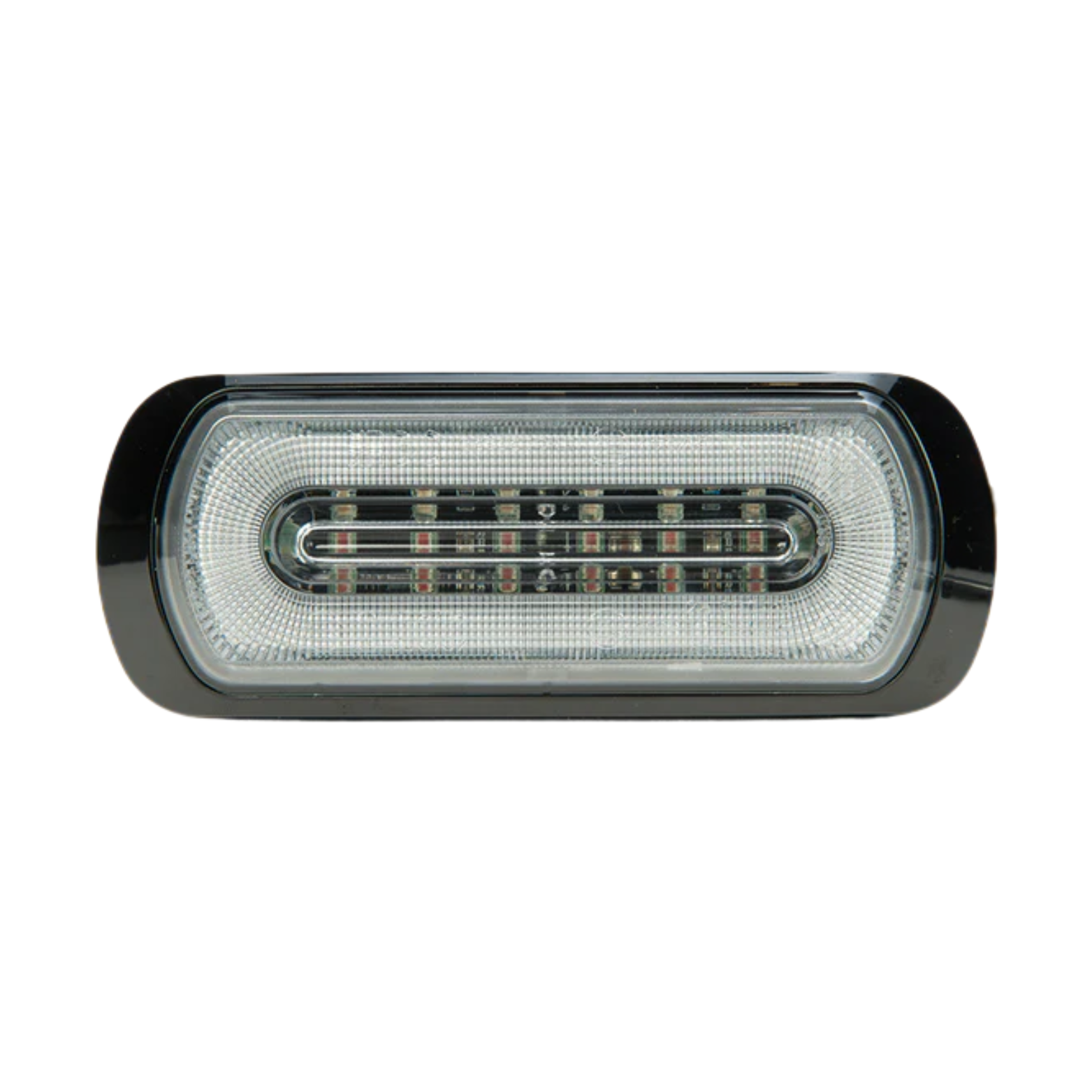

There are 18 x 0.5 watt white SMD LEDs around the outer edge of the lens for the DRL. Featuring 6 x 3 Watt Amber SMD LEDs in the center with multiple flashing patterns. Both functions are controlled by separate wires and work together.

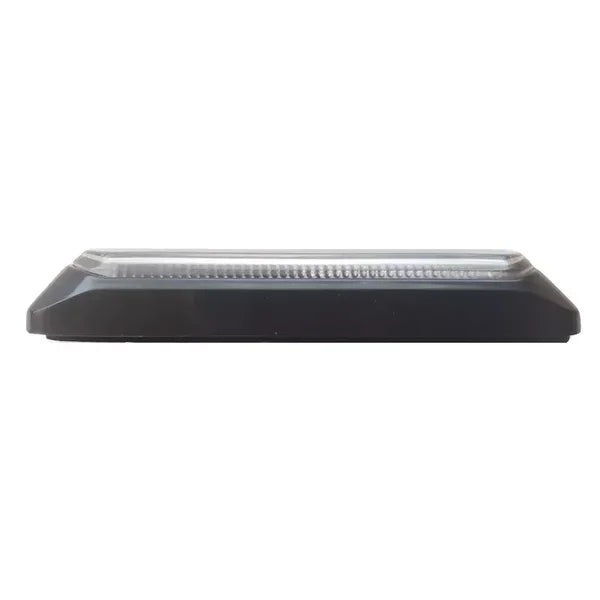

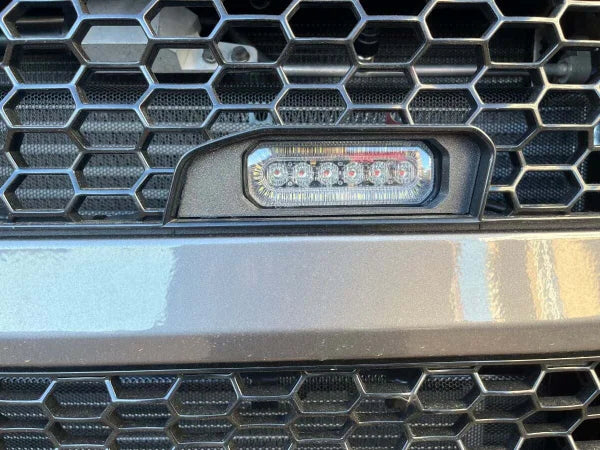

With a depth of only 19mm they are a compact and high performing LED module, ideal for minimising contact damage while still providing excellent warning light output. Screw/bolt mounting fixing and one hole for the cable to pass through the surface, optional 90° degree mounting brackets are available.

Features:

Dual voltage 12/24Vdc

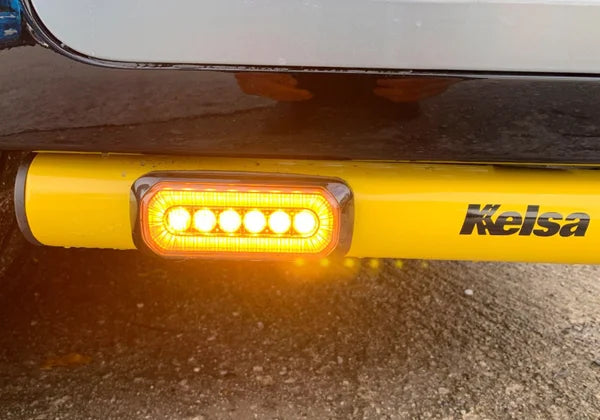

Daytime running light & LED Strobe light

One wire for White DRL input

One wire for Amber LED Strobe

Amber LED Strobe & White DRL can work individually or combined

Only 18mm Deep

6 x 3 Watt / 8 x 0.5 Watt SMD LEDs

14 User selectable flash patterns including steady burn.

8 units can be synchronised for simultaneous, or split flash patterns

Aluminium base for efficient heat dissipation and maximum durability

Memory to remember last selected flash pattern

Average current 12/24v: 1/0.5A

Fixing type: 2 point

Mounting type: Surface

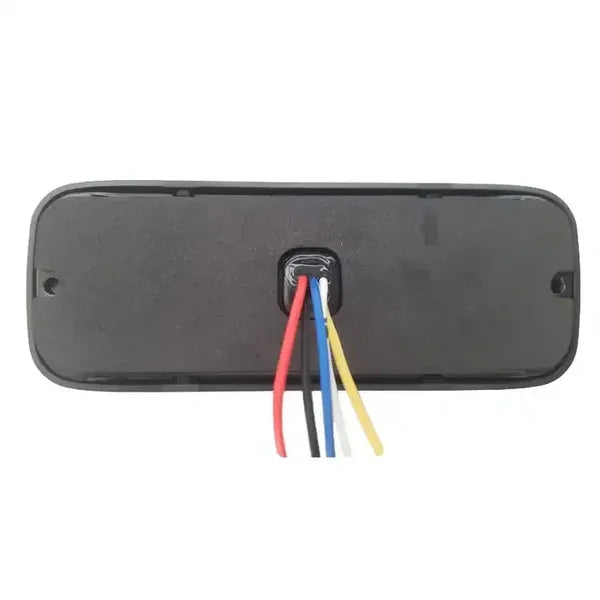

200mm of 4 core cable

Dimensions in mm: 128 L x 45 x 19 D

Weight: 140g

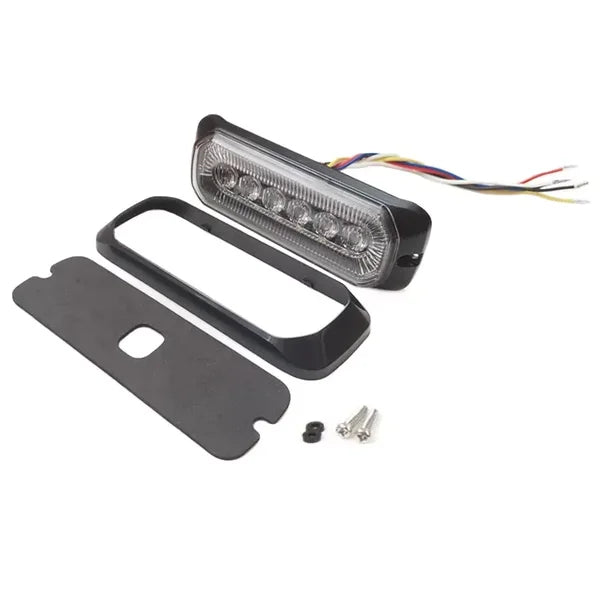

What's In The Box:
1 x 6LED Amber Warning Lamp With Special Red Outer Halo Ring

Screws and self adhesive pad

Owner's Manual

Approvals:

E9

ECE R65

ECE R87

ECE EMC R10

IP67

Warranty:

1 Year manufacturer warranty

Part Number:

LUMHB6-A/W

LUMHB6-A/R

LUMHB6-A/A
